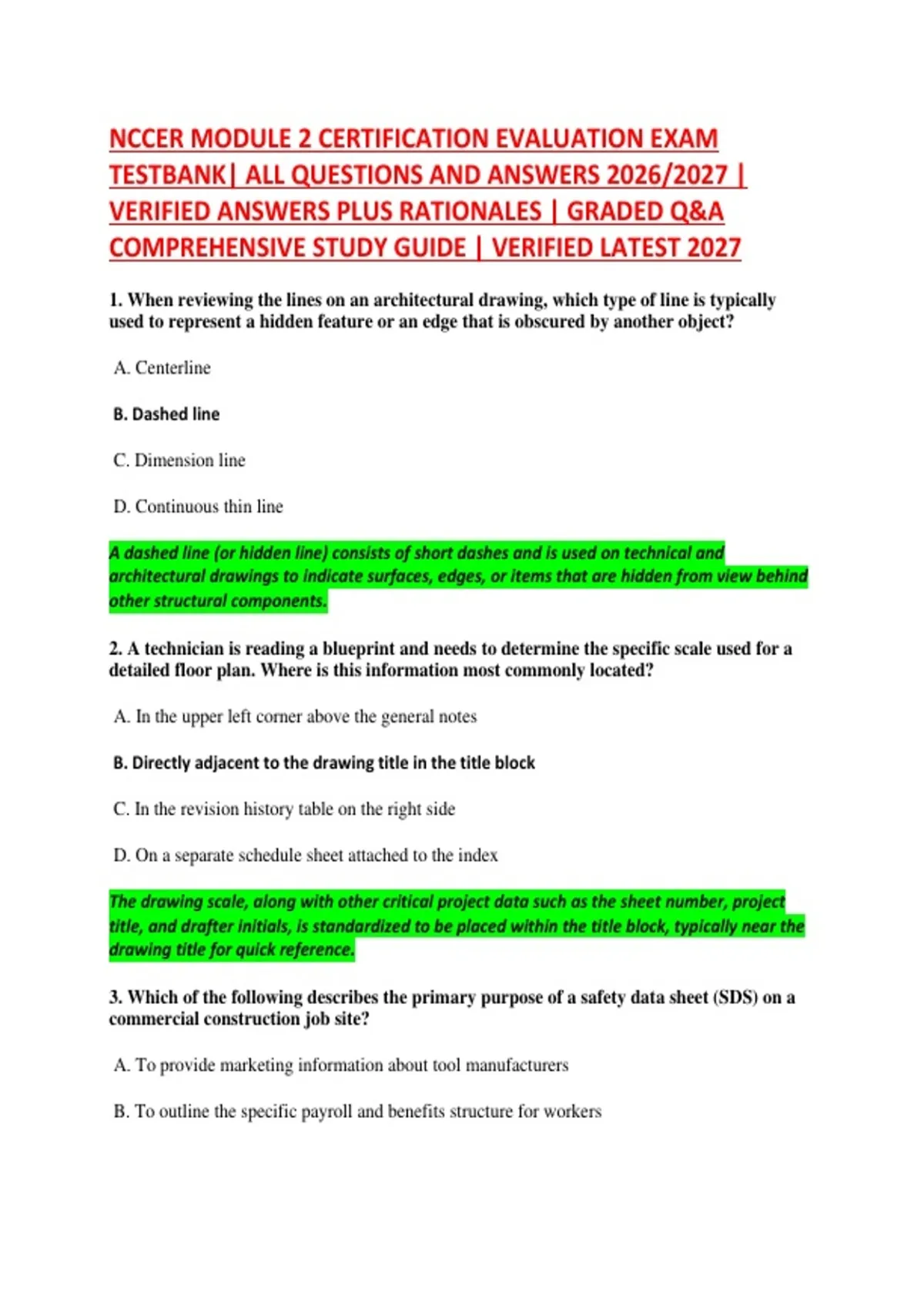

NCCER MODULE 2 CERTIFICATION EVALUATION EXAM
TESTBANK| ALL QUESTIONS AND ANSWERS 2026/2027 |
VERIFIED ANSWERS PLUS RATIONALES | GRADED Q&A
COMPREHENSIVE STUDY GUIDE | VERIFIED LATEST 2027
1. When reviewing the lines on an architectural drawing, which type of line is typically
used to represent a hidden feature or an edge that is obscured by another object?
A. Centerline
B. Dashed line
C. Dimension line
D. Continuous thin line
A dashed line (or hidden line) consists of short dashes and is used on technical and
architectural drawings to indicate surfaces, edges, or items that are hidden from view behind
other structural components.
2. A technician is reading a blueprint and needs to determine the specific scale used for a
detailed floor plan. Where is this information most commonly located?
A. In the upper left corner above the general notes
B. Directly adjacent to the drawing title in the title block
C. In the revision history table on the right side
D. On a separate schedule sheet attached to the index
The drawing scale, along with other critical project data such as the sheet number, project
title, and drafter initials, is standardized to be placed within the title block, typically near the
drawing title for quick reference.
3. Which of the following describes the primary purpose of a safety data sheet (SDS) on a
commercial construction job site?
A. To provide marketing information about tool manufacturers
B. To outline the specific payroll and benefits structure for workers
, C. To communicate detailed hazard, handling, and emergency response information for
chemical products
D. To establish the daily production quotas required by the project manager
Safety Data Sheets are federally mandated documents designed to provide comprehensive
physical, health, and environmental hazard information regarding chemical substances, along
with safe handling and emergency response procedures.
4. An apprentice notices that a ground-fault circuit interrupter (GFCI) outlet trips
immediately upon plugging in a heavy-duty portable saw. What is the most appropriate
initial troubleshooting step?
A. Bypass the GFCI using an ungrounded adapter plug
B. Inspect the power cord of the saw for cuts, exposed copper, or moisture
C. Replace the GFCI breaker with a standard non-GFCI breaker
D. Increase the amperage rating of the circuit breaker feeding the outlet
Immediate tripping of a GFCI usually indicates a ground fault caused by current leaking to
ground, which is frequently the result of damaged insulation, moisture, or internal shorts
within the connected tool's power cord.
5. When lifting a heavy, awkward object from the floor, which body mechanics principle
should be strictly followed to minimize lower back strain?
A. Keep your legs straight, bend exclusively at the waist, and jerk the load upward
B. Keep the load as far away from your chest as possible to maintain visibility
C. Bend at your knees, keep your back straight, hold the load close to your body, and lift with
your legs
D. Twist your torso rapidly while lifting to generate momentum
Lifting with the legs while keeping the back straight and the load close leverages the body's
strongest muscle groups and significantly reduces leverage forces exerted on the lumbar
spine.
6. Which type of hammer is specifically engineered and balanced for driving masonry nails
and chipping away excess mortar during bricklaying operations?
A. Claw hammer
,B. Ball-peen hammer
C. Bricklayer's (mason's) hammer
D. Mallet
A bricklayer's hammer features a heavy, square face for striking chisels or masonry nails and
a chisel-like peen specifically designed for scoring and cutting brick or block.
7. In the context of blueprint reading, what does the abbreviation "AFF" stand for when
establishing installation heights for fixtures and switches?
A. Above Finished Floor
B. Approved for Fabrication
C. Actual Field Fastener
D. Architectural Floor Finish
AFF stands for "Above Finished Floor," serving as the standard baseline vertical dimension
used by tradespeople to position electrical boxes, plumbing fixtures, and cabinetry accurately.
8. A pipe fitter is measuring a run of steel pipe using center-to-center dimensions. To
calculate the correct cutting length when using threaded fittings, what must be subtracted
from the total center-to-center measurement?
A. The total wall thickness of both pipes
B. The thread makeup allowance (take-out) for each fitting
C. The outside diameter of the pipe
D. The length of the pipe hangers
When cutting pipe for threaded connections, the installer must account for the distance the
pipe extends into the fitting threads, commonly known as the take-out or thread makeup
allowance.
9. Which of the following hand tools should be selected when precision striking is required
on a cold chisel without risking chipping the hammer face?
A. Curved claw hammer
B. Ball-peen hammer with a hardened steel face
, C. Soft-faced mallet made of rubber or brass
D. Framing hammer with a milled face
Ball-peen hammers are forged with a specially hardened striking face designed specifically for
use with metal-working tools like punches and cold chisels without deforming or chipping.
10. When securing a ladder for safe access to an elevated work platform, what is the
required horizontal distance of the ladder base from the vertical support structure relative
to the working length of the ladder?
A. One-quarter (1/4) of the working length
B. One-half (1/2) of the working length
C. Equal to the full working length
D. One-tenth (1/10) of the working length
OSHA safety standards require portable ladders to be set up at an angle where the horizontal
distance from the base to the vertical support is one-quarter of the working length of the
ladder.
11. What is the primary function of a flux when performing soft soldering on copper tubing
joints?
A. To increase the electrical conductivity of the joint
B. To act as a structural filler metal inside the joint
C. To clean existing oxides from the metal surfaces and prevent new oxidation during heating
D. To cool the joint down rapidly after the solder solidifies
Flux is a chemical cleaning agent that removes surface oxides from copper pipes and fittings
when heated, allowing molten solder to flow evenly via capillary action.
12. An electrician is working in a commercial panel and encounters an unfamiliar wiring
diagram symbol. Which section of the drawing set should be consulted first to decode the
symbol?
A. The structural framing plans
B. The symbol legend and abbreviation list
