Exam (elaborations)

NEIEP 600 Final Examination Study Guide (2026/2027)

0.0
(0 reviews)
- sold
8 pages
2026/2027 Written for academic year
Institution NEIEPE 600
Course NEIEPE 600
Document preview thumbnail
Preview 2 out of 8 pages

Master the fundamentals of elevator electronics and pass your exam with confidence. This comprehensive NEIEP 600 study guide covers core exam topics including AC/DC power supply conversion, diodes, rectifiers, SCRs, op-amps, binary logic gates, and circuit fundamentals. Designed for quick review and maximum retention, it features concise, high-yield Q&As covering essential concepts—from ripple voltage and transformer functions to practical electrical troubleshooting techniques. Perfect for apprentices and elevator technicians preparing for the NEIEP 600 final exam.

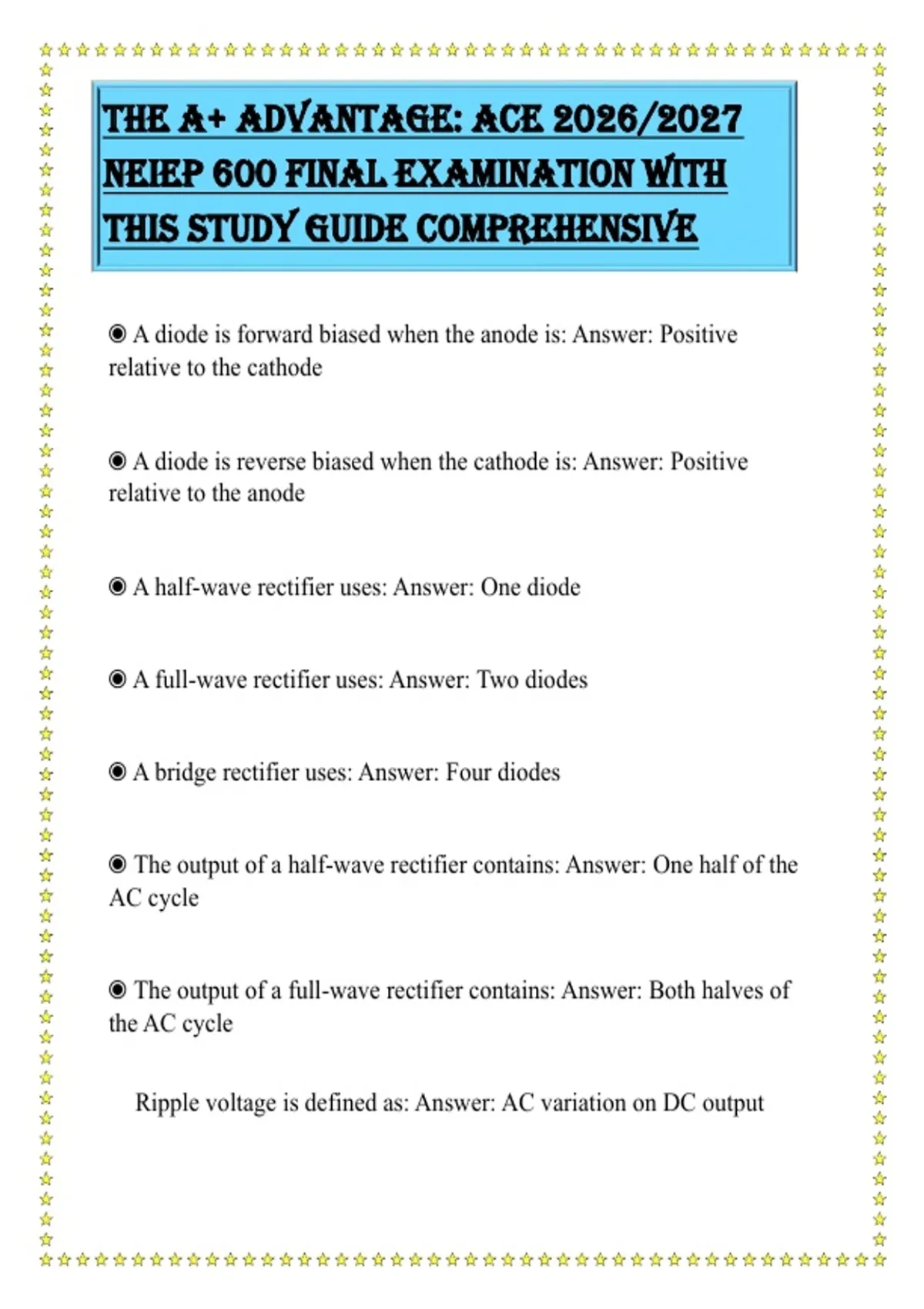

Content preview

The a+ advanTage: ace 2026/2027
neIeP 600 fInal examInaTIon wITh
ThIs sTudy guIde comPrehensIve
q&a
◉ A diode is forward biased when the anode is: Answer: Positive
relative to the cathode


◉ A diode is reverse biased when the cathode is: Answer: Positive
relative to the anode


◉ A half-wave rectifier uses: Answer: One diode


◉ A full-wave rectifier uses: Answer: Two diodes


◉ A bridge rectifier uses: Answer: Four diodes


◉ The output of a half-wave rectifier contains: Answer: One half of the
AC cycle


◉ The output of a full-wave rectifier contains: Answer: Both halves of
the AC cycle

Ripple voltage is defined as: Answer: AC variation on DC output

, ◉

◉ Filtering is used to: Answer: Reduce ripple voltage


◉ Increasing filter capacitance will: Answer: Reduce ripple


◉ A transformer is used to: Answer: Change voltage levels


◉ A power supply converts: Answer: AC to DC


◉ A Zener diode is primarily used for: Answer: Voltage regulation


◉ A Zener diode operates in: Answer: Reverse bias


◉ If a Zener diode fails open, output voltage will: Answer: Rise toward
input voltage


◉ SCR stands for: Answer: Silicon Controlled Rectifier (double check
this)


◉ An SCR requires what to turn on: Answer: Gate trigger and forward
bias

Once turned on, an SCR remains on until: Answer: remove holding
current from diode

Document information

Uploaded on
September 9, 2026
Number of pages
8
Written in
2026/2027
Type
Exam (elaborations)
Contains
Questions & answers
