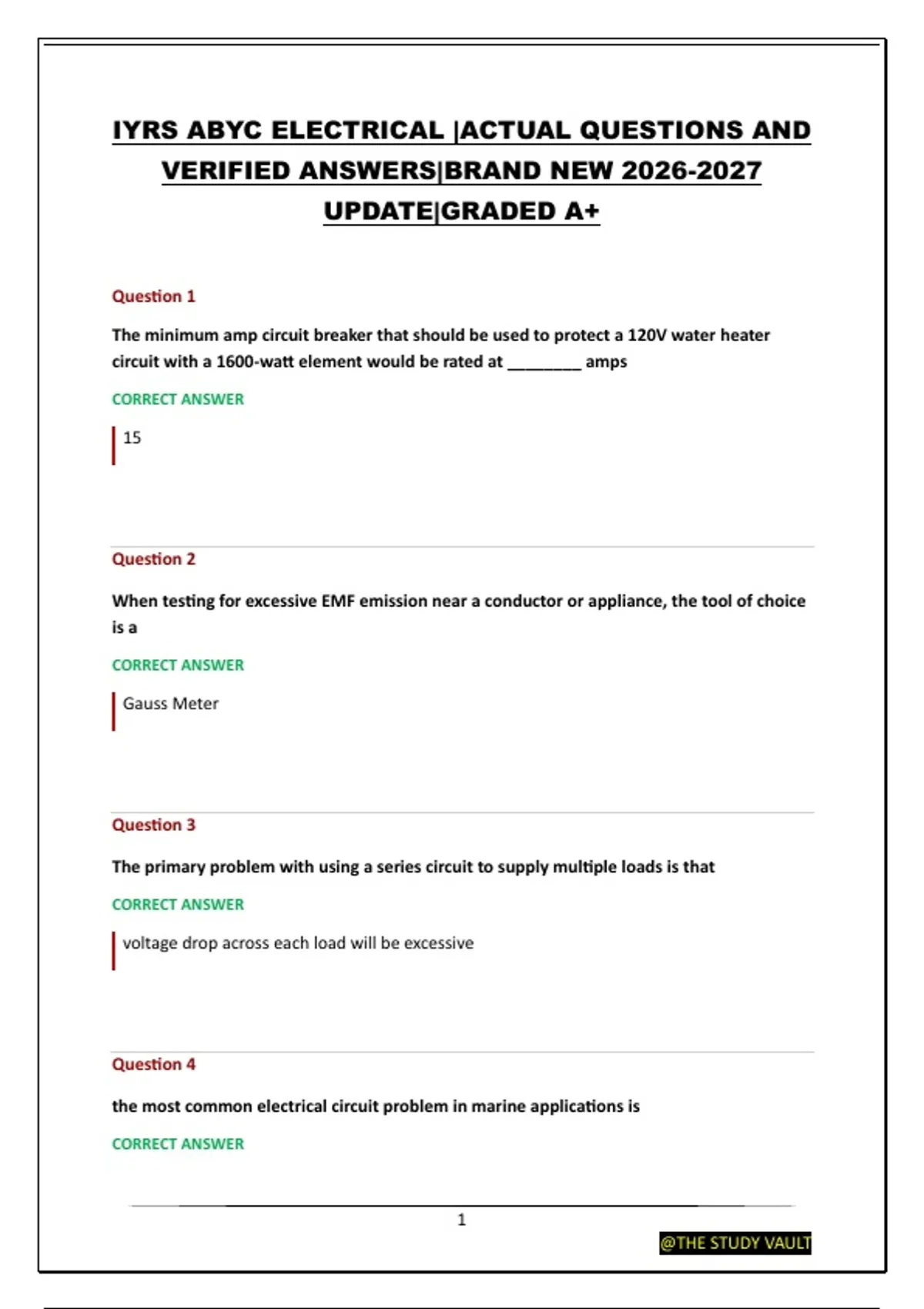

IYRS ABYC ELECTRICAL |ACTUAL QUESTIONS AND
VERIFIED ANSWERS|BRAND NEW 2026-2027
UPDATE|GRADED A+
Question 1
The minimum amp circuit breaker that should be used to protect a 120V water heater
circuit with a 1600-watt element would be rated at ________ amps
CORRECT ANSWER
15
Question 2
When testing for excessive EMF emission near a conductor or appliance, the tool of choice
is a
CORRECT ANSWER
Gauss Meter
Question 3
The primary problem with using a series circuit to supply multiple loads is that
CORRECT ANSWER
voltage drop across each load will be excessive
Question 4
the most common electrical circuit problem in marine applications is
CORRECT ANSWER
1
@THE STUDY VAULT
, unwanted open
Question 5
the primary by-product of excessive electrical resistance is
CORRECT ANSWER
heat
Question 6
the tool of choice today for tracing shorted and open circuits is the:
CORRECT ANSWER
TDR
Question 7
What material is recommended for clamping conductors over engines and moving
machinery according to the ABYC
CORRECT ANSWER
Metal
Question 8
according to ABYC acceptable minimum clearance for routing wire near a dry exhaust
section is
CORRECT ANSWER
9 inches (225 mm)
2
@THE STUDY VAULT
, Question 9
The maximum number of terminals allowed to be attached to any one terminal stud based
on ABYC is
CORRECT ANSWER
4
Question 10
How much current should flow through the
DC grounding conductor in a 25-amp DC motor circuit
CORRECT ANSWER
0 amps
Question 11
conductors of #10 AWG and larger shall be permitted to be connected in parallel ______
CORRECT ANSWER
Where the ampacity of each individual conductor is sufficient to carry the entire load
current shared by the parallel conductors
Question 12
A technician is installing the cable run from the batteries to the main DC panelboard on a
boat aspart of a refit. The boat has a 12-volt system, and the distance from the panel to
the batteries is 15 ft (approximately 3 m).The maximum current draw from the panel is
calculated at 90 amps.What gauge cable should be used at a minimum to maintain
Standards compliance?
CORRECT ANSWER
3
@THE STUDY VAULT
