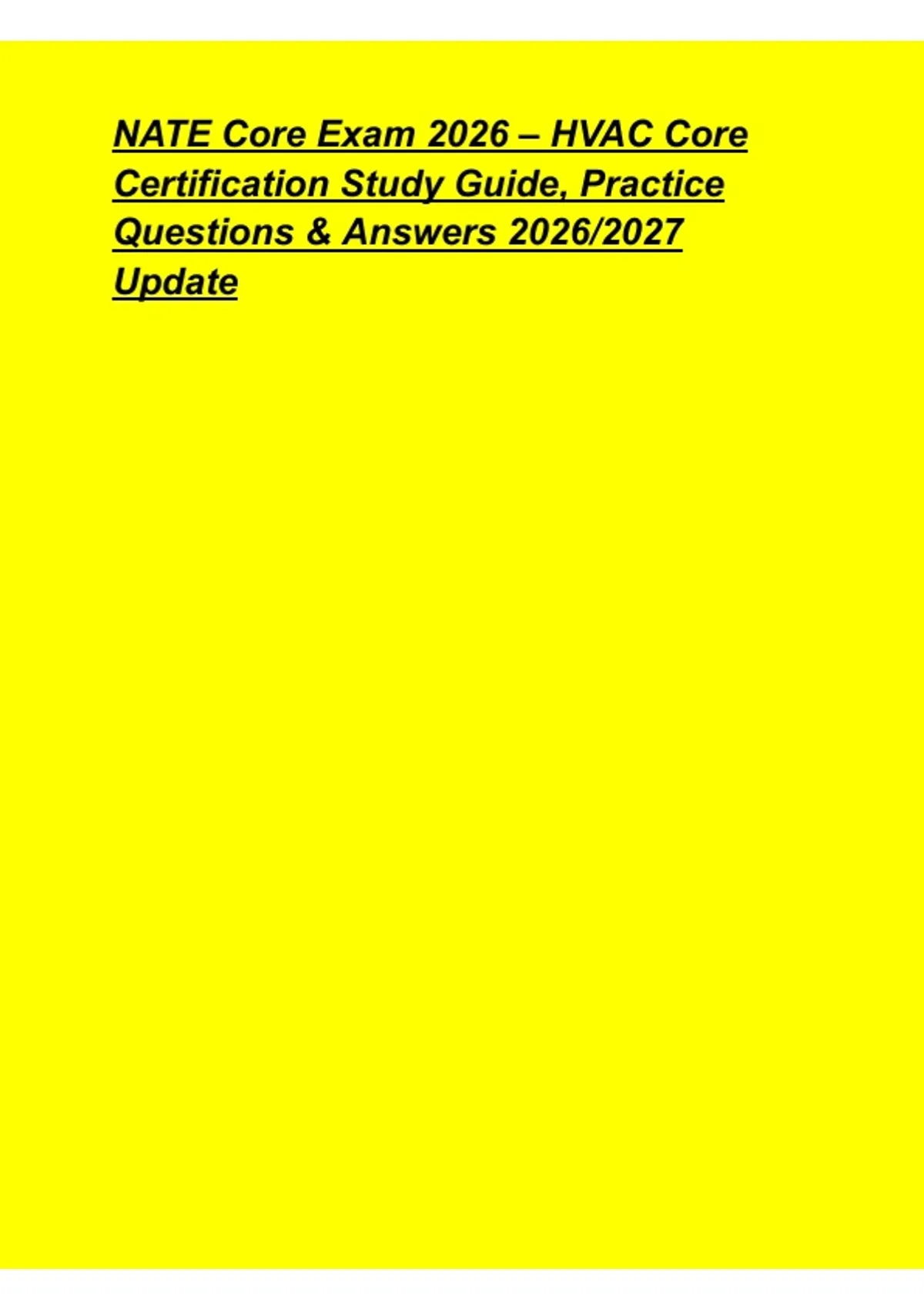

NATE Core Exam 2026 – HVAC Core
Certification Study Guide, Practice
Questions & Answers 2026/2027
Update
NATE Core Exam
NATE2026
Core–
Exam
NATE
HVAC
2026
Core
Core
–
Exam
Certification
HVAC2026Core
–Study
Certification
HVAC Guide,
CoreStudy
Practice
Certification
Guide,
Questions
Study
Practice
Guide,
& Answers
Questions
Practice
2026_2027
& Answers
Questions
Update
2026_2027
& Answers
(1).pdf
Update
2026_2027
(1).pdf
Update (1).pdf
,Nate core exam.pdf Nate core exam.pdf Nate core exam.pdf
What are the five basic components to any schematic?
1. A power supply
2. A path for the power
3. A load or component that operates from the power.
4. A switch or component that interrupts the power to the load.
5. A legend or key that explains what the various symbols and abbreviations used in the
schematic mean.
What are the three basic types of wiring diagrams used in the HVACR trade?
1. The ladder diagram
2. The pictorial diagram
3. The installation diagram
Nate core exam.pdf Nate core exam.pdf Nate core exam.pdf
,Nate core exam.pdf Nate core exam.pdf Nate core exam.pdf
Describe the characteristics of a ladder diagram
1. Provides the most helpful information for electrical troubleshooting
2.The intention of the overall schematic is to show how the circuit functions not how it
actually looks.
Nate core exam.pdf Nate core exam.pdf Nate core exam.pdf
, Nate core exam.pdf Nate core exam.pdf Nate core exam.pdf
Describe the characteristics of a pictorial diagram
1. Usually includes drawings that more closely resemble the components themselves rather
than the symbols.
2. Provides the best indication of the actual positions of the components in the equipment or
control panel.
Describe the characteristics of an installation diagram
1. Used primarily By the person installing equipment
2. It normally only shows what the terminal board connections are and may or may not
include any internal wiring of the unit
3. Field wiring Generally represented as Dashed lines.
4. Thicker lines represent line voltage wiring(120/240 V)
5. Thin lines represent low-voltage control wiring
Nate core exam.pdf Nate core exam.pdf Nate core exam.pdf
