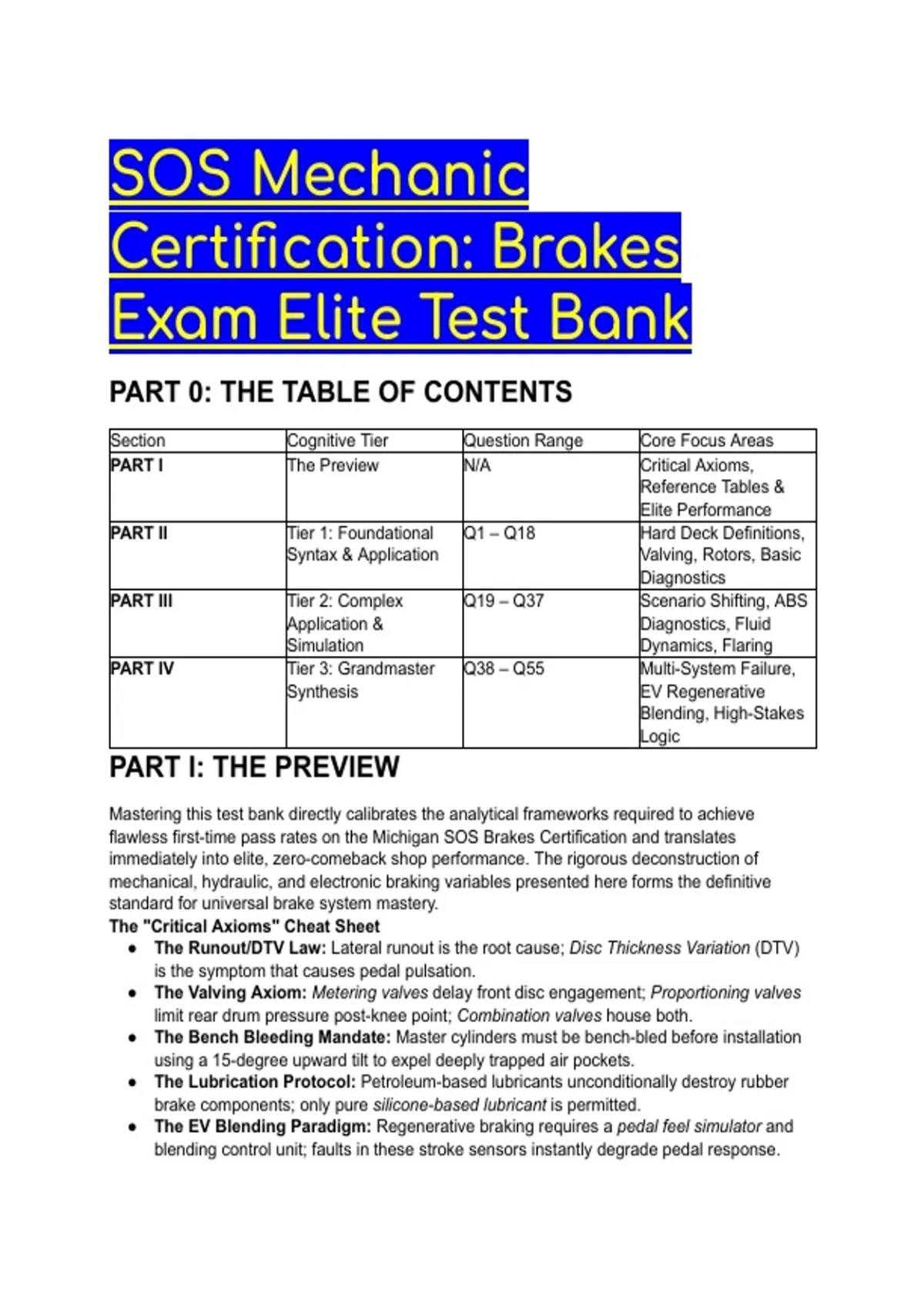

SOS Mechanic
Certification: Brakes
Exam Elite Test Bank
PART 0: THE TABLE OF CONTENTS
Section Cognitive Tier Question Range Core Focus Areas
PART I The Preview N/A Critical Axioms,
Reference Tables &
Elite Performance
PART II Tier 1: Foundational Q1 – Q18 Hard Deck Definitions,
Syntax & Application Valving, Rotors, Basic
Diagnostics
PART III Tier 2: Complex Q19 – Q37 Scenario Shifting, ABS
Application & Diagnostics, Fluid
Simulation Dynamics, Flaring
PART IV Tier 3: Grandmaster Q38 – Q55 Multi-System Failure,
Synthesis EV Regenerative
Blending, High-Stakes
Logic
PART I: THE PREVIEW
Mastering this test bank directly calibrates the analytical frameworks required to achieve
flawless first-time pass rates on the Michigan SOS Brakes Certification and translates
immediately into elite, zero-comeback shop performance. The rigorous deconstruction of
mechanical, hydraulic, and electronic braking variables presented here forms the definitive
standard for universal brake system mastery.
The "Critical Axioms" Cheat Sheet
● The Runout/DTV Law: Lateral runout is the root cause; Disc Thickness Variation (DTV)
is the symptom that causes pedal pulsation.
● The Valving Axiom: Metering valves delay front disc engagement; Proportioning valves
limit rear drum pressure post-knee point; Combination valves house both.
● The Bench Bleeding Mandate: Master cylinders must be bench-bled before installation
using a 15-degree upward tilt to expel deeply trapped air pockets.
● The Lubrication Protocol: Petroleum-based lubricants unconditionally destroy rubber
brake components; only pure silicone-based lubricant is permitted.
● The EV Blending Paradigm: Regenerative braking requires a pedal feel simulator and
blending control unit; faults in these stroke sensors instantly degrade pedal response.
,Specification Tolerance / Limit Primary Symptom if Exceeded
Lateral Runout 0.001" - 0.002" Eventual DTV formation
Disc Thickness Variation 0.0005" Brake pedal pulsation
(DTV)
Drum Discard Diameter 0.060" - 0.120" over nominal Brake fade, structural failure
ABS Sensor Air Gap Varies by OEM Erratic or false ABS activation
PART II: THE ELITE TEST BANK
Tier 1: Foundational Syntax & Application
Q1: A technician is preparing to test the vacuum power brake booster on a vehicle equipped
with a conventional vacuum assist system. The technician pumps the brake pedal several times
with the engine off, holds steady pressure on the pedal, and then starts the engine. Based on
standard diagnostic procedures, what is the MOST LOGICAL outcome if the system is
functioning properly? A) The brake pedal will become extremely hard and push back against the
technician's foot. B) The brake pedal will drop to the floorboard and require immediate manual
pumping. C) The brake pedal will drop slightly and then remain firm under the technician's foot.
D) The brake pedal reserve distance will remain completely unchanged.
● Answer: C (The brake pedal will drop slightly and then remain firm under the technician's
foot.)
● Distractor Analysis:
○ A is incorrect: A hard pedal that pushes back indicates a failure in the vacuum
supply or a ruptured booster diaphragm.
○ B is incorrect: A pedal dropping entirely to the floorboard indicates an internal
hydraulic leak in the master cylinder, not a booster function.
○ D is incorrect: If the pedal height remains entirely unchanged, the booster is not
providing any vacuum assist.
The Mentor's Analysis: The standard vacuum booster test confirms the integrity of the
diaphragm and check valve. When the engine starts, manifold vacuum restores the pressure
differential, multiplying the mechanical force and causing the pedal to drop. By utilizing this
baseline test, you bypass the common trap of misdiagnosing a hard pedal as a hydraulic issue.
Professional Intuition: Always separate hydraulic failures (spongy/dropping) from power
assist failures (hard pedal) before touching a wrench.
Q2: A vehicle equipped with a front disc/rear drum brake system is experiencing a severe
nose-dive condition during light to moderate braking. Based on the principles of hydraulic
valving, which component failure is the MOST LIKELY cause? A) A defective proportioning
valve allowing excess pressure to the rear wheels. B) A seized pressure differential switch
blocking front circuit flow. C) A defective metering valve that is stuck open or failing to hold off
pressure. D) A residual check valve in the master cylinder that has collapsed.
● Answer: C (A defective metering valve that is stuck open or failing to hold off pressure.)
● Distractor Analysis:
○ A is incorrect: The proportioning valve restricts rear brake pressure during hard
stops; its failure causes rear lockup, not front nose-dive.
○ B is incorrect: The pressure differential switch merely illuminates the warning light; it
does not proportion flow.
○ D is incorrect: A residual check valve keeps slight pressure in a drum brake system;
its failure causes a spongy pedal.
, The Mentor's Analysis: The metering valve holds off hydraulic pressure to the front discs until
the rear drum shoe springs are overcome. When facing premature front brake application, the
immediate priority is confirming metering valve operation. By utilizing pressure gauges on the
front circuit, you bypass the common trap of replacing front calipers. Professional Intuition:
Metering equals timing (front discs); Proportioning equals pressure limiting (rear drums).
Q3: When measuring the components of a rear drum brake system, the technician notes that
the internal diameter of the drum exceeds the maximum allowable specification stamped on the
casting (0.060 inch over nominal). Based on the principles of thermal mass, which action is the
FIRST requirement? A) Machine the drum to remove the ridge and install oversized brake
shoes. B) Install shims behind the backing plate to compensate for the expanded diameter. C)
Discard the brake drum and replace it with a new unit. D) Reinstall the drum if the surface finish
is less than 30 micro-inches.
● Answer: C (Discard the brake drum and replace it with a new unit.)
● Distractor Analysis:
○ A is incorrect: Machining a drum beyond its discard specification compromises
structural integrity and heat dissipation, risking catastrophic failure.
○ B is incorrect: Shimming backing plates does not correct drum diameter expansion
and violates safety protocols.
○ D is incorrect: Surface finish is irrelevant if the physical discard diameter is
exceeded.
The Mentor's Analysis: Brake drums are stamped with a maximum discard diameter to ensure
adequate thermal mass. When facing a measurement beyond this limit, the immediate priority is
component replacement. By utilizing micrometers correctly, you bypass the common trap of
returning a heat-fade-prone drum to service. Professional Intuition: Never machine a rotor or
drum beyond its discard specification; thermal mass is non-negotiable.
Q4: A technician is diagnosing a pulsation felt strictly in the steering wheel when the brakes are
applied at highway speeds. The brake pedal itself does not heavily pulsate. Based on dynamic
vehicle weight transfer, which component condition is the MOST LIKELY culprit? A) Warped
rear brake rotors. B) Out-of-round rear brake drums. C) Excessive front rotor lateral runout
causing DTV. D) A separated tire tread on the right rear wheel.
● Answer: C (Excessive front rotor lateral runout causing DTV.)
● Distractor Analysis:
○ A is incorrect: Warped rear rotors transmit vibration through the chassis, felt in the
seat, not the steering wheel.
○ B is incorrect: Out-of-round rear drums cause a pulsation felt in the seat.
○ D is incorrect: Tire separation causes vibration at all times, not just during brake
application.
The Mentor's Analysis: Steering wheel pulsation during braking is a direct symptom of front-end
geometry reacting to uneven braking torque. When facing this symptom, the immediate priority
is measuring front rotor lateral runout. By utilizing accurate isolation techniques, you bypass the
common trap of replacing rear components for a front-end fault. Professional Intuition: Steering
wheel shake equals front brakes; seat-of-the-pants shake equals rear brakes.
Q5: A mechanic is preparing to perform a brake job on a vehicle equipped with floating calipers.
During caliper reassembly, the slide pins must be lubricated. Based on the principles of rubber
compatibility, which material is the MOST APPROPRIATE? A) Petroleum-based wheel bearing
grease. B) High-temperature silicone-based brake lubricant. C) Standard lithium white grease.
D) Anti-seize compound containing copper particulates.
● Answer: B (High-temperature silicone-based brake lubricant.)
