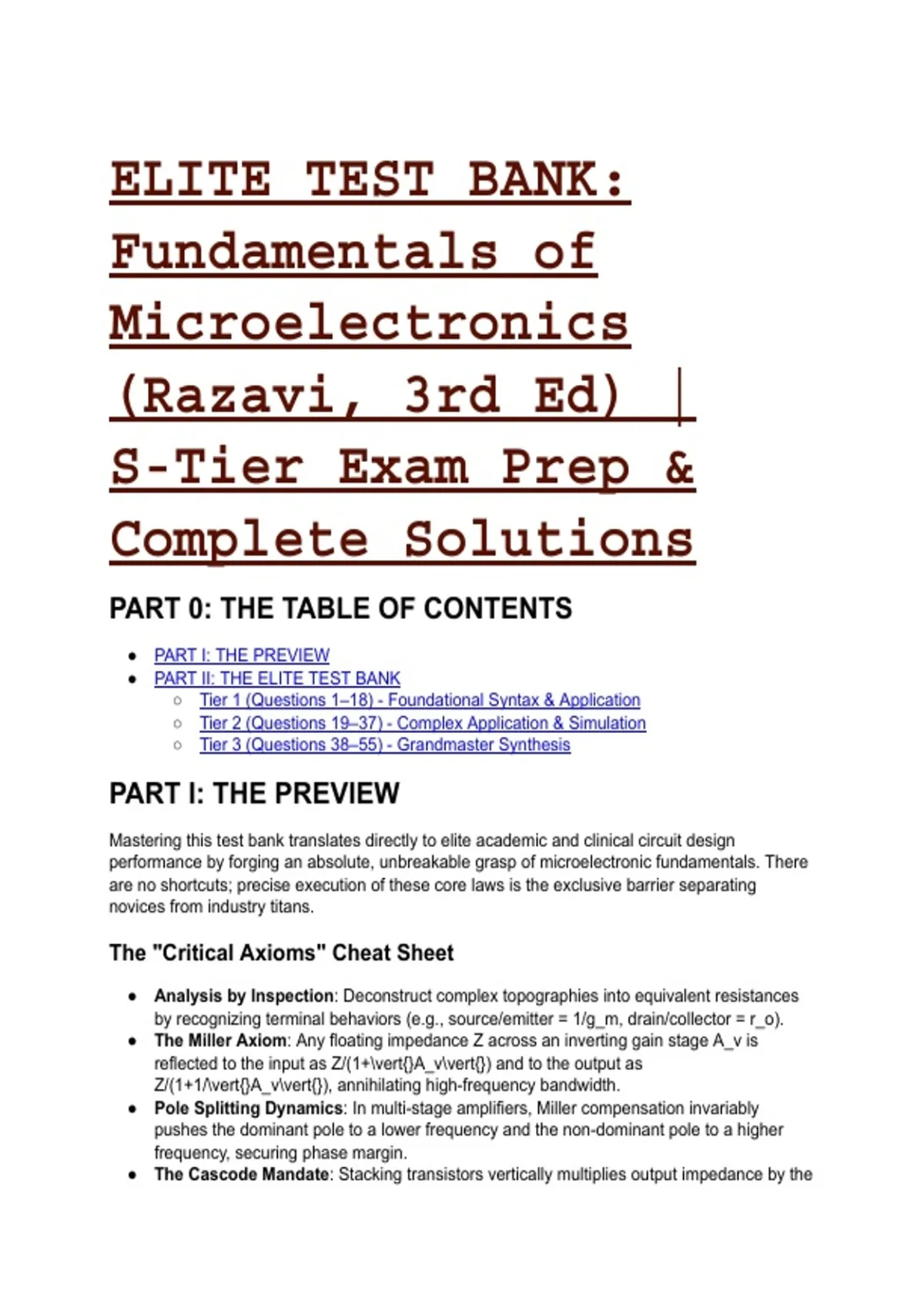

ELITE TEST BANK:
Fundamentals of
Microelectronics
(Razavi, 3rd Ed) |
S-Tier Exam Prep &
Complete Solutions
PART 0: THE TABLE OF CONTENTS
● PART I: THE PREVIEW
● PART II: THE ELITE TEST BANK
○ Tier 1 (Questions 1–18) - Foundational Syntax & Application
○ Tier 2 (Questions 19–37) - Complex Application & Simulation
○ Tier 3 (Questions 38–55) - Grandmaster Synthesis
PART I: THE PREVIEW
Mastering this test bank translates directly to elite academic and clinical circuit design
performance by forging an absolute, unbreakable grasp of microelectronic fundamentals. There
are no shortcuts; precise execution of these core laws is the exclusive barrier separating
novices from industry titans.
The "Critical Axioms" Cheat Sheet
● Analysis by Inspection: Deconstruct complex topographies into equivalent resistances
by recognizing terminal behaviors (e.g., source/emitter = 1/g_m, drain/collector = r_o).
● The Miller Axiom: Any floating impedance Z across an inverting gain stage A_v is
reflected to the input as Z/(1+\vert{}A_v\vert{}) and to the output as
Z/(1+1/\vert{}A_v\vert{}), annihilating high-frequency bandwidth.
● Pole Splitting Dynamics: In multi-stage amplifiers, Miller compensation invariably
pushes the dominant pole to a lower frequency and the non-dominant pole to a higher
frequency, securing phase margin.
● The Cascode Mandate: Stacking transistors vertically multiplies output impedance by the
, intrinsic gain (g_m r_o) of the cascode device, acting as a force multiplier for overall
voltage gain at the direct expense of voltage headroom.
Core Parameter Fundamental Equation Primary Application
Law of Mass Action np = n_i^2 Determines minority carrier
concentration independent of
doping.
Einstein Relation D/\mu = kT/q Links diffusion and drift
transport mechanisms.
Transconductance (g_m) \mu C_{ox} (W/L) Dictates small-signal gain in
(V_{GS}-V_{TH}) saturation.
Nulling Resistor (R_z) 1/g_{m2} Cancels the RHP zero in
Miller-compensated amplifiers.
PART II: THE ELITE TEST BANK
Tier 1 (Questions 1–18) - Foundational Syntax & Application
Q1: An intrinsic silicon sample is uniformly doped with phosphorus at N_D = 5 \times 10^{16}
\text{ cm}^{-3} at T = 300 \text{ K}. Assuming the intrinsic carrier concentration n_i = 1.08 \times
10^{10} \text{ cm}^{-3}, which calculation is the MOST ACCURATE representation of the
minority carrier concentration? A) 1.08 \times 10^{10} \text{ cm}^{-3} B) 5 \times 10^{16} \text{
cm}^{-3} C) 2.33 \times 10^3 \text{ cm}^{-3} D) 1.21 \times 10^{10} \text{ cm}^{-3}
● Answer: C (2.33 \times 10^3 \text{ cm}^{-3})
● Distractor Analysis:
○ A is incorrect: This is the intrinsic carrier concentration, completely failing to account
for the heavy donor doping which suppresses minority carriers.
○ B is incorrect: This represents the majority carrier (electron) concentration n \approx
N_D, not the minority holes.
○ D is incorrect: This value relies on an outdated intrinsic parameter approximation at
a different temperature, ignoring the stated variables.
The Mentor's Analysis: The Law of Mass Action strictly dictates that np = n_i^2 regardless of
doping levels. When facing minority carrier calculations, the immediate priority is squaring n_i
before dividing by the known majority concentration. By utilizing p = n_i^2 / N_D, you bypass the
common trap of misattributing intrinsic limits. Professional Intuition: Minority carriers are
unconditionally determined by the square of intrinsic density divided by the dominant
dopant concentration.
Q2: A uniform electric field is applied across an N-type semiconductor. If the velocity of the
electrons begins to plateau despite continued linear increases in the applied electric field, which
principle PRIMARY explains this physical limitation? A) Carrier diffusion depletion B) Avalanche
multiplication C) Velocity saturation D) Zener quantum tunneling
● Answer: C (Velocity saturation)
● Distractor Analysis:
○ A is incorrect: Diffusion is driven purely by concentration gradients, not electric
fields, and does not cause high-field velocity plateaus.
○ B is incorrect: Avalanche breakdown occurs at high reverse bias in junctions
causing exponential current multiplication, not a velocity plateau.
○ D is incorrect: Zener tunneling is a quantum mechanical effect in heavily doped PN
junctions, completely unrelated to carrier mobility limits.
, The Mentor's Analysis: At critical high electric fields, carrier velocity deviates from the linear
relationship v = \mu E and approaches a constant physical maximum due to increased
scattering. When facing submicron device analysis, the immediate priority is checking if fields
exceed the saturation threshold. By utilizing velocity saturation models, you bypass the common
trap of overestimating current in short-channel devices. Professional Intuition: Mobility is only
constant at low fields; velocity strictly saturates at high fields.
Q3: In a heavily doped PN junction operating under high reverse bias, a sharp, exponential
increase in current is observed. Given that the depletion region is exceptionally narrow, which
breakdown mechanism is the PRIMARY cause? A) Avalanche multiplication B) Zener
breakdown C) Early effect modulation D) Punch-through
● Answer: B (Zener breakdown)
● Distractor Analysis:
○ A is incorrect: Avalanche breakdown requires a wider depletion region for carriers to
gain sufficient kinetic energy to knock bound electrons loose.
○ C is incorrect: The Early effect pertains to base-width modulation in active bipolar
transistors, not diode reverse breakdown.
○ D is incorrect: Punch-through happens when depletion regions merge in
short-channel devices, not in standard single PN reverse breakdown.
The Mentor's Analysis: Highly doped junctions yield extremely narrow depletion regions,
subjecting them to massive electric fields that rip electrons directly from covalent bonds via
quantum tunneling. When facing heavily doped reverse-biased junctions, the immediate priority
is assuming tunneling limits. By utilizing Zener breakdown theory, you bypass the common trap
of attributing all diode breakdowns to avalanche effects. Professional Intuition: Narrow
depletion regions yield Zener breakdown; wide depletion regions yield Avalanche
breakdown.
Q4: A half-wave rectifier drives a resistive load R_L with a parallel smoothing capacitor C. To
minimize the output ripple voltage V_R, which action is FIRST required? A) Decrease the
capacitor value B) Increase the input frequency C) Decrease the load resistance D) Forward
bias the diode aggressively
● Answer: B (Increase the input frequency)
● Distractor Analysis:
○ A is incorrect: Decreasing C directly increases ripple, as there is less stored charge
to supply the load between charging cycles.
○ C is incorrect: Decreasing R[span_44](start_span)[span_44](end_span)_L
increases the current draw, draining the capacitor faster and worsening the voltage
droop.
○ D is incorrect: Diode forward bias has a negligible impact on the RC discharge time
constant governing the output ripple.
The Mentor's Analysis: Ripple voltage is inversely proportional to the load resistance R_L, the
capacitance C, and the input frequency f. When facing ripple mitigation, the immediate priority is
maximizing the RC time constant or the replenishment frequency. By utilizing a higher input
frequency, you bypass the common trap of assuming only passive components dictate output
stability. Professional Intuition: Ripple is starved by high frequencies and massive RC time
constants.
Q5: In designing a discrete voltage doubler circuit, a student notes the final output only reaches
1.4 \times V_{peak} instead of the theoretical 2 \times V_{peak}. Based on practical diode
models, what is the MOST APPROPRIATE diagnosis? A) The capacitors are sized too large for
the frequency. B) The input frequency is exceeding the diode's reverse recovery time. C) The
