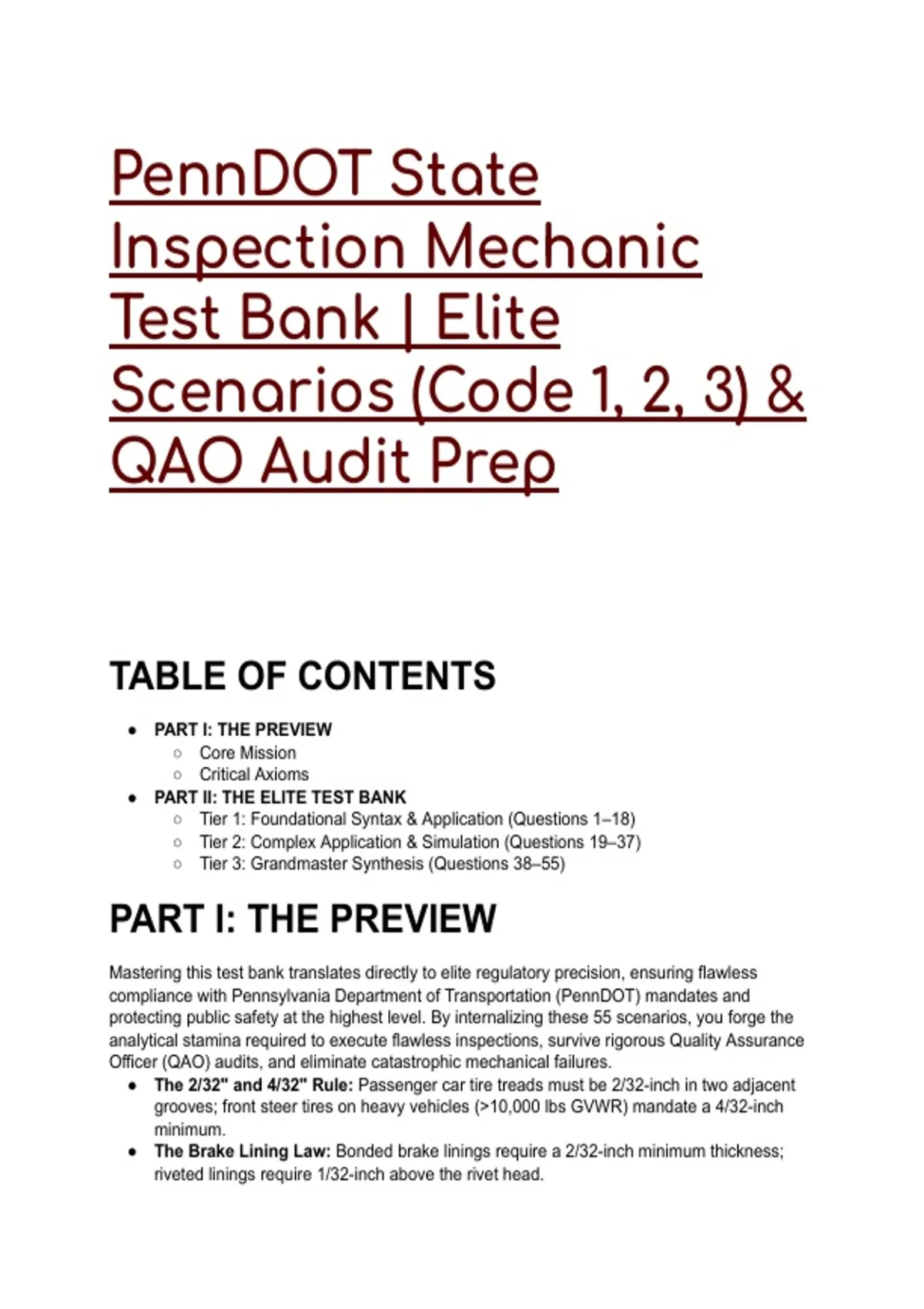

PennDOT State
Inspection Mechanic
Test Bank | Elite
Scenarios (Code 1, 2, 3) &
QAO Audit Prep
TABLE OF CONTENTS
● PART I: THE PREVIEW
○ Core Mission
○ Critical Axioms
● PART II: THE ELITE TEST BANK
○ Tier 1: Foundational Syntax & Application (Questions 1–18)
○ Tier 2: Complex Application & Simulation (Questions 19–37)
○ Tier 3: Grandmaster Synthesis (Questions 38–55)
PART I: THE PREVIEW
Mastering this test bank translates directly to elite regulatory precision, ensuring flawless
compliance with Pennsylvania Department of Transportation (PennDOT) mandates and
protecting public safety at the highest level. By internalizing these 55 scenarios, you forge the
analytical stamina required to execute flawless inspections, survive rigorous Quality Assurance
Officer (QAO) audits, and eliminate catastrophic mechanical failures.
● The 2/32" and 4/32" Rule: Passenger car tire treads must be 2/32-inch in two adjacent
grooves; front steer tires on heavy vehicles (>10,000 lbs GVWR) mandate a 4/32-inch
minimum.
● The Brake Lining Law: Bonded brake linings require a 2/32-inch minimum thickness;
riveted linings require 1/32-inch above the rivet head.
, ● The Two-Year Audit Mandate: All official inspection report sheets (Form MV-431 for
cars/trucks, MV-480 for motorcycles/trailers) must be retained at the station for exactly
two years.
● The Hourly Volume Ceiling: A certified mechanic may perform a maximum of two
non-motorcycle inspections per hour, or three motorcycle inspections per hour.
● The Reconstructed/Import Protocol: Imported vehicles over 25 years old or
reconstructed vehicles require Form MV-426B and an Enhanced Vehicle Safety
Inspection.
PART II: THE ELITE TEST BANK
Tier 1: Foundational Syntax & Application
Q1: A passenger vehicle undergoes an annual safety inspection. The mechanic measures tire
tread depth in two adjacent grooves. Based on the principles of 67 Pa. Code Chapter 175,
which measurement is the MINIMUM acceptable depth before rejection? A) 1/32-inch B)
3/32-inch C) 2/32-inch D) 4/32-inch
● Answer: C (2/32-inch)
● Distractor Analysis:
○ A is incorrect: 1/32-inch is the minimum for riveted brake linings, not tires,
representing a severe hydroplaning risk.
○ B is incorrect: 3/32-inch is not a codified regulatory threshold, though it is a safe
operating margin.
○ D is incorrect: 4/32-inch applies exclusively to the front steer tires of heavy vehicles
exceeding 10,000 pounds GVWR.
The Mentor's Analysis: Tread depth governs hydroplaning resistance and mechanical grip on
the highway. When facing tire evaluations, the immediate priority is verifying 2/32-inch for light
vehicles. By utilizing weight-class specific metrics, you bypass the common trap of misapplying
heavy-truck standards to passenger cars. The regulatory framework of 67 Pa. Code § 175.110
specifically isolates the 4/32-inch mandate to heavy steer axles due to the extreme kinetic
energy these vehicles manage, leaving passenger vehicles bound to the standard 2/32-inch
floor. Professional Intuition: Passenger tires require 2/32-inch; heavy-truck steer tires
require 4/32-inch.
Q2: During a beneath-the-vehicle inspection, a mechanic evaluates a passenger car's disc
brake pads equipped with bonded linings. Based on the principles of the Braking Systems
Framework, which thickness dictates MANDATORY rejection? A) Less than 1/32-inch B) Less
than 2/32-inch C) Less than 3/32-inch D) Less than 4/32-inch
● Answer: B (Less than 2/32-inch)
● Distractor Analysis:
○ A is incorrect: 1/32-inch is the failure threshold for riveted linings, measured above
the rivet head.
○ C is incorrect: 3/32-inch provides an operational buffer and is not a rejection
threshold.
○ D is incorrect: 4/32-inch is an irrelevant metric for brake pads, stemming from heavy
vehicle steer tire laws.
The Mentor's Analysis: Brake pad construction dictates inspection tolerances and thermal
, dissipation capabilities. When facing bonded linings, the immediate priority is verifying they
exceed 2/32-inch. By utilizing the bonded-specific measurement, you bypass the common trap
of applying the thinner riveted standard to a bonded pad. Historically, bonded materials require a
thicker substrate to maintain structural integrity against the backing plate under thermal load,
which is why 67 Pa. Code strictly separates bonded and riveted metrics. Professional Intuition:
Bonded equals 2/32-inch; Riveted equals 1/32-inch above the rivet.
Q3: An inspection station manager is organizing old files prior to a QAO audit. Based on the
principles of Station Record Keeping, what is the EXACT time period Form MV-431 must be
retained? A) 1 year B) 2 years C) 3 years D) 5 years
● Answer: B (2 years)
● Distractor Analysis:
○ A is incorrect: One year leaves the station vulnerable to historical audit failures and
violates state mandate.
○ C is incorrect: Three years exceeds the legal mandate, which is administratively
harmless but technically incorrect for the statute.
○ D is incorrect: Five years represents the lifespan of a mechanic's certification, not
the document retention requirement.
The Mentor's Analysis: Regulatory audits require predictable, secure document trails to prevent
sticker fraud. When facing record management, the immediate priority is securing MV-431 and
MV-480 forms for exactly 24 months. By utilizing a strict 2-year retention protocol, you bypass
the common trap of premature document destruction resulting in Category 1 administrative
violations. The state actively reviews these logs to track sticker issuance sequencing and
mechanic signature validity. Professional Intuition: Retain all MV-431 and MV-480 logs for
exactly two years to survive a QAO audit.
Q4: A certified mechanic wishes to maintain his inspection credentials. Based on the principles
of Mechanic Certification, what is the MAXIMUM duration of a mechanic's certification before
renewal is required? A) 2 years B) 3 years C) 4 years D) 5 years
● Answer: D (5 years)
● Distractor Analysis:
○ A is incorrect: Two years is the document retention rule for station records.
○ B is incorrect: Three years is an outdated legacy rule prior to the 2016 regulatory
update.
○ C is incorrect: Four years has no basis in PennDOT regulations.
The Mentor's Analysis: Mechanic credentials ensure ongoing competency in a rapidly evolving
technological landscape. When facing certification expiration, the immediate priority is testing
within 180 days of the 5-year deadline. By utilizing the modern 5-year cycle, you bypass the
common trap of following outdated 3-year legacy protocols. The transition to a 5-year
recertification exam process requires mechanics to demonstrate sustained tactile and
theoretical mastery. Professional Intuition: Mechanic certifications are strictly valid for 5
years.
Q5: A busy inspection station has a backlog of passenger cars. Based on the principles of
Inspection Station Operations, what is the MAXIMUM number of passenger vehicles a single
mechanic can legally inspect per hour? A) 1 B) 2 C) 3 D) 4
● Answer: B (2)
● Distractor Analysis:
○ A is incorrect: One inspection per hour is inefficient and well below the legal
maximum.
○ C is incorrect: Three is the hourly limit strictly for motorcycles, not passenger cars.
