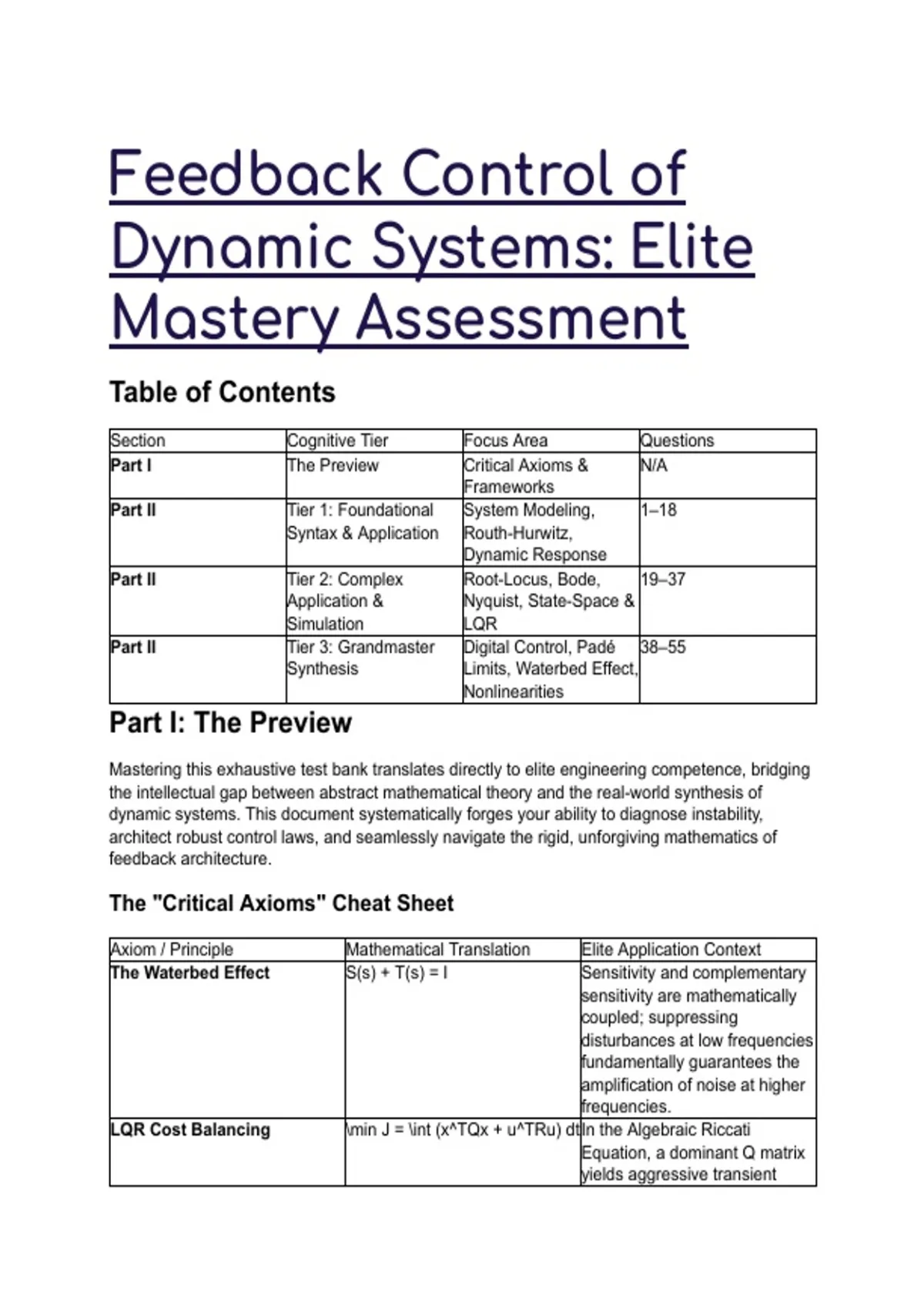

Feedback Control of
Dynamic Systems: Elite
Mastery Assessment
Table of Contents
Section Cognitive Tier Focus Area Questions
Part I The Preview Critical Axioms & N/A
Frameworks
Part II Tier 1: Foundational System Modeling, 1–18
Syntax & Application Routh-Hurwitz,
Dynamic Response
Part II Tier 2: Complex Root-Locus, Bode, 19–37
Application & Nyquist, State-Space &
Simulation LQR
Part II Tier 3: Grandmaster Digital Control, Padé 38–55
Synthesis Limits, Waterbed Effect,
Nonlinearities
Part I: The Preview
Mastering this exhaustive test bank translates directly to elite engineering competence, bridging
the intellectual gap between abstract mathematical theory and the real-world synthesis of
dynamic systems. This document systematically forges your ability to diagnose instability,
architect robust control laws, and seamlessly navigate the rigid, unforgiving mathematics of
feedback architecture.
The "Critical Axioms" Cheat Sheet
Axiom / Principle Mathematical Translation Elite Application Context
The Waterbed Effect S(s) + T(s) = I Sensitivity and complementary
sensitivity are mathematically
coupled; suppressing
disturbances at low frequencies
fundamentally guarantees the
amplification of noise at higher
frequencies.
LQR Cost Balancing \min J = \int (x^TQx + u^TRu) dt In the Algebraic Riccati
Equation, a dominant Q matrix
yields aggressive transient
,Axiom / Principle Mathematical Translation Elite Application Context
regulation, while a dominant R
matrix penalizes control effort,
forcing sluggish, low-energy
trajectories.
Padé Limitations e^{-sT} \approx \frac{1 - sT/2}{1 Approximating a transport delay
+ sT/2} introduces a non-minimum
phase zero in the right
half-plane, which imposes a
strict, physical upper limit on
achievable closed-loop
bandwidth.
Observer Dynamics \vert{}Re(\lambda_{obs})\vert{} State estimator poles must be
\ge placed significantly faster
2\vert{}Re(\lambda_{ctrl})\vert{} (typically 2 to 6 times) than
controller poles to ensure
estimation errors decay
completely before the controller
acts on them.
Part II: The Elite Test Bank
Q1: When evaluating the primary objective of an automatic feedback control system operating
under unpredictable external conditions, which functional mandate is the MOST CRITICAL? A)
Amplifying input signals to achieve maximum actuator saturation power. B) Converting incoming
analog noise into discrete-time step variations. C) Maintaining a prescribed relationship between
the output and reference input despite disturbances. D) Eliminating all forms of system
disturbances through open-loop feedforward prediction.
● Answer: C (Maintaining a prescribed relationship between the output and reference input
despite disturbances)
● Distractor Analysis:
○ A is incorrect: Amplifying signals to saturation represents a catastrophic actuator
failure state rather than a control objective, fundamentally breaking the linear
operating region of the plant.
○ B is incorrect: Signal conversion is a component-level analog-to-digital task, not the
overarching objective of the closed-loop architecture.
○ D is incorrect: Open-loop prediction relies entirely on perfect plant models and
cannot eliminate unpredictable, stochastic disturbances; dynamic feedback is
strictly required to monitor and correct deviations.
The Mentor's Analysis: Feedback systems exist fundamentally to force a physical plant to track
a reference command while ruthlessly rejecting unmeasured disturbances. This is achieved by
operating continuously on the error signal, leveraging the closed loop to compensate for model
uncertainty. Professional Intuition: Always rely on closed-loop error correction to manage
stochastic plant variations and unmodeled dynamics.
Q2: During the mechanical modeling of a strictly rotational dynamic system, an engineer notes
that increasing the viscous damping coefficient b rapidly decreases the system's oscillatory
transient response. Under the standard torque-voltage analogy, which electrical component
represents the EXACT analog to this viscous damper? A) Capacitor B) Inductor C) Resistor D)
, Transformer
● Answer: C (Resistor)
● Distractor Analysis:
○ A is incorrect: A capacitor models mechanical compliance (a torsional spring),
storing potential energy rather than dissipating it.
○ B is incorrect: An inductor models mechanical inertia (moment of inertia J), resisting
changes in the flow of current just as mass resists changes in velocity.
○ D is incorrect: A transformer models a mechanical gear train or lever system,
stepping variables up or down without intentionally dissipating energy.
The Mentor's Analysis: In the torque-voltage analogy, energy dissipation in a mechanical
system—such as viscous friction or aerodynamic drag—maps directly to energy dissipation in
an electrical circuit, which is governed exclusively by electrical resistance. Both elements
consume energy linearly proportional to velocity or current. Professional Intuition: Dissipative
elements in dynamic modeling always convert kinetic or electrical energy into heat; they
are the sole source of natural damping.
Q3: A system's characteristic polynomial is evaluated using the Routh-Hurwitz criterion to
determine absolute stability. The first element of a row evaluates to exactly zero, but the
remaining elements in that specific row are non-zero. What is the IMMEDIATE required action to
mathematically complete the array? A) Terminate the array construction and declare the system
marginally stable. B) Construct an auxiliary polynomial utilizing the coefficients from the row
immediately above the zero. C) Replace the zero with a small positive constant \epsilon and
continue the determinant calculations. D) Shift the entire row one column to the left to bypass
the mathematical singularity.
● Answer: C (Replace the zero with a small positive constant \epsilon and continue the
determinant calculations)
● Distractor Analysis:
○ A is incorrect: A single zero in the first column does not imply marginal stability; it
merely indicates a mathematical singularity in the matrix division that must be
resolved to evaluate the remaining roots.
○ B is incorrect: An auxiliary polynomial is only constructed when an entire row
evaluates to zero, indicating symmetric roots.
○ D is incorrect: Shifting columns arbitrarily destroys the algebraic structure of the
Routh array, leading to completely invalid stability conclusions.
The Mentor's Analysis: A zero in the first column halts the determinant division process. By
substituting an infinitesimally small positive variable \epsilon, you preserve the mathematical
limit of the array, allowing you to track sign changes above and below the zero by evaluating the
limit as \epsilon \to 0. Professional Intuition: A single zero in the first column guarantees
instability if it causes a sign change in the subsequent rows surrounding the \epsilon.
Q4: A characteristic equation exhibits an entire row of zeros during a Routh-Hurwitz stability
analysis. Based on fundamental linear system theory, what does this specific mathematical
condition UNEQUIVOCALLY indicate about the system's poles? A) The presence of roots that
are symmetrically located about the origin of the s-plane. B) The system is strictly non-minimum
phase, featuring multiple right-half-plane zeros. C) All remaining uncalculated poles are located
firmly on the negative real axis. D) The system requires integral control to eliminate a massive
steady-state error.
● Answer: A (The presence of roots that are symmetrically located about the origin of the
s-plane)
● Distractor Analysis:
