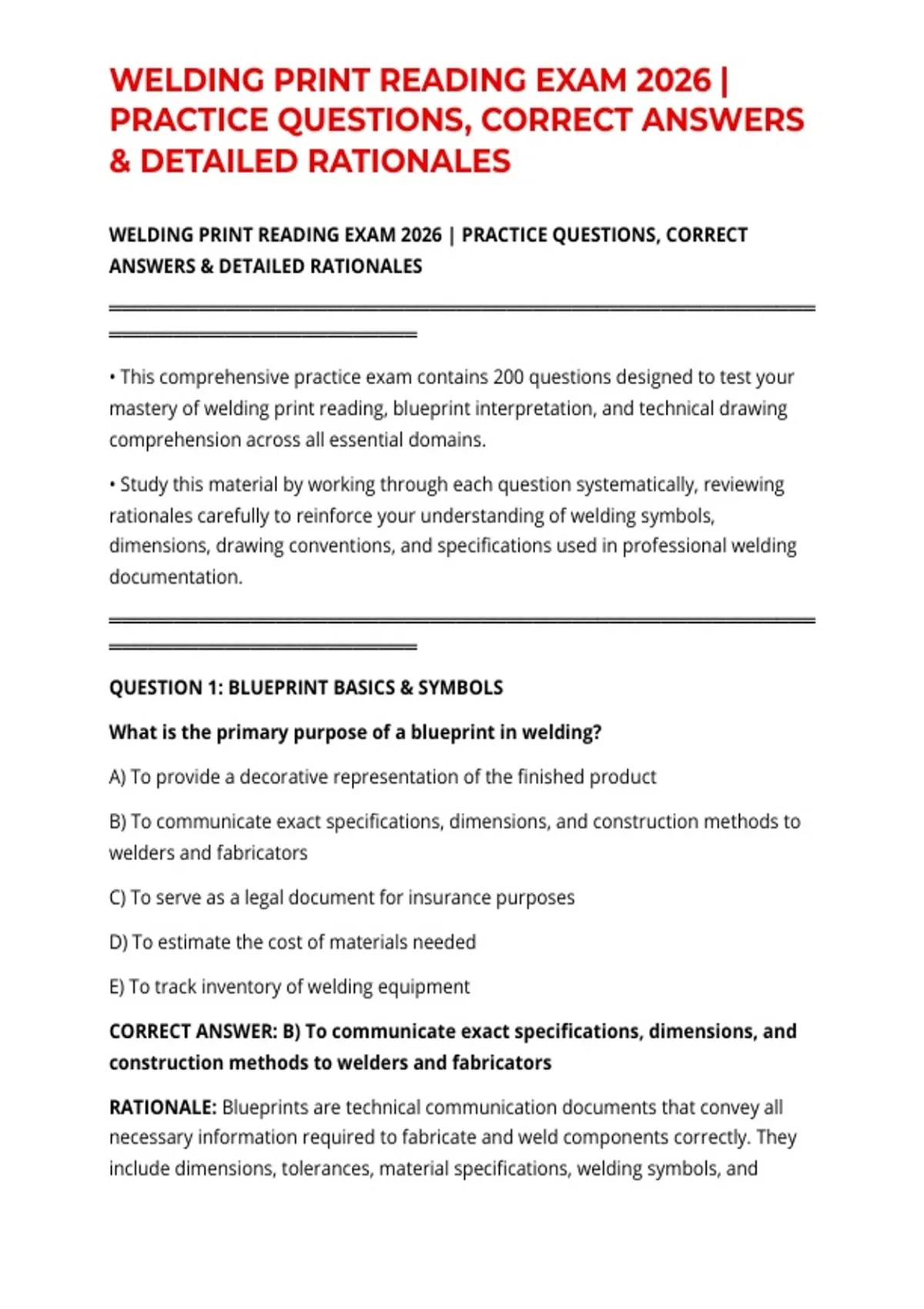

WELDING PRINT READING EXAM 2026 |
PRACTICE QUESTIONS, CORRECT ANSWERS
& DETAILED RATIONALES
WELDING PRINT READING EXAM 2026 | PRACTICE QUESTIONS, CORRECT
ANSWERS & DETAILED RATIONALES
═══════════════════════════════════════════════════════
════════════════════════
• This comprehensive practice exam contains 200 questions designed to test your
mastery of welding print reading, blueprint interpretation, and technical drawing
comprehension across all essential domains.
• Study this material by working through each question systematically, reviewing
rationales carefully to reinforce your understanding of welding symbols,
dimensions, drawing conventions, and specifications used in professional welding
documentation.
═══════════════════════════════════════════════════════
════════════════════════
QUESTION 1: BLUEPRINT BASICS & SYMBOLS
What is the primary purpose of a blueprint in welding?
A) To provide a decorative representation of the finished product
B) To communicate exact specifications, dimensions, and construction methods to
welders and fabricators
C) To serve as a legal document for insurance purposes
D) To estimate the cost of materials needed
E) To track inventory of welding equipment
CORRECT ANSWER: B) To communicate exact specifications, dimensions, and
construction methods to welders and fabricators
RATIONALE: Blueprints are technical communication documents that convey all
necessary information required to fabricate and weld components correctly. They
include dimensions, tolerances, material specifications, welding symbols, and
,assembly instructions. Without clear blueprints, welders cannot produce parts to
specification, leading to rejection, rework, or structural failure. The blueprint is the
contract between the designer and the fabricator.
═══════════════════════════════════════════════════════
════════════════════════
QUESTION 2: WELDING SYMBOL FUNDAMENTALS
Which component of a standard welding symbol indicates the type of weld to
be performed?
A) The tail of the symbol
B) The reference line
C) The geometric shape located below or above the reference line
D) The revision block
E) The notes field
CORRECT ANSWER: C) The geometric shape located below or above the
reference line
RATIONALE: Welding symbols use geometric shapes to indicate the specific type of
weld required. A triangle represents a fillet weld, a rectangle represents a groove
weld, a circle represents a plug or slot weld, and so on. These shapes are positioned
either above or below the reference line (a horizontal line at the center of the
symbol) to communicate which side of the joint receives the weld. The reference
line itself is merely the baseline; the shape is the classifier.
═══════════════════════════════════════════════════════
════════════════════════
QUESTION 3: REFERENCE LINES AND ARROW PLACEMENT
When a welding symbol arrow points to a line that branches to two lines on
either side, what does this indicate?
A) The weld is to be applied to both sides of the joint
B) The weld should only be applied to the near side
,C) The weld should only be applied to the far side
D) The weld requires a back-up bar
E) The weld is cosmetic only
CORRECT ANSWER: A) The weld is to be applied to both sides of the joint
RATIONALE: The branching of the reference line into dual lines (forming an
inverted T shape) is the standard AWS notation for specifying welds on both sides
of a joint. When the weld symbol appears both above and below the branched
reference line, it means the same weld type and size must be applied to both the
near (arrow) side and the far side. This is critical for full-penetration welds and
structural integrity.
═══════════════════════════════════════════════════════
════════════════════════
QUESTION 4: FILLET WELD SYMBOLS
A fillet weld symbol showing dimensions of 1/2 - 1/2 means:
A) A 1/2-inch fillet weld on the arrow side and a 1/2-inch fillet weld on the other side
B) A 1/2-inch leg length with 1/2-inch pitch
C) A 1/2-inch throat thickness with 1/2-inch fillet size
D) A 1/2-inch bead width and 1/4-inch penetration
E) A 1/2-inch base metal thickness requirement
CORRECT ANSWER: A) A 1/2-inch fillet weld on the arrow side and a 1/2-inch
fillet weld on the other side
RATIONALE: In fillet weld notation, the first dimension (1/2) represents the leg
length or size of the fillet weld. When two dimensions are separated by a dash, the
first applies to the arrow side and the second to the opposite side. If both are 1/2,
identical fillet welds are required on both sides. The leg length is critical because it
determines the strength and load-carrying capacity of the fillet weld.
═══════════════════════════════════════════════════════
════════════════════════
, QUESTION 5: GROOVE WELD SYMBOLS
Which geometric symbol represents a groove weld on a blueprint?
A) A circle
B) A triangle
C) A rectangle or square
D) A pentagon
E) A hexagon
CORRECT ANSWER: C) A rectangle or square
RATIONALE: AWS welding symbol standards designate a rectangle or square shape
to represent groove welds. This distinguishes groove welds from fillet welds
(triangle), plug/slot welds (circle), or spot/seam welds (other symbols). The
rectangle's presence below or above the reference line immediately tells welders
that a full-penetration or partial-penetration groove weld is required, prompting
them to prepare beveled edges appropriately.
═══════════════════════════════════════════════════════
════════════════════════
QUESTION 6: WELD SIZE AND DIMENSIONS
On a welding symbol, where is the size of the weld placed?
A) Inside the geometric symbol
B) Always to the left of the geometric symbol
C) To the left of the geometric symbol for groove welds and inside for fillet welds
D) Always above the reference line
E) In the tail note
CORRECT ANSWER: C) To the left of the geometric symbol for groove welds
and inside for fillet welds
RATIONALE: AWS standard placement conventions differ between weld types. For
groove welds, the root opening (if any) and depth of bevel are placed to the left of
