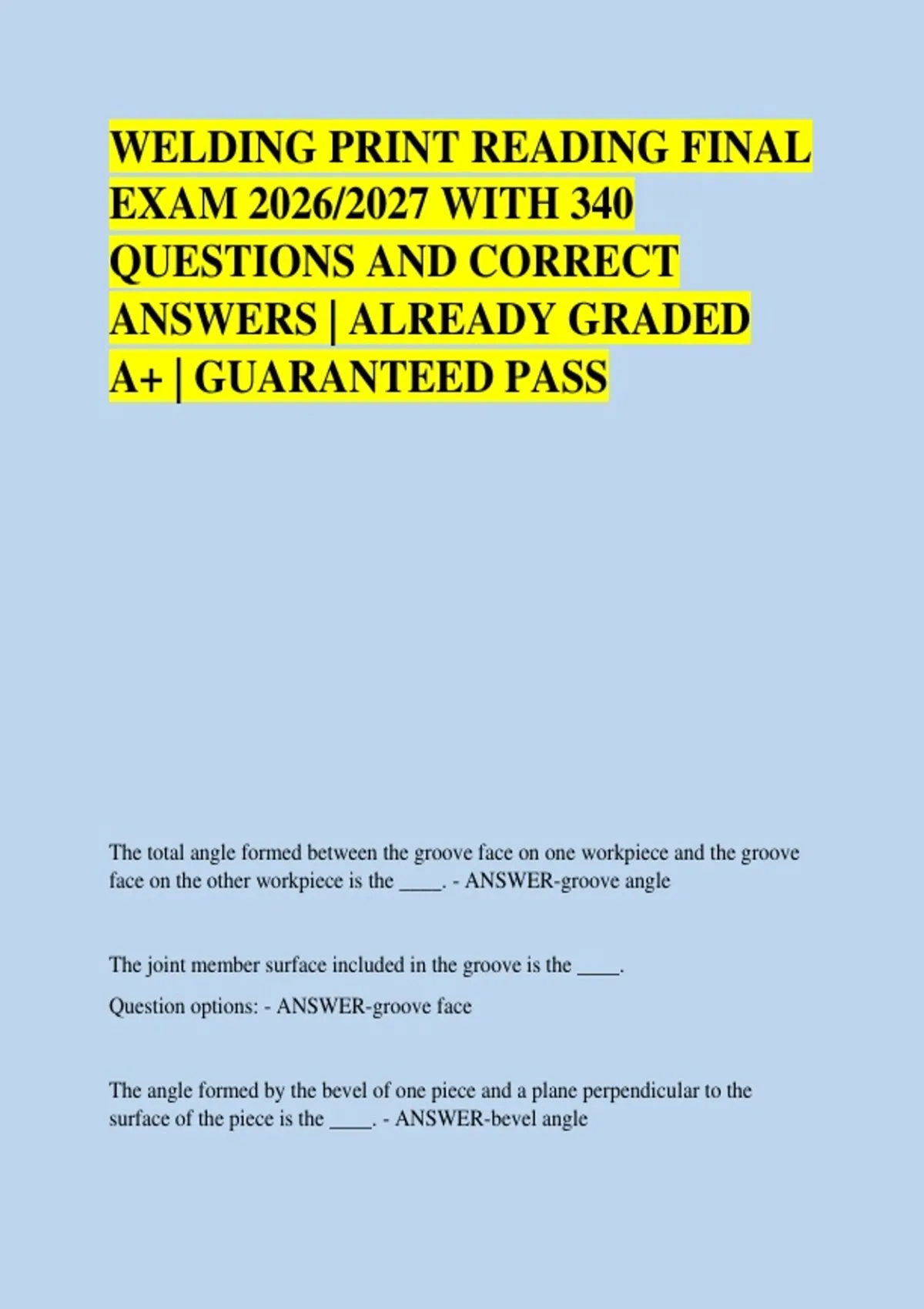

WELDING PRINT READING FINAL
EXAM 2026/2027 WITH 340
QUESTIONS AND CORRECT
ANSWERS | ALREADY GRADED
A+ | GUARANTEED PASS
The total angle formed between the groove face on one workpiece and the groove
face on the other workpiece is the ____. - ANSWER-groove angle
The joint member surface included in the groove is the ____.
Question options: - ANSWER-groove face
The angle formed by the bevel of one piece and a plane perpendicular to the
surface of the piece is the ____. - ANSWER-bevel angle
,The effective throat, when specified, describes the ____ of the weld. - ANSWER-
penetration?
The part of the groove face within the joint root is the ____. - ANSWER-root face
The angle or contour of ____, used to provide a place to strike the arc and to
eliminate the weld crater, must be identical to that of the groove. - ANSWER-
runoff weld tabs
Round or formed metal parts are joined using ____. - ANSWER-flare-groove
welds
The depth dimension for a flare-V-groove weld is given as the distance from the
top of the member to the ____. - ANSWER-point of tangency
t or f? Before making a groove weld, metal is removed from one or more of the
members to be welded to provide for deeper penetration of the weld into the joint. -
ANSWER-true
t or f? A size dimension is required for square-groove welds. - ANSWER-false
t or f? When no dimension is given on a welding symbol, the weld should
completely penetrate the joint. - ANSWER-true
t or f? Dimensions for preparation of groove welds are shown on the same side of
the reference line as the weld symbol. - ANSWER-true
t or f? BACK welds are made after groove welds. - ANSWER-true
,t or f?BACKING welds are made after groove welds. - ANSWER-false
t or f? The symbol for a melt-through weld is similar to that for an all-around fillet
weld, except the circle is filled in. - ANSWER-false
t or f? Backing is the buildup of a groove weld above the surface of the base
material. - ANSWER-false
t or f? If a general note indicating weld size is given on the print, no groove weld
dimensions are included with the welding symbol. - ANSWER-true
t or f? The buildup of a groove weld above the surface of the base material is
removed in a convex contour. - ANSWER-false
t or f? A slot weld is a circular weld made through one piece of metal to join it with
a second piece of metal. - ANSWER-false
t or f? Plug welds are used when the weld can be visible from both sides of the
joint. - ANSWER-false
t or f? Slot welds have the same cross section as all-around fillet welds. -
ANSWER-false
t or f? Plug weld size refers to the weld diameter at the base of the weld. -
ANSWER-true
, t or f? The countersink angle for a plug weld is shown inside the plug weld symbol.
- ANSWER-false
t or f? Chamfering enlarges the end of a hole conically so it is able to fit the head
of a flat-head screw. - ANSWER-true
t or f? Plug and slot weld dimensions are shown on the same side of the reference
line as the weld symbol. - ANSWER-true
The only required elements of a welding symbol are the ____. - ANSWER-
reference line and arrow
A graphic assembly of elements needed to fully specify weld requirements on a
print is a ____. - ANSWER-welding symbol
The central element of a welding symbol, which provides a place for all other
elements, is the ____. - ANSWER-reference line
The part of a welding symbol that depicts the cross-sectional shape of a weld or
joint is the ____. - ANSWER-weld symbol
Information is called out in the tail of a welding symbol using a(n) ____. -
ANSWER-notation
Which of the following is not an example of a standard finishing method? -
ANSWER-drilling
Which of the following are standard finishing method? - ANSWER-Grinding,
Machining, & Rolling
