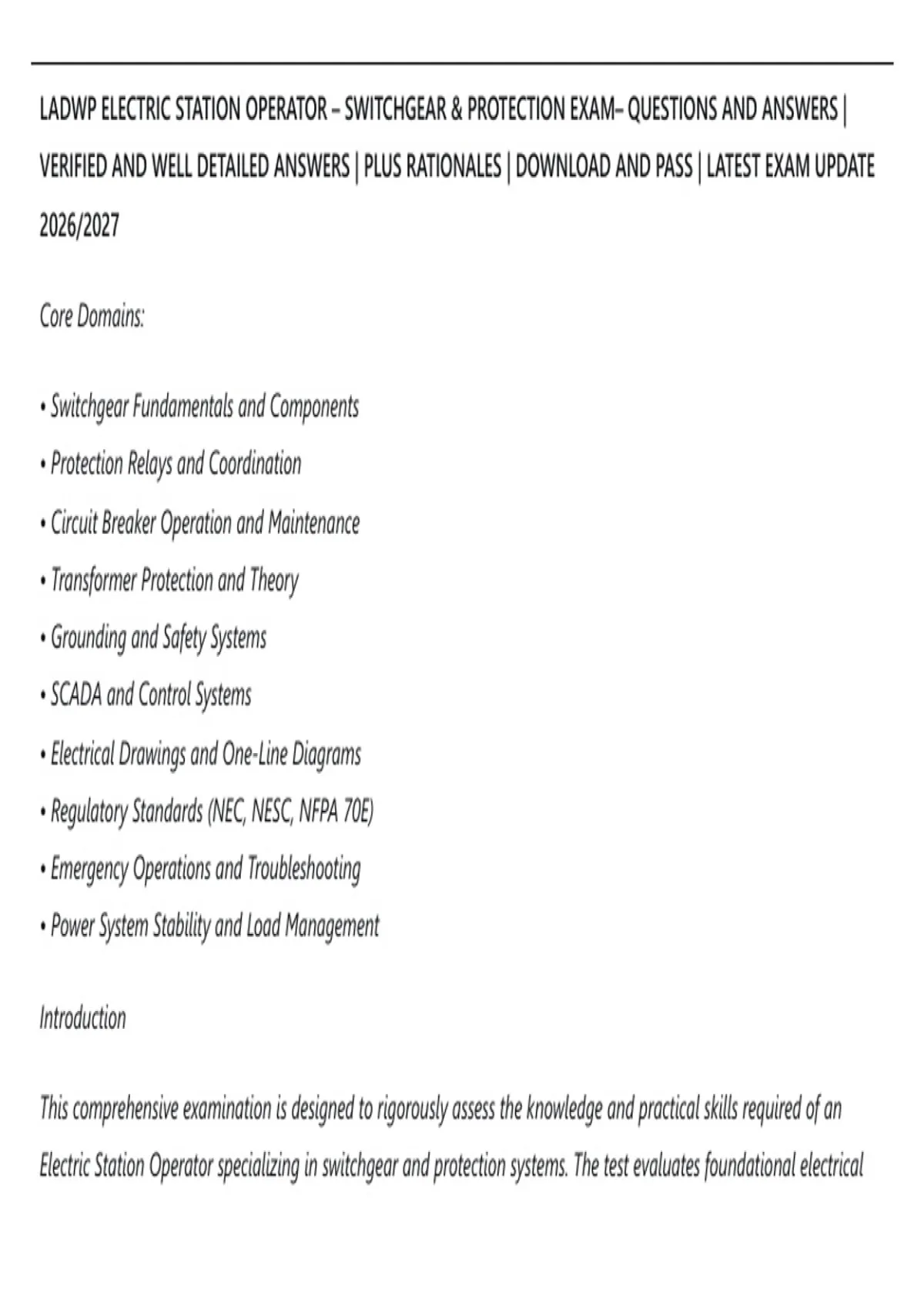

LADWP ELECTRIC STATION OPERATOR – SWITCHGEAR & PROTECTION EXAM– QUESTIONS AND ANSWERS |
VERIFIED AND WELL DETAILED ANSWERS | PLUS RATIONALES | DOWNLOAD AND PASS | LATEST EXAM UPDATE
2026/2027
Core Domains:
• Switchgear Fundamentals and Components
• Protection Relays and Coordination
• Circuit Breaker Operation and Maintenance
• Transformer Protection and Theory
• Grounding and Safety Systems
• SCADA and Control Systems
• Electrical Drawings and One-Line Diagrams
• Regulatory Standards (NEC, NESC, NFPA 70E)
• Emergency Operations and Troubleshooting
• Power System Stability and Load Management
Introduction
This comprehensive examination is designed to rigorously assess the knowledge and practical skills required of an
Electric Station Operator specializing in switchgear and protection systems. The test evaluates foundational electrical
,theory, advanced relay coordination, and the operational intricacies of high-voltage equipment. Candidates will
encounter multiple-choice questions that blend theoretical concepts with realistic, scenario-based problems, demanding
both quick recall and critical decision-making. Success on this exam demonstrates a mastery of system protection,
regulatory compliance, and the ability to maintain safe, reliable power delivery in a complex utility environment. Each
question includes a detailed rationale to reinforce learning and ensure a deep understanding of the material.
SECTION ONE: QUESTIONS 1–50
1. What is the primary function of switchgear in an electrical power system?
A. To convert AC power to DC power
B. To protect, control, and isolate electrical equipment
C. To step up voltage for long-distance transmission
D. To store energy for backup power
🟢 Correct Answer: B. To protect, control, and isolate electrical equipment
🔴 Explanation: Switchgear is a combination of electrical disconnect switches, fuses, or circuit breakers used to
control, protect, and isolate electrical equipment. It is essential for de-energizing equipment to allow for
maintenance and clearing faults.
,2. Which type of circuit breaker is most commonly used for high-voltage (HV) applications due to its excellent
dielectric and arc-quenching properties?
A. Air-magnetic circuit breaker
B. Oil circuit breaker
C. SF6 circuit breaker
D. Vacuum circuit breaker
🟢 Correct Answer: C. SF6 circuit breaker
🔴 Explanation: SF6 (Sulfur Hexafluoride) circuit breakers are widely used in high-voltage applications because SF6
gas has superior dielectric strength and arc-quenching capabilities, making it highly effective for interrupting large
fault currents.
3. A protective relay that operates when the current exceeds a predetermined value for a specific time is known
as a:
A. Differential relay
B. Distance relay
, C. Overcurrent relay
D. Directional relay
🟢 Correct Answer: C. Overcurrent relay
🔴 Explanation: An overcurrent relay is designed to trip a circuit breaker when the current in the protected circuit
exceeds a set threshold for a given time duration. This protects equipment from damage due to overloads or short
circuits.
4. What is the primary purpose of a current transformer (CT) in a protection scheme?
A. To step down voltage for metering
B. To isolate the primary circuit from the secondary circuit
C. To provide a proportional and isolated reduced current for relays and instruments
D. To increase the current for heavy loads
🟢 Correct Answer: C. To provide a proportional and isolated reduced current for relays and instruments
🔴 Explanation: Current transformers are used to step down high primary currents to a standardized, safe secondary
current (e.g., 5A or 1A) for use by protection relays, meters, and other control devices. This provides isolation from
the high-voltage primary circuit.
VERIFIED AND WELL DETAILED ANSWERS | PLUS RATIONALES | DOWNLOAD AND PASS | LATEST EXAM UPDATE
2026/2027
Core Domains:
• Switchgear Fundamentals and Components
• Protection Relays and Coordination
• Circuit Breaker Operation and Maintenance
• Transformer Protection and Theory
• Grounding and Safety Systems
• SCADA and Control Systems
• Electrical Drawings and One-Line Diagrams
• Regulatory Standards (NEC, NESC, NFPA 70E)
• Emergency Operations and Troubleshooting
• Power System Stability and Load Management
Introduction
This comprehensive examination is designed to rigorously assess the knowledge and practical skills required of an
Electric Station Operator specializing in switchgear and protection systems. The test evaluates foundational electrical
,theory, advanced relay coordination, and the operational intricacies of high-voltage equipment. Candidates will
encounter multiple-choice questions that blend theoretical concepts with realistic, scenario-based problems, demanding
both quick recall and critical decision-making. Success on this exam demonstrates a mastery of system protection,
regulatory compliance, and the ability to maintain safe, reliable power delivery in a complex utility environment. Each
question includes a detailed rationale to reinforce learning and ensure a deep understanding of the material.
SECTION ONE: QUESTIONS 1–50
1. What is the primary function of switchgear in an electrical power system?
A. To convert AC power to DC power
B. To protect, control, and isolate electrical equipment
C. To step up voltage for long-distance transmission
D. To store energy for backup power
🟢 Correct Answer: B. To protect, control, and isolate electrical equipment
🔴 Explanation: Switchgear is a combination of electrical disconnect switches, fuses, or circuit breakers used to
control, protect, and isolate electrical equipment. It is essential for de-energizing equipment to allow for
maintenance and clearing faults.
,2. Which type of circuit breaker is most commonly used for high-voltage (HV) applications due to its excellent
dielectric and arc-quenching properties?
A. Air-magnetic circuit breaker
B. Oil circuit breaker
C. SF6 circuit breaker
D. Vacuum circuit breaker
🟢 Correct Answer: C. SF6 circuit breaker
🔴 Explanation: SF6 (Sulfur Hexafluoride) circuit breakers are widely used in high-voltage applications because SF6
gas has superior dielectric strength and arc-quenching capabilities, making it highly effective for interrupting large
fault currents.
3. A protective relay that operates when the current exceeds a predetermined value for a specific time is known
as a:
A. Differential relay
B. Distance relay
, C. Overcurrent relay
D. Directional relay
🟢 Correct Answer: C. Overcurrent relay
🔴 Explanation: An overcurrent relay is designed to trip a circuit breaker when the current in the protected circuit
exceeds a set threshold for a given time duration. This protects equipment from damage due to overloads or short
circuits.
4. What is the primary purpose of a current transformer (CT) in a protection scheme?
A. To step down voltage for metering
B. To isolate the primary circuit from the secondary circuit
C. To provide a proportional and isolated reduced current for relays and instruments
D. To increase the current for heavy loads
🟢 Correct Answer: C. To provide a proportional and isolated reduced current for relays and instruments
🔴 Explanation: Current transformers are used to step down high primary currents to a standardized, safe secondary
current (e.g., 5A or 1A) for use by protection relays, meters, and other control devices. This provides isolation from
the high-voltage primary circuit.
