Instrument fitter EXAM fully solved & updated (latest version verified for accuracy) (Questions + Answers) Solved 100% Correct!!

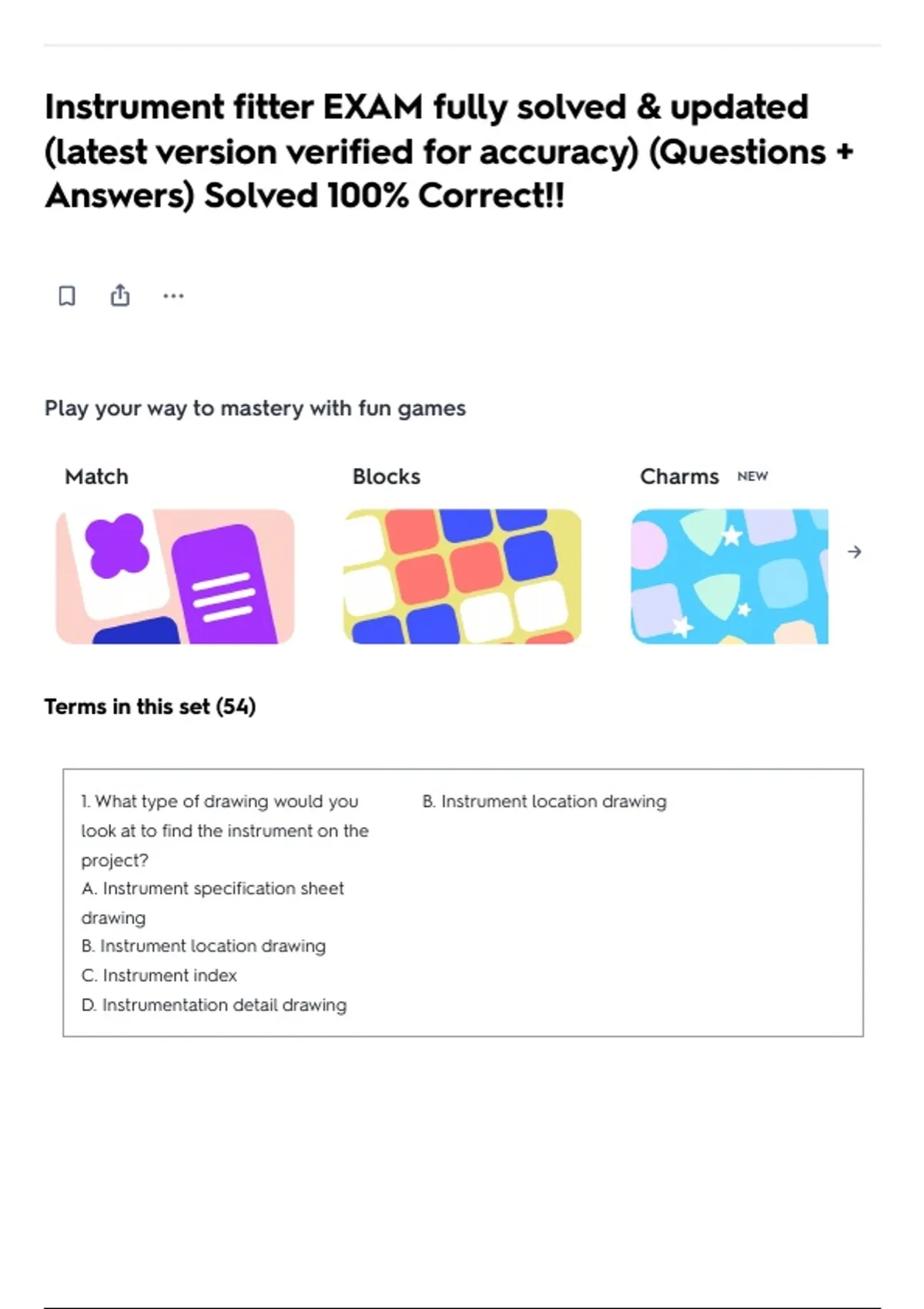

Content preview

Instrument fitter EXAM fully solved & updated
(latest version verified for accuracy) (Questions +
Answers) Solved 100% Correct!!

Play your way to mastery with fun games

Match Blocks Charms NEW

Terms in this set (54)

1. What type of drawing would you B. Instrument location drawing
look at to find the instrument on the
project?
A. Instrument specification sheet
drawing
B. Instrument location drawing
C. Instrument index
D. Instrumentation detail drawing

, 2. What kind of drawing would you D. Instrumentation location drawing
look at to find the height of the
instrument to be installed?
A. P&id drawing
B. Electrical drawing
C. Ask the operator
D. Instrumentation location drawing

3. A control loop is a combination of True
two or more institutions control
functions arranged so that signals
pass from one to another for the
purpose of measurement, and/
control of a process variable?
True or False

4. On a instrument it has a TAG on it, D. Pressure
first letter is P, what does it
represent?
A. Level
B. Temperature
C. Flow rate
D. Pressure
