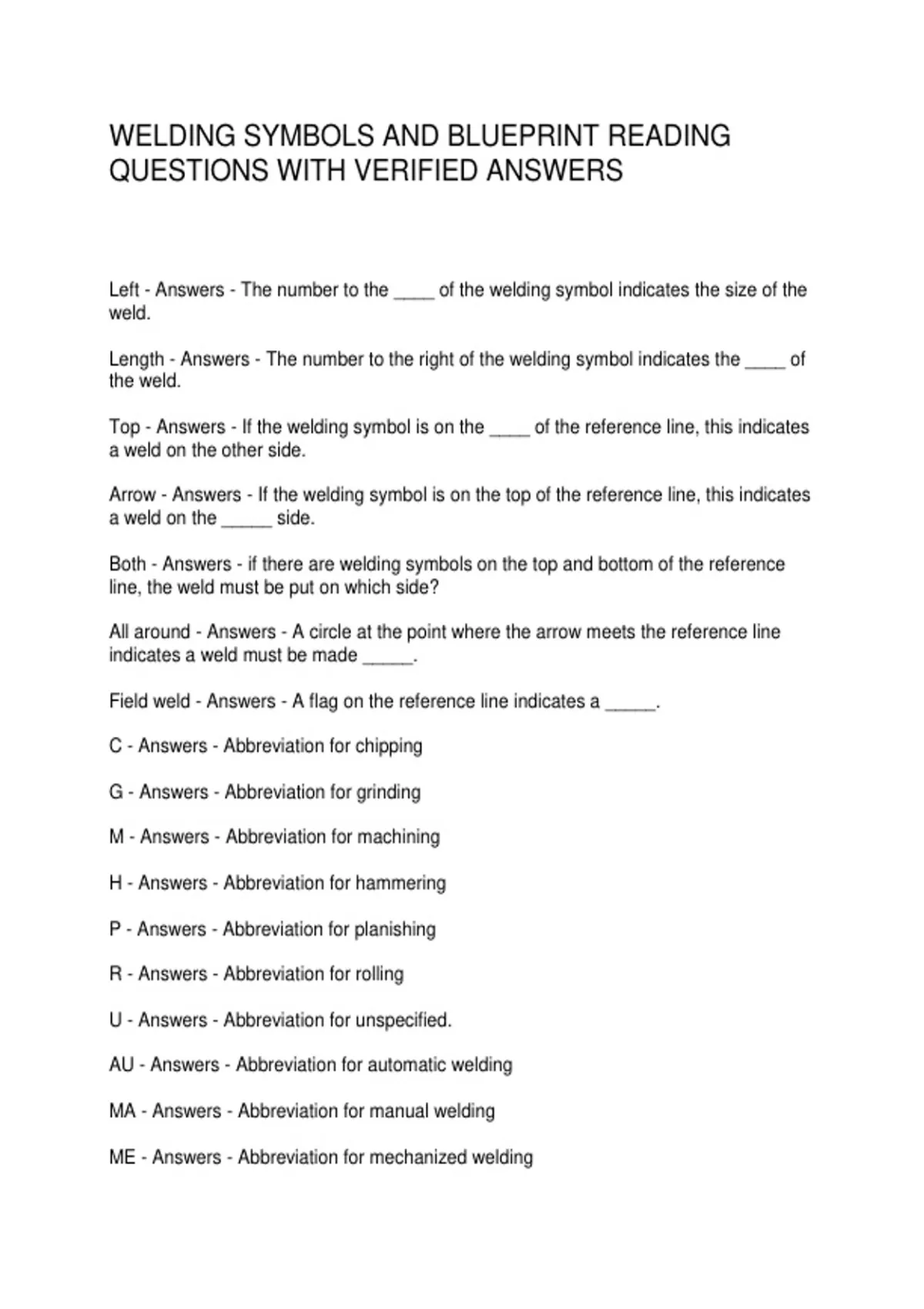

Document preview thumbnail
Preview 1 out of 3 pages
Exam (elaborations)

Welding Symbols And Blueprint Reading Questions With Verified Answers

0.0
(0 reviews)
- sold
3 pages
2026/2027 Written for academic year
Institution WELDING PRINT READING
Course WELDING PRINT READING
Document preview thumbnail
Preview 1 out of 3 pages

WELDING SYMBOLS AND BLUEPRINT READING QUESTIONS WITH VERIFIED ANSWERS

Content preview

WELDING SYMBOLS AND BLUEPRINT READING
QUESTIONS WITH VERIFIED ANSWERS


Left - Answers - The number to the ____ of the welding symbol indicates the size of the
weld.

Length - Answers - The number to the right of the welding symbol indicates the ____ of
the weld.

Top - Answers - If the welding symbol is on the ____ of the reference line, this indicates
a weld on the other side.

Arrow - Answers - If the welding symbol is on the top of the reference line, this indicates
a weld on the _____ side.

Both - Answers - if there are welding symbols on the top and bottom of the reference
line, the weld must be put on which side?

All around - Answers - A circle at the point where the arrow meets the reference line
indicates a weld must be made _____.

Field weld - Answers - A flag on the reference line indicates a _____.

C - Answers - Abbreviation for chipping

G - Answers - Abbreviation for grinding

M - Answers - Abbreviation for machining

H - Answers - Abbreviation for hammering

P - Answers - Abbreviation for planishing

R - Answers - Abbreviation for rolling

U - Answers - Abbreviation for unspecified.

AU - Answers - Abbreviation for automatic welding

MA - Answers - Abbreviation for manual welding

ME - Answers - Abbreviation for mechanized welding
