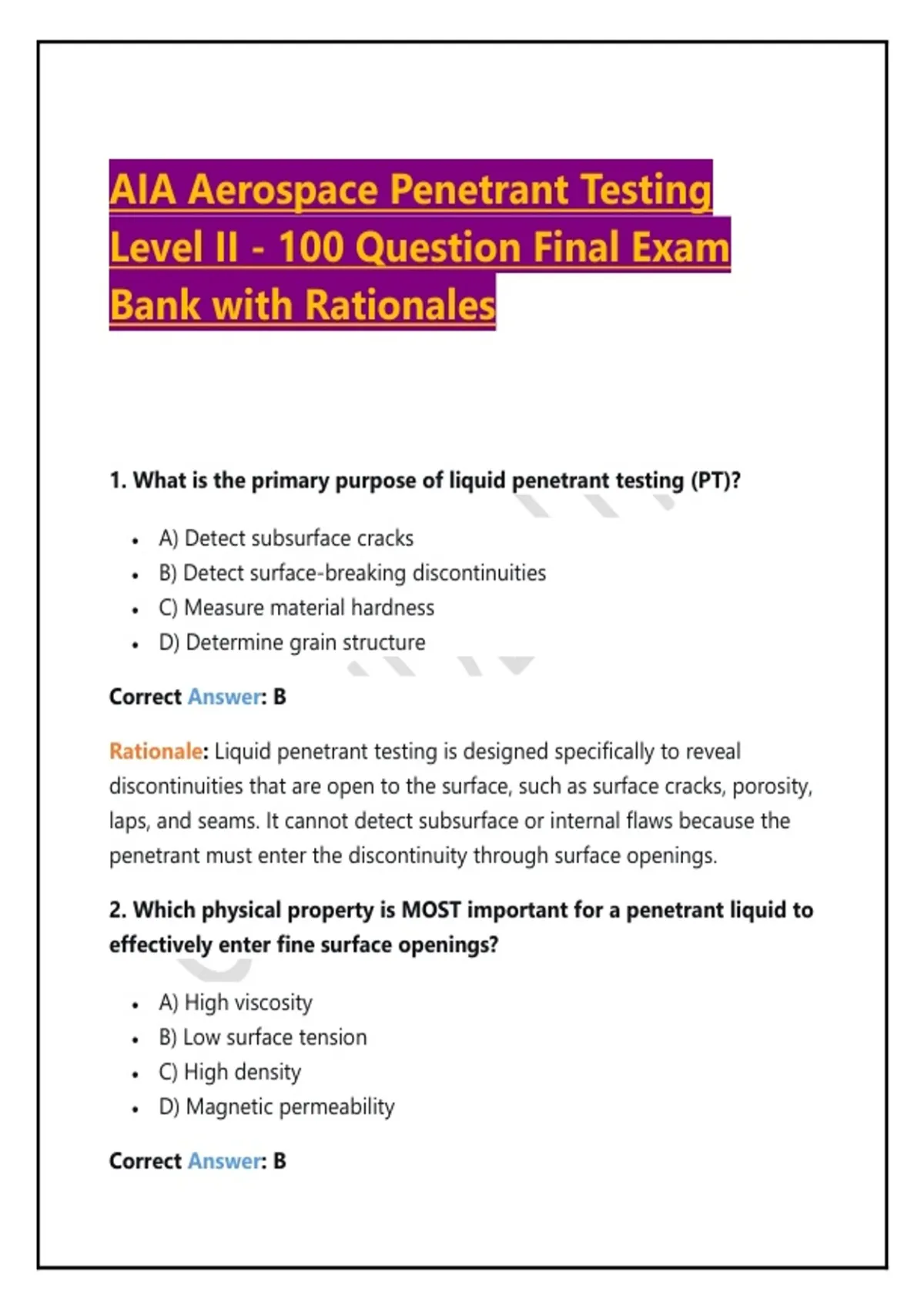

AIA Aerospace Penetrant Testing
Level II - 100 Question Final Exam
Bank with Rationales
1. What is the primary purpose of liquid penetrant testing (PT)?
A) Detect subsurface cracks
B) Detect surface-breaking discontinuities
C) Measure material hardness
D) Determine grain structure
Correct Answer: B
Rationale: Liquid penetrant testing is designed specifically to reveal
discontinuities that are open to the surface, such as surface cracks, porosity,
laps, and seams. It cannot detect subsurface or internal flaws because the
penetrant must enter the discontinuity through surface openings.
2. Which physical property is MOST important for a penetrant liquid to
effectively enter fine surface openings?
A) High viscosity
B) Low surface tension
C) High density
D) Magnetic permeability
Correct Answer: B
,Rationale: Low surface tension allows the penetrant to wet the surface and
penetrate into fine surface openings through capillary action. This is the
fundamental principle that makes penetrant testing effective for detecting
tight, narrow cracks.
3. What type of discontinuity CANNOT be detected by liquid penetrant
testing?
A) Surface cracks
B) Surface porosity
C) Internal cavity
D) Surface forging lap
Correct Answer: C
Rationale: Penetrant testing can only detect discontinuities that break the
surface. An internal cavity has no surface opening, so the penetrant cannot
enter it to form an indication.
4. The term "dwell time" in penetrant testing refers to:
A) Time developer remains on the surface
B) Time for drying after cleaning
C) Time penetrant remains on the surface before removal
D) Time for inspection under UV light
Correct Answer: C
Rationale: Dwell time is the total time that the penetrant is allowed to
remain in contact with the test surface. This period allows the penetrant to
seep into and fill any surface-breaking discontinuities through capillary
action.
,5. Which factor has the greatest effect on required penetrant dwell
time?
A) Type of developer used
B) Temperature of the part
C) Type of UV lamp
D) Size of the defect
Correct Answer: B
Rationale: Temperature significantly affects penetrant viscosity. Higher
temperatures reduce viscosity and may require shorter dwell times, while
cold surfaces increase viscosity and require longer dwell times.
Manufacturer recommendations should be followed based on part
temperature.
6. Which type of penetrant provides the HIGHEST sensitivity for
detecting very fine cracks?
A) Water-washable visible dye
B) Post-emulsifiable visible dye
C) Water-washable fluorescent
D) Fluorescent, post-emulsifiable
Correct Answer: D
Rationale: Fluorescent penetrants, particularly post-emulsifiable types,
offer the highest sensitivity because the fluorescent dye glows brightly
under UV light, making very fine, tight cracks visible. The post-emulsifiable
process also allows better control over penetrant removal from shallow
defects.
7. What is the primary function of the developer in penetrant testing?
, A) Remove excess penetrant from the surface
B) Enhance visibility of penetrant indications
C) Corrode surface defects for better detection
D) Seal surface defects to prevent leakage
Correct Answer: B
Rationale: Developer draws penetrant out of discontinuities through
capillary action and spreads it on the surface, creating a visible indication. It
also provides a contrasting background against which the penetrant
indication can be viewed.
8. The term "bleed-out" in penetrant testing refers to:
A) Penetrant leaking from a container
B) Penetrant seeping from a defect onto the surface
C) Excess developer drying too fast
D) Solvent removal of penetrant
Correct Answer: B
Rationale: Bleed-out occurs when penetrant trapped in a discontinuity is
drawn to the surface by the developer, forming a visible indication. This is
the fundamental mechanism by which discontinuities are detected.
9. A penetrant inspection CANNOT find which type of discontinuity?
A) Surface porosity
B) Surface cracks
C) An internal cavity
D) A surface forging lap
Correct Answer: C
