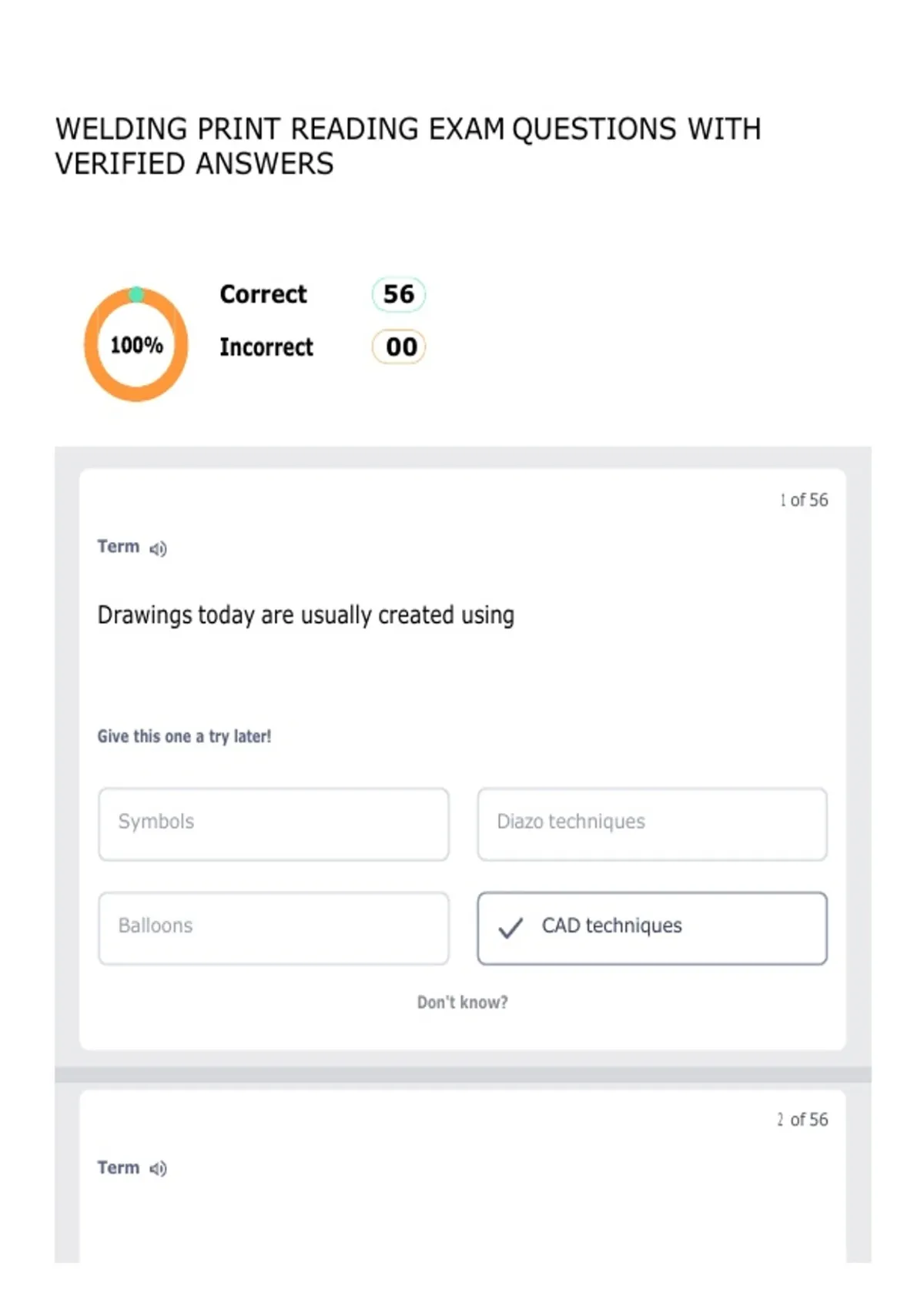

WELDING PRINT READING EXAM QUESTIONS WITH
VERIFIED ANSWERS
Correct 56
Incorrect 00
1 of 56
Term
Drawings today are usually created using
Give this one a try later!
Symbols Diazo techniques
Balloons CAD techniques
Don't know?
2 of 56
Term
,A welder who does the same welding procedure over and over in a
mass production setting is a _ welder
Give this one a try later!
maintenance production
repair planning
Don't know?
3 of 56
Term
A field weld symbol indicates that the weld is to be made
Give this one a try later!
at a place other than that of
in a shop or fabrication facility
initial construction
during the initial assembly of the
only in the horizontal position
structure
Don't know?
4 of 56
,Term
If angles are prepared on both plates of the base metal before
welding, the angles are known as_ angles
Give this one a try later!
fillet root
groove bevel
Don't know?
5 of 56
Term
A way of arranging metal pieces in relation to each other so they can
be welded is a
Give this one a try later!
joint butt
bone square
, Don't know?
6 of 56
Definition
on the left side of the weld symbol
Give this one a try later!
The root opening is indicated The weld symbol is placed
The type of weld is specified The size of a weld is placed
Don't know?
7 of 56
Term
The only required elements of a welding symbol are the
Give this one a try later!
reference line and arrow face
