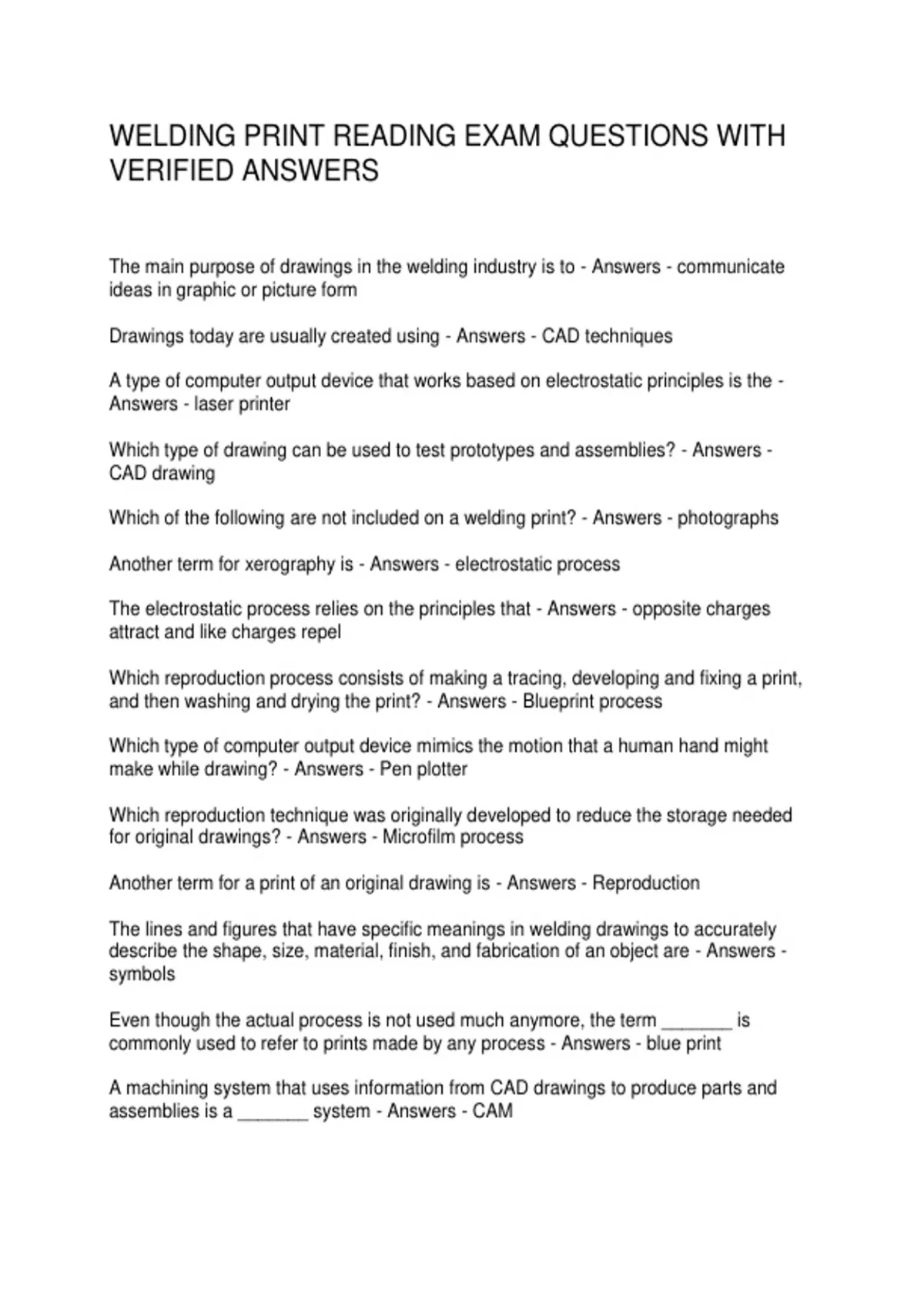

WELDING PRINT READING EXAM QUESTIONS WITH
VERIFIED ANSWERS
The main purpose of drawings in the welding industry is to - Answers - communicate
ideas in graphic or picture form
Drawings today are usually created using - Answers - CAD techniques
A type of computer output device that works based on electrostatic principles is the -
Answers - laser printer
Which type of drawing can be used to test prototypes and assemblies? - Answers -
CAD drawing
Which of the following are not included on a welding print? - Answers - photographs
Another term for xerography is - Answers - electrostatic process
The electrostatic process relies on the principles that - Answers - opposite charges
attract and like charges repel
Which reproduction process consists of making a tracing, developing and fixing a print,
and then washing and drying the print? - Answers - Blueprint process
Which type of computer output device mimics the motion that a human hand might
make while drawing? - Answers - Pen plotter
Which reproduction technique was originally developed to reduce the storage needed
for original drawings? - Answers - Microfilm process
Another term for a print of an original drawing is - Answers - Reproduction
The lines and figures that have specific meanings in welding drawings to accurately
describe the shape, size, material, finish, and fabrication of an object are - Answers -
symbols
Even though the actual process is not used much anymore, the term _______ is
commonly used to refer to prints made by any process - Answers - blue print
A machining system that uses information from CAD drawings to produce parts and
assemblies is a _______ system - Answers - CAM
, An inexpensive computer output device that may be small enough to fit on a desktop is
a _______ printer - Answers - inkjet
Print created from a microfilm negative - Answers - Blow-back
Reproduction technique that uses an electrostatic charge to duplicate an original -
Answers - Xerography
General term for a duplicate of an original drawing - Answers - Print
Reproduction on which dark lines are printed on a white background - Answers - White
print
Lines and figures that have specific meanings on a drawing - Answers - Symbols
To convert a common fraction to a decimal fraction, you would - Answers - divide the
numerator by the denominator
A metric rule is graduated in - Answers - millimeters
The decimal fraction equivalent of 3/4 inch is - Answers - .75
One millimeter is equal to ______ of a meter - Answers - 1/1000
When no number can be divided evenly into both the numerator and the denominator of
a fraction, the fraction is said to be - Answers - in lowest terms
Which of the following equations would convert 3.25 inches to millimeters? - Answers -
3.25 x 25.4
Which of the following equations would convert 7.5 inches to feet? - Answers - 7.5
divide 12
A decimal rule has ______ divisions on one edge, and either 50 to 100 divisions on the
other edge - Answers - 10
A number that will divide evenly into both the numerator and the denominator a fraction
is a ______ - Answers - Common factor
The marks or divisions on the edge of a rule are called - Answers - graduations
A welding drawing that contains both inch units and metric units is said to be ______ -
Answers - dual dimensioned
