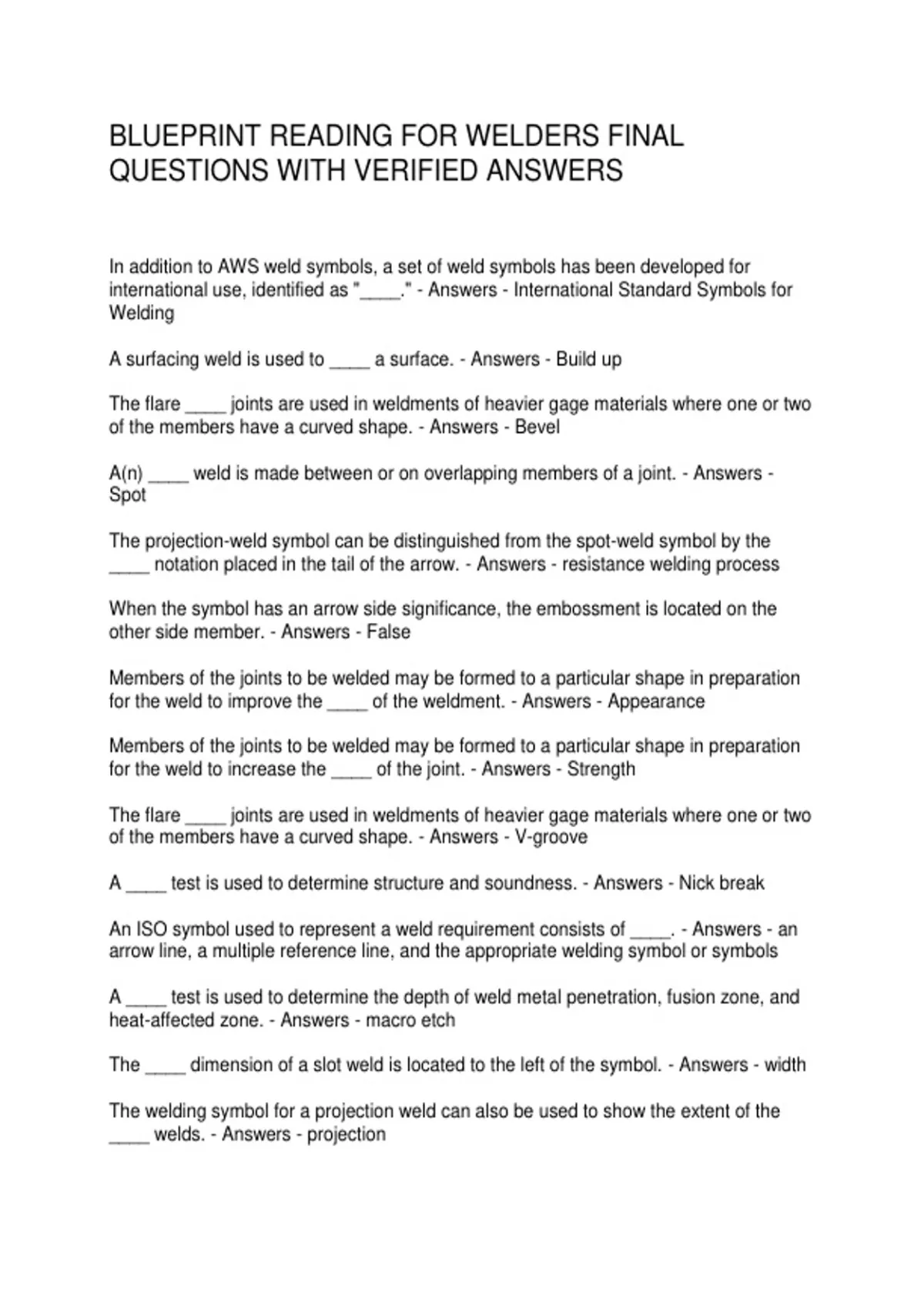

BLUEPRINT READING FOR WELDERS FINAL
QUESTIONS WITH VERIFIED ANSWERS
In addition to AWS weld symbols, a set of weld symbols has been developed for
international use, identified as "____." - Answers - International Standard Symbols for
Welding
A surfacing weld is used to ____ a surface. - Answers - Build up
The flare ____ joints are used in weldments of heavier gage materials where one or two
of the members have a curved shape. - Answers - Bevel
A(n) ____ weld is made between or on overlapping members of a joint. - Answers -
Spot
The projection-weld symbol can be distinguished from the spot-weld symbol by the
____ notation placed in the tail of the arrow. - Answers - resistance welding process
When the symbol has an arrow side significance, the embossment is located on the
other side member. - Answers - False
Members of the joints to be welded may be formed to a particular shape in preparation
for the weld to improve the ____ of the weldment. - Answers - Appearance
Members of the joints to be welded may be formed to a particular shape in preparation
for the weld to increase the ____ of the joint. - Answers - Strength
The flare ____ joints are used in weldments of heavier gage materials where one or two
of the members have a curved shape. - Answers - V-groove
A ____ test is used to determine structure and soundness. - Answers - Nick break
An ISO symbol used to represent a weld requirement consists of ____. - Answers - an
arrow line, a multiple reference line, and the appropriate welding symbol or symbols
A ____ test is used to determine the depth of weld metal penetration, fusion zone, and
heat-affected zone. - Answers - macro etch
The ____ dimension of a slot weld is located to the left of the symbol. - Answers - width
The welding symbol for a projection weld can also be used to show the extent of the
____ welds. - Answers - projection
