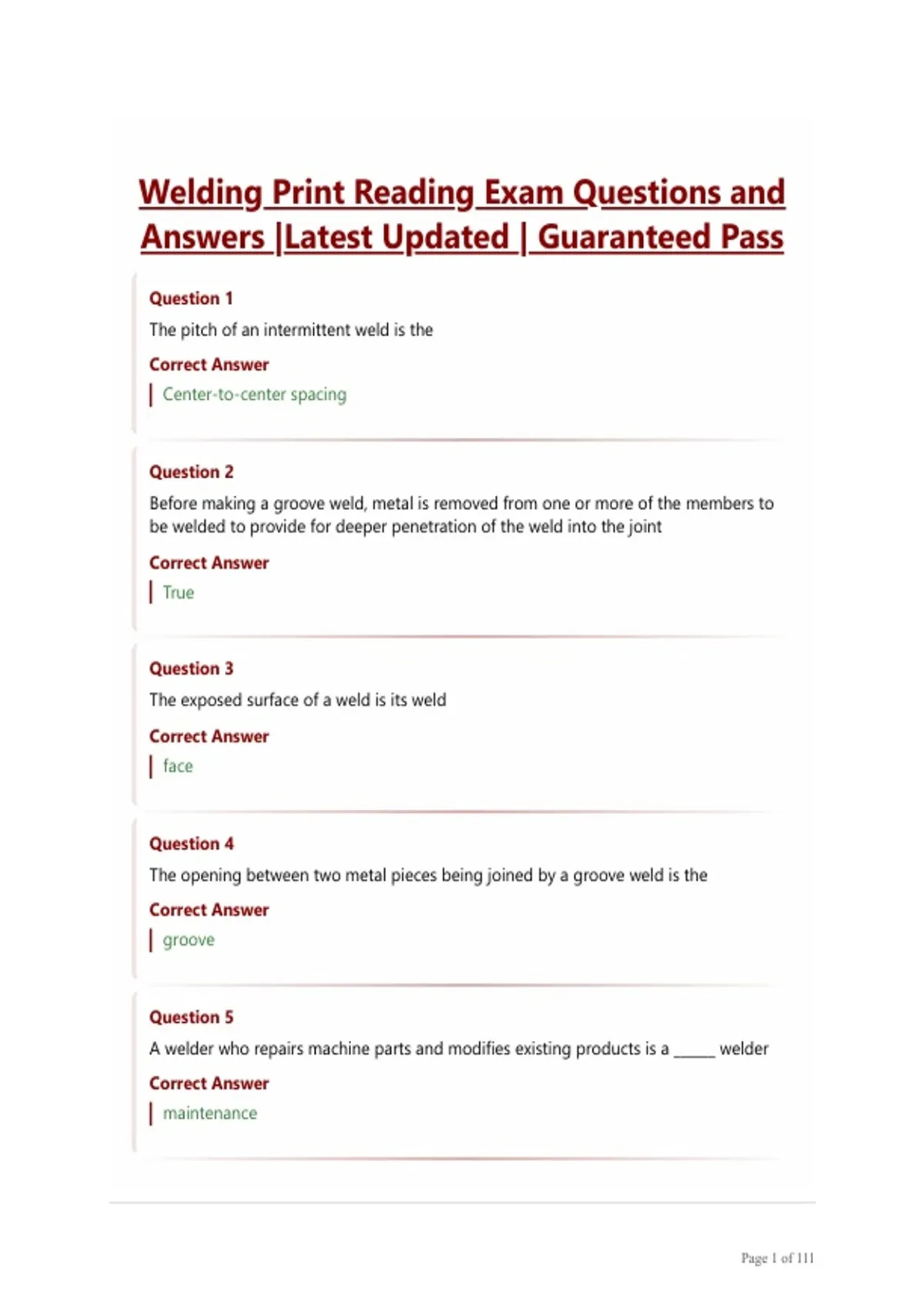

Welding Print Reading Exam Questions and
Answers |Latest Updated | Guaranteed Pass
Question 1
The pitch of an intermittent weld is the
Correct Answer
Center-to-center spacing



Question 2
Before making a groove weld, metal is removed from one or more of the members to
be welded to provide for deeper penetration of the weld into the joint
Correct Answer
True



Question 3
The exposed surface of a weld is its weld
Correct Answer
face



Question 4
The opening between two metal pieces being joined by a groove weld is the
Correct Answer
groove



Question 5
A welder who repairs machine parts and modifies existing products is a ______ welder
Correct Answer
maintenance




Page 1 of 111

,Question 6
General term for a duplicate of an original drawing
Correct Answer
Print



Question 7
Welders may work from a sketch if a weldment is relatively simple
Correct Answer
True



Question 8
Round or formed metal parts are joined using
Correct Answer
flare-groove welds



Question 9
A welder who does the same welding procedure over and over in a mass production
setting is a ______ welder
Correct Answer
production



Question 10
A tolerance is the total amount of variance allowed in the size of a part or object
Correct Answer
True



Question 11
Backing welds are made after groove welds
Correct Answer
False




Page 2 of 111

,Question 12
The heavy line labeled with letters at both ends that is used to show the direction
from which a sectional view is taken is a ______ line
Correct Answer
cutting plane



Question 13
A field weld symbol indicates that the weld is to be made
Correct Answer
at a place other than that of initial construction



Question 14
Joint penetration is the distance the weld metal extends from the weld face into a
joint
Correct Answer
True



Question 15
Lines and figures that have specific meanings on a drawing
Correct Answer
Symbols



Question 16
The decimal fraction equivalent of 3/4 inch is
Correct Answer
.75




Page 3 of 111

, Question 17
Center lines have long dashes altering with two short dashes
Correct Answer
FALSE



Question 18
Which of the following welds is made through a hole in one piece of metal to attach it
to another piece of metal?
Correct Answer
Slot weld



Question 19
Another term for the base material, or material being welded, is
Correct Answer
parent metal



Question 20
When no dimension is given on a welding symbol, the weld should completely
penetrate the joint
Correct Answer
True



Question 21
A machining system that uses information from CAD drawings to produce parts and
assemblies is a _______ system
Correct Answer
CAM
