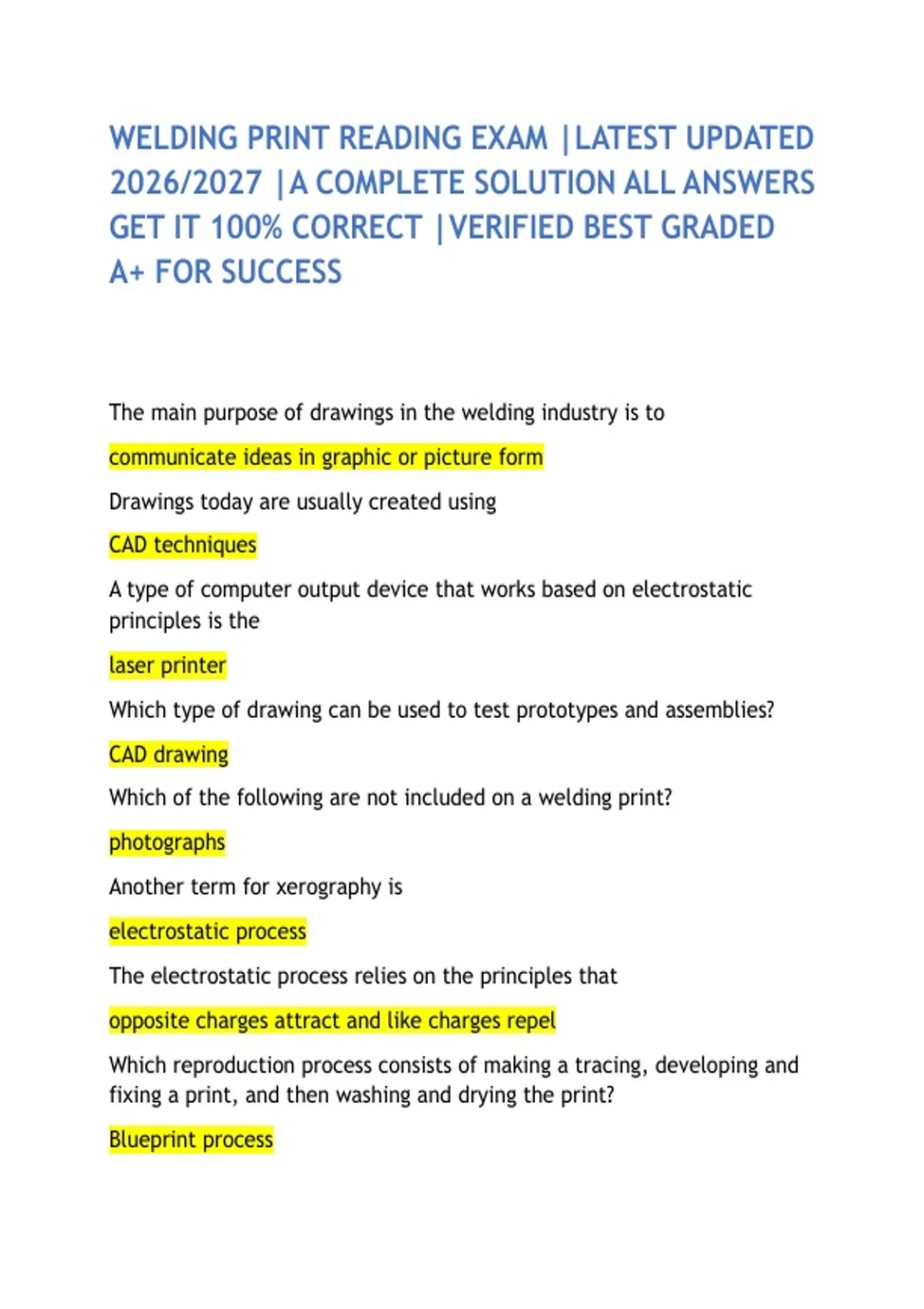

WELDING PRINT READING EXAM |LATEST UPDATED
2026/2027 |A COMPLETE SOLUTION ALL ANSWERS
GET IT 100% CORRECT |VERIFIED BEST GRADED
A+ FOR SUCCESS
The main purpose of drawings in the welding industry is to
communicate ideas in graphic or picture form
Drawings today are usually created using
CAD techniques
A type of computer output device that works based on electrostatic
principles is the
laser printer
Which type of drawing can be used to test prototypes and assemblies?
CAD drawing
Which of the following are not included on a welding print?
photographs
Another term for xerography is
electrostatic process
The electrostatic process relies on the principles that
opposite charges attract and like charges repel
Which reproduction process consists of making a tracing, developing and
fixing a print, and then washing and drying the print?
Blueprint process
,Which type of computer output device mimics the motion that a human
hand might make while drawing?
Pen plotter
Which reproduction technique was originally developed to reduce the
storage needed for original drawings?
Microfilm process
Another term for a print of an original drawing is
Reproduction
The lines and figures that have specific meanings in welding drawings to
accurately describe the shape, size, material, finish, and fabrication of
an object are
symbols
Even though the actual process is not used much anymore, the term
_______ is commonly used to refer to prints made by any process
blue print
A machining system that uses information from CAD drawings to produce
parts and assemblies is a _______ system
CAM
An inexpensive computer output device that may be small enough to fit
on a desktop is a _______ printer
inkjet
Print created from a microfilm negative
Blow-back
Reproduction technique that uses an electrostatic charge to duplicate an
original
Xerography
, General term for a duplicate of an original drawing
Print
Reproduction on which dark lines are printed on a white background
White print
Lines and figures that have specific meanings on a drawing
Symbols
To convert a common fraction to a decimal fraction, you would
divide the numerator by the denominator
A metric rule is graduated in
millimeters
The decimal fraction equivalent of 3/4 inch is
.75
One millimeter is equal to ______ of a meter
1/1000
When no number can be divided evenly into both the numerator and the
denominator of a fraction, the fraction is said to be
in lowest terms
Which of the following equations would convert 3.25 inches to
millimeters?
3.25 x 25.4
Which of the following equations would convert 7.5 inches to feet?
7.5 divide 12
A decimal rule has ______ divisions on one edge, and either 50 to 100
divisions on the other edge
10
