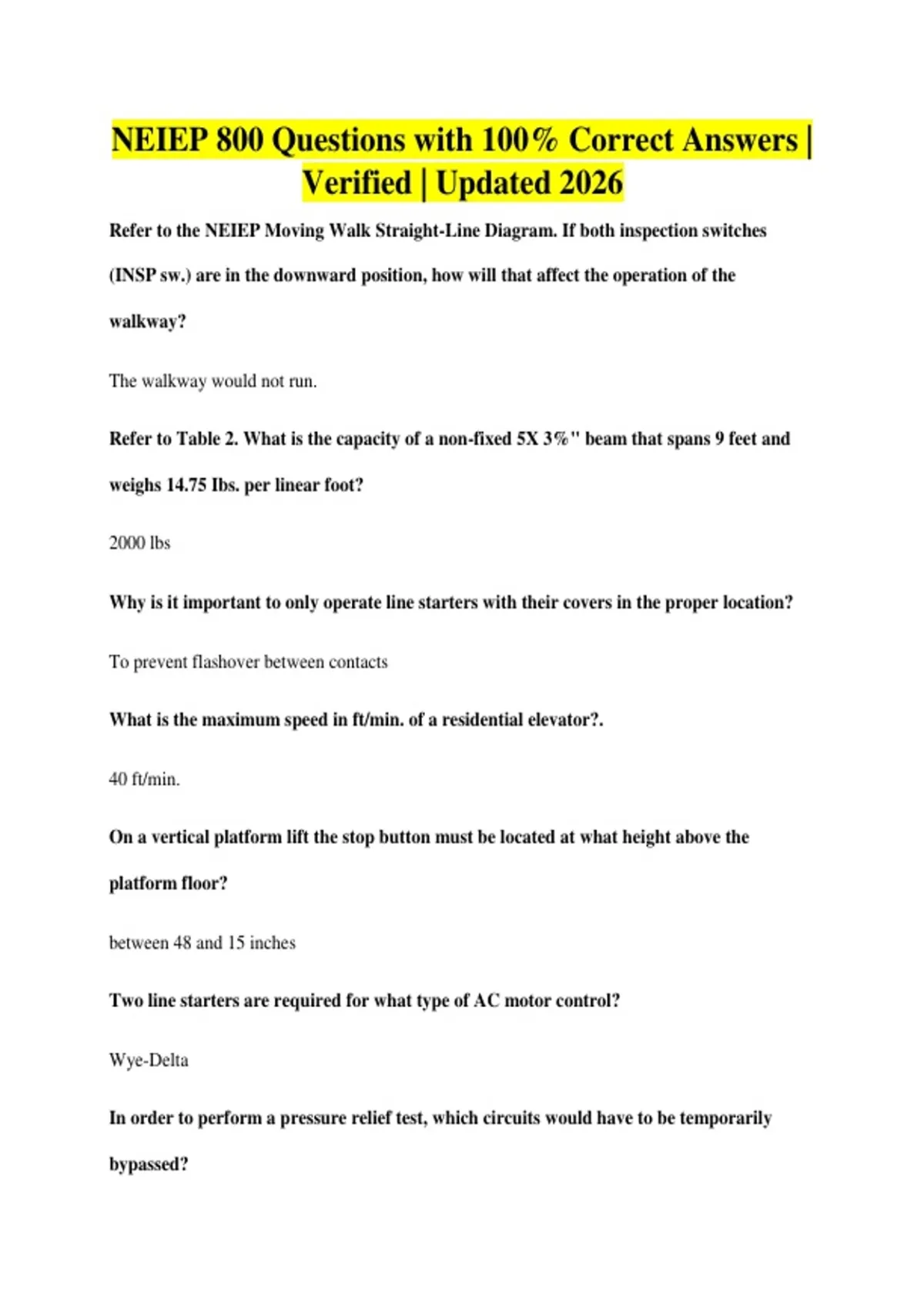

NEIEP 800 Questions with 100% Correct Answers |
Verified | Updated 2026
Refer to the NEIEP Moving Walk Straight-Line Diagram. If both inspection switches
(INSP sw.) are in the downward position, how will that affect the operation of the
walkway?
The walkway would not run.
Refer to Table 2. What is the capacity of a non-fixed 5X 3%" beam that spans 9 feet and
weighs 14.75 Ibs. per linear foot?
2000 lbs
Why is it important to only operate line starters with their covers in the proper location?
To prevent flashover between contacts
What is the maximum speed in ft/min. of a residential elevator?.
40 ft/min.
On a vertical platform lift the stop button must be located at what height above the
platform floor?
between 48 and 15 inches
Two line starters are required for what type of AC motor control?
Wye-Delta
In order to perform a pressure relief test, which circuits would have to be temporarily
bypassed?
, The up limit switches
What code do most issues regarding the installation of temporary hoists fall under?
ANSI A10.4
There is a problem with the UP valve and the low oil timer has tripped. What is the
expected result?
The car returns to the lowest floor
Which of the following best describes a one person pressure relief valve test?
A single mechanic operates the pump from outside the machine room and records relief pressure.
Rack and Pinion pit structures consist of which of these components?
Foundation, base enclosure, buffer springs
The elevator is running erratically and you want to clean the valve screen. What must you
do to ensure that oil doesn't leak when you remove the screen?
Close the machine room shutoff valve.
If electrolysis erodes the bottom of the hydraulic cylinder, which of the following provides a
measure of safety?
Safety bulkhead at the bottom of the cylinder
Safety hooks are best described by which of the following?
Mounted to the frame below the lowest pinion
