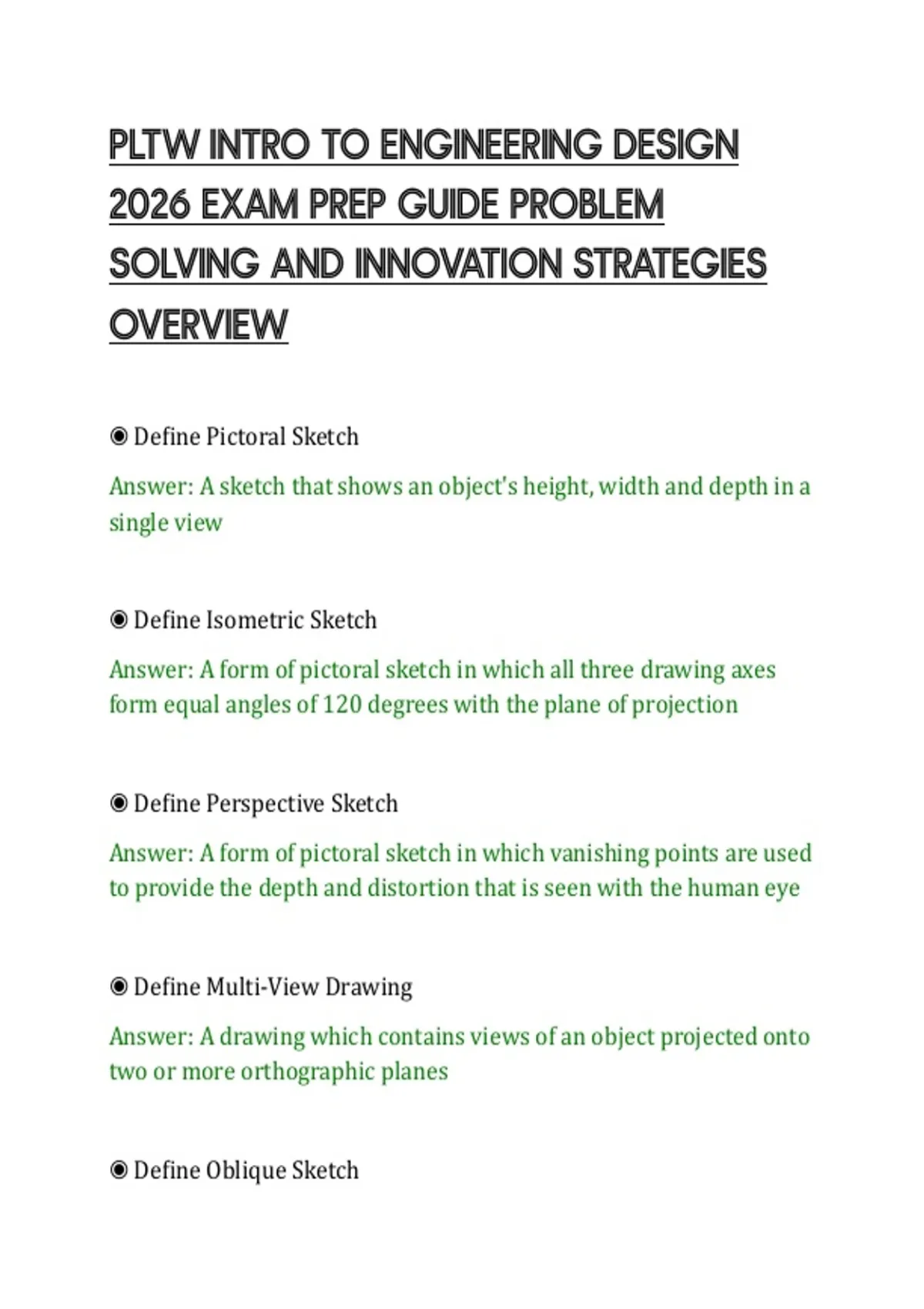

PLTW INTRO TO ENGINEERING DESIGN 2026 EXAM PREP GUIDE PROBLEM SOLVING AND INNOVATION STRATEGIES OVERVIEW

Content preview

PLTW INTRO TO ENGINEERING DESIGN
2026 EXAM PREP GUIDE PROBLEM
SOLVING AND INNOVATION STRATEGIES
OVERVIEW

◉ Define Pictoral Sketch
Answer: A sketch that shows an object's height, width and depth in a
single view


◉ Define Isometric Sketch
Answer: A form of pictoral sketch in which all three drawing axes
form equal angles of 120 degrees with the plane of projection


◉ Define Perspective Sketch
Answer: A form of pictoral sketch in which vanishing points are used
to provide the depth and distortion that is seen with the human eye


◉ Define Multi-View Drawing
Answer: A drawing which contains views of an object projected onto
two or more orthographic planes


◉ Define Oblique Sketch

, Answer: A form of pictoral in which an object is represented as true
width and height, but the depth can be any size and drawn at any
angle


◉ What are the 3 spatial dimensions?
Answer: Height, width and depth


◉ What is an Orthographic Projection?
Answer: A method of representing three-dimensional objects on a
plane


◉ What is a Multi-View Drawing?
Answer: A drawing which contains views of an object projected onto
two or more orthographic planes


◉ What is a Technical Working Drawing?
Answer: A drawing that is used to show the material, size, and shape
of a product for manufacturing purposes


◉ The degree of closeness of measurements to the actual or
accepted value is called...
Answer: Accuracy
