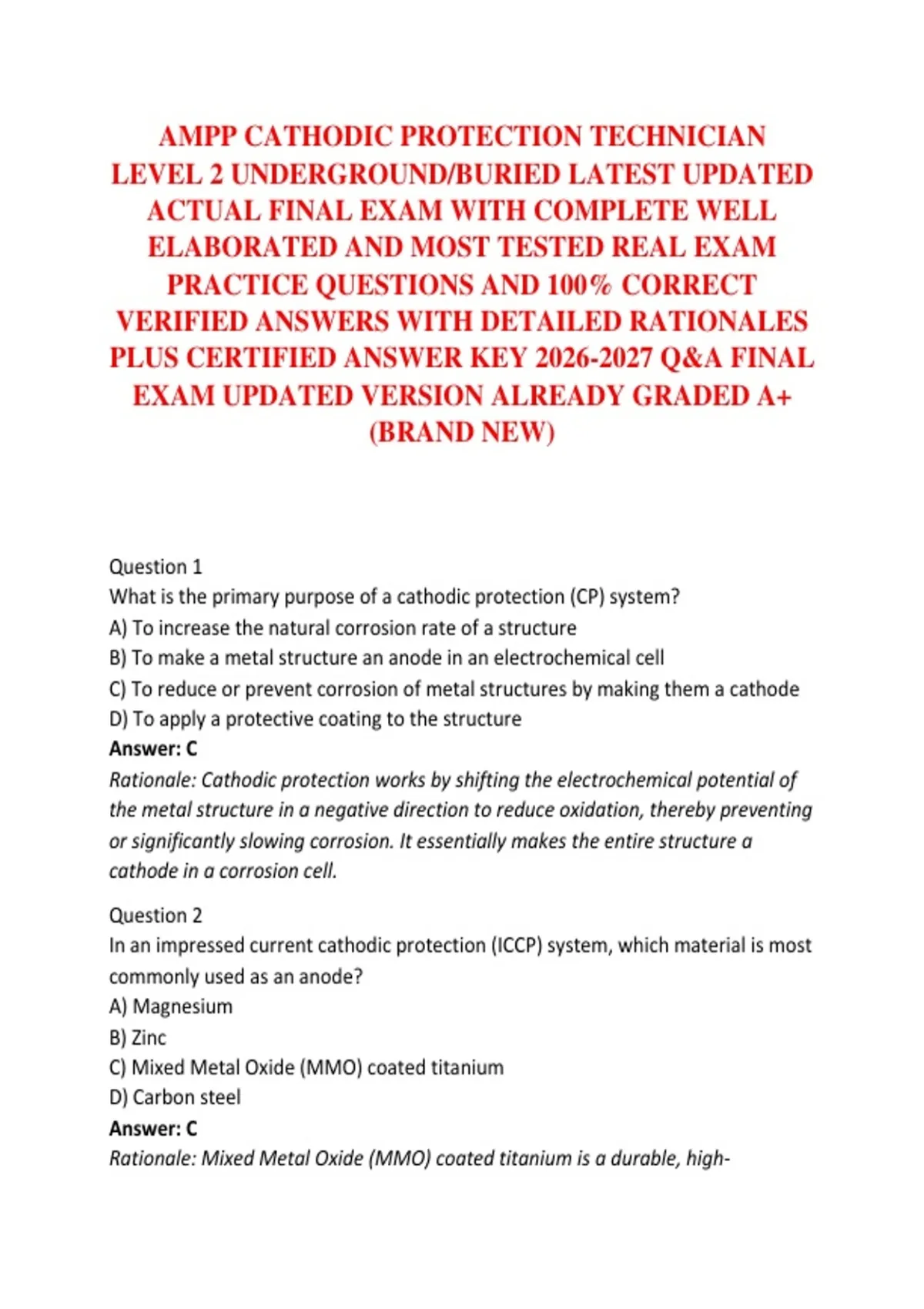

AMPP CATHODIC PROTECTION TECHNICIAN
LEVEL 2 UNDERGROUND/BURIED LATEST UPDATED
ACTUAL FINAL EXAM WITH COMPLETE WELL
ELABORATED AND MOST TESTED REAL EXAM
PRACTICE QUESTIONS AND 100% CORRECT
VERIFIED ANSWERS WITH DETAILED RATIONALES
PLUS CERTIFIED ANSWER KEY 2026-2027 Q&A FINAL
EXAM UPDATED VERSION ALREADY GRADED A+
(BRAND NEW)
Question 1
What is the primary purpose of a cathodic protection (CP) system?
A) To increase the natural corrosion rate of a structure
B) To make a metal structure an anode in an electrochemical cell
C) To reduce or prevent corrosion of metal structures by making them a cathode
D) To apply a protective coating to the structure
Answer: C
Rationale: Cathodic protection works by shifting the electrochemical potential of
the metal structure in a negative direction to reduce oxidation, thereby preventing
or significantly slowing corrosion. It essentially makes the entire structure a
cathode in a corrosion cell.
Question 2
In an impressed current cathodic protection (ICCP) system, which material is most
commonly used as an anode?
A) Magnesium
B) Zinc
C) Mixed Metal Oxide (MMO) coated titanium
D) Carbon steel
Answer: C
Rationale: Mixed Metal Oxide (MMO) coated titanium is a durable, high-
,performance anode used in impressed current systems because it provides a stable
current discharge and has a very long service life.
Question 3
Which of the following is the most common and accepted criterion for achieving
cathodic protection on a steel structure in soil?
A) -0.50 V vs. Cu/CuSO₄
B) -0.60 V vs. Cu/CuSO₄
C) -0.85 V or more negative vs. Cu/CuSO₄
D) -1.50 V vs. Ag/AgCl
Answer: C
Rationale: The -0.85 V vs. Cu/CuSO₄ criterion is the most widely accepted standard
for determining adequate cathodic protection of steel in soil.
Question 4
What is a holiday in the context of pipeline coatings?
A) A scheduled maintenance day
B) A coating defect or discontinuity that exposes bare metal
C) An area where the pipe is protected by a sacrificial anode
D) A section of pipe that is over-protected
Answer: B
Rationale: A holiday is a discontinuity or defect in a protective coating that
exposes bare metal to the environment, creating a potential site for corrosion.
Question 5
What is the primary function of a reference electrode in CP testing?
A) To supply current to the protected structure
B) To measure the potential of a structure relative to a stable standard
C) To record current output from a rectifier
D) To measure soil resistivity
Answer: B
Rationale: Reference electrodes provide a stable, known potential against which
the potential of a structure can be measured, allowing for accurate assessment of
CP effectiveness.
Question 6
What is the term for the process of applying a protective current to a metal
,structure to make it a cathode?
A) Anodizing
B) Passivation
C) Cathodic protection
D) Electroplating
Answer: C
Rationale: Cathodic protection is the electrochemical process where a metal
structure is made the cathode of an electrochemical cell, thereby reducing or
preventing its corrosion.
Question 7
In a galvanic (sacrificial) anode CP system, which metal is typically used as the
anode to protect a steel pipeline?
A) Platinum
B) Copper
C) Magnesium
D) Lead
Answer: C
Rationale: Magnesium, zinc, and aluminum are commonly used as sacrificial
anodes because they are more active (less noble) than steel and will corrode
preferentially, providing protective current to the steel structure.
Question 8
What is the purpose of a shunt in a cathodic protection circuit?
A) To increase circuit resistance
B) To measure current flow by measuring the voltage drop across a known
resistance
C) To convert AC to DC
D) To provide electrical isolation
Answer: B
Rationale: A shunt is a low-resistance precision resistor placed in a circuit. By
measuring the voltage drop across the shunt and using Ohm's law, the current
flowing through the circuit can be calculated.
Question 9
What is the typical potential criterion for cathodic protection of steel in seawater?
, A) -0.80 V vs. Ag/AgCl
B) -0.85 V vs. Cu/CuSO₄
C) -0.70 V vs. Ag/AgCl
D) -1.00 V vs. Cu/CuSO₄
Answer: A
Rationale: For seawater, the protection criterion is typically -0.80 V vs. Ag/AgCl.
This is different from the soil criterion of -0.85 V vs. Cu/CuSO₄ due to the different
reference electrodes and environments.
Question 10
What is the most effective method to mitigate DC stray current interference on a
pipeline from a transit system?
A) Increase the CP current output on the pipeline
B) Install a metallic bond between the pipeline and the transit system
C) Apply a protective coating to the pipeline
D) Install sacrificial anodes at the interference point
Answer: B
Rationale: Installing a metallic bond (drainage bond) between the pipeline and the
stray current source allows the current to return to its source, effectively
mitigating the interference.
Question 11
What is the minimum recommended level of cathodic protection potential for a
steel structure in soil according to NACE SP0169?
A) -0.70 V vs. Cu/CuSO₄
B) -0.80 V vs. Cu/CuSO₄
C) -0.85 V vs. Cu/CuSO₄
D) -1.00 V vs. Cu/CuSO₄
Answer: C
Rationale: NACE SP0169 establishes -0.85 V vs. Cu/CuSO₄ as the minimum
potential for adequate cathodic protection of steel in soil, provided IR drop errors
are considered.
Question 12
What is the function of a rectifier in an impressed current CP system?
A) To convert DC to AC
