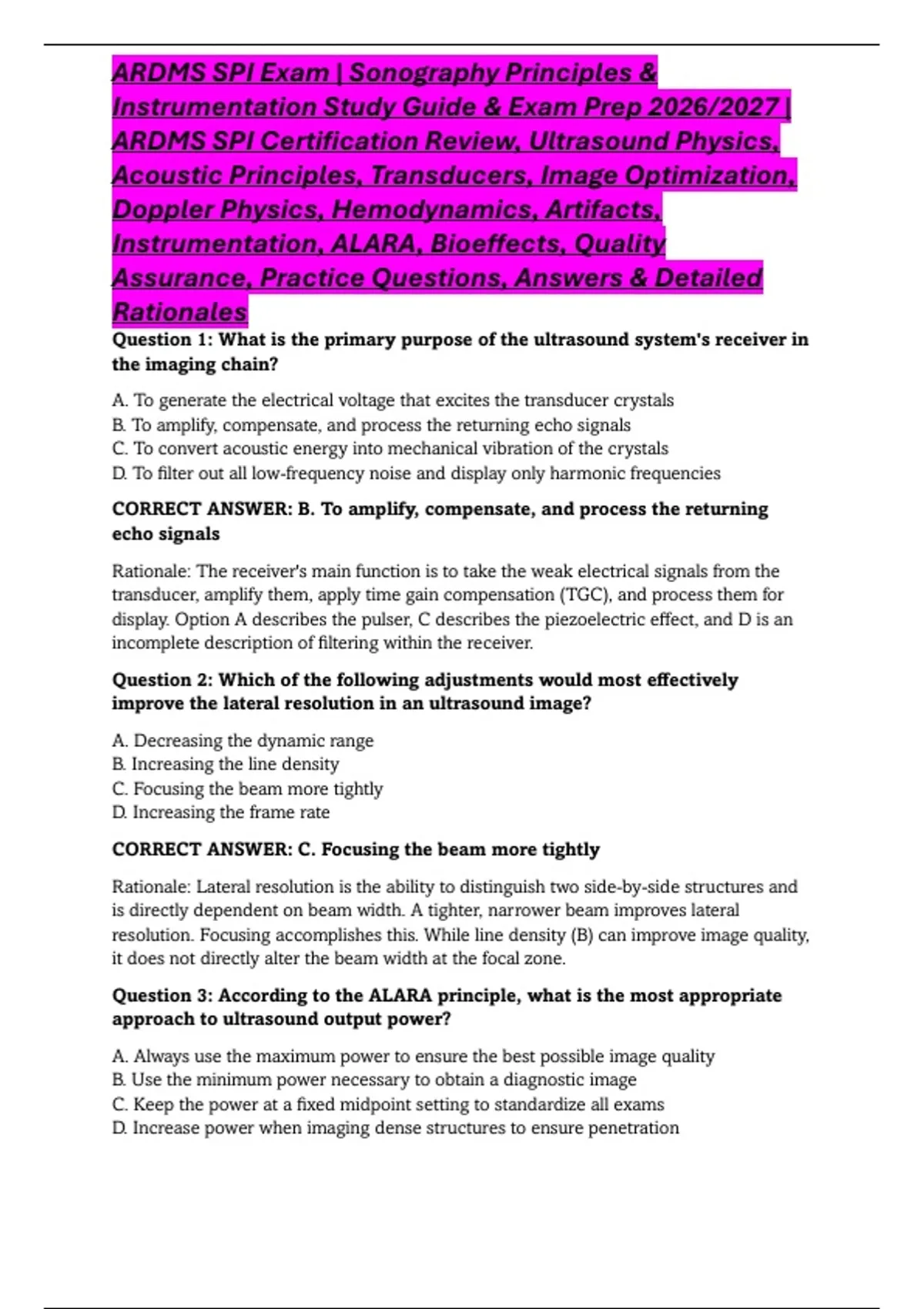

ARDMS SPI Exam | Sonography Principles &
Instrumentation Study Guide & Exam Prep 2026/2027 |
ARDMS SPI Certification Review, Ultrasound Physics,
Acoustic Principles, Transducers, Image Optimization,
Doppler Physics, Hemodynamics, Artifacts,
Instrumentation, ALARA, Bioeffects, Quality
Assurance, Practice Questions, Answers & Detailed
Rationales
Question 1: What is the primary purpose of the ultrasound system's receiver in
the imaging chain?
A. To generate the electrical voltage that excites the transducer crystals
B. To amplify, compensate, and process the returning echo signals
C. To convert acoustic energy into mechanical vibration of the crystals
D. To filter out all low-frequency noise and display only harmonic frequencies
CORRECT ANSWER: B. To amplify, compensate, and process the returning
echo signals
Rationale: The receiver's main function is to take the weak electrical signals from the
transducer, amplify them, apply time gain compensation (TGC), and process them for
display. Option A describes the pulser, C describes the piezoelectric effect, and D is an
incomplete description of filtering within the receiver.
Question 2: Which of the following adjustments would most effectively
improve the lateral resolution in an ultrasound image?
A. Decreasing the dynamic range
B. Increasing the line density
C. Focusing the beam more tightly
D. Increasing the frame rate
CORRECT ANSWER: C. Focusing the beam more tightly
Rationale: Lateral resolution is the ability to distinguish two side-by-side structures and
is directly dependent on beam width. A tighter, narrower beam improves lateral
resolution. Focusing accomplishes this. While line density (B) can improve image quality,
it does not directly alter the beam width at the focal zone.
Question 3: According to the ALARA principle, what is the most appropriate
approach to ultrasound output power?
A. Always use the maximum power to ensure the best possible image quality
B. Use the minimum power necessary to obtain a diagnostic image
C. Keep the power at a fixed midpoint setting to standardize all exams
D. Increase power when imaging dense structures to ensure penetration
,CORRECT ANSWER: B. Use the minimum power necessary to obtain a
diagnostic image
Rationale: ALARA stands for "As Low As Reasonably Achievable." This principle
dictates that the operator should minimize the acoustic output (power) and exposure
time to achieve the diagnostic objective, thereby reducing potential bioeffects.
Question 4: What is the effect of increasing the frequency of a continuous
wave (CW) Doppler system?
A. Increased depth of penetration
B. Decreased maximum velocity limit (Nyquist limit)
C. Decreased attenuation of the beam
D. Improved ability to detect slow blood flow
CORRECT ANSWER: B. Decreased maximum velocity limit (Nyquist limit)
Rationale: The Nyquist limit is directly related to the PRF. In CW Doppler, the PRF is the
transmit frequency. Higher frequency has higher attenuation (C), less penetration (A),
and the Nyquist limit actually increases for Doppler shift, but the maximum measurable
velocity before aliasing is determined by the PRF/2, which is fixed. However, the
Doppler shift is larger at higher frequencies, making it more susceptible to aliasing at a
given velocity, effectively lowering the maximum velocity that can be displayed without
aliasing.
Question 5: Which component of the ultrasound system is responsible for
converting the electrical signal from the receiver into a form suitable for
display on the monitor?
A. The transducer
B. The pulser
C. The scan converter
D. The master synchronizer
CORRECT ANSWER: C. The scan converter
Rationale: The scan converter takes the processed echo data and stores it in a digital
format (pixel memory). It converts the signal from the polar coordinate format used in
scanning to the Cartesian (x,y) raster format required for the video display.
Question 6: The propagation speed of ultrasound in soft tissue is generally
assumed to be:
A. 1,540 m/s
B. 1,450 m/s
C. 1,600 m/s
D. 344 m/s
CORRECT ANSWER: A. 1,540 m/s
,Rationale: By international convention, the average propagation speed of ultrasound in
soft tissue is assumed to be 1,540 m/s (or 1.54 mm/µs). This is a fundamental
assumption used by all diagnostic ultrasound systems for distance calculations.
Question 7: What is the primary function of the damping material within a
transducer?
A. To increase the bandwidth of the sound pulse
B. To increase the quality factor (Q-factor)
C. To decrease the frequency of the sound wave
D. To increase the amplitude of the sound wave
CORRECT ANSWER: A. To increase the bandwidth of the sound pulse
Rationale: The damping material (backing block) is placed behind the piezoelectric
crystal to absorb vibrations and shorten the ringing of the crystal. This produces a
shorter pulse length, which increases the bandwidth and improves axial resolution. It
also decreases the Q-factor.
Question 8: Which of the following artifacts is produced when the ultrasound
beam encounters a structure with a propagation speed significantly slower
than the assumed 1,540 m/s, causing the system to place echoes at an
incorrect depth?
A. Acoustic shadowing
B. Reverberation
C. Speed error artifact
D. Side lobe artifact
CORRECT ANSWER: C. Speed error artifact
Rationale: The system calculates distance based on time and the assumed speed of
1,540 m/s. If the actual speed in a medium (like fat, which is ~1,450 m/s) is slower, the
system overestimates the depth, placing the echoes deeper than they truly are.
Question 9: In the context of Doppler ultrasound, what is the meaning of the
"Nyquist limit"?
A. The maximum velocity that can be measured without aliasing
B. The minimum velocity that can be detected
C. The maximum depth that can be insonated
D. The threshold for setting the Doppler gain
CORRECT ANSWER: A. The maximum velocity that can be measured without
aliasing
Rationale: The Nyquist limit is equal to one-half of the pulse repetition frequency (PRF).
If the Doppler shift frequency exceeds this limit, aliasing occurs, where the velocity is
displayed in the opposite direction or as a wrap-around color.
, Question 10: What is the clinical significance of the focal zone in diagnostic
ultrasound?
A. It is the area where the beam is most narrow and lateral resolution is best
B. It is the area where the beam is weakest and penetration is limited
C. It is the point where the beam diverges and axial resolution is worst
D. It is the point just beyond the transducer where near-field length ends
CORRECT ANSWER: A. It is the area where the beam is most narrow and
lateral resolution is best
Rationale: The focal zone is the region where the sound beam is focused to its minimum
width. This provides the highest intensity and the best lateral resolution, making it the
optimal area for interrogating anatomy.
Question 11: A sonographer increases the overall gain. What is the direct
consequence of this action?
A. Improved axial resolution
B. Increased depth of penetration
C. Amplification of all returning echoes uniformly
D. Increased frame rate
CORRECT ANSWER: C. Amplification of all returning echoes uniformly
Rationale: The overall gain (or 2D gain) control amplifies the signal from all depths
equally within the receiver. It makes the entire image brighter or darker but does not
change the relative differences in echo amplitude (which is the function of TGC).
Question 12: Which type of resolution is defined as the ability to distinguish
two structures that are parallel to the sound beam's main axis?
A. Lateral resolution
B. Temporal resolution
C. Axial resolution
D. Contrast resolution
CORRECT ANSWER: C. Axial resolution
Rationale: Axial resolution is the ability to distinguish two structures lying along the axis
of the sound beam (front to back). It is determined by the spatial pulse length.
Question 13: What does the "Q-factor" of a transducer represent?
A. The ratio of operating frequency to bandwidth
B. The measure of beam divergence in the far field
C. The efficiency of converting electrical to acoustic energy
D. The degree of attenuation in the tissue
CORRECT ANSWER: A. The ratio of operating frequency to bandwidth
