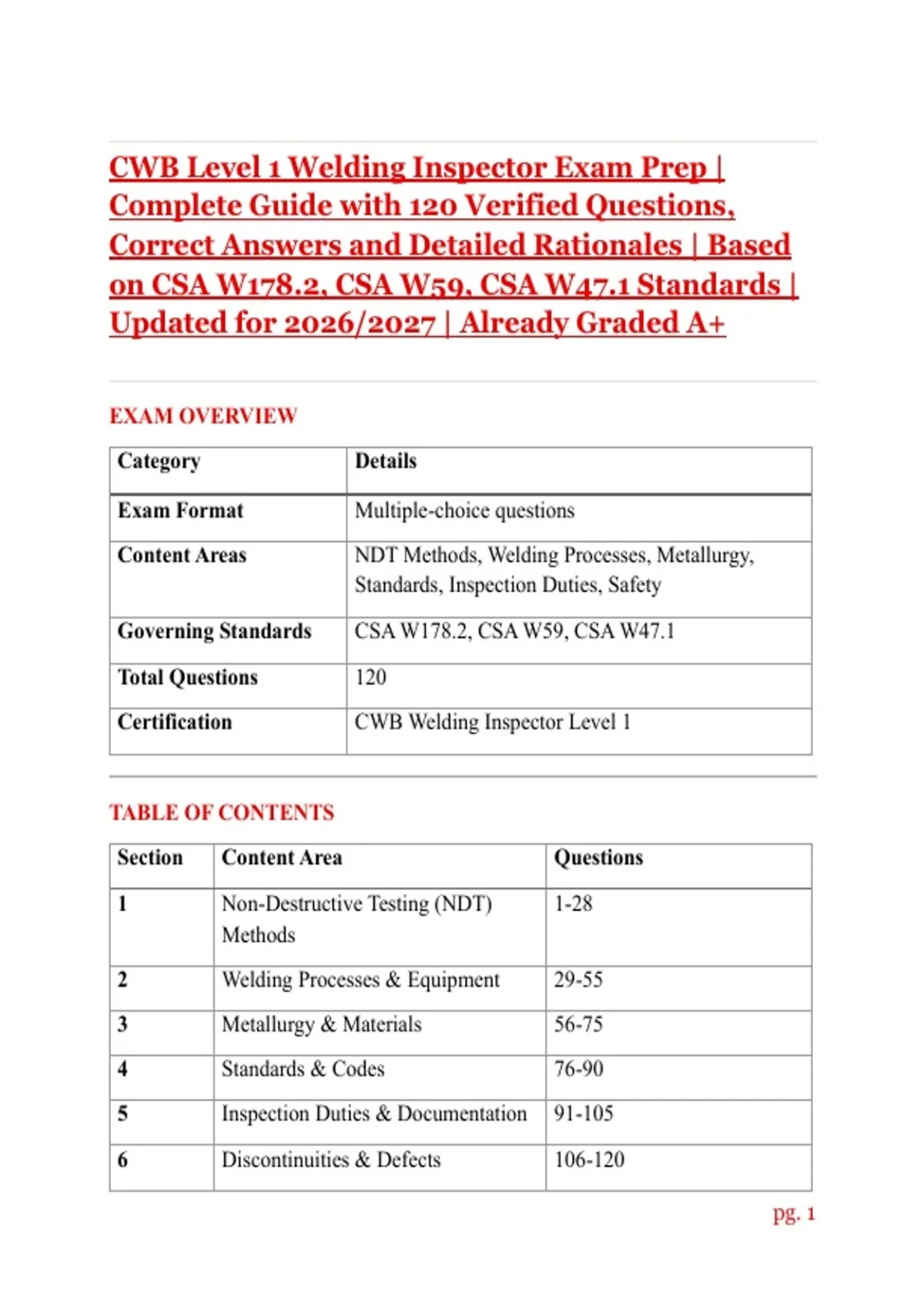

CWB Level 1 Welding Inspector Exam Prep |
Complete Guide with 120 Verified Questions,
Correct Answers and Detailed Rationales | Based
on CSA W178.2, CSA W59, CSA W47.1 Standards |
Updated for 2026/2027 | Already Graded A+
EXAM OVERVIEW
Category Details
Exam Format Multiple-choice questions
Content Areas NDT Methods, Welding Processes, Metallurgy,
Standards, Inspection Duties, Safety
Governing Standards CSA W178.2, CSA W59, CSA W47.1
Total Questions 120
Certification CWB Welding Inspector Level 1
TABLE OF CONTENTS
Section Content Area Questions
1 Non-Destructive Testing (NDT) 1-28
Methods
2 Welding Processes & Equipment 29-55
3 Metallurgy & Materials 56-75
4 Standards & Codes 76-90
5 Inspection Duties & Documentation 91-105
6 Discontinuities & Defects 106-120
pg. 1
,SECTION 1: NON-DESTRUCTIVE TESTING (NDT) METHODS
Questions 1-28
Question 1
Which is not a recommended method for surface cleaning of a part for liquid
penetrant examination?
A. Cleaning with organic solvents
B. Blasting with shot or dull sand
C. Cleaning with de-greasers
D. Use of de-scaling solutions
E. Ultrasonic cleaning methods
Answer: B
Rationale: Blasting with shot or dull sand is not recommended because it can peen
the surface, closing up small defects and preventing penetrant from entering them.
Organic solvents, de-greasers, de-scaling solutions, and ultrasonic cleaning are all
acceptable cleaning methods for liquid penetrant inspection.
Question 2
Which of the following weld defects is most likely to be missed by radiography in
a weld?
A. Undercutting
B. Porosity
C. Slag inclusions
D. Cracking
E. Burn through
Answer: D
Rationale: Cracks can be missed by radiography if they are oriented parallel to the
radiation beam direction. Cracks are planar defects and may not produce a
pg. 2
,detectable image unless they are favorably oriented. Porosity, slag inclusions, and
burn-through are volumetric defects that are more readily detected.
Question 3
In the choices given below, metallographic tests would be the least informative
with regard to the:
A. Presence of non-metallic inclusions
B. Grain structure in the weld and fusion zone
C. Ability of the material to withstand repeated fluctuating loads
D. Extent and structure of the heat affected zone
E. Number of weld passes
Answer: C
Rationale: Metallographic tests examine microstructure, including grain structure,
inclusions, and HAZ characteristics. However, the ability to withstand repeated
fluctuating loads (fatigue resistance) is determined by mechanical testing, not
metallographic examination.
Question 4
The mechanical test used to determine the ability of a material to resist failure by
brittle fracture requires the use of:
A. A tensile test specimen
B. A bend test specimen
C. A compression test specimen
D. An impact test specimen
E. A spectrographic test
Answer: D
Rationale: The impact test (Charpy V-notch test) is used to determine resistance to
brittle fracture. It measures the energy absorbed during fracture at a specified
temperature, indicating the material's toughness.
pg. 3
, Question 5
The continuous method of magnetic particle inspection means:
A. Carrying out all the steps in the process without pause
B. Using DC current
C. Applying magnetic particles to the weld while the current is flowing in the yoke
D. Applying magnetic particles to the test surface while current flows from one leg
of the yoke through the material to the other leg
E. Precautions must be taken to prevent over-magnetization of the material
Answer: D
Rationale: The continuous method of magnetic particle inspection involves
applying the magnetic particles to the test surface while current is flowing through
the workpiece. This ensures that the particles are attracted to any leakage fields
created by discontinuities.
Question 6
When performing liquid penetrant examination, excess penetrant removal comes
after which penetrant step?
A. Application of developer
B. Application of penetrant
C. Penetrant dwell time
D. Final surface cleaning
E. Drying of the material under test
Answer: C
Rationale: The sequence is: surface cleaning → penetrant application → dwell
time → excess penetrant removal → developer application → inspection. Excess
penetrant removal occurs after the dwell time has elapsed.
Question 7
The liquid penetrant technique relies for its effectiveness upon the ability of liquid
to penetrate openings to the surface due to the phenomenon of:
A. Crack opening displacement
pg. 4
