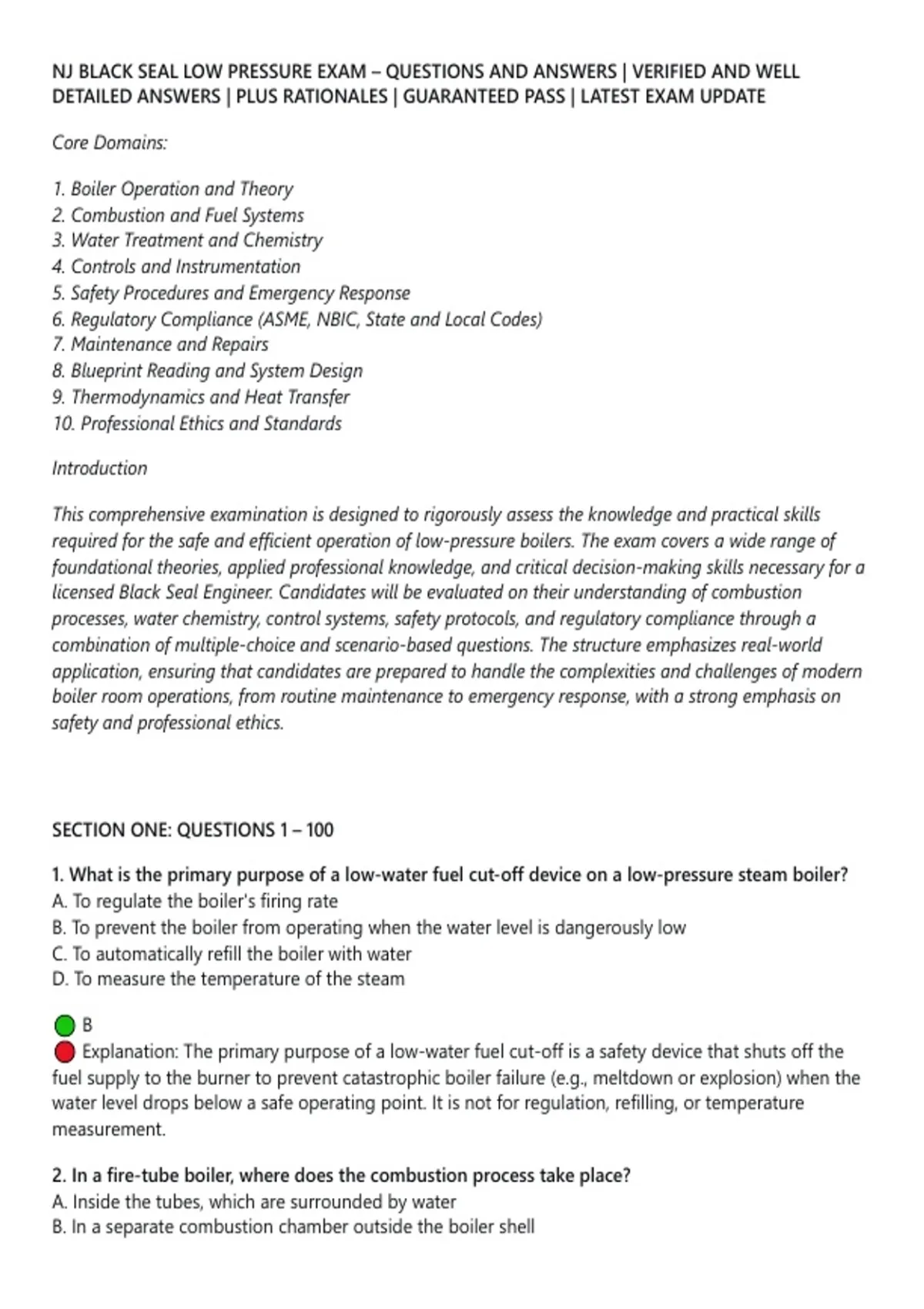

NJ BLACK SEAL LOW PRESSURE EXAM – QUESTIONS AND ANSWERS | VERIFIED AND WELL
DETAILED ANSWERS | PLUS RATIONALES | GUARANTEED PASS | LATEST EXAM UPDATE
Core Domains:
1. Boiler Operation and Theory
2. Combustion and Fuel Systems
3. Water Treatment and Chemistry
4. Controls and Instrumentation
5. Safety Procedures and Emergency Response
6. Regulatory Compliance (ASME, NBIC, State and Local Codes)
7. Maintenance and Repairs
8. Blueprint Reading and System Design
9. Thermodynamics and Heat Transfer
10. Professional Ethics and Standards
Introduction
This comprehensive examination is designed to rigorously assess the knowledge and practical skills
required for the safe and efficient operation of low-pressure boilers. The exam covers a wide range of
foundational theories, applied professional knowledge, and critical decision-making skills necessary for a
licensed Black Seal Engineer. Candidates will be evaluated on their understanding of combustion
processes, water chemistry, control systems, safety protocols, and regulatory compliance through a
combination of multiple-choice and scenario-based questions. The structure emphasizes real-world
application, ensuring that candidates are prepared to handle the complexities and challenges of modern
boiler room operations, from routine maintenance to emergency response, with a strong emphasis on
safety and professional ethics.
SECTION ONE: QUESTIONS 1 – 100
1. What is the primary purpose of a low-water fuel cut-off device on a low-pressure steam boiler?
A. To regulate the boiler's firing rate
B. To prevent the boiler from operating when the water level is dangerously low
C. To automatically refill the boiler with water
D. To measure the temperature of the steam
🟢B
🔴 Explanation: The primary purpose of a low-water fuel cut-off is a safety device that shuts off the
fuel supply to the burner to prevent catastrophic boiler failure (e.g., meltdown or explosion) when the
water level drops below a safe operating point. It is not for regulation, refilling, or temperature
measurement.
2. In a fire-tube boiler, where does the combustion process take place?
A. Inside the tubes, which are surrounded by water
B. In a separate combustion chamber outside the boiler shell
,C. In the water space surrounding the tubes
D. In the steam drum above the waterline
🟢A
🔴 Explanation: In a fire-tube boiler, the hot gases from combustion pass through the tubes, and the
water surrounds these tubes. The heat is transferred from the hot gases inside the tubes to the
surrounding water. This is the defining characteristic of a fire-tube boiler.
3. Which of the following is the most critical factor in preventing scale formation in a low-pressure
boiler?
A. Maintaining a high pH level in the boiler water
B. Regularly blowing down the boiler
C. Ensuring proper water treatment and control of dissolved solids
D. Using a high-pressure feedwater pump
🟢C
🔴 Explanation: Proper water treatment and control of dissolved solids is fundamental. Scale forms
when dissolved minerals precipitate out of the water and deposit on hot surfaces. A comprehensive
water treatment program prevents these minerals from causing scale, whereas blowdown removes
concentrated impurities and pH is part of the treatment program, but not the most critical factor itself.
4. A boiler operator notices the boiler water level gauge glass shows a low water level, but the
water column is not reading the same. What is the most likely cause?
A. The boiler is making too much steam
B. The gauge glass is dirty or has a partial blockage in the top or bottom connection
C. The burner is firing too high
D. The feedwater pump is cavitating
🟢B
🔴 Explanation: A discrepancy between the gauge glass and the water column often indicates a
blockage in the gauge glass fittings or the water column itself, preventing an accurate reading. While
other options could affect water level, a difference between two instruments is a classic symptom of a
blocked connecting line.
5. What is the purpose of a safety valve on a low-pressure steam boiler?
A. To release excess steam to maintain a constant pressure
B. To relieve pressure automatically if it exceeds the Maximum Allowable Working Pressure (MAWP)
C. To drain condensate from the boiler
D. To allow the operator to manually reduce pressure
🟢B
🔴 Explanation: The safety valve's sole purpose is to protect the boiler from over-pressurization. It is a
mechanical device designed to automatically open and relieve pressure when it exceeds the set
pressure, which is at or below the MAWP, preventing a potential explosion.
6. The process of removing dissolved gases, particularly oxygen and carbon dioxide, from boiler
feedwater is known as:
A. Deaeration
, B. Filtration
C. Precipitation
D. Condensation
🟢A
🔴 Explanation: Deaeration is the specific process used to remove dissolved gases from feedwater.
Oxygen and carbon dioxide are corrosive to boiler and piping systems. Filtration removes suspended
solids, precipitation is a chemical process to remove hardness, and condensation is a phase change.
7. Which of the following devices is used to measure the pressure of steam or water inside a boiler?
A. Thermometer
B. Bourdon tube pressure gauge
C. Sight glass
D. Orifice plate
🟢B
🔴 Explanation: A Bourdon tube pressure gauge is the standard mechanical device used to measure
and indicate the pressure of fluids like steam and water in a boiler. A thermometer measures
temperature, a sight glass indicates water level, and an orifice plate is used for flow measurement.
8. In accordance with the ASME Boiler and Pressure Vessel Code, a low-pressure boiler is defined as
a boiler designed for a steam pressure not exceeding:
A. 15 psig
B. 100 psig
C. 50 psig
D. 250 psig
🟢A
🔴 Explanation: The ASME Code Section IV defines a low-pressure steam boiler as one that does not
exceed 15 psig. This is a critical definition for licensing and operational limits.
9. A boiler operator is performing a bottom blowdown. The correct procedure is to open the:
A. Quick-opening valve first, then the slow-opening valve
B. Slow-opening valve first, then the quick-opening valve
C. Both valves simultaneously
D. Slow-opening valve only; the quick-opening valve is for emergencies
🟢B
🔴 Explanation: The correct sequence for bottom blowdown is to open the slow-opening (or "gate")
valve first to protect the quick-opening valve from erosion. Then, open the quick-opening valve to
perform the blowdown. To close, close the quick-opening valve first, then the slow-opening valve.
10. Which type of burner uses forced draft to supply combustion air and a fan to mix it with the fuel
before it enters the furnace?
A. Atmospheric burner
B. Power burner
C. Natural draft burner
D. Ring burner
