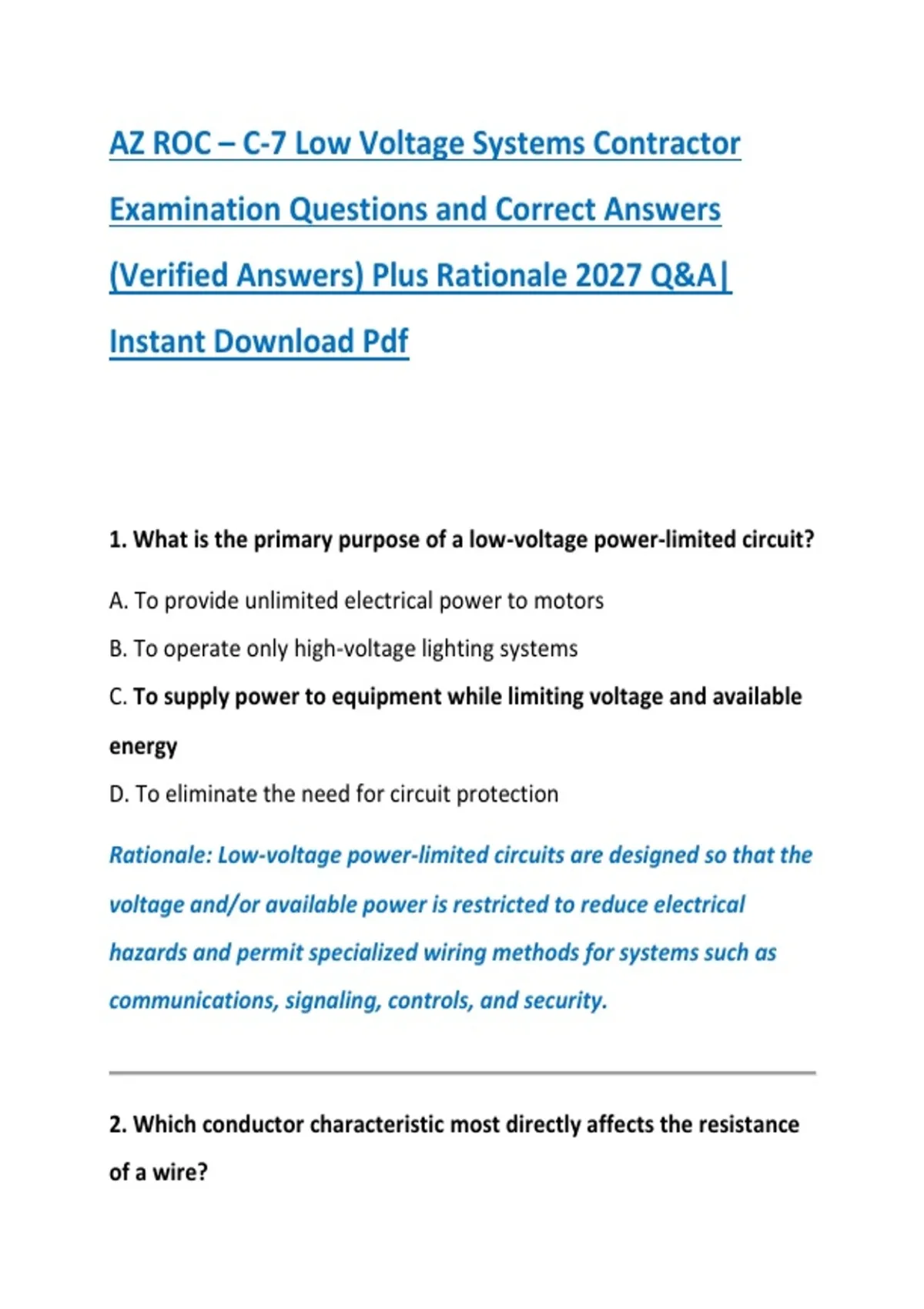

AZ ROC – C-7 Low Voltage Systems Contractor
Examination Questions and Correct Answers
(Verified Answers) Plus Rationale 2027 Q&A|
Instant Download Pdf
1. What is the primary purpose of a low-voltage power-limited circuit?
A. To provide unlimited electrical power to motors
B. To operate only high-voltage lighting systems
C. To supply power to equipment while limiting voltage and available
energy
D. To eliminate the need for circuit protection
Rationale: Low-voltage power-limited circuits are designed so that the
voltage and/or available power is restricted to reduce electrical
hazards and permit specialized wiring methods for systems such as
communications, signaling, controls, and security.
2. Which conductor characteristic most directly affects the resistance
of a wire?
,A. Insulation color
B. Conduit type
C. Conductor length, material, and cross-sectional area
D. Junction-box shape
Rationale: Resistance depends primarily on the conductor material, its
length, and its cross-sectional area. Longer conductors have greater
resistance, while larger conductors generally have lower resistance.
3. In a typical communications installation, what is the main purpose
of a patch panel?
A. To increase line voltage
B. To convert AC power to DC power
C. To provide an organized termination and interconnection point for
cables
D. To replace all network switches
Rationale: Patch panels organize cable terminations and provide a
convenient point for connecting, rearranging, testing, and
troubleshooting communications circuits.
,4. Which device is commonly used to terminate individual conductors
of twisted-pair data cable in a structured cabling system?
A. Circuit breaker
B. Transformer
C. Insulation displacement connector (IDC) termination block
D. Motor starter
Rationale: IDC blocks terminate conductors by forcing the insulated
conductor into a specially designed contact that cuts through the
insulation and establishes an electrical connection.
5. What is the primary reason twisted-pair conductors are twisted?
A. To increase conductor diameter
B. To make the cable waterproof
C. To reduce electromagnetic interference and crosstalk
D. To increase the cable's operating temperature
Rationale: Twisting helps reduce susceptibility to electromagnetic
interference and limits crosstalk between adjacent pairs by improving
noise cancellation.
6. What does PoE stand for in networking?
, A. Power over Equipment
B. Power over Ethernet
C. Power on Electrical
D. Protected Optical Ethernet
Rationale: Power over Ethernet allows compatible network cabling to
carry both data and electrical power to devices such as access points,
VoIP phones, and certain cameras.
7. Which device commonly supplies PoE to connected network
devices?
A. Passive antenna
B. PoE-capable network switch
C. Coaxial splitter only
D. Telephone handset
Rationale: A PoE-capable switch can provide network connectivity and
power over compatible Ethernet cabling to devices designed to receive
PoE.
8. What is the primary function of a network switch?
