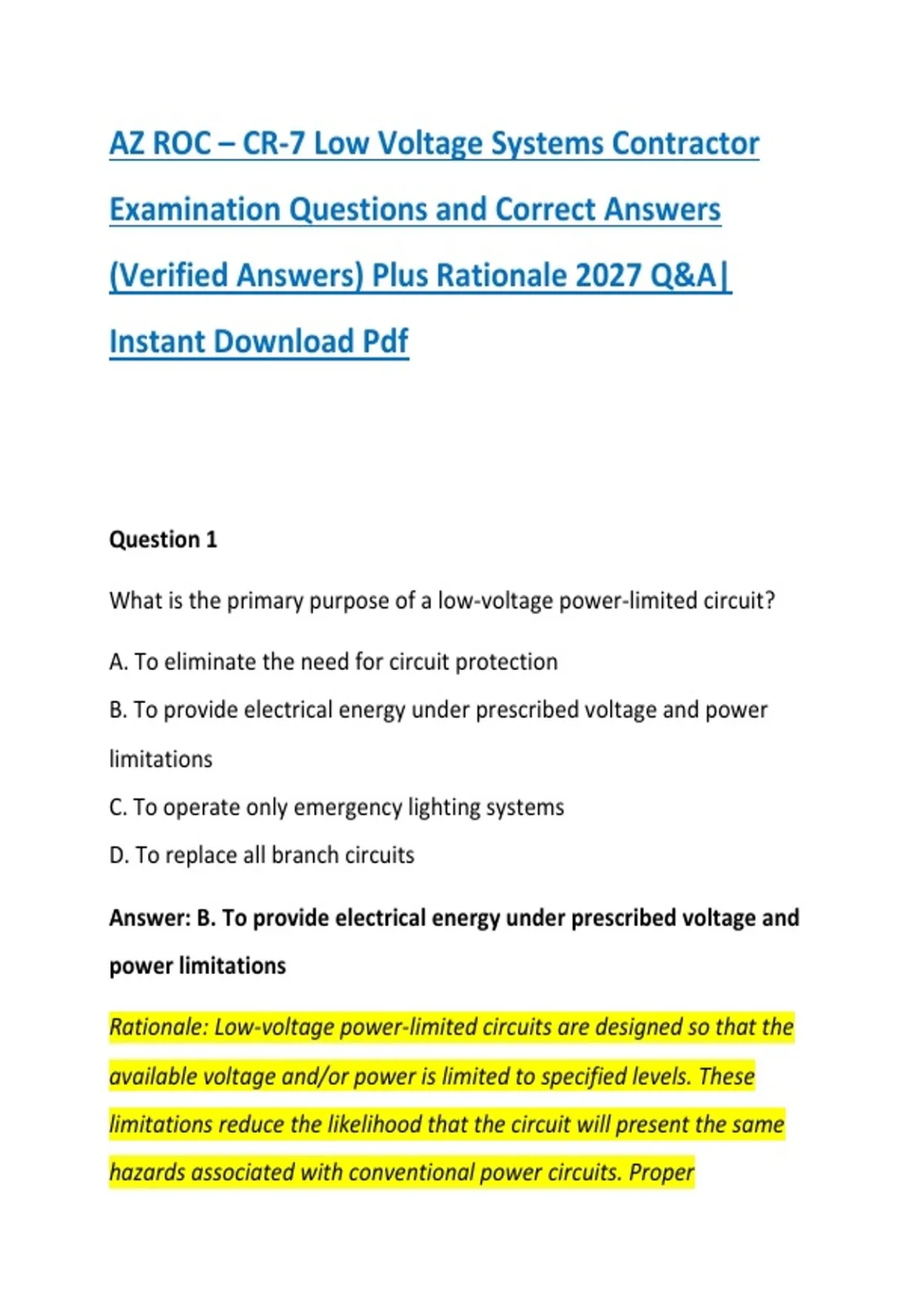

AZ ROC – CR-7 Low Voltage Systems Contractor
Examination Questions and Correct Answers
(Verified Answers) Plus Rationale 2027 Q&A|
Instant Download Pdf
Question 1
What is the primary purpose of a low-voltage power-limited circuit?
A. To eliminate the need for circuit protection
B. To provide electrical energy under prescribed voltage and power
limitations
C. To operate only emergency lighting systems
D. To replace all branch circuits
Answer: B. To provide electrical energy under prescribed voltage and
power limitations
Rationale: Low-voltage power-limited circuits are designed so that the
available voltage and/or power is limited to specified levels. These
limitations reduce the likelihood that the circuit will present the same
hazards associated with conventional power circuits. Proper
,classification and installation still require appropriate wiring methods,
overcurrent protection, separation, and equipment requirements.
Question 2
Which system is commonly associated with low-voltage
communications wiring?
A. Telephone system
B. Residential 120-volt receptacle circuit
C. Electric range circuit
D. 240-volt water-heater circuit
Answer: A. Telephone system
Rationale: Telephone systems are typical examples of low-voltage
communications systems. Other examples can include data networks,
intercoms, signaling systems, and certain alarm systems. Conventional
appliance branch circuits operate at substantially higher voltage and
are not classified simply as low-voltage communications wiring.
Question 3
What is the primary function of a conductor's insulation?
,A. Increase circuit voltage
B. Prevent unintended electrical contact between the conductor and
surrounding materials
C. Increase conductor resistance
D. Eliminate the need for grounding
Answer: B. Prevent unintended electrical contact between the
conductor and surrounding materials
Rationale: Insulation surrounds a conductor and helps prevent
accidental contact with other conductors, grounded objects, or building
materials. The insulation type must be suitable for the intended
application, including voltage, temperature, environment, and
installation method.
Question 4
Which conductor is normally identified by a green or green-with-
yellow-stripe insulation color when used as an equipment grounding
conductor?
A. Ungrounded conductor
B. Grounded conductor
, C. Equipment grounding conductor
D. Data conductor
Answer: C. Equipment grounding conductor
Rationale: Green or green with yellow stripes is commonly used to
identify equipment grounding conductors. Grounding conductors
provide a low-impedance path for fault current and help protective
devices operate when a fault occurs.
Question 5
What is the purpose of a cable's jacket?
A. To increase the signal frequency
B. To provide an outer protective covering for the cable assembly
C. To convert AC to DC
D. To increase conductor ampacity
Answer: B. To provide an outer protective covering for the cable
assembly
Rationale: A cable jacket protects the conductors and insulation from
mechanical damage, environmental conditions, and abrasion. The
jacket's suitability depends on where and how the cable is installed.
