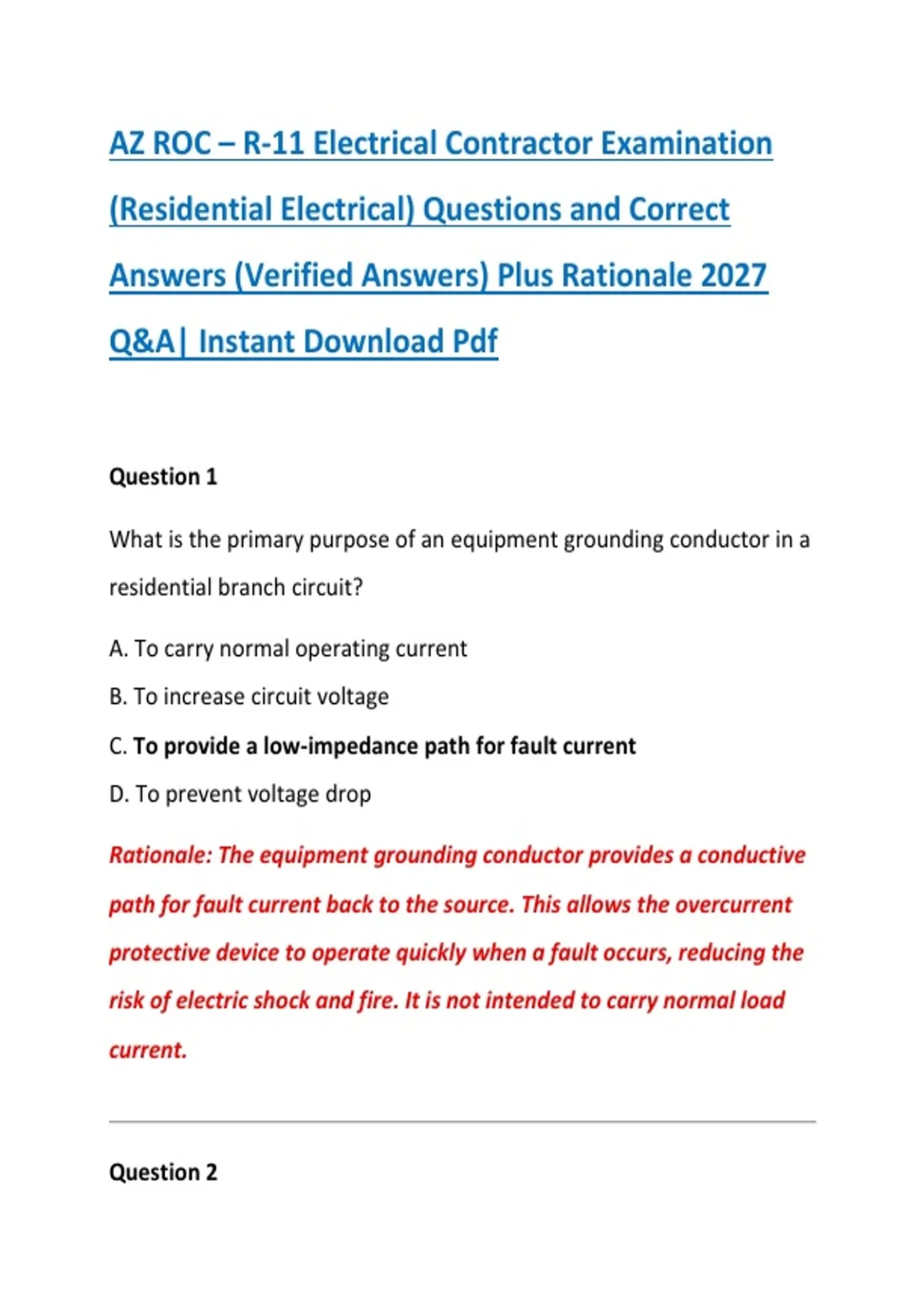

AZ ROC – R-11 Electrical Contractor Examination
(Residential Electrical) Questions and Correct
Answers (Verified Answers) Plus Rationale 2027
Q&A| Instant Download Pdf
Question 1
What is the primary purpose of an equipment grounding conductor in a
residential branch circuit?
A. To carry normal operating current
B. To increase circuit voltage
C. To provide a low-impedance path for fault current
D. To prevent voltage drop
Rationale: The equipment grounding conductor provides a conductive
path for fault current back to the source. This allows the overcurrent
protective device to operate quickly when a fault occurs, reducing the
risk of electric shock and fire. It is not intended to carry normal load
current.
Question 2
,Which device is designed to protect people from electric shock caused
by ground-fault current?
A. AFCI
B. Circuit breaker
C. Surge protective device
D. GFCI
Rationale: A ground-fault circuit interrupter (GFCI) monitors the
current leaving and returning through the circuit conductors. If it
detects an imbalance indicating current may be flowing through an
unintended path, it interrupts the circuit.
Question 3
In a typical 120-volt residential branch circuit, the grounded conductor
is commonly identified by which color?
A. Green
B. Red
C. White or gray
D. Orange
Rationale: The grounded conductor, commonly called the neutral, is
generally identified by white or gray insulation or appropriate
,markings. Green is reserved for grounding conductors and grounding-
related identification.
Question 4
What is the main function of an overcurrent protective device?
A. Increase available fault current
B. Regulate utility voltage
C. Protect conductors and equipment from excessive current
D. Provide grounding for appliances
Rationale: Fuses and circuit breakers protect electrical conductors and
equipment from damage caused by overloads and short circuits. The
protective device must be appropriately sized for the circuit
conductors and application.
Question 5
What is the nominal voltage between the two ungrounded conductors
of a typical single-phase residential 120/240-volt system?
A. 120 volts
B. 208 volts
, C. 240 volts
D. 480 volts
Rationale: In a typical 120/240-volt single-phase residential system,
each ungrounded conductor is approximately 120 volts to the
grounded conductor. The voltage between the two ungrounded
conductors is approximately 240 volts.
Question 6
Which wiring method uses individual insulated conductors installed
inside a raceway?
A. Type NM cable
B. Type UF cable
C. Conduit wiring
D. Armored cable only
Rationale: Raceway systems such as electrical metallic tubing (EMT),
rigid metal conduit, and certain nonmetallic raceways can contain
individual insulated conductors. The raceway provides mechanical
protection and, depending on the type, may also serve as part of the
grounding path.
