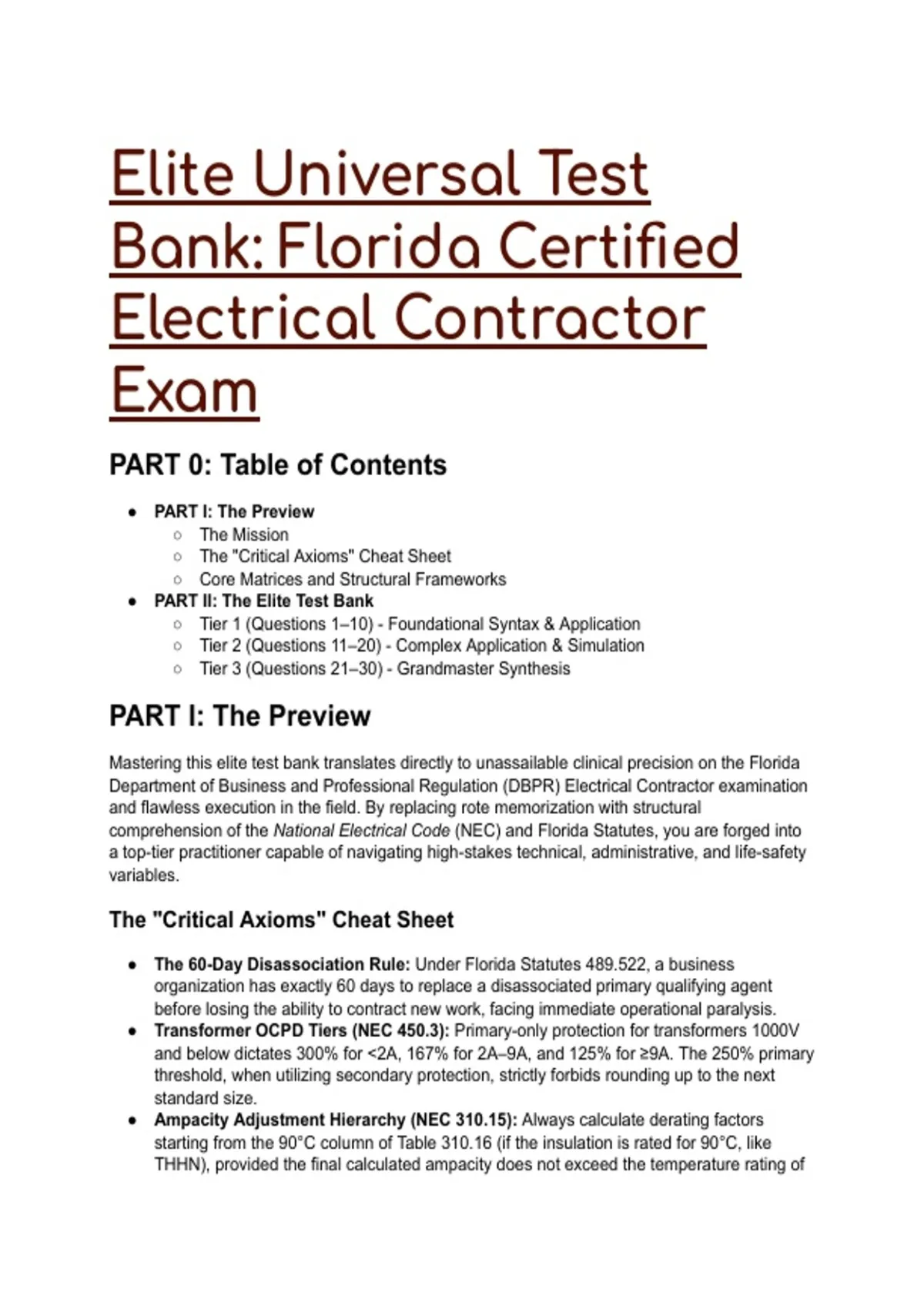

Elite Universal Test
Bank: Florida Certified
Electrical Contractor
Exam
PART 0: Table of Contents
● PART I: The Preview
○ The Mission
○ The "Critical Axioms" Cheat Sheet
○ Core Matrices and Structural Frameworks
● PART II: The Elite Test Bank
○ Tier 1 (Questions 1–10) - Foundational Syntax & Application
○ Tier 2 (Questions 11–20) - Complex Application & Simulation
○ Tier 3 (Questions 21–30) - Grandmaster Synthesis
PART I: The Preview
Mastering this elite test bank translates directly to unassailable clinical precision on the Florida
Department of Business and Professional Regulation (DBPR) Electrical Contractor examination
and flawless execution in the field. By replacing rote memorization with structural
comprehension of the National Electrical Code (NEC) and Florida Statutes, you are forged into
a top-tier practitioner capable of navigating high-stakes technical, administrative, and life-safety
variables.
The "Critical Axioms" Cheat Sheet
● The 60-Day Disassociation Rule: Under Florida Statutes 489.522, a business
organization has exactly 60 days to replace a disassociated primary qualifying agent
before losing the ability to contract new work, facing immediate operational paralysis.
● Transformer OCPD Tiers (NEC 450.3): Primary-only protection for transformers 1000V
and below dictates 300% for <2A, 167% for 2A–9A, and 125% for ≥9A. The 250% primary
threshold, when utilizing secondary protection, strictly forbids rounding up to the next
standard size.
● Ampacity Adjustment Hierarchy (NEC 310.15): Always calculate derating factors
starting from the 90°C column of Table 310.16 (if the insulation is rated for 90°C, like
THHN), provided the final calculated ampacity does not exceed the temperature rating of
, the terminations per 110.14(C).
● The Rapid Shutdown Boundary (NEC 690.12): The critical photovoltaic array boundary
is exactly 1 foot (305 mm) in all directions. Outside the boundary, conductors must drop to
≤30V in 30 seconds; inside, they must drop to ≤80V in 30 seconds, unless utilizing a
structurally exempt design or a listed PV Hazard Control System (PVHCS).
● Emergency Systems Independence (NEC 700.10): Article 700 emergency wiring must
be kept completely independent of all other wiring, strictly limiting shared enclosures to
automatic transfer equipment and designated dual-fed luminaires. The maximum
allowable transfer time to restore life-safety power is exactly 10 seconds.
Core Matrices and Structural Frameworks
To operate at an elite level, you must understand the exact parameters of the state licensing
structure and the core technical tables that dictate electrical safety.
Florida Licensure Type Scope of Authority Alarm System Privilege Continuing Education
Requirement (Biennial)
Certified Electrical Unlimited, Statewide Included (All 11 Hours (including 2
Contractor (EC) Categories) hrs False Alarm)
Registered Electrical Local Jurisdiction Only Strictly Prohibited 11 Hours (False Alarm
Contractor (ER) not required)
Transformer Primary Current Maximum Primary-Only OCPD Root Engineering Rationale
(≤1000V) %
Less than 2 Amperes 300% Accounts for extreme
magnetizing inrush (8-12x).
2 Amperes to <9 Amperes 167% Balances moderate inrush with
conductor protection.
9 Amperes and Above 125% Standard stable operation;
allows next-size-up rounding.
PART II: The Elite Test Bank
Tier 1 - Foundational Syntax & Application
Q1: A certified electrical contractor serving as the sole primary qualifying agent for a commercial
electrical firm resigns. According to Chapter 489, Part II of the Florida Statutes, what is the
MAXIMUM timeframe the business organization has to notify the board of the termination and
qualify another individual before losing the ability to engage in contracting? A) 30 days B) 45
days C) 60 days D) 90 days
● Answer: C (60 days)
● Distractor Analysis:
○ A is incorrect: 30 days is the standard timeframe required to notify the board of a
general change in qualifying status, but it does not represent the absolute
countdown to replace the agent.
○ B is incorrect: 45 days applies to notifying the department of a change in standard
business information, such as an address or officer change, not the critical
replacement of the license holder.
, ○ D is incorrect: 90 days is a fabricated timeline representing a common novice
assumption regarding corporate grace periods, entirely unsupported by Chapter
489.
The Mentor's Analysis: Administrative compliance is as critical as technical execution. When a
primary qualifying agent ceases affiliation, the business is placed on a strict statutory
countdown. By utilizing the 60-day replacement window, the firm may temporarily function, but it
cannot legally continue normal operations without securing an approved replacement.
Professional/Academic Intuition: Statutory deadlines are rigid; a business operates on
borrowed time the moment the primary qualifying agent disassociates.
Q2: A healthcare facility requires the installation of an emergency power supply system to
support life-safety egress illumination. Under NEC Article 700, what is the MAXIMUM allowable
time for the alternate source to restore power to these specific loads following a normal utility
failure? A) 10 seconds B) 30 seconds C) 60 seconds D) 90 minutes
● Answer: A (10 seconds)
● Distractor Analysis:
○ B is incorrect: 30 seconds is the performance timeframe associated with solar rapid
shutdown requirements, totally unrelated to emergency generator transfer speeds.
○ C is incorrect: 60 seconds is the maximum transfer time permitted for Legally
Required Standby Systems (Article 701), which support systems where failure
hampers rescue, but do not dictate immediate life safety.
○ D is incorrect: 90 minutes is the minimum required operational duration (battery
capacity) for emergency lighting unit equipment, not the initial mechanical transfer
time.
The Mentor's Analysis: Life-safety infrastructure operates on absolute minimum latency. When
dealing with Article 700 Emergency Systems, the immediate priority is restoring critical
illumination to avert panic and facilitate evacuation. By enforcing a 10-second maximum transfer
limit, the code guarantees immediate continuity of human-centric safety functions.
Professional/Academic Intuition: Article 700 demands 10 seconds; Article 701 allows 60
seconds. Categorize the system accurately to select the correct automatic transfer
switch parameters.
Q3: A residential electrical contractor is installing an equipotential bonding grid for a newly
constructed swimming pool featuring a fiberglass shell with no structural steel reinforcement.
Based on NEC 680.26, which material configuration is the MOST ACCURATE for establishing
this alternative bonding grid? A) A 6 AWG stranded aluminum conductor installed along the
perimeter. B) An 8 AWG solid copper conductor arranged in a 12-inch mesh along the contour
of the pool. C) A 10 AWG solid copper conductor attached exclusively to the underwater
luminaire forming shell. D) A 4 AWG stranded copper ring installed 3 feet from the inside wall.
● Answer: B (An 8 AWG solid copper conductor arranged in a 12-inch mesh along the
contour of the pool.)
● Distractor Analysis:
○ A is incorrect: Aluminum is strictly prohibited for direct earth burial or encasement
near corrosive pool environments due to rapid galvanic degradation.
○ C is incorrect: While the forming shell must be bonded, 10 AWG is dangerously
undersized. 8 AWG is the strict minimum, and a single connection does not satisfy
the requirement for a widespread equipotential grid.
○ D is incorrect: A perimeter ring must be placed 18 to 24 inches from the inside wall,
not 3 feet. Furthermore, stranded 4 AWG ignores the explicit requirement for a
12-inch structural mesh on unreinforced shells.
