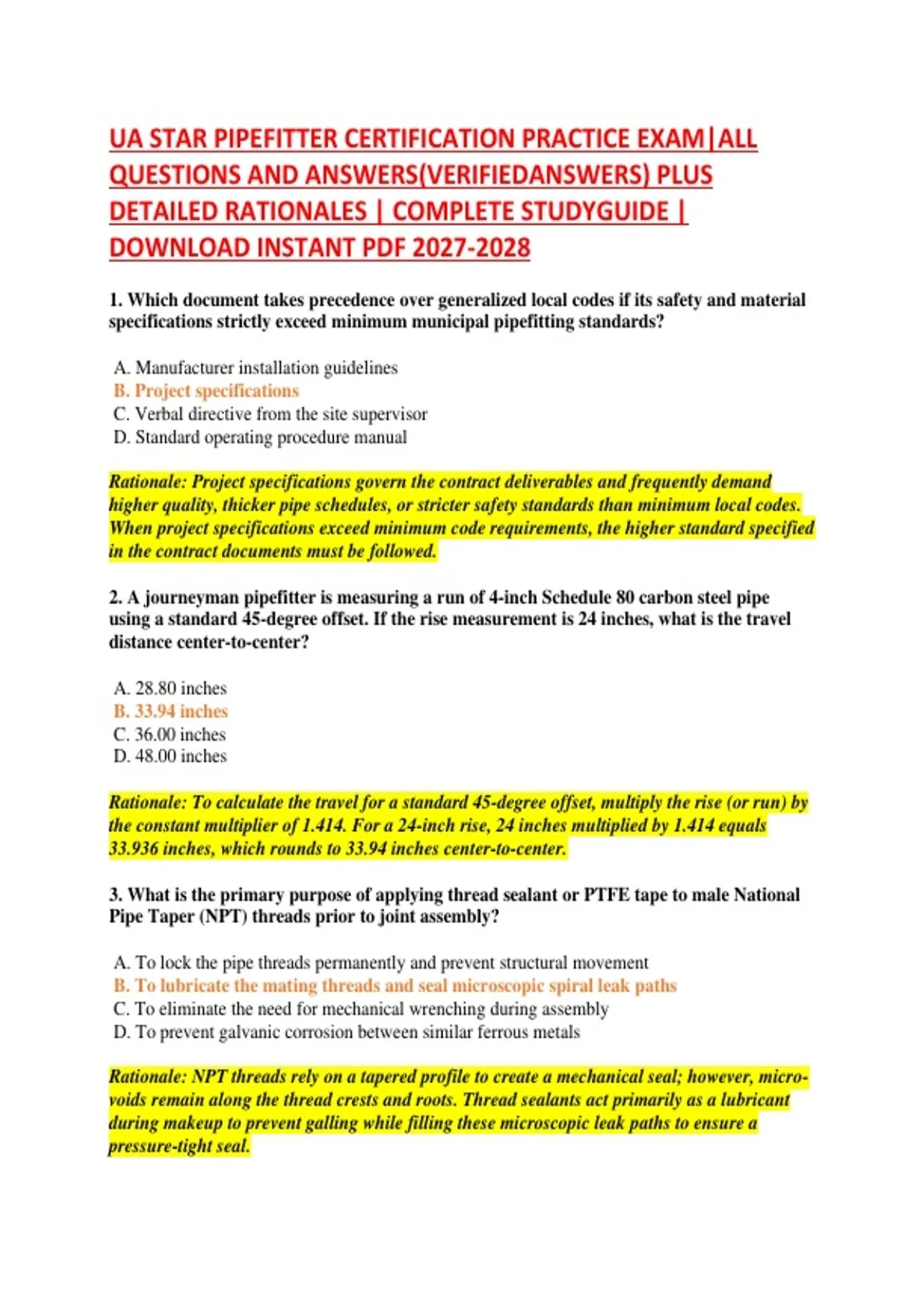

UA STAR PIPEFITTER CERTIFICATION PRACTICE EXAM|ALL
QUESTIONS AND ANSWERS(VERIFIEDANSWERS) PLUS
DETAILED RATIONALES | COMPLETE STUDYGUIDE |
DOWNLOAD INSTANT PDF 2027-2028
1. Which document takes precedence over generalized local codes if its safety and material
specifications strictly exceed minimum municipal pipefitting standards?
A. Manufacturer installation guidelines
B. Project specifications
C. Verbal directive from the site supervisor
D. Standard operating procedure manual
Rationale: Project specifications govern the contract deliverables and frequently demand
higher quality, thicker pipe schedules, or stricter safety standards than minimum local codes.
When project specifications exceed minimum code requirements, the higher standard specified
in the contract documents must be followed.
2. A journeyman pipefitter is measuring a run of 4-inch Schedule 80 carbon steel pipe
using a standard 45-degree offset. If the rise measurement is 24 inches, what is the travel
distance center-to-center?
A. 28.80 inches
B. 33.94 inches
C. 36.00 inches
D. 48.00 inches
Rationale: To calculate the travel for a standard 45-degree offset, multiply the rise (or run) by
the constant multiplier of 1.414. For a 24-inch rise, 24 inches multiplied by 1.414 equals
33.936 inches, which rounds to 33.94 inches center-to-center.
3. What is the primary purpose of applying thread sealant or PTFE tape to male National
Pipe Taper (NPT) threads prior to joint assembly?
A. To lock the pipe threads permanently and prevent structural movement
B. To lubricate the mating threads and seal microscopic spiral leak paths
C. To eliminate the need for mechanical wrenching during assembly
D. To prevent galvanic corrosion between similar ferrous metals
Rationale: NPT threads rely on a tapered profile to create a mechanical seal; however, micro-
voids remain along the thread crests and roots. Thread sealants act primarily as a lubricant
during makeup to prevent galling while filling these microscopic leak paths to ensure a
pressure-tight seal.
,4. When performing an oxygen-fuel cutting operation on 1-inch carbon steel plate, what
visual indicator confirms that the preheat flame is correctly adjusted to neutral?
A. A long, pale yellow flame envelope with excessive smoke
B. A sharp, rounded inner cone without a feather edge
C. A bright blue inner cone with a secondary pale feather length
D. A short, high-pitched hissing violet inner cone
Rationale: A neutral oxy-fuel flame is achieved when equal proportions of oxygen and
acetylene burn, resulting in a clear, well-defined inner cone without any surrounding
acetylenic feather or excess oxygen hiss. This provides optimal preheating without
contaminating the base metal.
5. A pipefitter needs to rig a 2,500 lb bundle of stainless steel tubing using a two-leg wire
rope sling. As the sling angle relative to the horizontal decreases from 60 degrees to 30
degrees, what happens to the tension on each sling leg?
A. The tension decreases significantly
B. The tension remains unchanged
C. The tension increases significantly
D. The tension drops to zero
Rationale: As horizontal sling angles decrease, the mechanical advantage drops and the
tension on each individual sling leg increases exponentially. At a 30-degree angle, the load
multiplier is 2.0, effectively doubling the weight experienced by each sling leg compared to
vertical lifts.
6. Which type of valve is explicitly designed for fine, precise throttling of fluid flow within a
high-pressure piping system?
A. Gate valve
B. Globe valve
C. Needle valve
D. Swing check valve
Rationale: Needle valves utilize a tapered, needle-like spindle fitting into a precise seat to
allow incremental, fine adjustment of fluid flow rate. Gate valves are strictly designed for fully
open/closed service, and standard globe valves offer coarser throttling.
7. When installing copper tubing for medical gas distribution systems, which joining
process and purging protocol are required by NFPA 99 standards?
A. Soft soldering with an air-acetylene torch using acid flux
B. Brazing with a BCuP filler metal while purging with nitrogen
C. Shielded metal arc welding using direct current straight polarity
D. Mechanical compression fittings sealed with anaerobic thread paste
,Rationale: Medical gas systems mandate brazing using copper-phosphorus (BCuP) filler
metals without flux to prevent system contamination. An oil-free dry nitrogen purge must flow
continuously inside the tube during heating to prevent internal oxidation and scale formation.
8. What is the correct mathematical formula to calculate the cut length of a pipe nipple
when the center-to-center distance, fitting takeoff, and thread engagement are known?
A. Cut Length = Center-to-Center - Takeoff + Thread Engagement
B. Cut Length = Center-to-Center - (2 x Takeoff) + (2 x Thread Engagement)
C. Cut Length = Center-to-Center + (2 x Takeoff) - (2 x Thread Engagement)
D. Cut Length = Center-to-Center - Takeoff - Thread Engagement
Rationale: To determine the precise end-to-end pipe length for a double-ended fitting
assembly, subtract the fitting takeoff from both ends and add back the thread engagement
length for both threaded joints.
9. According to OSHA standards, what is the maximum allowable pressure for compressed
air used for personal cleaning or debris removal, provided effective chip guarding and
personal protective equipment are used?
A. 10 psi
B. 15 psi
C. 30 psi
D. 50 psi
Rationale: OSHA regulation 1910.242(b) dictates that compressed air used for cleaning
purposes must be reduced to less than 30 psi, accompanied by effective chip guarding and
appropriate PPE to prevent embolisms or eye injuries.
10. In a hydronic heating system, what specific component absorbs the volumetric
expansion of water as its temperature increases to prevent system over-pressurization?
A. Air separator
B. Expansion tank
C. Backflow preventer
D. Thermostatic mixing valve
Rationale: Water expands when heated. Because liquids are virtually incompressible, an
expansion tank (either open or diaphragm-type) provides an air cushion that compresses to
absorb increased fluid volume without rupturing system piping.
11. Which isometric drawing symbol feature differentiates a horizontal pipe line from a
vertical pipe line?
A. Horizontal lines are drawn at a 45-degree angle, while vertical lines are horizontal
, B. Horizontal lines follow 30-degree isometric axes, while vertical lines are drawn straight
up and down
C. Horizontal lines are always double-dashed lines
D. Vertical lines are represented by open circles at pipe intersections
Rationale: Standard isometric piping drawings use 30-degree angles from the horizontal
baseline to represent horizontal runs in two cardinal directions, while vertical piping runs are
represented strictly by 90-degree vertical lines.
12. When fit-up alignment is being performed on a 6-inch Schedule 40 carbon steel butt-
weld joint, what is the standard recommended root gap distance according to ASME
B31.3?
A. 1/32 inch to 1/16 inch
B. 1/16 inch to 1/8 inch
C. 3/16 inch to 1/4 inch
D. 1/4 inch to 3/8 inch
Rationale: For manual open-root pipe welding using the SMAW or GTAW processes, a root
gap of 1/16 inch to 1/8 inch (1.6 mm to 3.2 mm) is standard to ensure complete joint
penetration without burning through the land.
13. A pipefitter notices severe pitting localized along the bottom inside surface of a
horizontal condensate return line. What is the primary cause of this failure?
A. Galvanic action between copper and brass
B. Carbonic acid corrosion formed by dissolved carbon dioxide
C. High velocity erosion-corrosion from steam hammer
D. Excessive chloride stress corrosion cracking
Rationale: Dissolved carbon dioxide in steam condensate forms carbonic acid, which
aggressively attacks the bottom of carbon steel piping through localized grooving and deep
pitting where condensate flows and pools.
14. What essential safety step must be verified before performing a hydrostatic pressure
test on a newly constructed process piping spool?
A. Relief valves rated for operating pressure are isolated or removed and replaced with
blind flanges
B. Pneumatic air supply is connected to boost water flow rate
C. All high-point vents are kept tightly closed during filling
D. Gas lines are purged with pure oxygen to clear moisture
Rationale: Hydrostatic testing pressures routinely exceed normal operating pressure by 1.5
times. In-line safety relief valves designed for lower operating pressures must be isolated,
