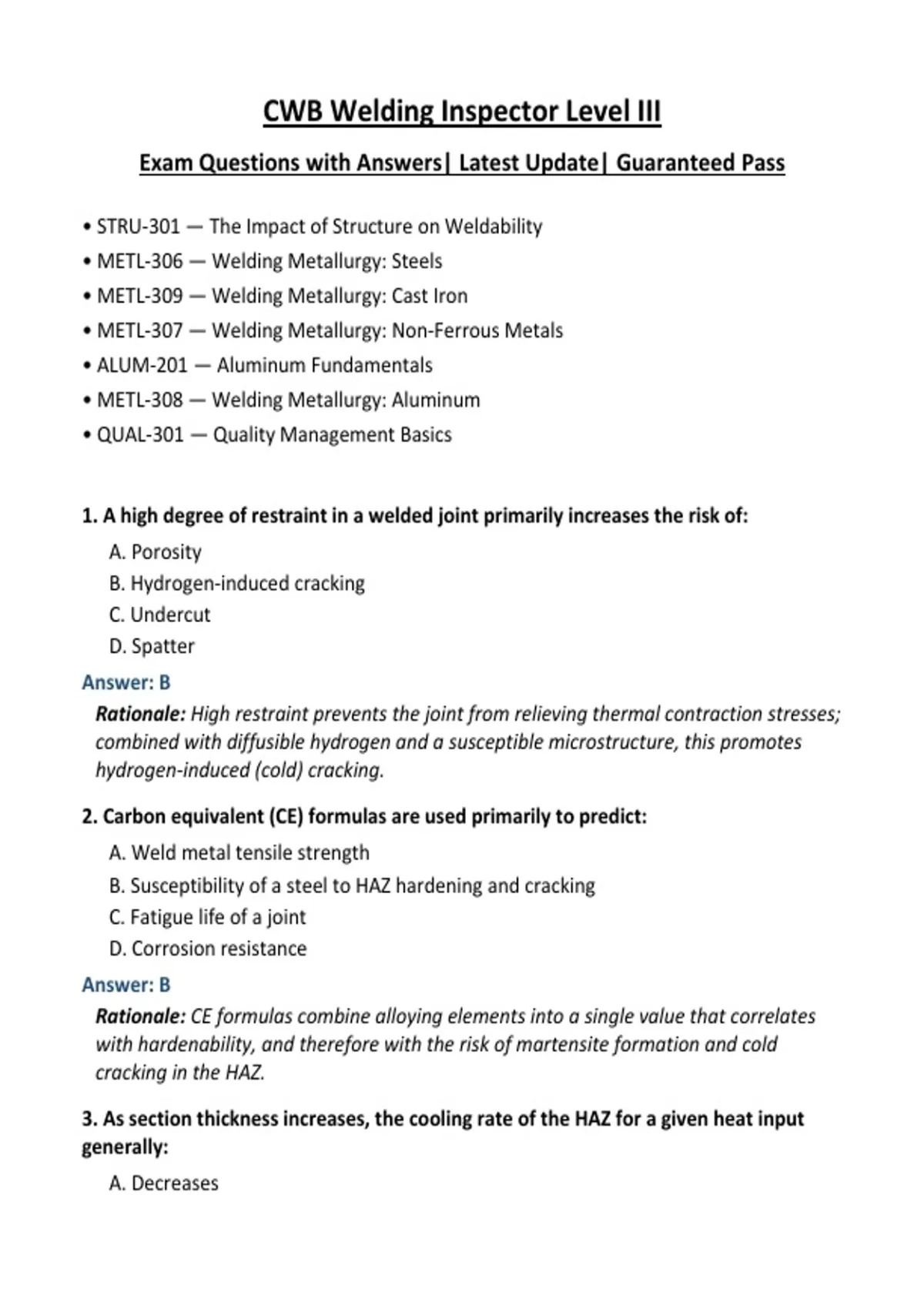

CWB Welding Inspector Level III
Exam Questions with Answers| Latest Update| Guaranteed Pass
• STRU-301 — The Impact of Structure on Weldability
• METL-306 — Welding Metallurgy: Steels
• METL-309 — Welding Metallurgy: Cast Iron
• METL-307 — Welding Metallurgy: Non-Ferrous Metals
• ALUM-201 — Aluminum Fundamentals
• METL-308 — Welding Metallurgy: Aluminum
• QUAL-301 — Quality Management Basics
1. A high degree of restraint in a welded joint primarily increases the risk of:
A. Porosity
B. Hydrogen-induced cracking
C. Undercut
D. Spatter
Answer: B
Rationale: High restraint prevents the joint from relieving thermal contraction stresses;
combined with diffusible hydrogen and a susceptible microstructure, this promotes
hydrogen-induced (cold) cracking.
2. Carbon equivalent (CE) formulas are used primarily to predict:
A. Weld metal tensile strength
B. Susceptibility of a steel to HAZ hardening and cracking
C. Fatigue life of a joint
D. Corrosion resistance
Answer: B
Rationale: CE formulas combine alloying elements into a single value that correlates
with hardenability, and therefore with the risk of martensite formation and cold
cracking in the HAZ.
3. As section thickness increases, the cooling rate of the HAZ for a given heat input
generally:
A. Decreases
, B. Increases
C. Remains unchanged
D. Becomes zero
Answer: B
Rationale: Thicker sections act as a larger heat sink, increasing the rate at which heat
is conducted away and producing a faster HAZ cooling rate, raising hardenability risk.
4. Lamellar tearing is most closely associated with:
A. Through-thickness loading of rolled plate containing planar inclusions
B. Excessive preheat
C. Low hydrogen content filler
D. High nickel filler metal
Answer: A
Rationale: Lamellar tearing occurs when weld shrinkage stresses act through the
thickness of rolled plate, opening up planar non-metallic inclusions aligned parallel to
the rolled surface.
5. Which structural feature most increases susceptibility to lamellar tearing?
A. Fine equiaxed grains
B. Banded, elongated sulfide or silicate inclusions
C. Low sulfur content
D. Calcium-treated, fully killed steel
Answer: B
Rationale: Elongated, plate-like inclusions formed during rolling provide planes of
weakness that separate under through-thickness strain, initiating lamellar tears.
6. Preheating a joint prior to welding is primarily intended to:
A. Increase weld metal strength
B. Reduce the HAZ cooling rate and hydrogen retention risk
C. Eliminate the need for PWHT
D. Increase penetration depth
Answer: B
Rationale: Preheat slows the cooling rate, reducing hard, crack-susceptible
microstructures and giving diffusible hydrogen more time to escape before the joint
cools.
,7. A steel with high hardenability will tend to form which microstructure in the HAZ
under rapid cooling?
A. Coarse ferrite-pearlite
B. Martensite
C. Fully retained austenite
D. Spheroidized carbides
Answer: B
Rationale: High hardenability shifts transformation to longer times on a CCT diagram,
so even moderate cooling rates bypass the ferrite/pearlite region and produce
martensite.
8. Reducing joint restraint through improved fit-up and smaller weld size primarily
helps control:
A. Residual stress and distortion
B. Weld metal chemistry
C. Arc stability
D. Filler metal cost
Answer: A
Rationale: Lower restraint and smaller weld volume reduce the residual stresses
generated during cooling and the resulting distortion and cracking susceptibility.
9. The heat-affected zone (HAZ) is best defined as the region of base metal that:
A. Melts and resolidifies
B. Has its microstructure altered by welding heat without melting
C. Receives filler metal dilution
D. Lies beyond the influence of welding heat
Answer: B
Rationale: The HAZ is base metal that did not melt but experienced a thermal cycle
sufficient to alter its microstructure and mechanical properties.
10. Grain coarsening in the HAZ adjacent to the fusion line is a concern because it:
A. Improves toughness
B. Reduces toughness and increases cracking susceptibility
C. Increases ductility
D. Has no effect on mechanical properties
Answer: B
, Rationale: Coarse grains reduce grain boundary area available to arrest cracks,
lowering Charpy impact toughness in the coarse-grained HAZ (CGHAZ).
11. Which of the following would most reduce the risk of hydrogen cracking in a highly
restrained joint?
A. Using cellulosic electrodes
B. A post-weld hydrogen bake-out (soak)
C. Welding on wet or rusted surfaces
D. Rapid cooling immediately after welding
Answer: B
Rationale: A post-weld hydrogen bake-out at moderate temperature allows diffusible
hydrogen time to escape before the joint reaches room temperature, reducing cracking
risk.
12. Residual stresses in a welded structure result mainly from:
A. Non-uniform heating and cooling causing differential contraction
B. Uniform cooling of the entire structure
C. Filler metal chemistry alone
D. Shielding gas composition
Answer: A
Rationale: Localized heating followed by contraction of the weld and adjacent base
metal, restrained by cooler surrounding material, generates locked-in residual stresses.
13. A joint connecting a thick section to a thin section is at increased risk of cracking
mainly due to:
A. Uniform heat distribution
B. Mismatched cooling rates and stiffness causing stress concentration
C. Reduced arc voltage requirements
D. Lower carbon equivalent in the thick section
Answer: B
Rationale: Differences in mass and stiffness between the members cause uneven
cooling and stress concentration at the transition, increasing the likelihood of cracking.
14. Which factor does NOT directly influence the cooling rate of a weld?
A. Heat input
B. Preheat temperature
C. Section thickness and joint geometry
