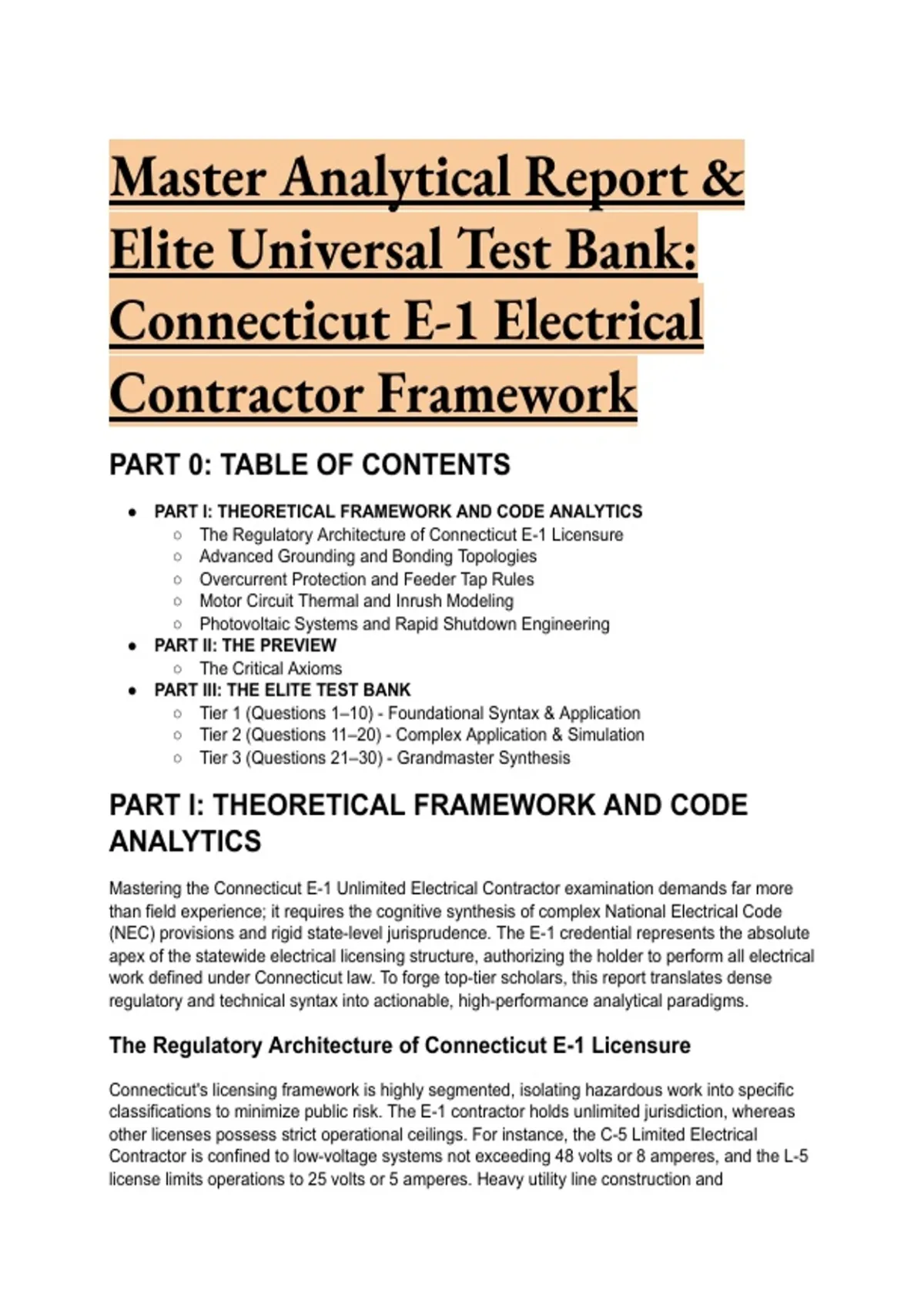

Master Analytical Report &
Elite Universal Test Bank:
Connecticut E-1 Electrical
Contractor Framework
PART 0: TABLE OF CONTENTS
● PART I: THEORETICAL FRAMEWORK AND CODE ANALYTICS
○ The Regulatory Architecture of Connecticut E-1 Licensure
○ Advanced Grounding and Bonding Topologies
○ Overcurrent Protection and Feeder Tap Rules
○ Motor Circuit Thermal and Inrush Modeling
○ Photovoltaic Systems and Rapid Shutdown Engineering
● PART II: THE PREVIEW
○ The Critical Axioms
● PART III: THE ELITE TEST BANK
○ Tier 1 (Questions 1–10) - Foundational Syntax & Application
○ Tier 2 (Questions 11–20) - Complex Application & Simulation
○ Tier 3 (Questions 21–30) - Grandmaster Synthesis
PART I: THEORETICAL FRAMEWORK AND CODE
ANALYTICS
Mastering the Connecticut E-1 Unlimited Electrical Contractor examination demands far more
than field experience; it requires the cognitive synthesis of complex National Electrical Code
(NEC) provisions and rigid state-level jurisprudence. The E-1 credential represents the absolute
apex of the statewide electrical licensing structure, authorizing the holder to perform all electrical
work defined under Connecticut law. To forge top-tier scholars, this report translates dense
regulatory and technical syntax into actionable, high-performance analytical paradigms.
The Regulatory Architecture of Connecticut E-1 Licensure
Connecticut's licensing framework is highly segmented, isolating hazardous work into specific
classifications to minimize public risk. The E-1 contractor holds unlimited jurisdiction, whereas
other licenses possess strict operational ceilings. For instance, the C-5 Limited Electrical
Contractor is confined to low-voltage systems not exceeding 48 volts or 8 amperes, and the L-5
license limits operations to 25 volts or 5 amperes. Heavy utility line construction and
,high-voltage cable splicing (exceeding 2,400 volts) fall strictly under the L-2 Electrical Lines
Journeyperson designation.
Compliance enforcement under Connecticut General Statutes (CGS) Chapter 393 is
unforgiving. Engaging in unlicensed work, or supplying unlicensed labor, exposes the contractor
to maximum civil penalties of $3,000 per violation. However, the statute applies a targeted
clemency: an individual acting as an improperly registered apprentice is shielded from financial
penalty on their first offense, effectively concentrating the punitive liability on the employing
contractor. The state also strictly governs apprentice hiring ratios to ensure adequate
supervision. Notably, if a tradesman holds a limited license (such as a C-6) but enrolls in an
unlimited apprenticeship program, the law reclassifies them as a journeyman or contractor for
the purposes of the hiring ratio, preventing contractors from circumventing labor caps.
Advanced Grounding and Bonding Topologies
The integrity of a grounding system dictates the survivability of an electrical installation during
catastrophic fault conditions. The Grounding Electrode Conductor (GEC) establishes the
primary earth connection and is sized utilizing NEC Table 250.66, scaled directly against the
circular mil area of the largest ungrounded service-entrance conductor. When dealing with
parallel service runs, the area of the ungrounded conductors must be summed.
However, the NEC applies absolute physical caps based on the specific electrode utilized. The
table below illustrates the maximum mandatory GEC sizes for isolated electrodes:
Electrode Type Maximum Required Copper Maximum Required Aluminum
GEC GEC
Concrete-Encased Electrode 4 AWG 2 AWG
(Ufer)
Ground Rod, Pipe, or Plate 6 AWG 4 AWG
Ground Ring Matches ring conductor size Matches ring conductor size
A critical analytical trap emerges when multiple electrodes are daisy-chained. If a GEC connects
from the service panel to a ground rod, and then continues to a concrete-encased electrode, the
primary GEC leaving the panel must be sized at full scale based on the service conductors,
completely ignoring the 6 AWG exception for the ground rod. Furthermore, when ungrounded
phase conductors are upsized to counteract voltage drop over extended distances, NEC
250.122(B) mandates that the Equipment Grounding Conductor (EGC) must be proportionally
increased based on the exact circular mil expansion ratio of the phase wires.
Overcurrent Protection and Feeder Tap Rules
Feeder tap rules (NEC 240.21(B)) represent a high-stakes compromise between design
flexibility and thermal runaway risks. Standard code requires overcurrent protection at the point
where a conductor receives its supply; taps bypass this, relying on abbreviated lengths and
downstream protection.
● The 10-Foot Tap Rule: Confined to lengths not exceeding 10 feet, the tap conductor
must possess an ampacity not less than the calculated load and, critically, not less than
the rating of the termination equipment or overcurrent protective device (OCPD). An
explicit exception exists for listed Surge Protective Devices (SPDs), which may use
conductor sizes dictated exclusively by manufacturer instructions, bypassing the standard
10% ampacity baseline.
, ● The 25-Foot Tap Rule: For lengths up to 25 feet, the tap conductor ampacity must equal
at least one-third (1/3) of the upstream feeder OCPD rating. It must terminate in a single
circuit breaker or set of fuses.
● The Outside Tap Rule: If tap conductors remain entirely outdoors and are protected from
physical damage, they may run for an unlimited length before terminating in a single
disconnect immediately upon entering a structure.
Motor Circuit Thermal and Inrush Modeling
Motor loads generate massive transient inrush currents, fundamentally altering how conductors
and breakers are modeled. NEC Article 430 segregates conductor sizing (which prevents wire
insulation failure) from branch-circuit protection (which prevents short-circuit fires without
nuisance tripping).
For a feeder supplying multiple motors, NEC 430.24 requires the conductor ampacity to be
calculated at 125% of the highest rated motor's Full-Load Current (FLC), plus 100% of all other
motor FLCs. If two motors tie for the largest FLC, the 125% multiplier is applied to only one of
them. Continuous non-motor loads are added at 125%, while noncontinuous loads are added at
100%. Feeder OCPD sizing follows NEC 430.62, strictly capped at the maximum branch-circuit
breaker rating permitted for the largest motor, plus the raw sum of the remaining motor FLCs.
Photovoltaic Systems and Rapid Shutdown Engineering
Solar Photovoltaic (PV) installations operate as relentless, continuous thermal generators. NEC
690.8 requires all PV source and output circuit maximum currents to be calculated at 125% of
the module's short-circuit current (Isc) to account for irradiance spikes. Because solar output
exceeds three hours, a secondary 125% continuous-load multiplier must be applied to the
conductors and the OCPDs, resulting in a synthesized 156.25% multiplier against the baseline
Isc.
Rapid shutdown protocols (NEC 690.12) are engineered to protect emergency responders. For
PV systems installed on enclosed buildings, the voltage must drop to safe thresholds within 30
seconds of initiation. Inside the array boundary (within one foot of the modules), the limit is 80V;
outside the boundary, it is restricted to 30V. Crucially, PV equipment mounted on non-enclosed
detached structures, such as parking canopies or solar trellises, are explicitly exempt from rapid
shutdown requirements.
PART II: THE PREVIEW
Mastering this exhaustive test bank translates directly to elite performance by bridging the gap
between theoretical National Electrical Code (NEC) syntax and real-world, high-stakes electrical
contracting scenarios. This document forges candidates into A-level scholars whose academic
mastery guarantees absolute clinical and analytical competence on the Connecticut E-1
Unlimited Electrical Contractor examination.
The "Critical Axioms" Cheat Sheet
● Photovoltaic (PV) Ampacity & OCPD: The continuous nature of solar output mandates
that PV source circuit maximum current is calculated at 125% of the short-circuit current
