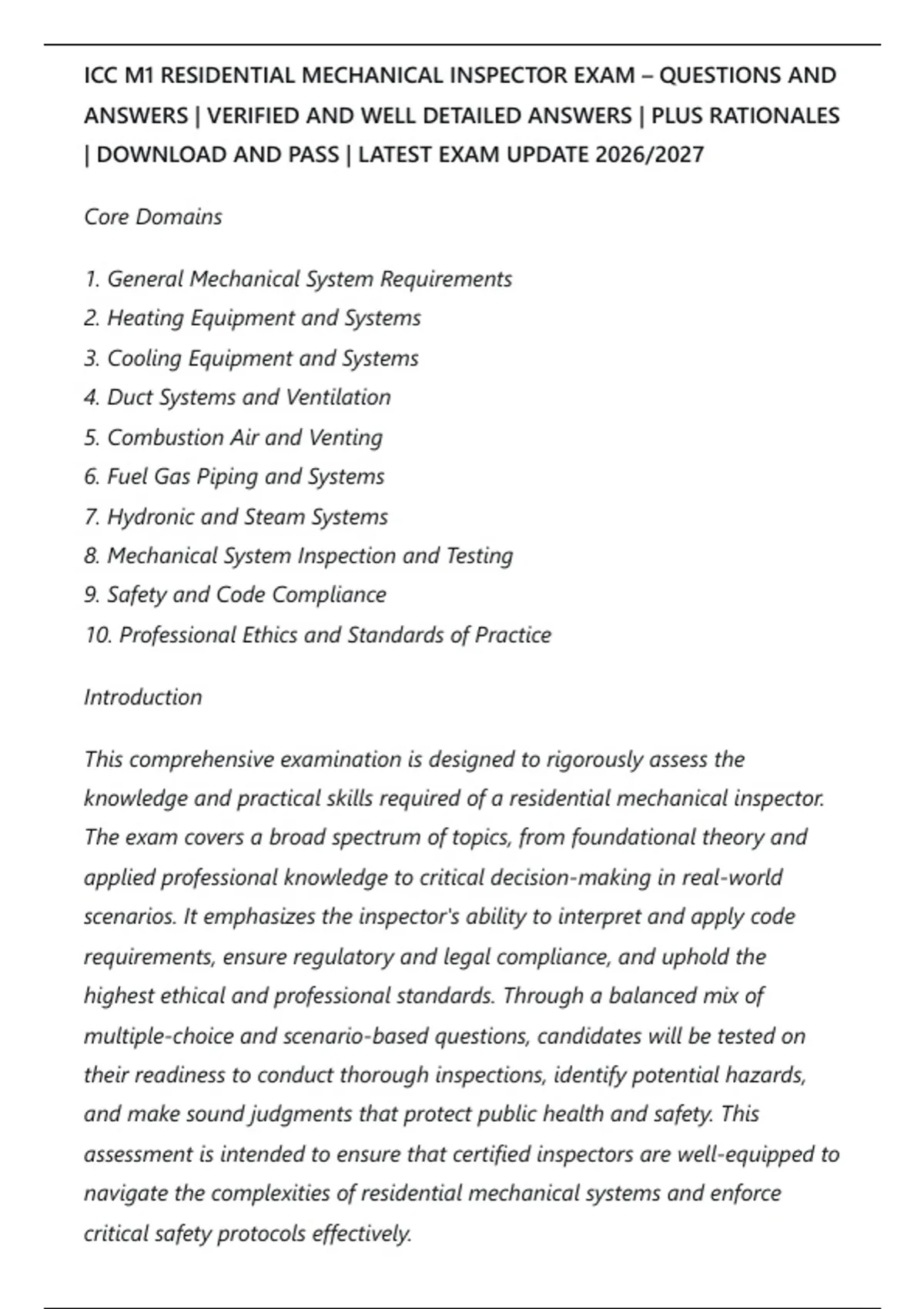

ICC M1 RESIDENTIAL MECHANICAL INSPECTOR EXAM – QUESTIONS AND
ANSWERS | VERIFIED AND WELL DETAILED ANSWERS | PLUS RATIONALES
| DOWNLOAD AND PASS | LATEST EXAM UPDATE 2026/2027
Core Domains
1. General Mechanical System Requirements
2. Heating Equipment and Systems
3. Cooling Equipment and Systems
4. Duct Systems and Ventilation
5. Combustion Air and Venting
6. Fuel Gas Piping and Systems
7. Hydronic and Steam Systems
8. Mechanical System Inspection and Testing
9. Safety and Code Compliance
10. Professional Ethics and Standards of Practice
Introduction
This comprehensive examination is designed to rigorously assess the
knowledge and practical skills required of a residential mechanical inspector.
The exam covers a broad spectrum of topics, from foundational theory and
applied professional knowledge to critical decision-making in real-world
scenarios. It emphasizes the inspector's ability to interpret and apply code
requirements, ensure regulatory and legal compliance, and uphold the
highest ethical and professional standards. Through a balanced mix of
multiple-choice and scenario-based questions, candidates will be tested on
their readiness to conduct thorough inspections, identify potential hazards,
and make sound judgments that protect public health and safety. This
assessment is intended to ensure that certified inspectors are well-equipped to
navigate the complexities of residential mechanical systems and enforce
critical safety protocols effectively.
,SECTION ONE: QUESTIONS 1–50
1. An inspector is evaluating the combustion air supply for a new, 100,000
Btu/h gas-fired furnace located in a mechanically tight closet. The closet has
two permanent openings, one within 12 inches of the top and one within 12
inches of the bottom, each communicating freely with the interior space of
the home. According to the International Residential Code (IRC), what is the
minimum required net free area for each of these openings?
A. 100 square inches
B. 50 square inches
C. 200 square inches
D. 1 square inch per 1000 Btu/h
🟢 Correct Answer: A. 100 square inches
🔴 Explanation: For combustion air from the interior space, the IRC requires
that each opening have a minimum net free area of 1 square inch per 1,000
Btu/h of the total input rating of all appliances in the space. For a 100,000
Btu/h furnace, this is 100 square inches per opening.
2. When inspecting an existing hydronic heating system, the inspector
observes that the expansion tank is located on the suction side of the
circulator pump. What is the primary concern with this installation?
A. It is the preferred location for optimal system performance.
B. It will cause the pump to cavitate.
C. It ensures the pump will not become air-bound.
D. It will lead to excessively high system pressure.
🟢 Correct Answer: B. It will cause the pump to cavitate.
,🔴 Explanation: An expansion tank on the suction side of the pump can
lead to a pressure drop at the pump inlet. If the pressure falls below the
vapor pressure of the water, cavitation can occur, damaging the pump
impeller and reducing its efficiency.
3. An installer is sizing a refrigerant piping system for a residential split-
system air conditioner. The total equivalent length of the liquid line is
determined to be 120 feet. What additional consideration is required for
this system that would not apply to a system with a shorter line set?
A. Adjustment of the system's refrigerant charge based on the
manufacturer's specifications.
B. Installation of a larger filter-drier.
C. The liquid line diameter must be increased by one size.
D. Installation of a hard start kit for the compressor.
🟢 Correct Answer: A. Adjustment of the system's refrigerant charge based
on the manufacturer's specifications.
🔴 Explanation: For extended refrigerant line sets, the manufacturer's
instructions will typically specify an additional refrigerant charge to
compensate for the increased volume of the lines. This ensures proper
system performance and prevents compressor damage.
4. During a final inspection of a newly installed gas furnace, the inspector
notes that the appliance is equipped with a power venting system that
terminates horizontally. Which of the following termination clearances is
most critical to verify?
A. 4 feet horizontally from an operable window.
B. 12 inches above the ground or grade level.
C. 3 feet from an inside corner of the building.
D. 1 foot from the property line.
, 🟢 Correct Answer: A. 4 feet horizontally from an operable window.
🔴 Explanation: For a mechanical draft venting system, the IRC requires the
vent terminal to be located at least 4 feet horizontally from, and in no case
above or below unless certain conditions are met, any operable window,
door, or gravity air inlet.
5. The inspector is reviewing a plan for a new residential addition that
includes a bathroom exhaust fan. The fan is rated at 80 CFM. What is the
minimum duct size that is generally required to be used for this exhaust fan
according to standard practices and code?
A. 3 inches
B. 4 inches
C. 5 inches
D. 6 inches
🟢 Correct Answer: B. 4 inches
🔴 Explanation: While codes often state a minimum nominal diameter of 4
inches for bathroom exhaust fan ducts, the manufacturer's instructions and
the fan's specifications might dictate a larger size. A 4-inch duct is
considered standard for many residential bathroom exhaust fans.
6. An inspector finds a 4-inch diameter single-wall metal vent connector for
a gas-fired water heater passing through a combustible floor assembly.
What is the minimum clearance required to combustible materials for this
single-wall connector?
A. 6 inches
B. 9 inches
C. 12 inches
D. 18 inches
