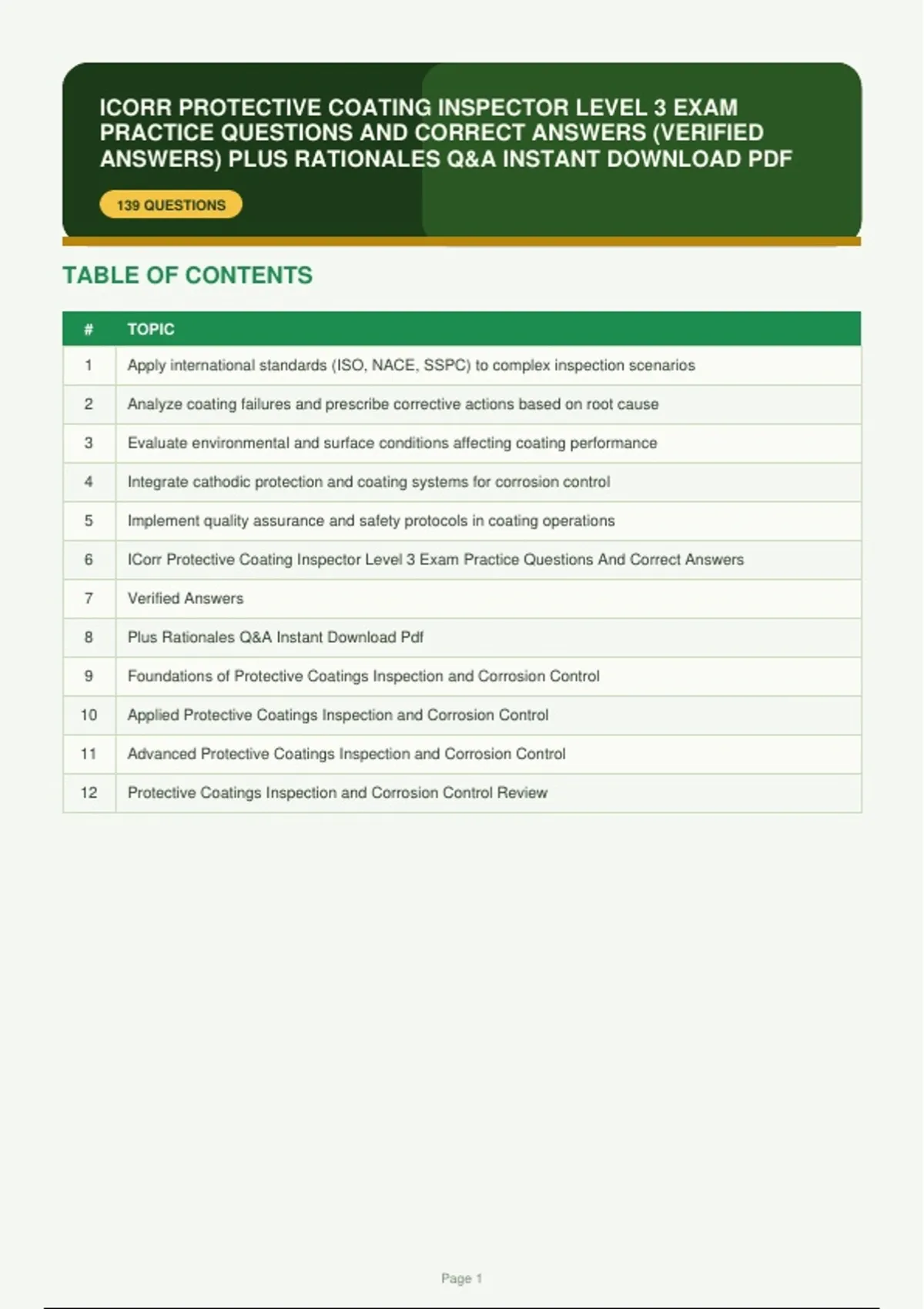

ICORR PROTECTIVE COATING INSPECTOR LEVEL 3 EXAM
PRACTICE QUESTIONS AND CORRECT ANSWERS (VERIFIED
ANSWERS) PLUS RATIONALES Q&A INSTANT DOWNLOAD PDF
139 QUESTIONS
TABLE OF CONTENTS
# TOPIC
1 Apply international standards (ISO, NACE, SSPC) to complex inspection scenarios
2 Analyze coating failures and prescribe corrective actions based on root cause
3 Evaluate environmental and surface conditions affecting coating performance
4 Integrate cathodic protection and coating systems for corrosion control
5 Implement quality assurance and safety protocols in coating operations
6 ICorr Protective Coating Inspector Level 3 Exam Practice Questions And Correct Answers
7 Verified Answers
8 Plus Rationales Q&A Instant Download Pdf
9 Foundations of Protective Coatings Inspection and Corrosion Control
10 Applied Protective Coatings Inspection and Corrosion Control
11 Advanced Protective Coatings Inspection and Corrosion Control
12 Protective Coatings Inspection and Corrosion Control Review
Page 1
,Q1 APPLY INTERNATIONAL STANDARDS (ISO, NACE, SSPC) TO COMPLEX INSPECTION
SCENARIOS
During a coating inspection, you measure a surface profile of 85 microns on steel
prepared by abrasive blasting. The specified profile range is 50-75 microns. Which
action is most appropriate to ensure coating performance?
A. Proceed with coating application since the profile is within the allowable tolerance of +10
microns.
B. Re-blast the surface to reduce the profile to within the specified range.
C. Adjust the coating thickness to compensate for the deeper profile.
D. Accept the profile if the coating manufacturer approves, but document the deviation.
CORRECT
RATIONALE: Inspection standards (ISO 8503) allow acceptance of out-of-spec profiles if the
coating system can accommodate them, provided the manufacturer approves. Re-blasting may
be impractical and could damage the substrate. Coating thickness adjustment alone does not
address the profile issue. Acceptance without documentation is unacceptable.
Q2 APPLY INTERNATIONAL STANDARDS (ISO, NACE, SSPC) TO COMPLEX INSPECTION
SCENARIOS
A coating inspector observes flash rusting on a steel surface prepared by
waterjetting. The specification requires a Sa 2.5 equivalent. Which condition would
permit proceeding with coating application?
A. Flash rusting is light and the specified primer is water-tolerant.
B. Flash rusting is heavy and the surface is dry.
C. Flash rusting is light and the ambient humidity is below 60%.
D. Flash rusting is present but the coating specification allows rust grade 'L'. CORRECT
RATIONALE: For waterjetting (ISO 8501-4), flash rust grades are defined; if the specification
allows grade 'L' (light), proceeding is acceptable. Water-tolerant primers may not be specified.
Heavy rust or high humidity would require re-preparation.
Page 2
,Q3 APPLY INTERNATIONAL STANDARDS (ISO, NACE, SSPC) TO COMPLEX INSPECTION
SCENARIOS
You are evaluating a coating system for a submerged steel structure in seawater.
Which combination of coating system and cathodic protection (CP) is most
compatible to avoid cathodic disbondment?
A. Thin-film epoxy with CP at -1.1 V (Ag/AgCl)
B. Thick-film coal tar epoxy with CP at -0.85 V (Ag/AgCl) CORRECT
C. Zinc-rich primer with CP at -1.0 V (Ag/AgCl)
D. Polyurethane topcoat with CP at -0.95 V (Ag/AgCl)
RATIONALE: Thick-film coal tar epoxy provides high resistance to cathodic disbondment and is
commonly used with CP. Overprotection (more negative than -1.0 V) increases disbondment risk,
making A and C problematic. Zinc-rich primers are not used with CP as they can be sacrificial.
Polyurethane is not suitable for submerged service.
Q4 APPLY INTERNATIONAL STANDARDS (ISO, NACE, SSPC) TO COMPLEX INSPECTION
SCENARIOS
During a coating application, the ambient temperature is 10°C and the dew point is
7°C. The substrate temperature is measured at 9°C. Which action is required?
A. Proceed with application because the temperature is above 5°C.
B. Delay application until substrate temperature is at least 5°C above dew point. CORRECT
C. Apply a primer to prevent condensation.
D. Proceed if the relative humidity is below 85%.
RATIONALE: Most coating specifications require the substrate temperature to be at least 3°C
above the dew point to prevent condensation. Here, substrate (9°C) is only 2°C above dew point
(7°C), so application should be delayed until conditions improve.
Page 3
, Q5 APPLY INTERNATIONAL STANDARDS (ISO, NACE, SSPC) TO COMPLEX INSPECTION
SCENARIOS
A coating inspector identifies a defect characterized by a series of small craters
forming a line on a vertical surface. The coating was applied by airless spray. What
is the most likely cause?
A. Contamination of the surface with oil
B. Moisture in the air line
C. Blocked or worn spray tip CORRECT
D. Incorrect solvent blend
RATIONALE: A line of craters (pinholes) typically results from a worn or damaged spray tip
causing spitting. Oil contamination causes fisheyes, moisture causes blisters, and solvent issues
cause solvent popping. The linear pattern is key.
Q6 APPLY INTERNATIONAL STANDARDS (ISO, NACE, SSPC) TO COMPLEX INSPECTION
SCENARIOS
In a coating specification, the DFT requirement is 300 microns with a 80-20 rule.
You measure 10 readings: 7 are above 300, 2 are at 280, and 1 is at 250. What is
your assessment?
A. Accept because 80% of readings meet the minimum.
B. Reject because the reading at 250 is below the minimum. CORRECT
C. Accept if the average is above 300.
D. Reject because 20% of readings are below the minimum.
RATIONALE: The 80-20 rule requires that no reading is below the minimum DFT (300). Here,
one reading (250) is below, so the coating is rejected regardless of the average. The rule allows
only 20% of readings to be below the specified DFT, but not below the minimum.
Page 4
PRACTICE QUESTIONS AND CORRECT ANSWERS (VERIFIED
ANSWERS) PLUS RATIONALES Q&A INSTANT DOWNLOAD PDF
139 QUESTIONS
TABLE OF CONTENTS
# TOPIC
1 Apply international standards (ISO, NACE, SSPC) to complex inspection scenarios
2 Analyze coating failures and prescribe corrective actions based on root cause
3 Evaluate environmental and surface conditions affecting coating performance
4 Integrate cathodic protection and coating systems for corrosion control
5 Implement quality assurance and safety protocols in coating operations
6 ICorr Protective Coating Inspector Level 3 Exam Practice Questions And Correct Answers
7 Verified Answers
8 Plus Rationales Q&A Instant Download Pdf
9 Foundations of Protective Coatings Inspection and Corrosion Control
10 Applied Protective Coatings Inspection and Corrosion Control
11 Advanced Protective Coatings Inspection and Corrosion Control
12 Protective Coatings Inspection and Corrosion Control Review
Page 1
,Q1 APPLY INTERNATIONAL STANDARDS (ISO, NACE, SSPC) TO COMPLEX INSPECTION
SCENARIOS
During a coating inspection, you measure a surface profile of 85 microns on steel
prepared by abrasive blasting. The specified profile range is 50-75 microns. Which
action is most appropriate to ensure coating performance?
A. Proceed with coating application since the profile is within the allowable tolerance of +10
microns.
B. Re-blast the surface to reduce the profile to within the specified range.
C. Adjust the coating thickness to compensate for the deeper profile.
D. Accept the profile if the coating manufacturer approves, but document the deviation.
CORRECT
RATIONALE: Inspection standards (ISO 8503) allow acceptance of out-of-spec profiles if the
coating system can accommodate them, provided the manufacturer approves. Re-blasting may
be impractical and could damage the substrate. Coating thickness adjustment alone does not
address the profile issue. Acceptance without documentation is unacceptable.
Q2 APPLY INTERNATIONAL STANDARDS (ISO, NACE, SSPC) TO COMPLEX INSPECTION
SCENARIOS
A coating inspector observes flash rusting on a steel surface prepared by
waterjetting. The specification requires a Sa 2.5 equivalent. Which condition would
permit proceeding with coating application?
A. Flash rusting is light and the specified primer is water-tolerant.
B. Flash rusting is heavy and the surface is dry.
C. Flash rusting is light and the ambient humidity is below 60%.
D. Flash rusting is present but the coating specification allows rust grade 'L'. CORRECT
RATIONALE: For waterjetting (ISO 8501-4), flash rust grades are defined; if the specification
allows grade 'L' (light), proceeding is acceptable. Water-tolerant primers may not be specified.
Heavy rust or high humidity would require re-preparation.
Page 2
,Q3 APPLY INTERNATIONAL STANDARDS (ISO, NACE, SSPC) TO COMPLEX INSPECTION
SCENARIOS
You are evaluating a coating system for a submerged steel structure in seawater.
Which combination of coating system and cathodic protection (CP) is most
compatible to avoid cathodic disbondment?
A. Thin-film epoxy with CP at -1.1 V (Ag/AgCl)
B. Thick-film coal tar epoxy with CP at -0.85 V (Ag/AgCl) CORRECT
C. Zinc-rich primer with CP at -1.0 V (Ag/AgCl)
D. Polyurethane topcoat with CP at -0.95 V (Ag/AgCl)
RATIONALE: Thick-film coal tar epoxy provides high resistance to cathodic disbondment and is
commonly used with CP. Overprotection (more negative than -1.0 V) increases disbondment risk,
making A and C problematic. Zinc-rich primers are not used with CP as they can be sacrificial.
Polyurethane is not suitable for submerged service.
Q4 APPLY INTERNATIONAL STANDARDS (ISO, NACE, SSPC) TO COMPLEX INSPECTION
SCENARIOS
During a coating application, the ambient temperature is 10°C and the dew point is
7°C. The substrate temperature is measured at 9°C. Which action is required?
A. Proceed with application because the temperature is above 5°C.
B. Delay application until substrate temperature is at least 5°C above dew point. CORRECT
C. Apply a primer to prevent condensation.
D. Proceed if the relative humidity is below 85%.
RATIONALE: Most coating specifications require the substrate temperature to be at least 3°C
above the dew point to prevent condensation. Here, substrate (9°C) is only 2°C above dew point
(7°C), so application should be delayed until conditions improve.
Page 3
, Q5 APPLY INTERNATIONAL STANDARDS (ISO, NACE, SSPC) TO COMPLEX INSPECTION
SCENARIOS
A coating inspector identifies a defect characterized by a series of small craters
forming a line on a vertical surface. The coating was applied by airless spray. What
is the most likely cause?
A. Contamination of the surface with oil
B. Moisture in the air line
C. Blocked or worn spray tip CORRECT
D. Incorrect solvent blend
RATIONALE: A line of craters (pinholes) typically results from a worn or damaged spray tip
causing spitting. Oil contamination causes fisheyes, moisture causes blisters, and solvent issues
cause solvent popping. The linear pattern is key.
Q6 APPLY INTERNATIONAL STANDARDS (ISO, NACE, SSPC) TO COMPLEX INSPECTION
SCENARIOS
In a coating specification, the DFT requirement is 300 microns with a 80-20 rule.
You measure 10 readings: 7 are above 300, 2 are at 280, and 1 is at 250. What is
your assessment?
A. Accept because 80% of readings meet the minimum.
B. Reject because the reading at 250 is below the minimum. CORRECT
C. Accept if the average is above 300.
D. Reject because 20% of readings are below the minimum.
RATIONALE: The 80-20 rule requires that no reading is below the minimum DFT (300). Here,
one reading (250) is below, so the coating is rejected regardless of the average. The rule allows
only 20% of readings to be below the specified DFT, but not below the minimum.
Page 4
