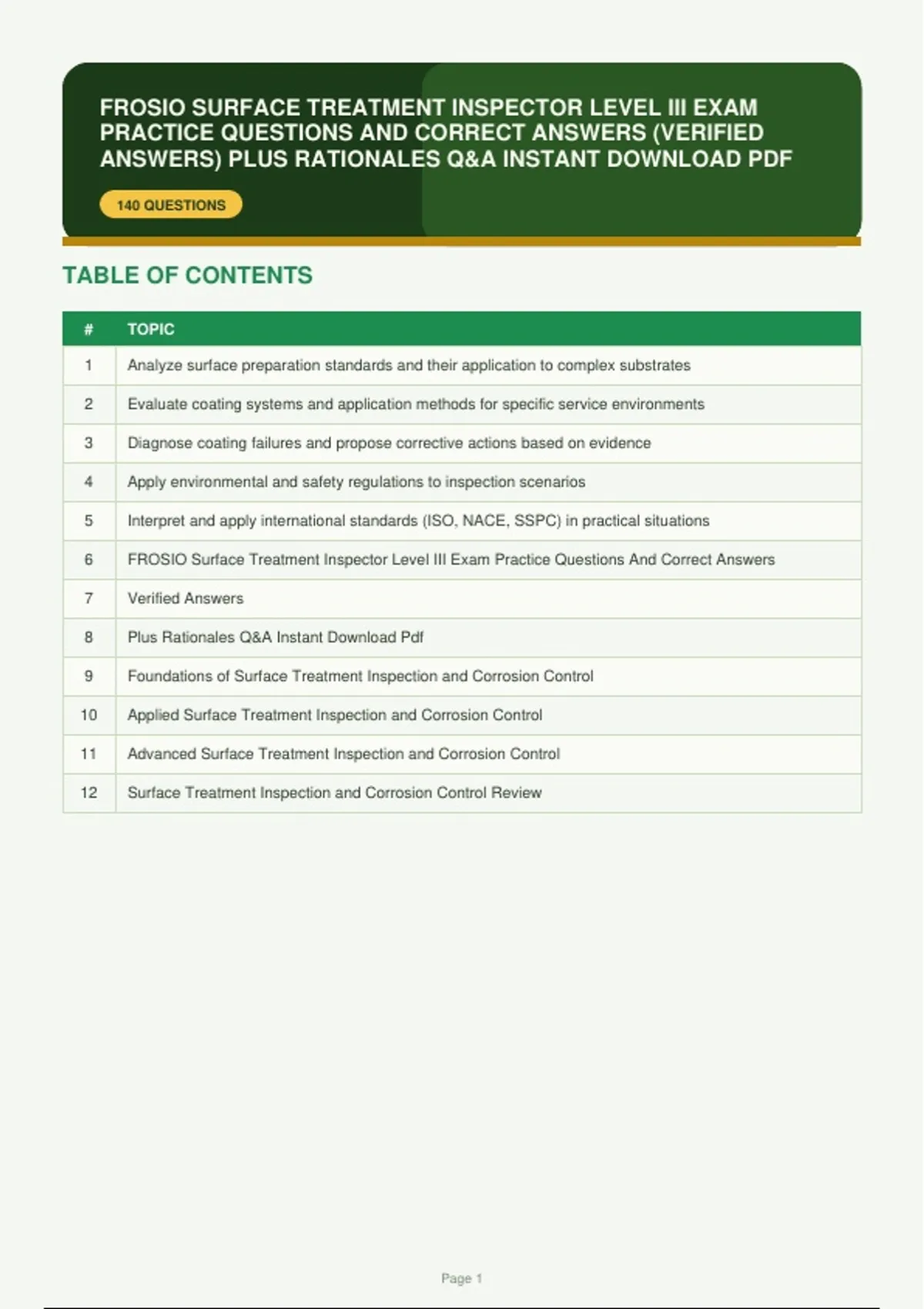

FROSIO SURFACE TREATMENT INSPECTOR LEVEL III EXAM
PRACTICE QUESTIONS AND CORRECT ANSWERS (VERIFIED
ANSWERS) PLUS RATIONALES Q&A INSTANT DOWNLOAD PDF
140 QUESTIONS
TABLE OF CONTENTS
# TOPIC
1 Analyze surface preparation standards and their application to complex substrates
2 Evaluate coating systems and application methods for specific service environments
3 Diagnose coating failures and propose corrective actions based on evidence
4 Apply environmental and safety regulations to inspection scenarios
5 Interpret and apply international standards (ISO, NACE, SSPC) in practical situations
6 FROSIO Surface Treatment Inspector Level III Exam Practice Questions And Correct Answers
7 Verified Answers
8 Plus Rationales Q&A Instant Download Pdf
9 Foundations of Surface Treatment Inspection and Corrosion Control
10 Applied Surface Treatment Inspection and Corrosion Control
11 Advanced Surface Treatment Inspection and Corrosion Control
12 Surface Treatment Inspection and Corrosion Control Review
Page 1
,Q1 ANALYZE SURFACE PREPARATION STANDARDS AND THEIR APPLICATION TO COMPLEX
SUBSTRATES
During a pre-blast inspection of a steel structure, the inspector measures chloride
contamination at 15 µg/cm² on a surface prepared to Sa 2½. The specification
requires 10 µg/cm². Which action is most appropriate?
A. Proceed with coating as the abrasive blast will remove chlorides
B. Require additional dry abrasive blasting to remove the contamination
C. Apply a high-pressure freshwater wash followed by re-testing CORRECT
D. Use a power tool cleaning to SSPC-SP11 to avoid water introduction
RATIONALE: Chlorides are soluble salts; dry blasting alone may not remove them effectively.
High-pressure freshwater washing is the standard method to leach salts from the surface.
Re-testing after washing verifies effectiveness. Proceeding or using dry methods risks osmotic
blistering and premature failure.
Q2 ANALYZE SURFACE PREPARATION STANDARDS AND THEIR APPLICATION TO COMPLEX
SUBSTRATES
A coating inspector notes that a newly applied zinc-rich primer has a dry film
thickness (DFT) of 75 µm, but the specification requires 50-80 µm. The surface
profile is 60 µm. Which statement is correct regarding the DFT measurement?
A. The DFT is within tolerance because it is above the minimum
B. The DFT is acceptable only if the profile depth is subtracted CORRECT
C. The DFT is excessive because it exceeds the maximum by 15 µm
D. The DFT is acceptable because the profile depth is less than the DFT
RATIONALE: For zinc-rich primers, DFT is often measured over the profile; the effective coating
thickness above the peaks is DFT minus profile. Here, 75 µm - 60 µm = 15 µm, which may be
below the required minimum for corrosion protection. Therefore, the reading must be interpreted
considering the profile, and the coating may be under-specified.
Page 2
,Q3 ANALYZE SURFACE PREPARATION STANDARDS AND THEIR APPLICATION TO COMPLEX
SUBSTRATES
Which of the following conditions most likely causes 'solvent popping' in a cured
polyurethane topcoat?
A. Application over a damp substrate
B. Excessive film thickness in one coat
C. Rapid solvent evaporation from the surface CORRECT
D. Insufficient mixing of the base and hardener
RATIONALE: Solvent popping occurs when solvent is trapped beneath the skin of the drying film
and then escapes, leaving pinholes or craters. This is exacerbated by rapid surface drying that
forms a skin, often due to high temperature or strong solvent blends. Damp substrate, excessive
thickness, or poor mixing cause other defects like blistering, runs, or incomplete cure.
Q4 ANALYZE SURFACE PREPARATION STANDARDS AND THEIR APPLICATION TO COMPLEX
SUBSTRATES
An inspector is evaluating a coating system for immersion service. Which
combination of standards and test methods would be most appropriate to verify
performance?
A. ISO 12944-6 and ASTM B117 salt spray
B. ISO 12944-9 and cathodic disbondment testing CORRECT
C. SSPC-PA 2 and DFT measurement only
D. NACE SP0188 and conductivity testing
RATIONALE: ISO 12944-9 specifically covers offshore and related structures, including
performance testing for immersion. Cathodic disbondment testing (e.g., ASTM G8) is critical for
coatings in cathodically protected immersion service. Salt spray (ASTM B117) is not a reliable
predictor of immersion performance. DFT measurement alone does not verify performance.
Page 3
, Q5 ANALYZE SURFACE PREPARATION STANDARDS AND THEIR APPLICATION TO COMPLEX
SUBSTRATES
For a coating inspector using a wet film thickness (WFT) gauge on a rough surface
with a profile depth of 75 µm, what is the correct method to estimate the required
WFT to achieve a specified DFT of 250 µm?
A. WFT = DFT × (1 + %solids by volume) + profile depth
B. WFT = DFT / (volume solids fraction) + profile depth CORRECT
C. WFT = DFT × (volume solids fraction) profile depth
D. WFT = DFT / (volume solids fraction) profile depth
RATIONALE: The general formula is WFT = (DFT × 100) / (% volume solids). Because the
coating must fill the profile, the profile depth must be added to the WFT to account for the extra
material that sits in the roughness valleys. Thus, WFT = (DFT / VS) + profile depth. Subtracting
or using incorrect proportions yields an insufficient film.
Q6 ANALYZE SURFACE PREPARATION STANDARDS AND THEIR APPLICATION TO COMPLEX
SUBSTRATES
A coating failure shows widespread blistering with a clear liquid in the blisters.
Analysis of the liquid finds chlorides. Which mechanism is most likely?
A. Cathodic delamination
B. Osmotic blistering CORRECT
C. Anodic undermining
D. Solvent entrapment
RATIONALE: Osmotic blistering occurs when water-soluble salts on the substrate create an
osmotic pressure gradient, drawing water through the coating and forming blisters filled with a
concentrated salt solution. The presence of chlorides in the blister fluid is diagnostic. Cathodic
delamination is associated with cathodic protection and alkaline conditions, anodic undermining
involves corrosion products, and solvent entrapment would contain solvent, not salt water.
Page 4
