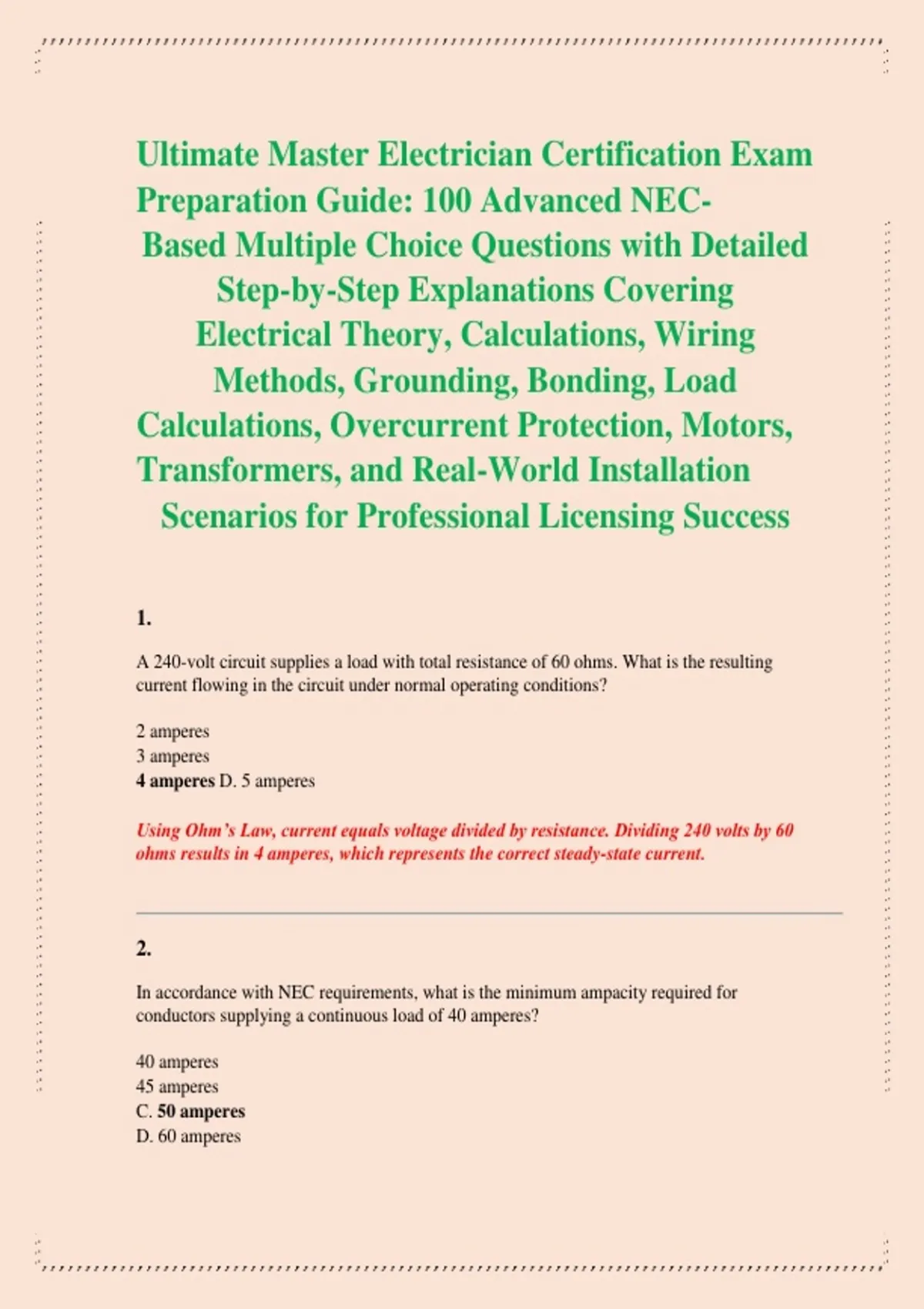

Ultimate Master Electrician Certification Exam
Preparation Guide: 100 Advanced NEC-
Based Multiple Choice Questions with Detailed
Step-by-Step Explanations Covering
Electrical Theory, Calculations, Wiring
Methods, Grounding, Bonding, Load
Calculations, Overcurrent Protection, Motors,
Transformers, and Real-World Installation
Scenarios for Professional Licensing Success
1.
A 240-volt circuit supplies a load with total resistance of 60 ohms. What is the resulting
current flowing in the circuit under normal operating conditions?
2 amperes
3 amperes
4 amperes D. 5 amperes
Using Ohm’s Law, current equals voltage divided by resistance. Dividing 240 volts by 60
ohms results in 4 amperes, which represents the correct steady-state current.
2.
In accordance with NEC requirements, what is the minimum ampacity required for
conductors supplying a continuous load of 40 amperes?
40 amperes
45 amperes
C. 50 amperes
D. 60 amperes
,The NEC requires continuous loads to be calculated at 125 percent of the actual load.
Multiplying 40 amperes by 1.25 gives 50 amperes minimum conductor ampacity.
3.
What is the maximum allowable conduit fill percentage when more than two conductors are
installed inside a raceway?
31 percent
40 percent
53 percent
60 percent
According to NEC Chapter 9, Table 1, conduit fill is limited to 40 percent when three or
more conductors are present to prevent overheating and allow proper heat dissipation.
4.
Which type of protection device is specifically designed to detect and interrupt arcing faults
in branch circuits?
Ground-Fault Circuit Interrupter (GFCI)
Thermal overload relay
Arc-Fault Circuit Interrupter (AFCI)
Standard circuit breaker
An AFCI detects dangerous arc faults caused by damaged or deteriorated wiring and
disconnects power before a fire hazard can develop in the circuit.
5.
What is the primary purpose of bonding all non-current-carrying metal parts of an electrical
system?
Increase voltage
Reduce resistance
Provide a low-impedance fault path
Improve efficiency
, Bonding ensures that fault current has a low-impedance path back to the source, enabling
overcurrent devices to operate quickly and safely during fault conditions.
6.
A single-phase load draws 12 amperes at 120 volts. What is the total power consumed by the
load?
1200 watts
1440 watts
1500 watts
1600 watts
Power is calculated by multiplying voltage by current. In this case, 120 volts multiplied by
12 amperes equals 1440 watts of electrical power consumed.
7.
According to NEC guidelines, what is the minimum burial depth required for direct-burial
cable installed in residential branch circuits?
12 inches
18 inches
24 inches D. 30 inches
The NEC specifies a minimum burial depth of 24 inches for direct burial cable
installations to protect conductors from physical damage and environmental exposure.
8.
What is the function of the grounded conductor (neutral) in a typical single-phase electrical
system?
Carry fault current only
Provide grounding
