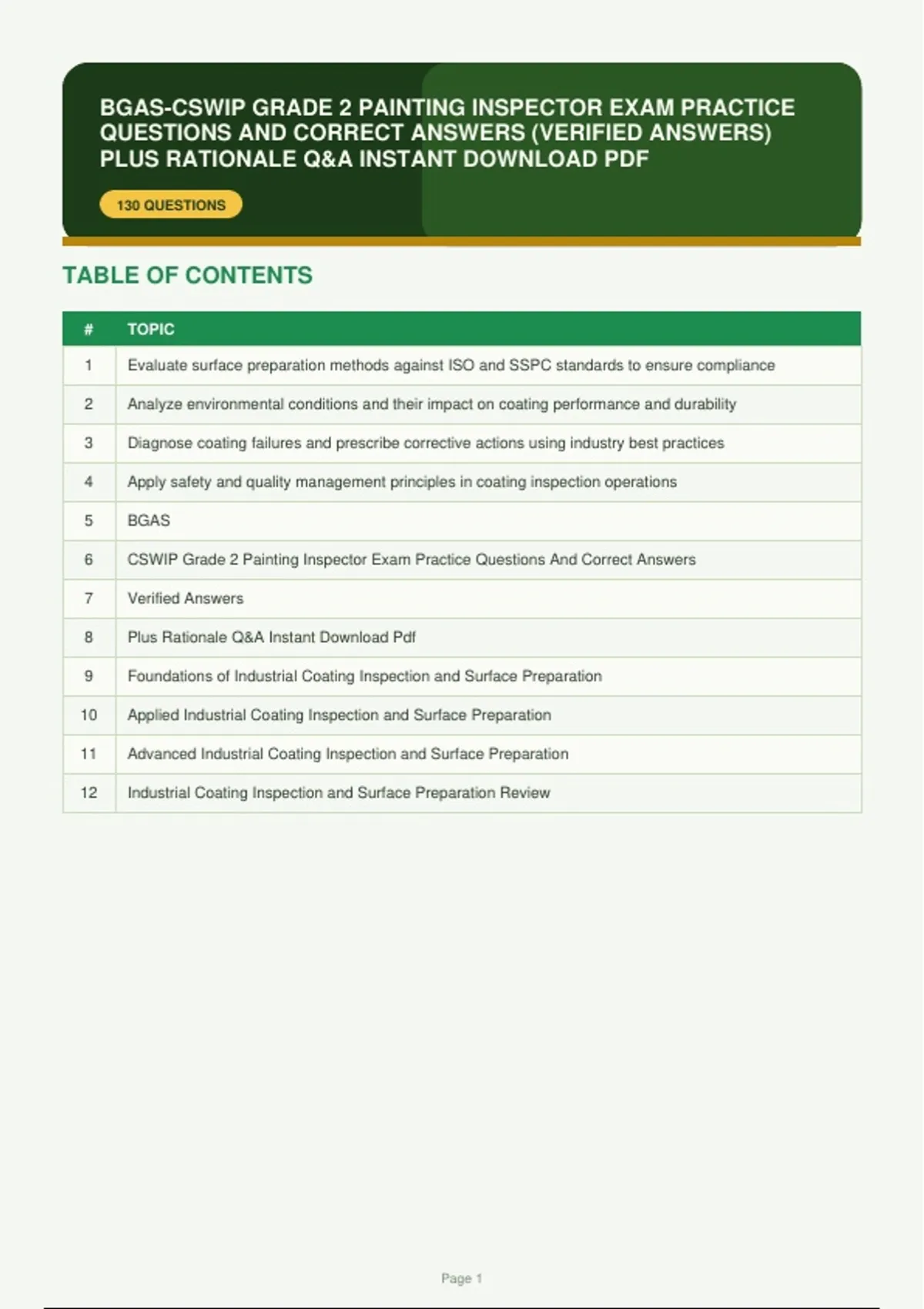

BGAS-CSWIP GRADE 2 PAINTING INSPECTOR EXAM PRACTICE
QUESTIONS AND CORRECT ANSWERS (VERIFIED ANSWERS)
PLUS RATIONALE Q&A INSTANT DOWNLOAD PDF
130 QUESTIONS
TABLE OF CONTENTS
# TOPIC
1 Evaluate surface preparation methods against ISO and SSPC standards to ensure compliance
2 Analyze environmental conditions and their impact on coating performance and durability
3 Diagnose coating failures and prescribe corrective actions using industry best practices
4 Apply safety and quality management principles in coating inspection operations
5 BGAS
6 CSWIP Grade 2 Painting Inspector Exam Practice Questions And Correct Answers
7 Verified Answers
8 Plus Rationale Q&A Instant Download Pdf
9 Foundations of Industrial Coating Inspection and Surface Preparation
10 Applied Industrial Coating Inspection and Surface Preparation
11 Advanced Industrial Coating Inspection and Surface Preparation
12 Industrial Coating Inspection and Surface Preparation Review
Page 1
,Q1 EVALUATE SURFACE PREPARATION METHODS AGAINST ISO AND SSPC STANDARDS
TO ENSURE COMPLIANCE
During a pre-blast inspection, you discover that the steel surface has a heavy layer
of chloride contamination. The specification requires Sa 2.5 with a surface
chloride level below 5 µg/cm². Which sequence of operations would most
effectively achieve the specified cleanliness without causing flash rusting?
A. Dry abrasive blasting to Sa 2.5, followed by high-pressure fresh water washing and then a
second dry blast to remove flash rust.
B. High-pressure fresh water washing to remove chlorides, then dry abrasive blasting to Sa 2.5,
and finally a sweep blast if flash rust appears. CORRECT
C. Dry abrasive blasting to Sa 2.5, then apply a holding primer to prevent flash rust, and later
remove the primer before coating.
D. Wet abrasive blasting with fresh water to Sa 2.5, followed by a fresh water rinse and
immediate application of the coating.
RATIONALE: High-pressure water washing first removes soluble salts, preventing them from
being driven deeper by blasting. Subsequent dry blasting to Sa 2.5 removes rust and creates the
profile, while a sweep blast can address any flash rust. Option A is less effective as chlorides
may remain beneath the surface. Option C leaves chlorides in place, and option D risks flash
rusting before coating.
Page 2
,Q2 EVALUATE SURFACE PREPARATION METHODS AGAINST ISO AND SSPC STANDARDS
TO ENSURE COMPLIANCE
A coating inspector is evaluating a newly blasted steel surface with a surface
profile depth of 75 µm. The specified profile range is 40-70 µm. The inspector uses
a replica tape and a digital micrometer. Which action is most appropriate?
A. Accept the profile as within tolerance because replica tape measurements have an accuracy
of ±5 µm.
B. Reject the profile and require re-blasting to achieve a depth within the specified range.
CORRECT
C. Record the measurement as 70 µm to meet specification, assuming the extra 5 µm is
measurement error.
D. Accept the profile if the coating manufacturer approves a higher DFT to cover the deeper
profile.
RATIONALE: The measured profile exceeds the maximum specified by 5 µm, which is outside
the tolerance. Replica tape is accurate, but the reading is valid. Accepting it or adjusting the
reading violates inspection integrity. The specification must be met, so re-blasting is required.
Option D is not acceptable unless the specification allows it, which is not stated.
Q3 EVALUATE SURFACE PREPARATION METHODS AGAINST ISO AND SSPC STANDARDS
TO ENSURE COMPLIANCE
In a coastal environment, you are inspecting a coating system that has
experienced premature blistering. The blisters contain a clear liquid with a high
chloride concentration. Which mechanism is the most likely cause of this failure?
A. Osmotic blistering due to soluble salts left on the substrate before coating. CORRECT
B. Cathodic delamination caused by a damaged coating exposing the steel to seawater.
C. Solvent entrapment due to rapid evaporation of solvent from a thick film.
D. Hydrostatic pressure from moisture permeating through the coating from the external surface.
RATIONALE: Osmotic blistering occurs when soluble salts on the substrate draw water through
the coating by osmosis, creating blisters with concentrated salt solution. The high chloride
content in the blister fluid supports this. Cathodic delamination typically occurs at holidays and
involves alkaline products. Solvent entrapment causes solvent blisters, not chloride-rich liquid.
Hydrostatic pressure would cause blisters without high salt concentration.
Page 3
, Q4 EVALUATE SURFACE PREPARATION METHODS AGAINST ISO AND SSPC STANDARDS
TO ENSURE COMPLIANCE
During a coating application, the ambient temperature is 12°C, and the dew point
is 8°C. The relative humidity is 80%. The steel temperature is 10°C. According to
ISO 8502-4, what is the correct assessment of these conditions?
A. Conditions are acceptable because the steel temperature is above the dew point, but the
relative humidity is too high.
B. Conditions are not acceptable because the steel temperature is less than 3°C above the dew
point. CORRECT
C. Conditions are acceptable because the difference between steel temperature and dew point is
exactly 2°C, which is sufficient.
D. Conditions are not acceptable because the ambient temperature is below 15°C, the minimum
for coating application.
RATIONALE: ISO 8502-4 requires that the steel temperature be at least 3°C above the dew point
to prevent condensation. Here, the difference is only 2°C (10°C - 8°C), so condensation is likely.
The relative humidity is not the primary criterion, and there is no universal 15°C minimum. Thus,
conditions are not acceptable.
Page 4
QUESTIONS AND CORRECT ANSWERS (VERIFIED ANSWERS)
PLUS RATIONALE Q&A INSTANT DOWNLOAD PDF
130 QUESTIONS
TABLE OF CONTENTS
# TOPIC
1 Evaluate surface preparation methods against ISO and SSPC standards to ensure compliance
2 Analyze environmental conditions and their impact on coating performance and durability
3 Diagnose coating failures and prescribe corrective actions using industry best practices
4 Apply safety and quality management principles in coating inspection operations
5 BGAS
6 CSWIP Grade 2 Painting Inspector Exam Practice Questions And Correct Answers
7 Verified Answers
8 Plus Rationale Q&A Instant Download Pdf
9 Foundations of Industrial Coating Inspection and Surface Preparation
10 Applied Industrial Coating Inspection and Surface Preparation
11 Advanced Industrial Coating Inspection and Surface Preparation
12 Industrial Coating Inspection and Surface Preparation Review
Page 1
,Q1 EVALUATE SURFACE PREPARATION METHODS AGAINST ISO AND SSPC STANDARDS
TO ENSURE COMPLIANCE
During a pre-blast inspection, you discover that the steel surface has a heavy layer
of chloride contamination. The specification requires Sa 2.5 with a surface
chloride level below 5 µg/cm². Which sequence of operations would most
effectively achieve the specified cleanliness without causing flash rusting?
A. Dry abrasive blasting to Sa 2.5, followed by high-pressure fresh water washing and then a
second dry blast to remove flash rust.
B. High-pressure fresh water washing to remove chlorides, then dry abrasive blasting to Sa 2.5,
and finally a sweep blast if flash rust appears. CORRECT
C. Dry abrasive blasting to Sa 2.5, then apply a holding primer to prevent flash rust, and later
remove the primer before coating.
D. Wet abrasive blasting with fresh water to Sa 2.5, followed by a fresh water rinse and
immediate application of the coating.
RATIONALE: High-pressure water washing first removes soluble salts, preventing them from
being driven deeper by blasting. Subsequent dry blasting to Sa 2.5 removes rust and creates the
profile, while a sweep blast can address any flash rust. Option A is less effective as chlorides
may remain beneath the surface. Option C leaves chlorides in place, and option D risks flash
rusting before coating.
Page 2
,Q2 EVALUATE SURFACE PREPARATION METHODS AGAINST ISO AND SSPC STANDARDS
TO ENSURE COMPLIANCE
A coating inspector is evaluating a newly blasted steel surface with a surface
profile depth of 75 µm. The specified profile range is 40-70 µm. The inspector uses
a replica tape and a digital micrometer. Which action is most appropriate?
A. Accept the profile as within tolerance because replica tape measurements have an accuracy
of ±5 µm.
B. Reject the profile and require re-blasting to achieve a depth within the specified range.
CORRECT
C. Record the measurement as 70 µm to meet specification, assuming the extra 5 µm is
measurement error.
D. Accept the profile if the coating manufacturer approves a higher DFT to cover the deeper
profile.
RATIONALE: The measured profile exceeds the maximum specified by 5 µm, which is outside
the tolerance. Replica tape is accurate, but the reading is valid. Accepting it or adjusting the
reading violates inspection integrity. The specification must be met, so re-blasting is required.
Option D is not acceptable unless the specification allows it, which is not stated.
Q3 EVALUATE SURFACE PREPARATION METHODS AGAINST ISO AND SSPC STANDARDS
TO ENSURE COMPLIANCE
In a coastal environment, you are inspecting a coating system that has
experienced premature blistering. The blisters contain a clear liquid with a high
chloride concentration. Which mechanism is the most likely cause of this failure?
A. Osmotic blistering due to soluble salts left on the substrate before coating. CORRECT
B. Cathodic delamination caused by a damaged coating exposing the steel to seawater.
C. Solvent entrapment due to rapid evaporation of solvent from a thick film.
D. Hydrostatic pressure from moisture permeating through the coating from the external surface.
RATIONALE: Osmotic blistering occurs when soluble salts on the substrate draw water through
the coating by osmosis, creating blisters with concentrated salt solution. The high chloride
content in the blister fluid supports this. Cathodic delamination typically occurs at holidays and
involves alkaline products. Solvent entrapment causes solvent blisters, not chloride-rich liquid.
Hydrostatic pressure would cause blisters without high salt concentration.
Page 3
, Q4 EVALUATE SURFACE PREPARATION METHODS AGAINST ISO AND SSPC STANDARDS
TO ENSURE COMPLIANCE
During a coating application, the ambient temperature is 12°C, and the dew point
is 8°C. The relative humidity is 80%. The steel temperature is 10°C. According to
ISO 8502-4, what is the correct assessment of these conditions?
A. Conditions are acceptable because the steel temperature is above the dew point, but the
relative humidity is too high.
B. Conditions are not acceptable because the steel temperature is less than 3°C above the dew
point. CORRECT
C. Conditions are acceptable because the difference between steel temperature and dew point is
exactly 2°C, which is sufficient.
D. Conditions are not acceptable because the ambient temperature is below 15°C, the minimum
for coating application.
RATIONALE: ISO 8502-4 requires that the steel temperature be at least 3°C above the dew point
to prevent condensation. Here, the difference is only 2°C (10°C - 8°C), so condensation is likely.
The relative humidity is not the primary criterion, and there is no universal 15°C minimum. Thus,
conditions are not acceptable.
Page 4
