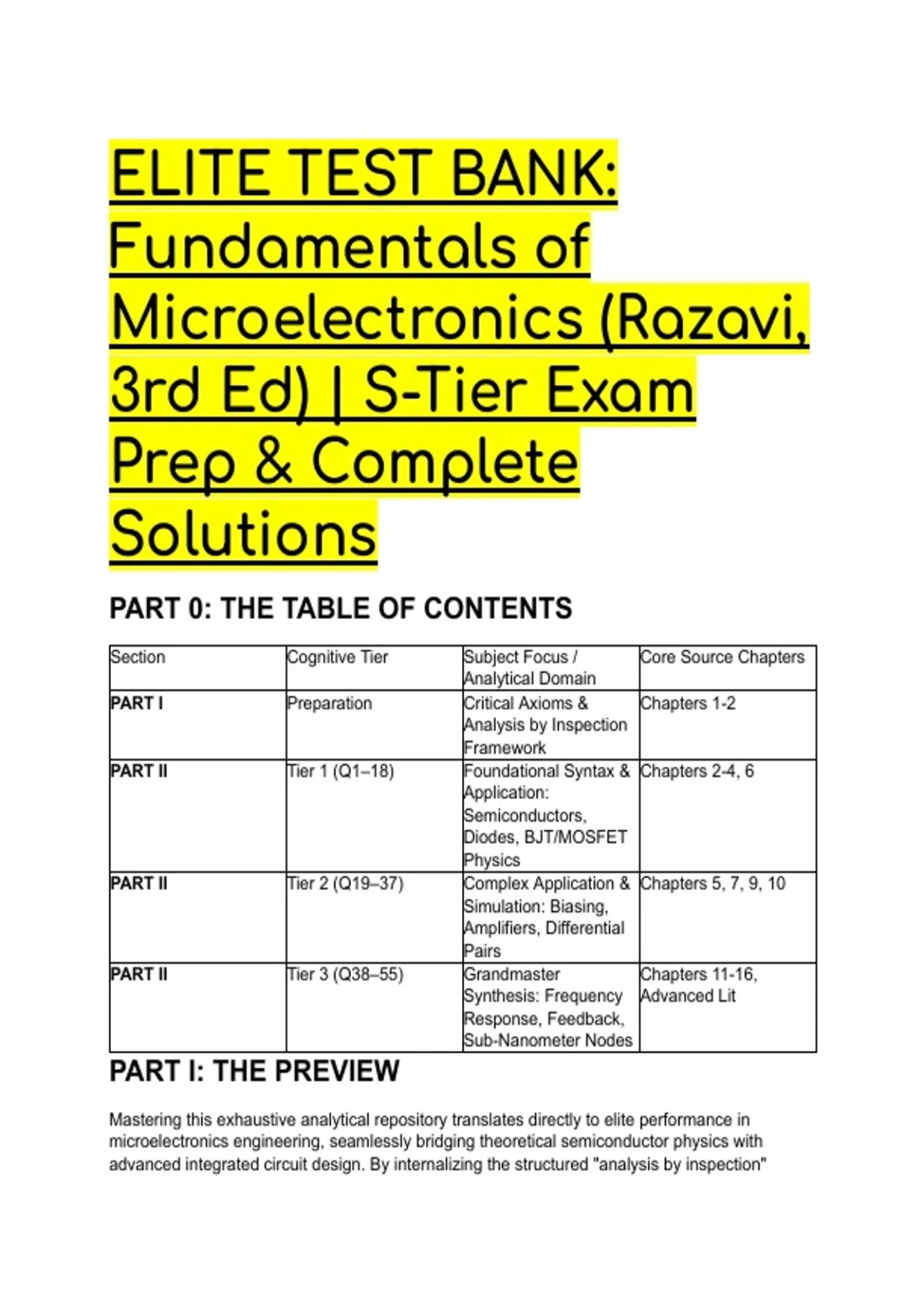

ELITE TEST BANK:
Fundamentals of
Microelectronics (Razavi,
3rd Ed) | S-Tier Exam
Prep & Complete
Solutions
PART 0: THE TABLE OF CONTENTS
Section Cognitive Tier Subject Focus / Core Source Chapters
Analytical Domain
PART I Preparation Critical Axioms & Chapters 1-2
Analysis by Inspection
Framework
PART II Tier 1 (Q1–18) Foundational Syntax & Chapters 2-4, 6
Application:
Semiconductors,
Diodes, BJT/MOSFET
Physics
PART II Tier 2 (Q19–37) Complex Application & Chapters 5, 7, 9, 10
Simulation: Biasing,
Amplifiers, Differential
Pairs
PART II Tier 3 (Q38–55) Grandmaster Chapters 11-16,
Synthesis: Frequency Advanced Lit
Response, Feedback,
Sub-Nanometer Nodes
PART I: THE PREVIEW
Mastering this exhaustive analytical repository translates directly to elite performance in
microelectronics engineering, seamlessly bridging theoretical semiconductor physics with
advanced integrated circuit design. By internalizing the structured "analysis by inspection"
,framework, the practitioner develops the design-oriented mindset required to synthesize
next-generation architectures.
Critical Axiom Operational Definition Strategic Application
The "Analysis by Inspection" Complex circuits must be Instantly identify the topology
Framework intuitively decomposed into (e.g., Common-Source,
fundamental building blocks Cascode) to predict impedance
before mathematical derivation and gain behavior without
is applied. solving Kirchhoff's laws.
The Impedance Law The performance of any analog Use series feedback to boost
amplifier is strictly dictated by Z_{in} and shunt feedback to
the dynamic interaction crush Z_{out} for optimal
between its input impedance voltage buffering.
(Z_{in}) and output impedance
(Z_{out}).
The Transconductance (g_m) Transconductance acts as the Scale device width (W) and
Imperative primary engine of signal bias current (I_D) specifically to
amplification; maximizing g_m overpower inherent
while minimizing parasitic thermodynamic noise and
capacitance governs parasitic delays.
high-frequency optimization.
The Sub-Nanometer Thermal At advanced nodes (e.g., 1nm), Implement Adaptive Voltage
Paradigm power delivery networks Scaling (AVS) to dynamically
(PDNs) and coefficient of suppress exponential leakage
thermal expansion (CTE) and localized thermal runaway.
mismatches supersede
electrical limits.
PART II: THE ELITE TEST BANK
Tier 1: Foundational Syntax & Application
Q1: An intrinsic silicon crystal at 300K is doped with arsenic to a concentration of N_D = 10^{16}
cm^{-3}. Assuming complete ionization and an intrinsic carrier concentration of n_i = 10^{10}
cm^{-3}. Based on the principles of basic semiconductor physics, what is the IMMEDIATE
consequence on the minority carrier concentration? A) The hole concentration increases to
10^{16} cm^{-3} to maintain bulk charge neutrality. B) The hole concentration remains at 10^{10}
cm^{-3} because doping only affects majority carriers. C) The hole concentration drops to
exactly 10^4 cm^{-3} due to increased recombination rates. D) The hole concentration is
perfectly eliminated to zero to prevent avalanche breakdown.
● Answer: C (The hole concentration drops to exactly 10^4 cm^{-3} due to increased
recombination rates)
● Distractor Analysis:
○ A is incorrect: Holes are minority carriers here; increasing them alongside electrons
violates thermodynamic equilibrium.
○ B is incorrect: The introduction of massive electron populations forces a shift in the
recombination balance, suppressing holes.
○ D is incorrect: A legacy error; thermal generation strictly prevents minority carriers
from reaching absolute zero at 300K.
, The Mentor's Analysis: The core underlying principle is the mass action law (np = n_i^2) in
thermal equilibrium. When facing doped semiconductors, the immediate priority is establishing
the majority carrier density (n \approx N_D) to solve for the minority carriers (p = n_i^2 / N_D).
By utilizing the mass action framework, you bypass the common trap of assuming minority
carriers remain static after doping. Professional Intuition: Doping doesn't just add carriers; it
actively destroys the opposing carrier type by drastically increasing the probability of
recombination.
Q2: A pn junction is formed with N_A = 10^{17} cm^{-3} and N_D = 10^{15} cm^{-3}. The system
is in thermal equilibrium. Based on the principles of pn junction physics, which structural
characteristic is the DEFINITIVE result of this asymmetric doping profile? A) The built-in
potential barrier forms entirely within the p-type material. B) The depletion region extends
significantly deeper into the n-type material than the p-type material. C) The junction
capacitance becomes entirely independent of temperature. D) The electric field peaks exactly at
the edge of the n-type depletion boundary.
● Answer: B (The depletion region extends significantly deeper into the n-type material than
the p-type material)
● Distractor Analysis:
○ A is incorrect: The built-in potential is an aggregate barrier spanning both sides of
the metallurgical junction.
○ C is incorrect: Junction capacitance relies on the built-in potential, which is
fundamentally temperature-dependent via the thermal voltage (V_T).
○ D is incorrect: The maximum electric field strictly occurs exactly at the metallurgical
junction (x = 0), not at the boundaries.
The Mentor's Analysis: Charge neutrality requires that the total uncovered negative charge on
the p-side equals the total uncovered positive charge on the n-side (q N_A x_p = q N_D x_n).
When facing asymmetrically doped junctions, the immediate priority is mapping the inverse
relationship between doping concentration and depletion width. By utilizing charge conservation,
you bypass the common trap of assuming the depletion region is geometrically symmetrical.
Professional Intuition: The depletion region always penetrates deepest into the most lightly
doped side, acting as a spatial shock absorber for the electric field.
Q3: A mobile transceiver operates in the voice band (20 Hz to 20 kHz). An engineer attempts to
design an antenna for direct transmission of these frequencies without up-conversion. Based on
the principles of electromagnetic transmission, what is the FATAL flaw in this design
architecture? A) The required antenna length would be on the order of tens of kilometers,
making it physically impossible for a mobile device. B) The voice band signals will undergo
immediate avalanche breakdown in the air dielectric. C) The signals will perfectly cancel each
other out due to complete phase inversion at 20 kHz. D) The antenna will act as an infinite
impedance, drawing zero power from the transmitter.
● Answer: A (The required antenna length would be on the order of tens of kilometers,
making it physically impossible for a mobile device)
● Distractor Analysis:
○ B is incorrect: Avalanche breakdown is a semiconductor junction phenomenon, not
an atmospheric propagation issue.
○ C is incorrect: Phase inversion depends on spatial separation and interference, not
the fundamental frequency band itself.
○ D is incorrect: While impedance matching would fail, the antenna would not
inherently present an infinite impedance at all voice frequencies.
The Mentor's Analysis: Efficient electromagnetic radiation requires an antenna dimension that is
Fundamentals of
Microelectronics (Razavi,
3rd Ed) | S-Tier Exam
Prep & Complete
Solutions
PART 0: THE TABLE OF CONTENTS
Section Cognitive Tier Subject Focus / Core Source Chapters
Analytical Domain
PART I Preparation Critical Axioms & Chapters 1-2
Analysis by Inspection
Framework
PART II Tier 1 (Q1–18) Foundational Syntax & Chapters 2-4, 6
Application:
Semiconductors,
Diodes, BJT/MOSFET
Physics
PART II Tier 2 (Q19–37) Complex Application & Chapters 5, 7, 9, 10
Simulation: Biasing,
Amplifiers, Differential
Pairs
PART II Tier 3 (Q38–55) Grandmaster Chapters 11-16,
Synthesis: Frequency Advanced Lit
Response, Feedback,
Sub-Nanometer Nodes
PART I: THE PREVIEW
Mastering this exhaustive analytical repository translates directly to elite performance in
microelectronics engineering, seamlessly bridging theoretical semiconductor physics with
advanced integrated circuit design. By internalizing the structured "analysis by inspection"
,framework, the practitioner develops the design-oriented mindset required to synthesize
next-generation architectures.
Critical Axiom Operational Definition Strategic Application
The "Analysis by Inspection" Complex circuits must be Instantly identify the topology
Framework intuitively decomposed into (e.g., Common-Source,
fundamental building blocks Cascode) to predict impedance
before mathematical derivation and gain behavior without
is applied. solving Kirchhoff's laws.
The Impedance Law The performance of any analog Use series feedback to boost
amplifier is strictly dictated by Z_{in} and shunt feedback to
the dynamic interaction crush Z_{out} for optimal
between its input impedance voltage buffering.
(Z_{in}) and output impedance
(Z_{out}).
The Transconductance (g_m) Transconductance acts as the Scale device width (W) and
Imperative primary engine of signal bias current (I_D) specifically to
amplification; maximizing g_m overpower inherent
while minimizing parasitic thermodynamic noise and
capacitance governs parasitic delays.
high-frequency optimization.
The Sub-Nanometer Thermal At advanced nodes (e.g., 1nm), Implement Adaptive Voltage
Paradigm power delivery networks Scaling (AVS) to dynamically
(PDNs) and coefficient of suppress exponential leakage
thermal expansion (CTE) and localized thermal runaway.
mismatches supersede
electrical limits.
PART II: THE ELITE TEST BANK
Tier 1: Foundational Syntax & Application
Q1: An intrinsic silicon crystal at 300K is doped with arsenic to a concentration of N_D = 10^{16}
cm^{-3}. Assuming complete ionization and an intrinsic carrier concentration of n_i = 10^{10}
cm^{-3}. Based on the principles of basic semiconductor physics, what is the IMMEDIATE
consequence on the minority carrier concentration? A) The hole concentration increases to
10^{16} cm^{-3} to maintain bulk charge neutrality. B) The hole concentration remains at 10^{10}
cm^{-3} because doping only affects majority carriers. C) The hole concentration drops to
exactly 10^4 cm^{-3} due to increased recombination rates. D) The hole concentration is
perfectly eliminated to zero to prevent avalanche breakdown.
● Answer: C (The hole concentration drops to exactly 10^4 cm^{-3} due to increased
recombination rates)
● Distractor Analysis:
○ A is incorrect: Holes are minority carriers here; increasing them alongside electrons
violates thermodynamic equilibrium.
○ B is incorrect: The introduction of massive electron populations forces a shift in the
recombination balance, suppressing holes.
○ D is incorrect: A legacy error; thermal generation strictly prevents minority carriers
from reaching absolute zero at 300K.
, The Mentor's Analysis: The core underlying principle is the mass action law (np = n_i^2) in
thermal equilibrium. When facing doped semiconductors, the immediate priority is establishing
the majority carrier density (n \approx N_D) to solve for the minority carriers (p = n_i^2 / N_D).
By utilizing the mass action framework, you bypass the common trap of assuming minority
carriers remain static after doping. Professional Intuition: Doping doesn't just add carriers; it
actively destroys the opposing carrier type by drastically increasing the probability of
recombination.
Q2: A pn junction is formed with N_A = 10^{17} cm^{-3} and N_D = 10^{15} cm^{-3}. The system
is in thermal equilibrium. Based on the principles of pn junction physics, which structural
characteristic is the DEFINITIVE result of this asymmetric doping profile? A) The built-in
potential barrier forms entirely within the p-type material. B) The depletion region extends
significantly deeper into the n-type material than the p-type material. C) The junction
capacitance becomes entirely independent of temperature. D) The electric field peaks exactly at
the edge of the n-type depletion boundary.
● Answer: B (The depletion region extends significantly deeper into the n-type material than
the p-type material)
● Distractor Analysis:
○ A is incorrect: The built-in potential is an aggregate barrier spanning both sides of
the metallurgical junction.
○ C is incorrect: Junction capacitance relies on the built-in potential, which is
fundamentally temperature-dependent via the thermal voltage (V_T).
○ D is incorrect: The maximum electric field strictly occurs exactly at the metallurgical
junction (x = 0), not at the boundaries.
The Mentor's Analysis: Charge neutrality requires that the total uncovered negative charge on
the p-side equals the total uncovered positive charge on the n-side (q N_A x_p = q N_D x_n).
When facing asymmetrically doped junctions, the immediate priority is mapping the inverse
relationship between doping concentration and depletion width. By utilizing charge conservation,
you bypass the common trap of assuming the depletion region is geometrically symmetrical.
Professional Intuition: The depletion region always penetrates deepest into the most lightly
doped side, acting as a spatial shock absorber for the electric field.
Q3: A mobile transceiver operates in the voice band (20 Hz to 20 kHz). An engineer attempts to
design an antenna for direct transmission of these frequencies without up-conversion. Based on
the principles of electromagnetic transmission, what is the FATAL flaw in this design
architecture? A) The required antenna length would be on the order of tens of kilometers,
making it physically impossible for a mobile device. B) The voice band signals will undergo
immediate avalanche breakdown in the air dielectric. C) The signals will perfectly cancel each
other out due to complete phase inversion at 20 kHz. D) The antenna will act as an infinite
impedance, drawing zero power from the transmitter.
● Answer: A (The required antenna length would be on the order of tens of kilometers,
making it physically impossible for a mobile device)
● Distractor Analysis:
○ B is incorrect: Avalanche breakdown is a semiconductor junction phenomenon, not
an atmospheric propagation issue.
○ C is incorrect: Phase inversion depends on spatial separation and interference, not
the fundamental frequency band itself.
○ D is incorrect: While impedance matching would fail, the antenna would not
inherently present an infinite impedance at all voice frequencies.
The Mentor's Analysis: Efficient electromagnetic radiation requires an antenna dimension that is
