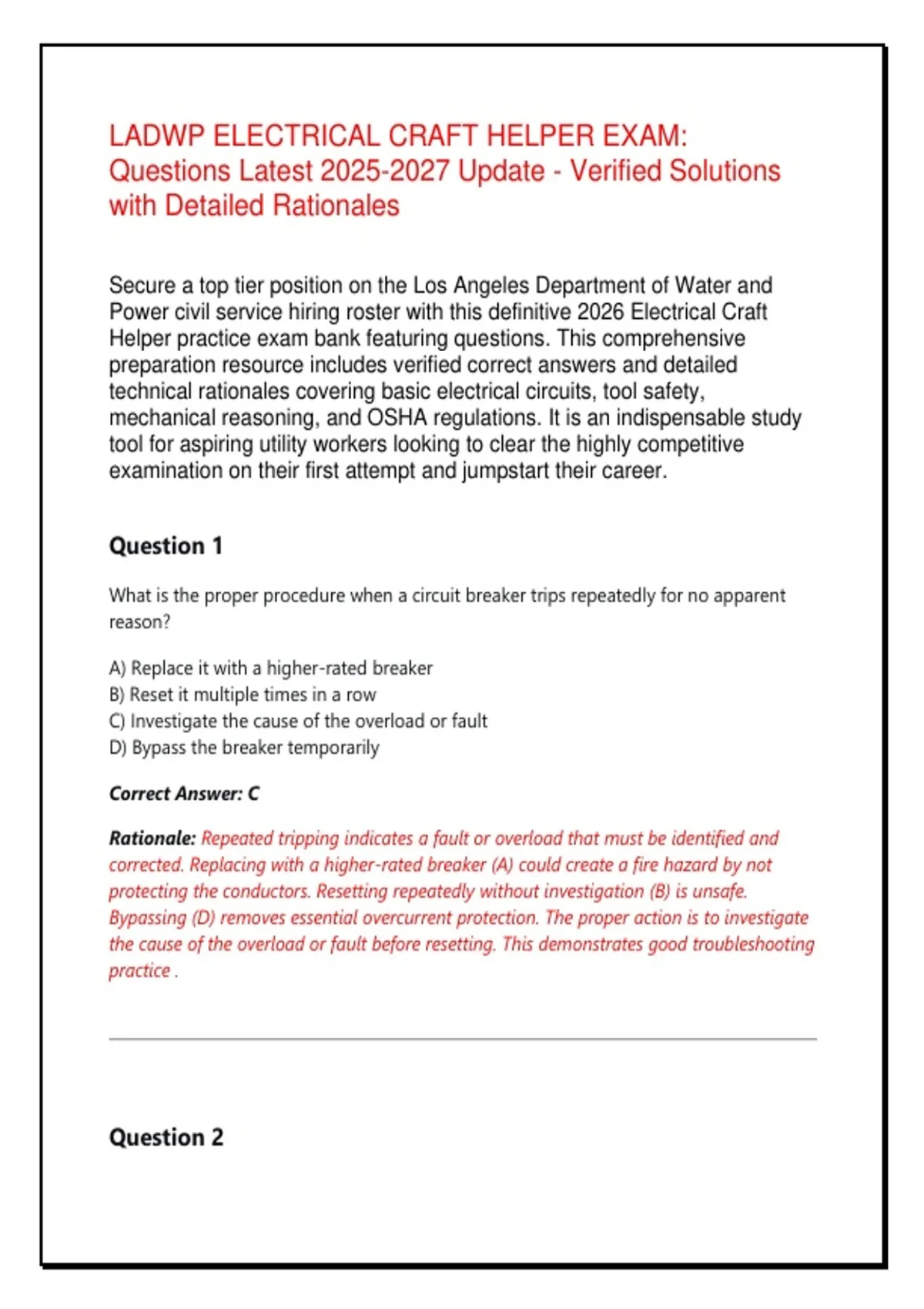

LADWP ELECTRICAL CRAFT HELPER EXAM:
Questions Latest 2025-2027 Update - Verified Solutions
with Detailed Rationales
Secure a top tier position on the Los Angeles Department of Water and
Power civil service hiring roster with this definitive 2026 Electrical Craft
Helper practice exam bank featuring questions. This comprehensive
preparation resource includes verified correct answers and detailed
technical rationales covering basic electrical circuits, tool safety,
mechanical reasoning, and OSHA regulations. It is an indispensable study
tool for aspiring utility workers looking to clear the highly competitive
examination on their first attempt and jumpstart their career.
Question 1
What is the proper procedure when a circuit breaker trips repeatedly for no apparent
reason?
A) Replace it with a higher-rated breaker
B) Reset it multiple times in a row
C) Investigate the cause of the overload or fault
D) Bypass the breaker temporarily
Correct Answer: C
Rationale: Repeated tripping indicates a fault or overload that must be identified and
corrected. Replacing with a higher-rated breaker (A) could create a fire hazard by not
protecting the conductors. Resetting repeatedly without investigation (B) is unsafe.
Bypassing (D) removes essential overcurrent protection. The proper action is to investigate
the cause of the overload or fault before resetting. This demonstrates good troubleshooting
practice .
Question 2
,In a circuit that has been de-energized for maintenance, what must be done before
work begins?
A) Wait 5 minutes for capacitors to discharge
B) Apply lockout/tagout devices and verify zero energy state
C) Place a warning sign on the equipment
D) Notify the supervisor
Correct Answer: B
Rationale: The correct lockout/tagout procedure requires applying locks and tags to
energy-isolating devices and then verifying the zero-energy state by testing. This ensures
the equipment cannot be re-energized while work is in progress. Warning signs (C) and
supervisor notification (D) are not sufficient to prevent energization. Waiting for capacitor
discharge (A) is specific to certain equipment but not the complete procedure .
Question 3
What is the purpose of the "neutral" conductor in a single-phase, three-wire residential
service?
A) To carry line-to-line voltage only
B) To carry the unbalanced current between the two hot legs
C) To serve as the equipment grounding conductor
D) To provide arc flash protection
Correct Answer: B
Rationale: In a single-phase, three-wire residential service (120/240V), the neutral
conductor carries the unbalanced current between the two hot legs. It provides the return
path for 120V circuits. The neutral is a current-carrying conductor, while the equipment
grounding conductor (C) is a separate wire. The neutral does not carry line-to-line voltage
only (A) and does not provide arc flash protection (D). Understanding the role of the
neutral is essential for safe electrical installations .
,Question 4
What is the minimum bending radius for UTP cable during installation?
A) 2 times the cable diameter
B) 4 times the cable diameter
C) 6 times the cable diameter
D) 10 times the cable diameter
Correct Answer: B
Rationale: The general rule for minimum bending radius for unshielded twisted-pair
(UTP) cable is four times the cable diameter during installation. This prevents damage to
the conductors and maintains signal integrity. Exceeding this bend radius can cause
impedance changes and signal degradation. This is a critical installation parameter for
telecommunications cabling .
Question 5
A 240-volt circuit supplies a 20-amp load. What is the power consumed?
A) 1,200 W
B) 2,400 W
C) 4,800 W
D) 6,000 W
Correct Answer: C
Rationale: The power formula is P = V × I. Therefore, 240V × 20A = 4,800 watts. This
calculation is essential for load calculations and circuit sizing. Watts measure the rate of
energy consumption .
Question 6
, A right triangle has legs measuring 6 feet and 8 feet. What is the length of the
hypotenuse?
A) 8 feet
B) 10 feet
C) 12 feet
D) 14 feet
Correct Answer: B
Rationale: Using the Pythagorean theorem: a² + b² = c² → 6² + 8² = 36 + 64 = 100. The
square root of 100 is 10 feet. This mathematical principle is frequently needed for tasks
such as calculating the length of wire needed to run diagonally across a space .
Question 7
What type of fire extinguisher is appropriate for a fire involving energized electrical
equipment?
A) Class A
B) Class B
C) Class C
D) Class D
Correct Answer: C
Rationale: Class C fire extinguishers are specifically rated for fires involving energized
electrical equipment. They use non-conductive extinguishing agents (like CO₂ or dry
chemical) to prevent shock hazards. Using water-based extinguishers (Class A) on
electrical fires creates a serious shock hazard. Class B is for flammable liquids, and Class D
is for combustible metals .
Question 8
