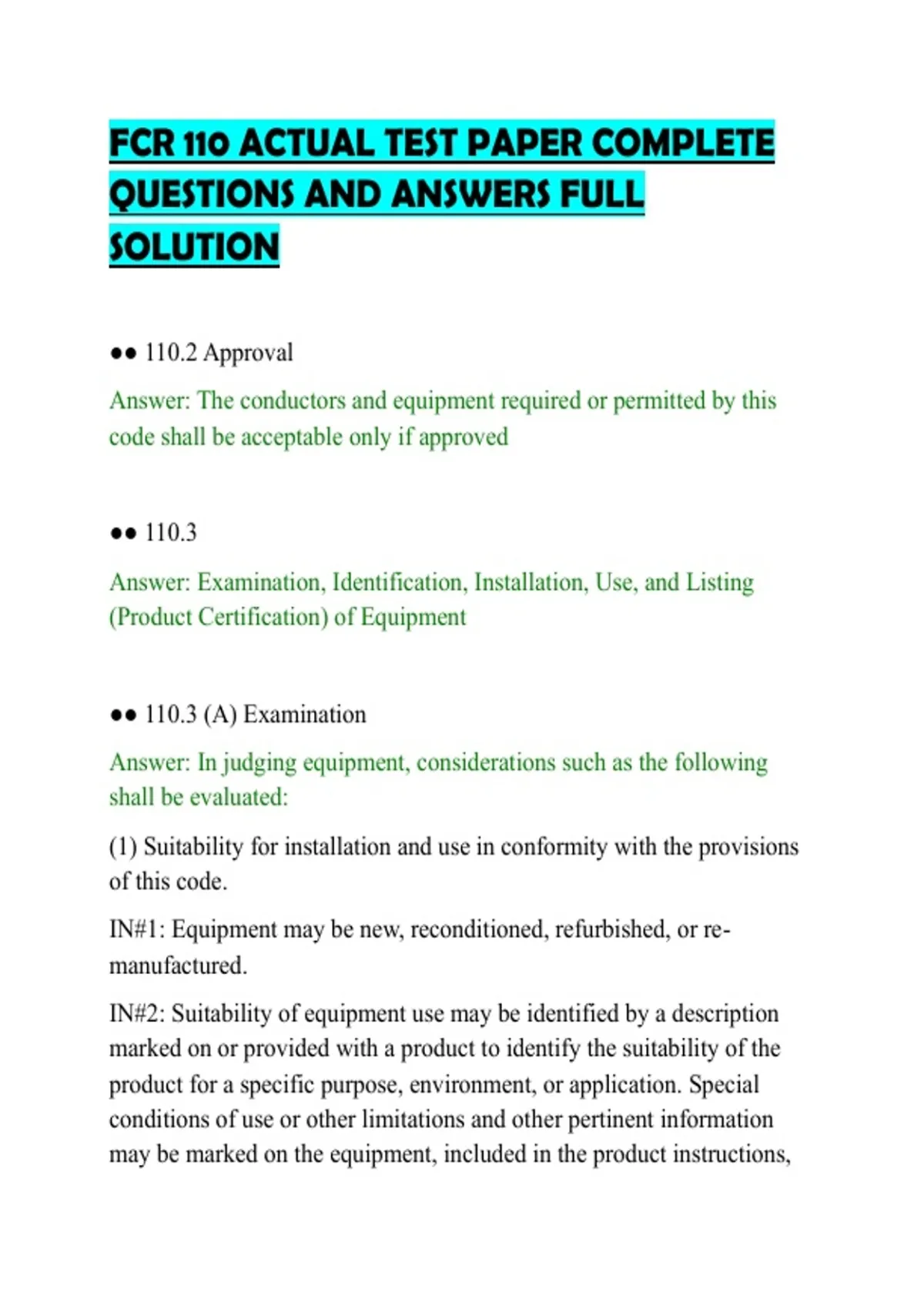

FCR 110 ACTUAL TEST PAPER COMPLETE
QUESTIONS AND ANSWERS FULL
SOLUTION
●● 110.2 Approval
Answer: The conductors and equipment required or permitted by this
code shall be acceptable only if approved
●● 110.3
Answer: Examination, Identification, Installation, Use, and Listing
(Product Certification) of Equipment
●● 110.3 (A) Examination
Answer: In judging equipment, considerations such as the following
shall be evaluated:
(1) Suitability for installation and use in conformity with the provisions
of this code.
IN#1: Equipment may be new, reconditioned, refurbished, or re-
manufactured.
IN#2: Suitability of equipment use may be identified by a description
marked on or provided with a product to identify the suitability of the
product for a specific purpose, environment, or application. Special
conditions of use or other limitations and other pertinent information
may be marked on the equipment, included in the product instructions,
,or included in the appropriate listing and labeling information.
Suitability of equipment may be evidenced by listing or labeling.
(2) Mechanical strength and durability, including, for parts deigned to
enclose and protect other equipment, the adequacy of the protection thus
provided.
(3) Wire-bending and connection space
(4) Electrical Installation
(5) Heating effects under normal conditions of use and also under
abnormal conditions likely to arise in service
(6) Arcing effects
(7) Classification by type, size, voltage, current capacity, and specific
use
(8) Other factors that contribute to the practical safeguarding of persons
using or likely to come in contact with the equipment.
●● 110.3 (B) Installation and Use
Answer: Listed or labeled equipment shall be installed and used in a
accordance with any instructions included in the listing or labeling.
●● 110.3 (C) Listing
Answer: Product testing, evaluation, and listing (product certification)
shall be performed by recognized qualified electrical testing laboratories
and shall be in accordance with applicable product standards recognized
as achieving equivalent and effective safety for equipment installed to
comply with this code
, IN: The Occupational Safety and Health Administration (OSHA)
recognizes qualified electrical testing laboratories that perform
evaluations, testing, and certification of certain products to ensure that
they meet the requirements of both the construction and general industry
OSHA electrical standards. If the listing (product certification) is done
under a qualified electrical testing laboratory program, this listing mark
signifies that the tested and certified product complies with the
requirements of one or more appropriate product safety test standards.
●● 110.4 Voltages
Answer: Throughout this code, the voltage considered shall be that at
which the circuit operates. The voltage rating of electrical equipment
shall not be less than the nominal voltage of a circuit to which it is
connected.
●● 110.5 Conductors
Answer: Conductors normally used to carry current shall be of copper or
aluminum unless otherwise provided in this code. Where the conductor
material is not specified, the sizes given in this code shall apply to
copper conductors. Where other materials are used, the size shall be
changed accordingly.
●● 110.6 Conductor Sizes
Answer: Conductor sizes are expressed in American Wire Gage (AWG)
or in circular mils.
