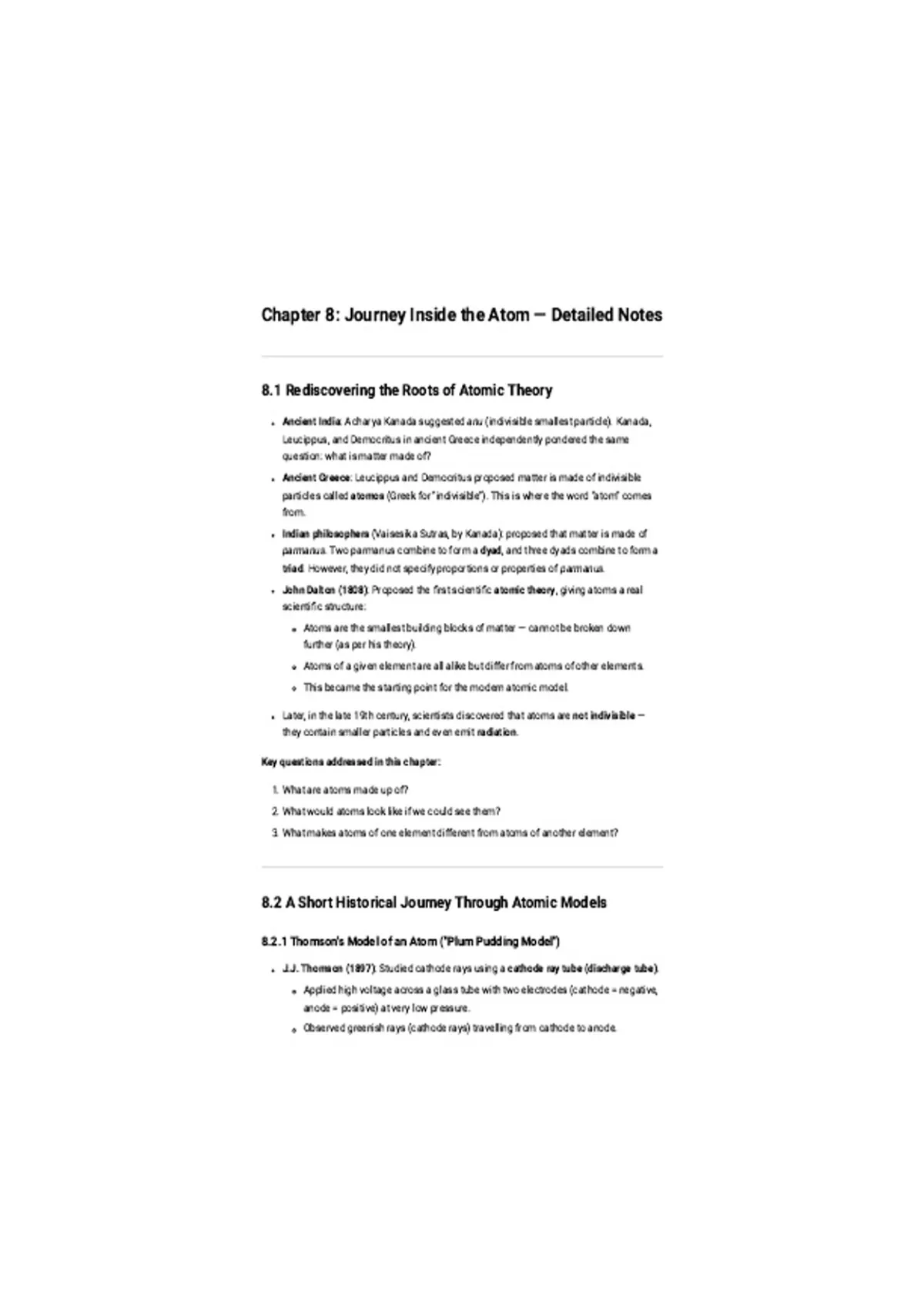

Chapter 8: Journey Inside the Atom — Detailed Notes
8.1 Rediscovering the Roots of Atomic Theory
Ancient India: Acharya Kanada suggested anu (indivisible smallest particle). Kanada,
Leucippus, and Democritus in ancient Greece independently pondered the same
question: what is matter made of?
Ancient Greece: Leucippus and Democritus proposed matter is made of indivisible
particles called atomos (Greek for "indivisible"). This is where the word "atom" comes
from.
Indian philosophers (Vaisesika Sutras, by Kanada): proposed that matter is made of
parmanus. Two parmanus combine to form a dyad, and three dyads combine to form a
triad. However, they did not specify proportions or properties of parmanus.
John Dalton (1808): Proposed the first scientific atomic theory, giving atoms a real
scientific structure:
Atoms are the smallest building blocks of matter — cannot be broken down
further (as per his theory).
Atoms of a given element are all alike but differ from atoms of other elements.
This became the starting point for the modern atomic model.
Later, in the late 19th century, scientists discovered that atoms are not indivisible —
they contain smaller particles and even emit radiation.
Key questions addressed in this chapter:
1. What are atoms made up of?
2. What would atoms look like if we could see them?
3. What makes atoms of one element different from atoms of another element?
8.2 A Short Historical Journey Through Atomic Models
8.2.1 Thomson's Model of an Atom ("Plum Pudding Model")
J.J. Thomson (1897): Studied cathode rays using a cathode ray tube (discharge tube).
Applied high voltage across a glass tube with two electrodes (cathode = negative,
anode = positive) at very low pressure.
Observed greenish rays (cathode rays) travelling from cathode to anode.
, Found cathode rays are made of negatively charged particles, identical in every
atom, regardless of gas used.
Named this particle the electron.
Charge of an electron = –1.602 × 10⁻¹⁹ C (taken as –1 for convenience).
Won the Nobel Prize in Physics (1906) for discovery of the electron.
Worked at the Cavendish Laboratory, Cambridge; mentored Ernest Rutherford.
Since atoms are electrically neutral overall, Thomson proposed:
Thomson's Model (Plum Pudding / Watermelon Model): Atom is a sphere of
positive charge with electrons (negative) embedded uniformly throughout it, like
seeds in a watermelon or plums in a pudding.
Positive charge is spread throughout the atom, and negative electrons are
distributed within it to balance charge.
Pause and Ponder (concepts to think about):
Positive charge and small beads (like a lemon with soft pulp = positive charge, seeds
embedded = electrons) is a good analogy for Thomson's model, but not perfect since
real atoms don't have "pulp" and beads don't carry charge the same way.
If positive charge were mistakenly attributed to clay instead of beads, it would mean
assuming positive charge is spread out (matches Thomson) rather than concentrated.
8.2.2 Testing Thomson's Model: The Gold Foil Experiment
Geiger and Marsden (1911), working under Ernest Rutherford, tested Thomson's
model.
Experiment: A narrow beam of alpha (α) particles (positively charged, emitted by
radioactive elements) was aimed at a thin gold foil.
Expected result (if Thomson's model were correct): All alpha particles should pass
straight through with little or no deflection, since positive charge is spread thinly
throughout the atom.
Actual observations:
1. Most alpha particles passed straight through undeflected.
2. Some alpha particles were deflected through small angles.
3. A very few (about 1 in 20,000) bounced almost straight back (large-angle
deflection/scattering).
This experiment is called the alpha (α)-particle scattering experiment.
Conclusion: Thomson's model failed to explain:
Deflection of some particles through large angles.
Some particles bouncing straight back.
Most particles passing through undeflected (implies atom is mostly empty
space).
, Pause and Ponder:
1. If positive charge were replaced with negatively charged particles, deflection patterns
would still occur similarly (opposite charges would attract instead of repel), but the
general idea that a concentrated charge causes scattering remains.
2. If positive charge were a mistake and the clay were negative, the beads would
represent something else (perhaps the nucleus would be negative and the electrons
positive) — this reasoning tests conceptual understanding of charge assignments.
8.2.3 Rutherford's Model of an Atom
Based on gold foil experiment results, Rutherford concluded:
A. Rutherford's Atomic Model
Most of the mass of an atom is concentrated in an extremely small region at the
centre, called the nucleus.
The nucleus is positively charged.
Most of an atom is empty space — this explains why most alpha particles passed
straight through.
Electrons revolve around the nucleus in circular paths, like planets around the Sun.
Hence, this is called the planetary model of the atom.
Analogy for size: If the nucleus were the size of a cricket ball (~10 cm across), the entire
atom would be about 5 km across! Or, if an atom were the size of a football stadium, the
nucleus would be like a pea at the centre.
If atom's diameter ≈ 10⁻¹⁰ m, and nucleus's diameter ≈ 10⁻¹⁵ m, then the nucleus is
about 10⁵ (one lakh) times smaller than the atom.
B. Limitations of Rutherford's Model
Rutherford's model was a major improvement over Thomson's, but had a critical flaw:
According to classical electromagnetic theory, a charged particle moving in a
circular path (i.e., accelerating) continuously loses energy by radiating it.
If electrons lose energy while revolving, they should spiral inward and eventually
fall into the nucleus, making atoms unstable.
But in reality, atoms are stable — electrons do not collapse into the nucleus.
Rutherford's model could not explain why atoms are stable and how electrons
keep revolving without losing energy.
C. Discovery of the Proton
Rutherford showed the nucleus carries a positive charge due to particles called
protons.
