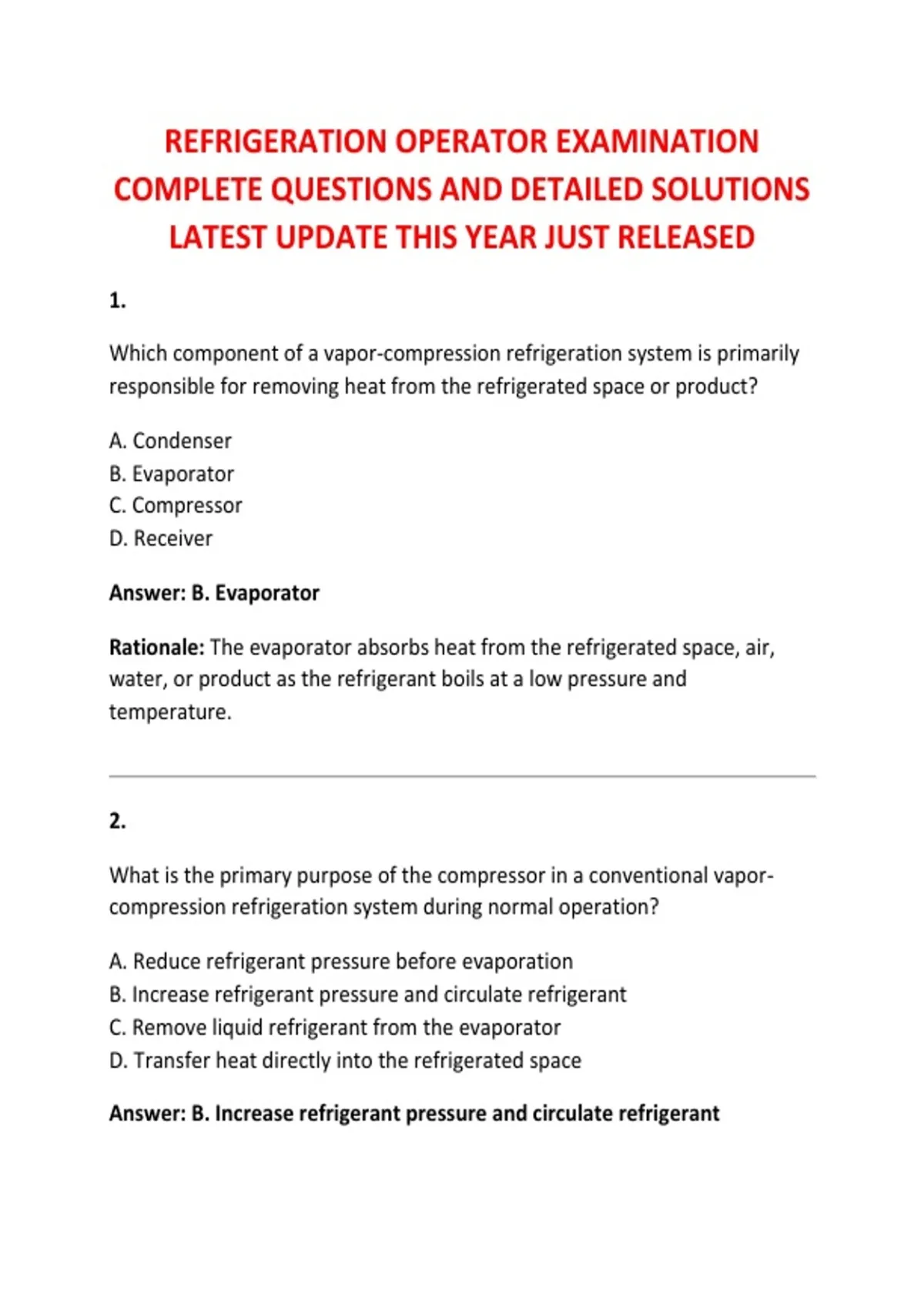

REFRIGERATION OPERATOR EXAMINATION
COMPLETE QUESTIONS AND DETAILED SOLUTIONS
LATEST UPDATE THIS YEAR JUST RELEASED
1.
Which component of a vapor-compression refrigeration system is primarily
responsible for removing heat from the refrigerated space or product?
A. Condenser
B. Evaporator
C. Compressor
D. Receiver
Answer: B. Evaporator
Rationale: The evaporator absorbs heat from the refrigerated space, air,
water, or product as the refrigerant boils at a low pressure and
temperature.
2.
What is the primary purpose of the compressor in a conventional vapor-
compression refrigeration system during normal operation?
A. Reduce refrigerant pressure before evaporation
B. Increase refrigerant pressure and circulate refrigerant
C. Remove liquid refrigerant from the evaporator
D. Transfer heat directly into the refrigerated space
Answer: B. Increase refrigerant pressure and circulate refrigerant
,Rationale: The compressor raises the pressure and temperature of
refrigerant vapor and provides the pressure difference necessary for
refrigerant circulation.
3.
Why does a refrigeration system use a condenser after the compressor
discharge during normal heat-rejection operation?
A. To absorb heat from the conditioned space
B. To increase refrigerant moisture content
C. To reject heat and condense refrigerant vapor
D. To decrease refrigerant flow through the evaporator
Answer: C. To reject heat and condense refrigerant vapor
Rationale: The condenser rejects heat absorbed in the evaporator plus
compressor heat, converting high-pressure vapor into liquid refrigerant.
4.
What is the principal function of the expansion device in a refrigeration
system before refrigerant enters the evaporator?
A. Raise refrigerant pressure
B. Lower refrigerant pressure and regulate flow
C. Increase compressor discharge temperature
D. Remove noncondensable gases
Answer: B. Lower refrigerant pressure and regulate flow
,Rationale: The expansion device creates a pressure drop and meters
refrigerant into the evaporator according to system requirements.
5.
A refrigeration operator observes that suction pressure is significantly higher
than the normal operating range. Which condition could contribute to this
situation?
A. Excessively low evaporator load
B. Excessively high evaporator load
C. Completely restricted liquid line
D. Closed compressor suction valve
Answer: B. Excessively high evaporator load
Rationale: Increased heat load can cause greater refrigerant evaporation,
increasing suction pressure if system capacity and controls cannot
compensate.
6.
What does superheat represent in a refrigeration system when measured at
the evaporator outlet?
A. Liquid temperature below saturation temperature
B. Vapor temperature above its saturation temperature
C. Condensing temperature below outdoor temperature
D. Compressor oil temperature above discharge temperature
Answer: B. Vapor temperature above its saturation temperature
, Rationale: Superheat is the temperature difference between actual
refrigerant vapor temperature and its saturation temperature at the
measured pressure.
7.
Why is maintaining appropriate evaporator outlet superheat important in
many refrigeration systems?
A. It ensures liquid refrigerant enters the compressor
B. It helps prevent liquid refrigerant from entering the compressor
C. It eliminates the need for condenser airflow
D. It guarantees maximum refrigerant charge
Answer: B. It helps prevent liquid refrigerant from entering the
compressor
Rationale: Proper superheat indicates that refrigerant leaving the
evaporator is vaporized, reducing the risk of damaging liquid carryover into
the compressor.
8.
What is subcooling in a refrigeration system, as commonly measured at the
condenser outlet?
A. Heating vapor above saturation temperature
B. Cooling liquid below its saturation temperature
C. Heating liquid above compressor discharge temperature
D. Cooling vapor below evaporator temperature
Answer: B. Cooling liquid below its saturation temperature
