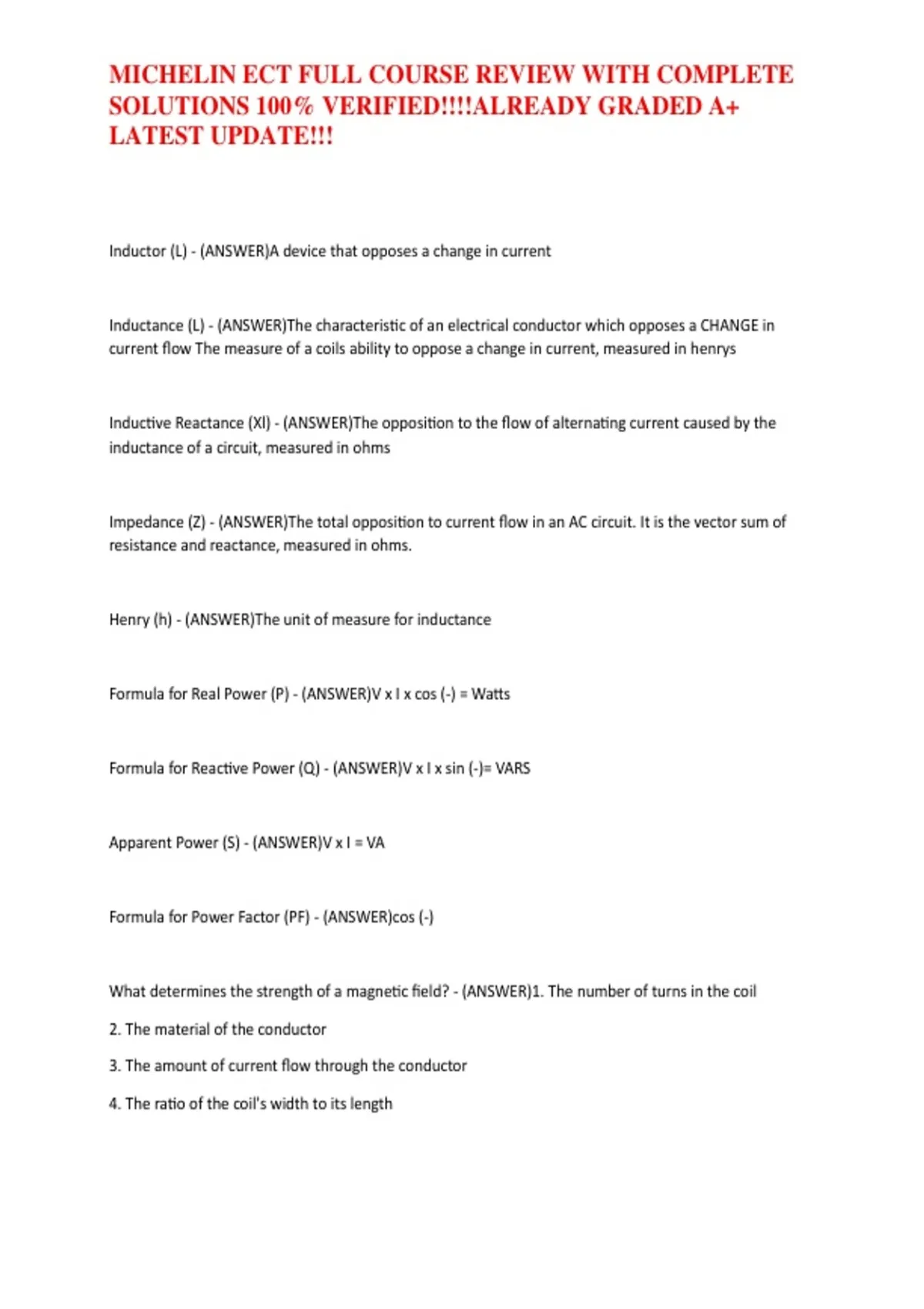

Inductor (L) - (ANSWER)A device that opposes a change in current
Inductance (L) - (ANSWER)The characteristic of an electrical conductor which opposes a CHANGE in
current flow The measure of a coils ability to oppose a change in current, measured in henrys
Inductive Reactance (Xl) - (ANSWER)The opposition to the flow of alternating current caused by the
inductance of a circuit, measured in ohms
Impedance (Z) - (ANSWER)The total opposition to current flow in an AC circuit. It is the vector sum of
resistance and reactance, measured in ohms.
Henry (h) - (ANSWER)The unit of measure for inductance
Formula for Real Power (P) - (ANSWER)V x I x cos (-) = Watts
Formula for Reactive Power (Q) - (ANSWER)V x I x sin (-)= VARS
Apparent Power (S) - (ANSWER)V x I = VA
Formula for Power Factor (PF) - (ANSWER)cos (-)
What determines the strength of a magnetic field? - (ANSWER)1. The number of turns in the coil
2. The material of the conductor
3. The amount of current flow through the conductor
4. The ratio of the coil's width to its length
,MICHELIN ECT FULL COURSE REVIEW WITH COMPLETE
SOLUTIONS 100% VERIFIED!!!!ALREADY GRADED A+
LATEST UPDATE!!!
What is "solenoid action?" - (ANSWER)The movement of the core in response to the magnetic pull of the
coil
What is AC Voltage? - (ANSWER)A.C. voltage is one that continually changes in magnitude and
periodically reverses in polarity.
V-Instantaneous Formula - (ANSWER)Vi= Vmax x sin (-)
Vrms Formula - (ANSWER)Vrms= Vmax x .707
Imax formula - (ANSWER)Imax= Irms/.707
Formula for frequency - (ANSWER)f= 1/T
T= time to complete one 360 degree cycle in seconds
What do GREEN wires with or without YELLOW stripes signify? - (ANSWER)equipment grounding
conductors
What do WHITE wires signify? - (ANSWER)AC grounded conductor
What do WHITE wires with BLUE STRIPES signify? - (ANSWER)DC grounded conductors
What do ORANGE or YELLOW wires signify? - (ANSWER)wires that remain energized after the machine is
disconnected from power. (externally powered)
What COLOR and TYPE of pushbutton will Stop Buttons be? - (ANSWER)Red
, MICHELIN ECT FULL COURSE REVIEW WITH COMPLETE
SOLUTIONS 100% VERIFIED!!!!ALREADY GRADED A+
LATEST UPDATE!!!
Raised or unguarded type.
What COLOR and TYPE of pushbutton will Start buttons be? - (ANSWER)Black
Fully guarded type
What type of button will E-stops be? - (ANSWER)lock-off (détente) self-latching mushroom operator
type.
WHERE will all pushbuttons be installed with relation to their associated stop buttons? - (ANSWER)above
or to the left
Conductors shall NOT be smaller than... - (ANSWER)Power circuits #14 AWG.
Control circuits #16 AWG.
What are the two types of prox sensors? - (ANSWER)Inductive and Capacitive
What is the difference between the on and off points of proximity sensors called? - (ANSWER)hysteresis
What type(s) of material surfaces are INDUCTIVE prox sensors able to detect? - (ANSWER)ferrous
(metallic)
What types of surfaces are CAPACITIVE prox sensors able to detect? - (ANSWER)metallic and non-
metallic
