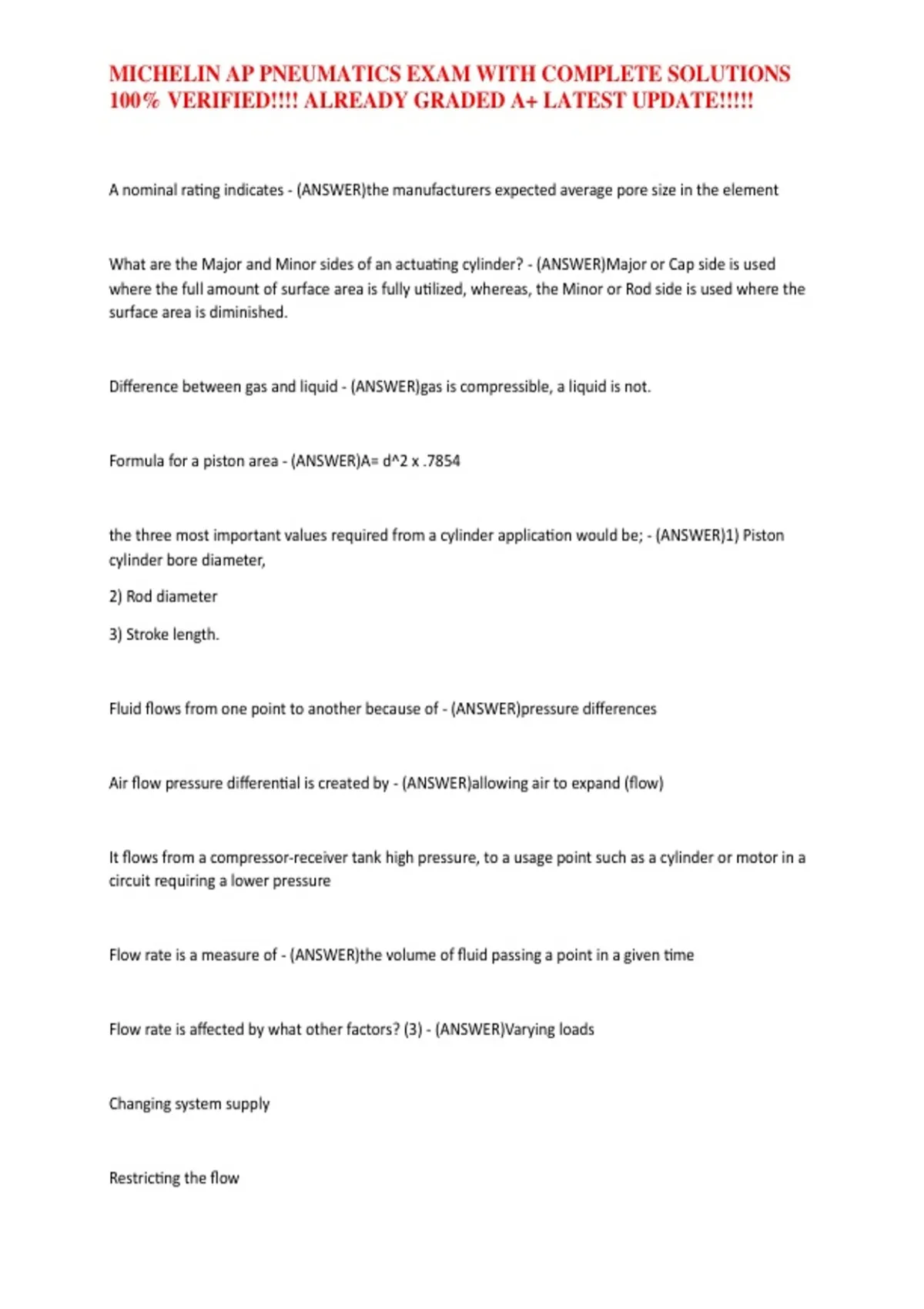

MICHELIN AP PNEUMATICS EXAM WITH COMPLETE SOLUTIONS
100% VERIFIED!!!! ALREADY GRADED A+ LATEST UPDATE!!!!!
A nominal rating indicates - (ANSWER)the manufacturers expected average pore size in the element
What are the Major and Minor sides of an actuating cylinder? - (ANSWER)Major or Cap side is used
where the full amount of surface area is fully utilized, whereas, the Minor or Rod side is used where the
surface area is diminished.
Difference between gas and liquid - (ANSWER)gas is compressible, a liquid is not.
Formula for a piston area - (ANSWER)A= d^2 x .7854
the three most important values required from a cylinder application would be; - (ANSWER)1) Piston
cylinder bore diameter,
2) Rod diameter
3) Stroke length.
Fluid flows from one point to another because of - (ANSWER)pressure differences
Air flow pressure differential is created by - (ANSWER)allowing air to expand (flow)
It flows from a compressor-receiver tank high pressure, to a usage point such as a cylinder or motor in a
circuit requiring a lower pressure
Flow rate is a measure of - (ANSWER)the volume of fluid passing a point in a given time
Flow rate is affected by what other factors? (3) - (ANSWER)Varying loads
Changing system supply
Restricting the flow
, MICHELIN AP PNEUMATICS EXAM WITH COMPLETE SOLUTIONS
100% VERIFIED!!!! ALREADY GRADED A+ LATEST UPDATE!!!!!
Velocity is - (ANSWER)the average speed of the fluid passing a point
Pressure in a fluid system is directly related to the degree or amount of - (ANSWER)resistance to flow
Fluid will always take which path? - (ANSWER)The path of least resistance.
When two or more pathways exist the factor that determines the fluids flow path will be - (ANSWER)the
degree of resistance.
When the circuit components are connected in series the resistance to flow - (ANSWER)adds up
What are the three types of air? - (ANSWER)Standard Air
Free Air
Compressed Air
Pascal's Law states: - (ANSWER)the force applied to a confined fluid is transmitted equally in all
directions in the form of fluid pressure.
Gauge Pressure and Absolute Pressure - (ANSWER)Gauge Pressure (psig) - is the atmosphere pressure to
which we are accustom and we do not notice on us, we think of it as "zero" pressure. So we measure
pressure starting at this point of zero.
Absolute Pressure (psia) - is the total pressure acting on a gas, at sea level. It is equal to gauge pressure
plus 14.69, therefore, PSIG + 14.69 (atmospheric pressure) = PSIA (psia).
What is the formula for the Perfect Gas Law? - (ANSWER)PV = nRT
