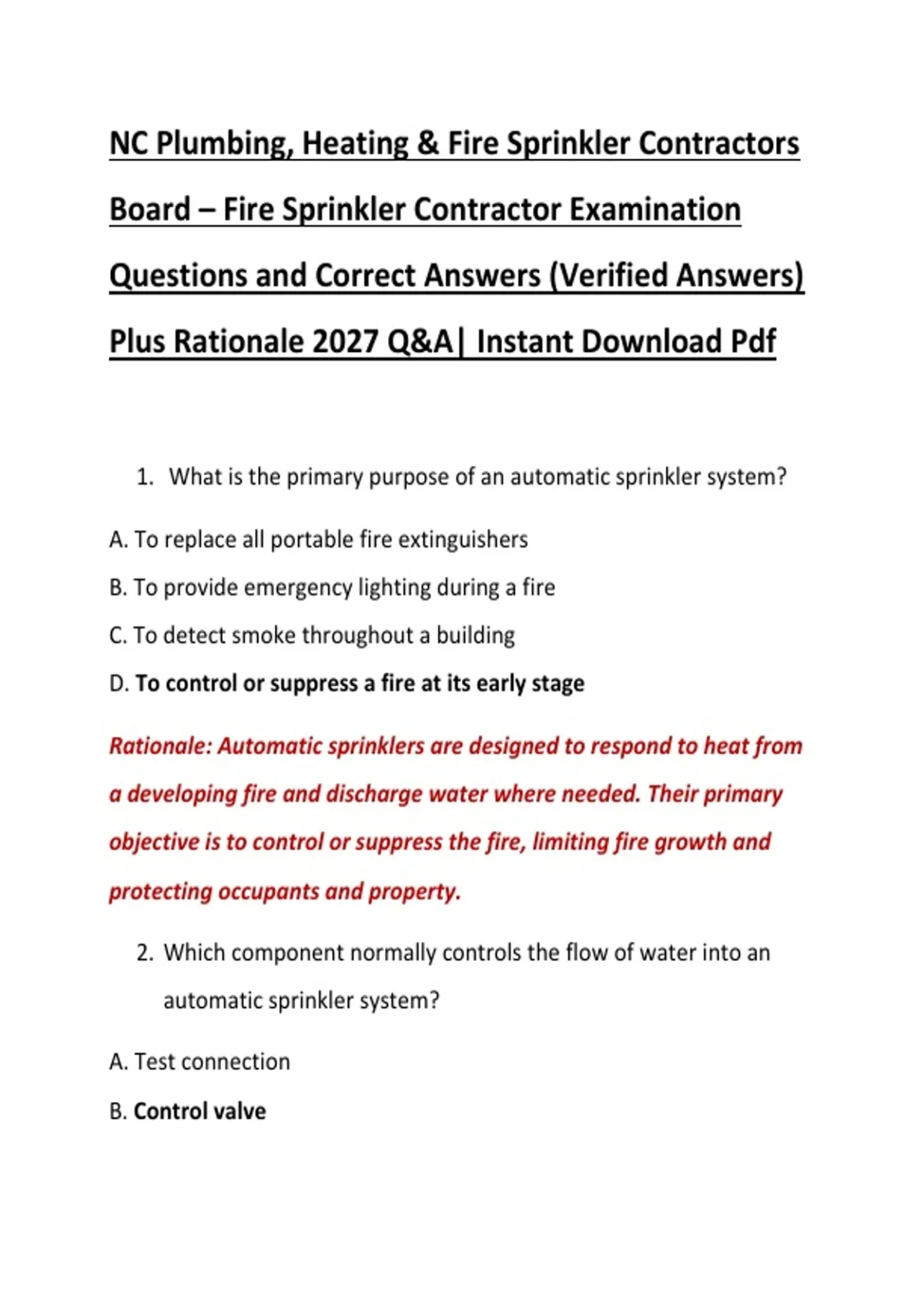

NC Plumbing, Heating & Fire Sprinkler Contractors
Board – Fire Sprinkler Contractor Examination
Questions and Correct Answers (Verified Answers)
Plus Rationale 2027 Q&A| Instant Download Pdf
1. What is the primary purpose of an automatic sprinkler system?
A. To replace all portable fire extinguishers
B. To provide emergency lighting during a fire
C. To detect smoke throughout a building
D. To control or suppress a fire at its early stage
Rationale: Automatic sprinklers are designed to respond to heat from
a developing fire and discharge water where needed. Their primary
objective is to control or suppress the fire, limiting fire growth and
protecting occupants and property.
2. Which component normally controls the flow of water into an
automatic sprinkler system?
A. Test connection
B. Control valve
,C. Inspector's test valve
D. Drain valve
Rationale: The control valve regulates water supply to the sprinkler
system. It must generally remain in its required operating position so
that water is available when a sprinkler activates.
3. What is the primary function of a sprinkler head?
A. Measure water pressure
B. Start the fire pump
C. Discharge water when its operating temperature is reached
D. Drain the sprinkler piping
Rationale: A sprinkler head contains a heat-responsive element. When
the surrounding temperature reaches the sprinkler's rated operating
temperature, the element releases and allows water to discharge.
4. In a wet-pipe sprinkler system, the piping is normally filled with:
A. Compressed air
B. Nitrogen only
C. Carbon dioxide
D. Water
,Rationale: Wet-pipe systems keep water in the distribution piping
under pressure. When an individual sprinkler operates, water is
immediately available for discharge.
5. Which sprinkler system is generally most appropriate where
piping may be exposed to freezing temperatures?
A. Wet-pipe system
B. Dry-pipe system
C. Deluge system only
D. Standpipe system
Rationale: Dry-pipe systems use pressurized air or nitrogen in the
piping instead of water. A dry-pipe valve holds the water supply back
until a sprinkler operates, making the system suitable for areas
subject to freezing.
6. What happens when a sprinkler in a typical wet-pipe system
operates?
A. All sprinklers immediately open
B. The water supply automatically shuts off
C. Water discharges from the activated sprinkler while other
sprinklers normally remain closed
D. The fire alarm system prevents water discharge
, Rationale: Automatic sprinklers operate individually when their heat-
responsive elements reach their operating temperature. This allows
water to be concentrated on the area where the fire is developing.
7. What is the purpose of an inspector's test connection?
A. To permanently drain the system
B. To increase the system's design pressure
C. To simulate the operation of a sprinkler for testing purposes
D. To replace the water supply control valve
Rationale: The inspector's test connection allows personnel to test
waterflow and associated alarm functions without activating an
actual sprinkler.
8. What does a waterflow alarm primarily indicate?
A. Low building temperature
B. Water is flowing through the sprinkler system
C. The system has been completely drained
D. The fire pump has been removed
Rationale: Waterflow alarms are intended to notify occupants or
supervising personnel that water is moving through the fire sprinkler
system, which may indicate sprinkler operation or another significant
flow condition.
