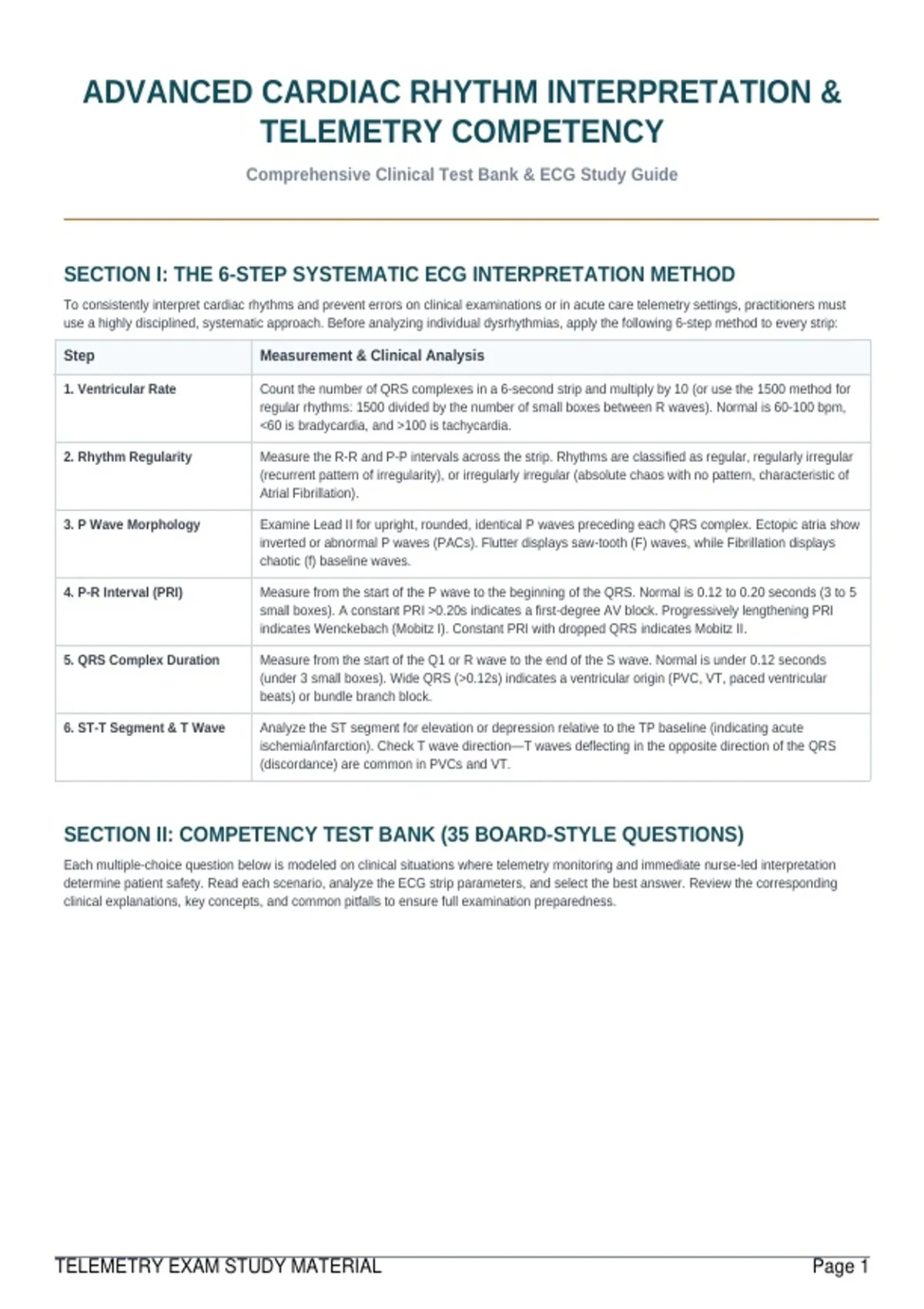

ADVANCED CARDIAC RHYTHM INTERPRETATION &
TELEMETRY COMPETENCY
Comprehensive Clinical Test Bank & ECG Study Guide
SECTION I: THE 6-STEP SYSTEMATIC ECG INTERPRETATION METHOD
To consistently interpret cardiac rhythms and prevent errors on clinical examinations or in acute care telemetry settings, practitioners must
use a highly disciplined, systematic approach. Before analyzing individual dysrhythmias, apply the following 6-step method to every strip:
Step Measurement & Clinical Analysis
1. Ventricular Rate Count the number of QRS complexes in a 6-second strip and multiply by 10 (or use the 1500 method for
regular rhythms: 1500 divided by the number of small boxes between R waves). Normal is 60-100 bpm,
<60 is bradycardia, and >100 is tachycardia.
2. Rhythm Regularity Measure the R-R and P-P intervals across the strip. Rhythms are classified as regular, regularly irregular
(recurrent pattern of irregularity), or irregularly irregular (absolute chaos with no pattern, characteristic of
Atrial Fibrillation).
3. P Wave Morphology Examine Lead II for upright, rounded, identical P waves preceding each QRS complex. Ectopic atria show
inverted or abnormal P waves (PACs). Flutter displays saw-tooth (F) waves, while Fibrillation displays
chaotic (f) baseline waves.
4. P-R Interval (PRI) Measure from the start of the P wave to the beginning of the QRS. Normal is 0.12 to 0.20 seconds (3 to 5
small boxes). A constant PRI >0.20s indicates a first-degree AV block. Progressively lengthening PRI
indicates Wenckebach (Mobitz I). Constant PRI with dropped QRS indicates Mobitz II.
5. QRS Complex Duration Measure from the start of the Q1 or R wave to the end of the S wave. Normal is under 0.12 seconds
(under 3 small boxes). Wide QRS (>0.12s) indicates a ventricular origin (PVC, VT, paced ventricular
beats) or bundle branch block.
6. ST-T Segment & T Wave Analyze the ST segment for elevation or depression relative to the TP baseline (indicating acute
ischemia/infarction). Check T wave direction—T waves deflecting in the opposite direction of the QRS
(discordance) are common in PVCs and VT.
SECTION II: COMPETENCY TEST BANK (35 BOARD-STYLE QUESTIONS)
Each multiple-choice question below is modeled on clinical situations where telemetry monitoring and immediate nurse-led interpretation
determine patient safety. Read each scenario, analyze the ECG strip parameters, and select the best answer. Review the corresponding
clinical explanations, key concepts, and common pitfalls to ensure full examination preparedness.
TELEMETRY EXAM STUDY MATERIAL Page 1
,TELEMETRY COMPETENCY EXAM PREPARATION GUIDE ECG RHYTHM INTERPRETATION
Question 1 of 35
Learning Objective: Identify premature ventricular contractions (PVCs) within a normal sinus rhythm and analyze their cellular mechanisms.
During telemetry monitoring of an adult patient, the nurse observes a baseline regular sinus rhythm at 72 bpm,
interrupted by a sudden, early, wide, and bizarre QRS complex (>0.12 seconds) with a T wave deflecting in the
opposite direction of the QRS, followed by a fully compensatory pause. What is the cardiac rhythm?
ECG Strip Characteristics: Regular P-P and R-R intervals at 72 bpm, interrupted by a single, wide (0.14s) QRS complex without a preceding P wave.
The ST segment and T wave of the premature beat are discordant with the QRS vector. A full compensatory pause follows the beat.
A. Sinus tachycardia B. Sinus rhythm with PVC
C. Normal sinus rhythm D. Sinus rhythm with PAC
ANSWER : B. Sinus rhythm with PVC
Detailed Explanation: Premature Ventricular Contractions (PVCs) arise from an ectopic focus within the ventricles, bypassing the
normal His-Purkinje conduction system. This slow, cell-to-cell depolarization results in a wide, bizarre QRS complex (>0.12s) and
discordant T waves. The sinus node continues to fire on time, but the ventricles are refractory, leading to a classical fully compensatory
pause (the interval containing the PVC is equal to two normal sinus intervals). Normal sinus rhythm (C) has no premature beats; Sinus
rhythm with PAC (D) would feature a premature, narrow QRS with an abnormal preceding P wave.
Key Concept: PVCs are early ventricular beats characterized by wide QRS complexes (>0.12s), discordant T waves, and fully
compensatory pauses.
Common Mistake: Confusing a PVC with a PAC. PACs have narrow QRS complexes and are preceded by an ectopic, premature P
wave, whereas PVCs are wide and have no preceding P wave.
DIFFICULTY: Applying (Analysis/Application) | MSC: Physiological Integrity: Physiological Adaptation
Question 2 of 35
Learning Objective: Differentiate between 2nd-degree AV block Type I (Mobitz I) and other atrioventricular block classifications.
A patient admitted with acute inferior wall myocardial infarction is noted to have a telemetry pattern showing a
progressively lengthening PR interval over three consecutive beats, followed by a P wave that is not conducted to
the ventricles (a dropped QRS complex). The cycle then resets. Which of the following rhythms does this represent?
ECG Strip Characteristics: Grouped beating is present. The PR intervals progressively lengthen (0.18s, 0.24s, 0.30s) until a P wave occurs without a
subsequent QRS complex. The R-R interval containing the non-conducted P wave is less than twice the shortest cycle.
A. 3rd degree heart block B. 2nd degree AV block - Type I (Mobitz I)
C. Sinus bradycardia D. Sinus rhythm with 1st degree AV block
ANSWER : B. 2nd degree AV block - Type I (Mobitz I)
Detailed Explanation: Second-degree atrioventricular (AV) block, Type I (Mobitz I or Wenckebach), is characterized by a progressive
delay at the AV node, reflected on the ECG as a gradual lengthening of the PR interval until a sinus impulse is completely blocked (the P
wave is not followed by a QRS). Wenckebach is usually transient, benign, and associated with increased vagal tone or inferior MI.
Third-degree block (A) shows absolute AV dissociation (no relationship between P and QRS). First-degree block (D) features a
prolonged but constant PR interval (>0.20s) with no dropped beats.
Key Concept: Mobitz I (Wenckebach) features progressive PR lengthening culminating in a dropped QRS complex, after which the
cycle resets.
Common Mistake: Confusing Mobitz I with Mobitz II. In Mobitz II, the PR interval remains perfectly constant before a QRS is dropped,
whereas in Mobitz I the PR progressively prolongs.
DIFFICULTY: Analyzing (Comprehension) | MSC: Physiological Integrity: Reduction of Risk Potential
CONFIDENTIAL STUDY RESOURCE - FOR STUDENT REVIEW ONLY Page 2
, Question 3 of 35
Learning Objective: Identify ventricularly paced cardiac rhythms on telemetry and evaluate pacemaker capture.
The telemetry monitor reveals a cardiac rhythm at 70 bpm with a sharp, vertical, negative deflection (spike)
immediately preceding every QRS complex. The QRS complexes are wide (0.14 seconds) and bizarre. What is the
correct interpretation of this cardiac rhythm?
ECG Strip Characteristics: Vertical pacing spikes are visible immediately prior to every QRS complex. There are no preceding P waves. The QRS
complexes are wide and look like left bundle branch block morphology, indicating ventricular pacing.
A. Atrial fibrillation B. Paced rhythm
C. Idioventricular rhythm D. Junctional rhythm
ANSWER : B. Paced rhythm
Detailed Explanation: A ventricular paced rhythm is identified by a prominent pacemaker artifact (spike) immediately preceding the
wide QRS complex. This spike represents the electrical discharge from the pacemaker electrode in the ventricle. Because ventricular
depolarization begins at the electrode tip rather than the AV node, conduction is slow and wide, mimicking a bundle branch block.
Junctional rhythm (D) has narrow QRS complexes and either absent, inverted, or retrograde P waves. Idioventricular rhythm (C) has
wide QRS complexes but at a slow intrinsic rate of 20-40 bpm without pacing spikes.
Key Concept: Artificial ventricular pacing is characterized by a preceding electrical spike and a wide, bizarre QRS complex representing
pacemaker-induced depolarization.
Common Mistake: Misininterpreting a paced rhythm as ventricular tachycardia (VT) because of the wide QRS. Looking closely for the
precursor spike is vital to prevent inappropriate clinical alerts.
DIFFICULTY: Understanding (Comprehension) | MSC: Physiological Integrity: Reduction of Risk Potential
Question 4 of 35
Learning Objective: Identify atrial fibrillation with rapid ventricular response (RVR) and formulate urgent management priorities.
A 74-year-old female with a history of mitral valve disease presents with severe palpitations, dyspnea, and
lightheadedness. Telemetry demonstrates an irregularly irregular rhythm with a ventricular rate of 150 bpm and no
visible, organized P waves; instead, chaotic baseline fibrillatory waves are present. Which rhythm and clinical status
are represented?
ECG Strip Characteristics: Highly irregular R-R intervals with a ventricular rate of ~150 bpm. No identifiable P waves. Baseline is wavy and chaotic
with low-amplitude fibrillatory (f) waves. QRS complexes are narrow.
A. Atrial flutter B. Sinus rhythm with PACs
C. Atrial fibrillation D. Atrial fibrillation with rapid ventricular response
ANSWER : D. Atrial fibrillation with rapid ventricular response
Detailed Explanation: This rhythm is Atrial Fibrillation with Rapid Ventricular Response (RVR) because the ventricular rate exceeds 100
bpm (specifically 150 bpm in this clinical scenario). The absolute irregularity of the R-R intervals and the lack of discrete, uniform P
waves indicate chaotic, disorganized atrial depolarization. Rapid ventricular response reduces diastolic filling time and stroke volume,
leading to acute symptoms of dyspnea, hypotension, and lightheadedness. Regular Atrial Fibrillation (C) usually implies a controlled
ventricular rate of <100 bpm.
Key Concept: Atrial fibrillation with RVR is defined by an irregularly irregular rhythm, absent P waves, a fibrillatory baseline, and a
ventricular rate exceeding 100 bpm.
Common Mistake: Failing to distinguish between controlled atrial fibrillation (<100 bpm) and atrial fibrillation with RVR (>100 bpm). The
presence of RVR dictates urgent rate-control interventions (e.g., beta-blockers, diltiazem).
DIFFICULTY: Applying (Clinical Reasoning) | MSC: Physiological Integrity: Physiological Adaptation
TELEMETRY COMPETENCY
Comprehensive Clinical Test Bank & ECG Study Guide
SECTION I: THE 6-STEP SYSTEMATIC ECG INTERPRETATION METHOD
To consistently interpret cardiac rhythms and prevent errors on clinical examinations or in acute care telemetry settings, practitioners must
use a highly disciplined, systematic approach. Before analyzing individual dysrhythmias, apply the following 6-step method to every strip:
Step Measurement & Clinical Analysis
1. Ventricular Rate Count the number of QRS complexes in a 6-second strip and multiply by 10 (or use the 1500 method for
regular rhythms: 1500 divided by the number of small boxes between R waves). Normal is 60-100 bpm,
<60 is bradycardia, and >100 is tachycardia.
2. Rhythm Regularity Measure the R-R and P-P intervals across the strip. Rhythms are classified as regular, regularly irregular
(recurrent pattern of irregularity), or irregularly irregular (absolute chaos with no pattern, characteristic of
Atrial Fibrillation).
3. P Wave Morphology Examine Lead II for upright, rounded, identical P waves preceding each QRS complex. Ectopic atria show
inverted or abnormal P waves (PACs). Flutter displays saw-tooth (F) waves, while Fibrillation displays
chaotic (f) baseline waves.
4. P-R Interval (PRI) Measure from the start of the P wave to the beginning of the QRS. Normal is 0.12 to 0.20 seconds (3 to 5
small boxes). A constant PRI >0.20s indicates a first-degree AV block. Progressively lengthening PRI
indicates Wenckebach (Mobitz I). Constant PRI with dropped QRS indicates Mobitz II.
5. QRS Complex Duration Measure from the start of the Q1 or R wave to the end of the S wave. Normal is under 0.12 seconds
(under 3 small boxes). Wide QRS (>0.12s) indicates a ventricular origin (PVC, VT, paced ventricular
beats) or bundle branch block.
6. ST-T Segment & T Wave Analyze the ST segment for elevation or depression relative to the TP baseline (indicating acute
ischemia/infarction). Check T wave direction—T waves deflecting in the opposite direction of the QRS
(discordance) are common in PVCs and VT.
SECTION II: COMPETENCY TEST BANK (35 BOARD-STYLE QUESTIONS)
Each multiple-choice question below is modeled on clinical situations where telemetry monitoring and immediate nurse-led interpretation
determine patient safety. Read each scenario, analyze the ECG strip parameters, and select the best answer. Review the corresponding
clinical explanations, key concepts, and common pitfalls to ensure full examination preparedness.
TELEMETRY EXAM STUDY MATERIAL Page 1
,TELEMETRY COMPETENCY EXAM PREPARATION GUIDE ECG RHYTHM INTERPRETATION
Question 1 of 35
Learning Objective: Identify premature ventricular contractions (PVCs) within a normal sinus rhythm and analyze their cellular mechanisms.
During telemetry monitoring of an adult patient, the nurse observes a baseline regular sinus rhythm at 72 bpm,
interrupted by a sudden, early, wide, and bizarre QRS complex (>0.12 seconds) with a T wave deflecting in the
opposite direction of the QRS, followed by a fully compensatory pause. What is the cardiac rhythm?
ECG Strip Characteristics: Regular P-P and R-R intervals at 72 bpm, interrupted by a single, wide (0.14s) QRS complex without a preceding P wave.
The ST segment and T wave of the premature beat are discordant with the QRS vector. A full compensatory pause follows the beat.
A. Sinus tachycardia B. Sinus rhythm with PVC
C. Normal sinus rhythm D. Sinus rhythm with PAC
ANSWER : B. Sinus rhythm with PVC
Detailed Explanation: Premature Ventricular Contractions (PVCs) arise from an ectopic focus within the ventricles, bypassing the
normal His-Purkinje conduction system. This slow, cell-to-cell depolarization results in a wide, bizarre QRS complex (>0.12s) and
discordant T waves. The sinus node continues to fire on time, but the ventricles are refractory, leading to a classical fully compensatory
pause (the interval containing the PVC is equal to two normal sinus intervals). Normal sinus rhythm (C) has no premature beats; Sinus
rhythm with PAC (D) would feature a premature, narrow QRS with an abnormal preceding P wave.
Key Concept: PVCs are early ventricular beats characterized by wide QRS complexes (>0.12s), discordant T waves, and fully
compensatory pauses.
Common Mistake: Confusing a PVC with a PAC. PACs have narrow QRS complexes and are preceded by an ectopic, premature P
wave, whereas PVCs are wide and have no preceding P wave.
DIFFICULTY: Applying (Analysis/Application) | MSC: Physiological Integrity: Physiological Adaptation
Question 2 of 35
Learning Objective: Differentiate between 2nd-degree AV block Type I (Mobitz I) and other atrioventricular block classifications.
A patient admitted with acute inferior wall myocardial infarction is noted to have a telemetry pattern showing a
progressively lengthening PR interval over three consecutive beats, followed by a P wave that is not conducted to
the ventricles (a dropped QRS complex). The cycle then resets. Which of the following rhythms does this represent?
ECG Strip Characteristics: Grouped beating is present. The PR intervals progressively lengthen (0.18s, 0.24s, 0.30s) until a P wave occurs without a
subsequent QRS complex. The R-R interval containing the non-conducted P wave is less than twice the shortest cycle.
A. 3rd degree heart block B. 2nd degree AV block - Type I (Mobitz I)
C. Sinus bradycardia D. Sinus rhythm with 1st degree AV block
ANSWER : B. 2nd degree AV block - Type I (Mobitz I)
Detailed Explanation: Second-degree atrioventricular (AV) block, Type I (Mobitz I or Wenckebach), is characterized by a progressive
delay at the AV node, reflected on the ECG as a gradual lengthening of the PR interval until a sinus impulse is completely blocked (the P
wave is not followed by a QRS). Wenckebach is usually transient, benign, and associated with increased vagal tone or inferior MI.
Third-degree block (A) shows absolute AV dissociation (no relationship between P and QRS). First-degree block (D) features a
prolonged but constant PR interval (>0.20s) with no dropped beats.
Key Concept: Mobitz I (Wenckebach) features progressive PR lengthening culminating in a dropped QRS complex, after which the
cycle resets.
Common Mistake: Confusing Mobitz I with Mobitz II. In Mobitz II, the PR interval remains perfectly constant before a QRS is dropped,
whereas in Mobitz I the PR progressively prolongs.
DIFFICULTY: Analyzing (Comprehension) | MSC: Physiological Integrity: Reduction of Risk Potential
CONFIDENTIAL STUDY RESOURCE - FOR STUDENT REVIEW ONLY Page 2
, Question 3 of 35
Learning Objective: Identify ventricularly paced cardiac rhythms on telemetry and evaluate pacemaker capture.
The telemetry monitor reveals a cardiac rhythm at 70 bpm with a sharp, vertical, negative deflection (spike)
immediately preceding every QRS complex. The QRS complexes are wide (0.14 seconds) and bizarre. What is the
correct interpretation of this cardiac rhythm?
ECG Strip Characteristics: Vertical pacing spikes are visible immediately prior to every QRS complex. There are no preceding P waves. The QRS
complexes are wide and look like left bundle branch block morphology, indicating ventricular pacing.
A. Atrial fibrillation B. Paced rhythm
C. Idioventricular rhythm D. Junctional rhythm
ANSWER : B. Paced rhythm
Detailed Explanation: A ventricular paced rhythm is identified by a prominent pacemaker artifact (spike) immediately preceding the
wide QRS complex. This spike represents the electrical discharge from the pacemaker electrode in the ventricle. Because ventricular
depolarization begins at the electrode tip rather than the AV node, conduction is slow and wide, mimicking a bundle branch block.
Junctional rhythm (D) has narrow QRS complexes and either absent, inverted, or retrograde P waves. Idioventricular rhythm (C) has
wide QRS complexes but at a slow intrinsic rate of 20-40 bpm without pacing spikes.
Key Concept: Artificial ventricular pacing is characterized by a preceding electrical spike and a wide, bizarre QRS complex representing
pacemaker-induced depolarization.
Common Mistake: Misininterpreting a paced rhythm as ventricular tachycardia (VT) because of the wide QRS. Looking closely for the
precursor spike is vital to prevent inappropriate clinical alerts.
DIFFICULTY: Understanding (Comprehension) | MSC: Physiological Integrity: Reduction of Risk Potential
Question 4 of 35
Learning Objective: Identify atrial fibrillation with rapid ventricular response (RVR) and formulate urgent management priorities.
A 74-year-old female with a history of mitral valve disease presents with severe palpitations, dyspnea, and
lightheadedness. Telemetry demonstrates an irregularly irregular rhythm with a ventricular rate of 150 bpm and no
visible, organized P waves; instead, chaotic baseline fibrillatory waves are present. Which rhythm and clinical status
are represented?
ECG Strip Characteristics: Highly irregular R-R intervals with a ventricular rate of ~150 bpm. No identifiable P waves. Baseline is wavy and chaotic
with low-amplitude fibrillatory (f) waves. QRS complexes are narrow.
A. Atrial flutter B. Sinus rhythm with PACs
C. Atrial fibrillation D. Atrial fibrillation with rapid ventricular response
ANSWER : D. Atrial fibrillation with rapid ventricular response
Detailed Explanation: This rhythm is Atrial Fibrillation with Rapid Ventricular Response (RVR) because the ventricular rate exceeds 100
bpm (specifically 150 bpm in this clinical scenario). The absolute irregularity of the R-R intervals and the lack of discrete, uniform P
waves indicate chaotic, disorganized atrial depolarization. Rapid ventricular response reduces diastolic filling time and stroke volume,
leading to acute symptoms of dyspnea, hypotension, and lightheadedness. Regular Atrial Fibrillation (C) usually implies a controlled
ventricular rate of <100 bpm.
Key Concept: Atrial fibrillation with RVR is defined by an irregularly irregular rhythm, absent P waves, a fibrillatory baseline, and a
ventricular rate exceeding 100 bpm.
Common Mistake: Failing to distinguish between controlled atrial fibrillation (<100 bpm) and atrial fibrillation with RVR (>100 bpm). The
presence of RVR dictates urgent rate-control interventions (e.g., beta-blockers, diltiazem).
DIFFICULTY: Applying (Clinical Reasoning) | MSC: Physiological Integrity: Physiological Adaptation
