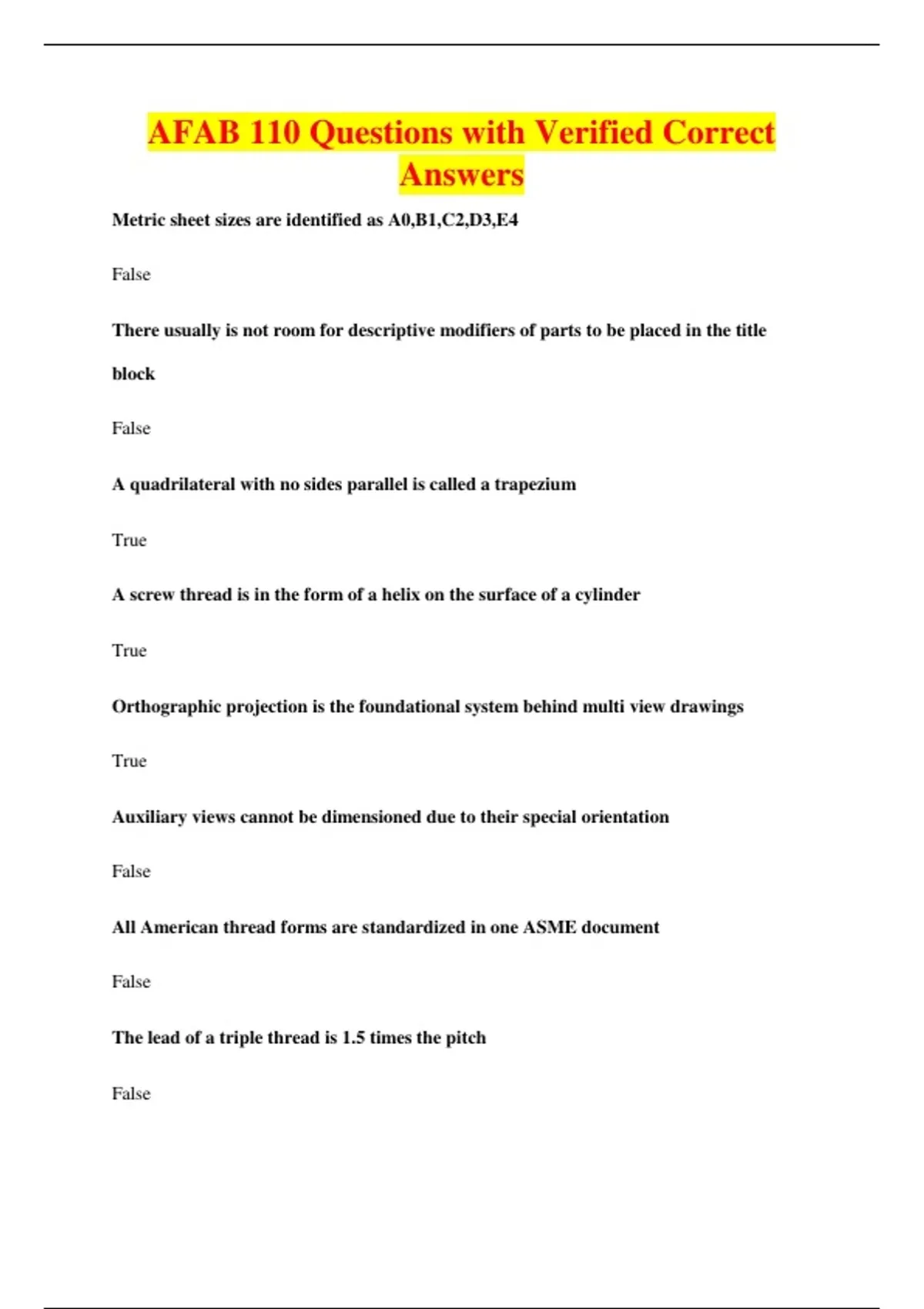

AFAB 110 Questions with Verified Correct
Answers
Metric sheet sizes are identified as A0,B1,C2,D3,E4
False
There usually is not room for descriptive modifiers of parts to be placed in the title
block
False
A quadrilateral with no sides parallel is called a trapezium
True
A screw thread is in the form of a helix on the surface of a cylinder
True
Orthographic projection is the foundational system behind multi view drawings
True
Auxiliary views cannot be dimensioned due to their special orientation
False
All American thread forms are standardized in one ASME document
False
The lead of a triple thread is 1.5 times the pitch
False
, Common way of creating copies involved a light process and a special print paper
coated with blank..compound
Diazo
Electronic print or drawings that is basically composed of tiny pixels or dots not vectors
is considered a
Easter image
Voluntary guideline that establishes the method of representation for prints as well as
other engineering practices is a
Standard
Identify the line below that is to be drawn thick
Cutting plane line
Most important line in an industrial print
Visible line
Line that helps the print reader analyze a section view drawing to know where the part
was sectioned is the blank..line
Cutting plane
Cutting plane lines are easily identifiable due to the appearance of a blank.. on each end
of
Arrowhead
Which is NOT the type of lines found in the dimensioning of an object
Break
Answers
Metric sheet sizes are identified as A0,B1,C2,D3,E4
False
There usually is not room for descriptive modifiers of parts to be placed in the title
block
False
A quadrilateral with no sides parallel is called a trapezium
True
A screw thread is in the form of a helix on the surface of a cylinder
True
Orthographic projection is the foundational system behind multi view drawings
True
Auxiliary views cannot be dimensioned due to their special orientation
False
All American thread forms are standardized in one ASME document
False
The lead of a triple thread is 1.5 times the pitch
False
, Common way of creating copies involved a light process and a special print paper
coated with blank..compound
Diazo
Electronic print or drawings that is basically composed of tiny pixels or dots not vectors
is considered a
Easter image
Voluntary guideline that establishes the method of representation for prints as well as
other engineering practices is a
Standard
Identify the line below that is to be drawn thick
Cutting plane line
Most important line in an industrial print
Visible line
Line that helps the print reader analyze a section view drawing to know where the part
was sectioned is the blank..line
Cutting plane
Cutting plane lines are easily identifiable due to the appearance of a blank.. on each end
of
Arrowhead
Which is NOT the type of lines found in the dimensioning of an object
Break
