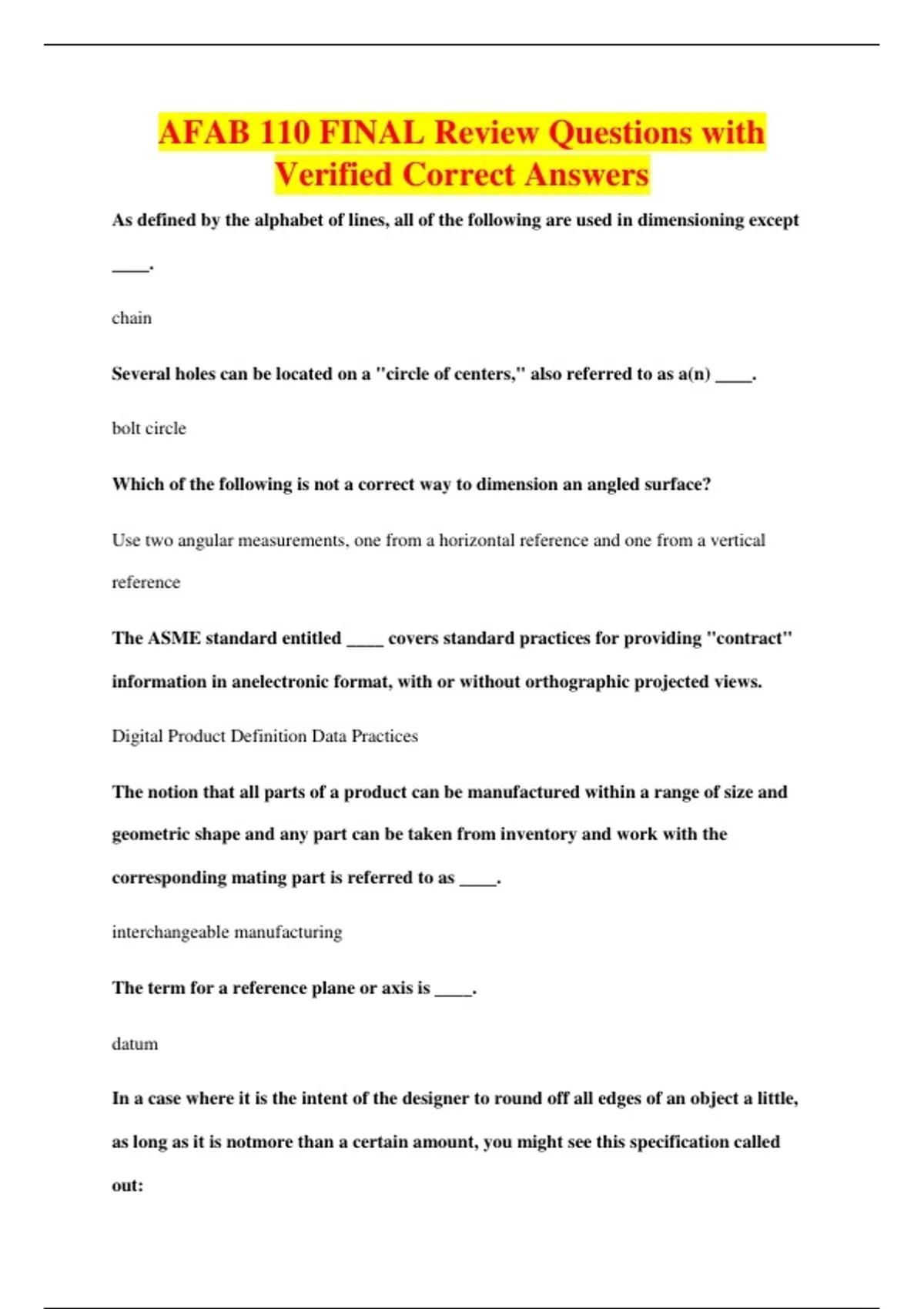

AFAB 110 FINAL Review Questions with
Verified Correct Answers
As defined by the alphabet of lines, all of the following are used in dimensioning except
____.
chain
Several holes can be located on a "circle of centers," also referred to as a(n) ____.
bolt circle
Which of the following is not a correct way to dimension an angled surface?
Use two angular measurements, one from a horizontal reference and one from a vertical
reference
The ASME standard entitled ____ covers standard practices for providing "contract"
information in anelectronic format, with or without orthographic projected views.
Digital Product Definition Data Practices
The notion that all parts of a product can be manufactured within a range of size and
geometric shape and any part can be taken from inventory and work with the
corresponding mating part is referred to as ____.
interchangeable manufacturing
The term for a reference plane or axis is ____.
datum
In a case where it is the intent of the designer to round off all edges of an object a little,
as long as it is notmore than a certain amount, you might see this specification called
out:
, R.03 MAX
Which of the following classes of fit is fictitious?
interference
If an engineer specifies an RC3 class fit for a 1" hole application, which of the following
is the MMC of thehole, assuming the basic hole system is used?
1.0000
A local note may use a ____ that associates the indicated feature to one of the numbered
general notes.
flag
Three of the following terms are similar. Which term does not belong?
broach
Beveled edges on parts are called ____.
chamfers
A pattern of ridges and grooves cut into a cylindrical surface for the purpose of
providing a grip is called a
knurl
special machine using a cutter that progressively "punches" a shape with a series of
cutting teeth is called a
broach
Which of the following terms is not covered by surface texture specifications?
flatness
Verified Correct Answers
As defined by the alphabet of lines, all of the following are used in dimensioning except
____.
chain
Several holes can be located on a "circle of centers," also referred to as a(n) ____.
bolt circle
Which of the following is not a correct way to dimension an angled surface?
Use two angular measurements, one from a horizontal reference and one from a vertical
reference
The ASME standard entitled ____ covers standard practices for providing "contract"
information in anelectronic format, with or without orthographic projected views.
Digital Product Definition Data Practices
The notion that all parts of a product can be manufactured within a range of size and
geometric shape and any part can be taken from inventory and work with the
corresponding mating part is referred to as ____.
interchangeable manufacturing
The term for a reference plane or axis is ____.
datum
In a case where it is the intent of the designer to round off all edges of an object a little,
as long as it is notmore than a certain amount, you might see this specification called
out:
, R.03 MAX
Which of the following classes of fit is fictitious?
interference
If an engineer specifies an RC3 class fit for a 1" hole application, which of the following
is the MMC of thehole, assuming the basic hole system is used?
1.0000
A local note may use a ____ that associates the indicated feature to one of the numbered
general notes.
flag
Three of the following terms are similar. Which term does not belong?
broach
Beveled edges on parts are called ____.
chamfers
A pattern of ridges and grooves cut into a cylindrical surface for the purpose of
providing a grip is called a
knurl
special machine using a cutter that progressively "punches" a shape with a series of
cutting teeth is called a
broach
Which of the following terms is not covered by surface texture specifications?
flatness
