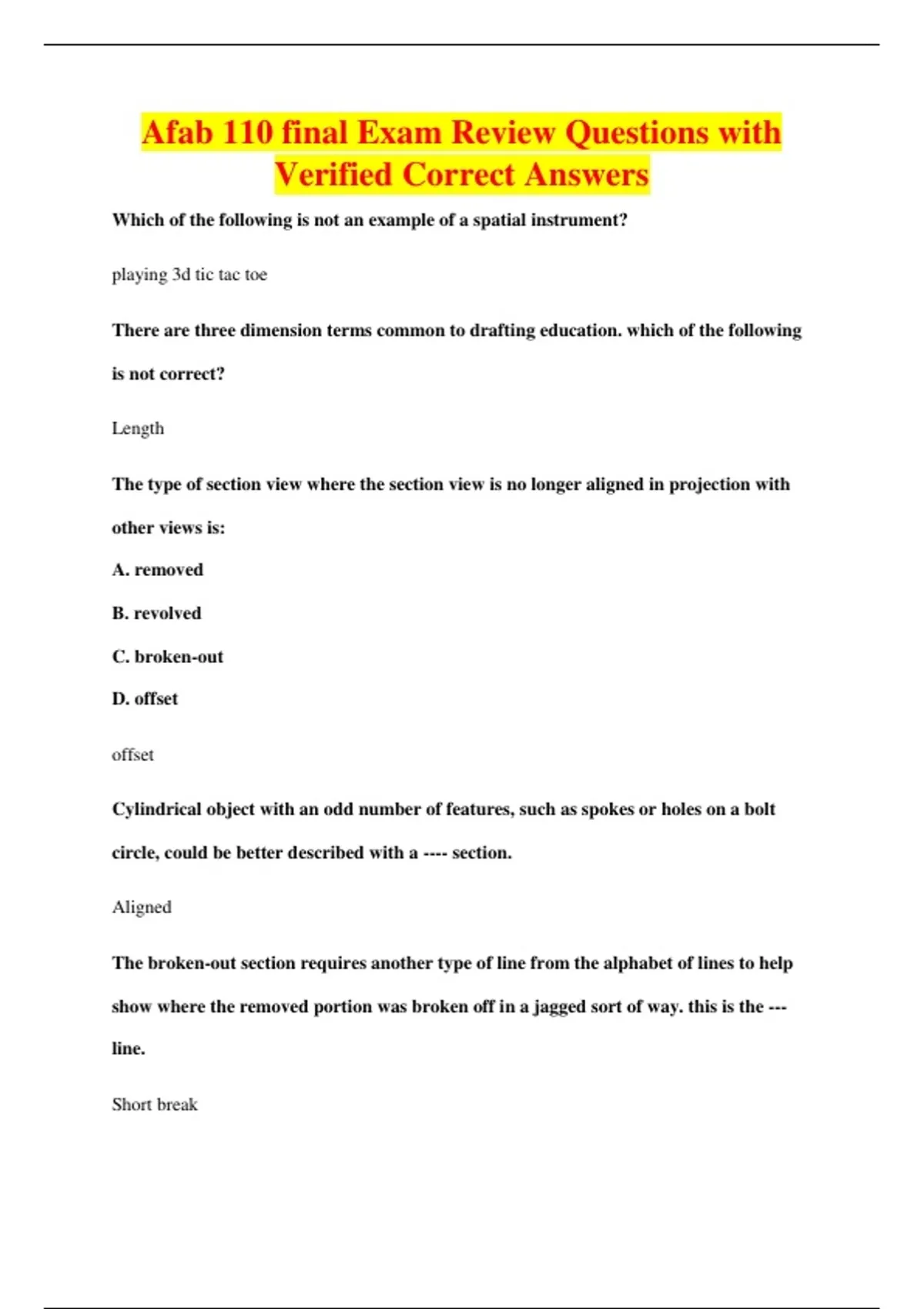

Afab 110 final Exam Review Questions with
Verified Correct Answers
Which of the following is not an example of a spatial instrument?
playing 3d tic tac toe
There are three dimension terms common to drafting education. which of the following
is not correct?
Length
The type of section view where the section view is no longer aligned in projection with
other views is:
A. removed
B. revolved
C. broken-out
D. offset
offset
Cylindrical object with an odd number of features, such as spokes or holes on a bolt
circle, could be better described with a ---- section.
Aligned
The broken-out section requires another type of line from the alphabet of lines to help
show where the removed portion was broken off in a jagged sort of way. this is the ---
line.
Short break
, When a --- section is created, it can be overlaid on the view or short break lines can be
used on each side of th e view to seperate it from the other visible lines.
Revolved
Type of section wherein the section view is probably located out of projection with the
other regular or auxiliary views is a --- section.
Removed
There is a conventional practice that allows the drafter to leave a feature unhatched,
even though the cutting-plane line passes through it. Which of the following is not
relevent to this conventional practice?
Hole
If there is a large area that needs to receive section lines, the ____ section allows for the
section lines to only be applied around the perimeter.
outline
In assembly drawings, there may be some parts that do not receive section lines, but
rather the area cut by the cutting-plane line is filled-in solid. Which of the following is
not relevant to this conventional practice?
Springs
T/F each type of line in the standards has one, and only one, option for its appearance.
False
t/f In recent years, the standards have only recommended two line weights: thick and
thin.
Verified Correct Answers
Which of the following is not an example of a spatial instrument?
playing 3d tic tac toe
There are three dimension terms common to drafting education. which of the following
is not correct?
Length
The type of section view where the section view is no longer aligned in projection with
other views is:
A. removed
B. revolved
C. broken-out
D. offset
offset
Cylindrical object with an odd number of features, such as spokes or holes on a bolt
circle, could be better described with a ---- section.
Aligned
The broken-out section requires another type of line from the alphabet of lines to help
show where the removed portion was broken off in a jagged sort of way. this is the ---
line.
Short break
, When a --- section is created, it can be overlaid on the view or short break lines can be
used on each side of th e view to seperate it from the other visible lines.
Revolved
Type of section wherein the section view is probably located out of projection with the
other regular or auxiliary views is a --- section.
Removed
There is a conventional practice that allows the drafter to leave a feature unhatched,
even though the cutting-plane line passes through it. Which of the following is not
relevent to this conventional practice?
Hole
If there is a large area that needs to receive section lines, the ____ section allows for the
section lines to only be applied around the perimeter.
outline
In assembly drawings, there may be some parts that do not receive section lines, but
rather the area cut by the cutting-plane line is filled-in solid. Which of the following is
not relevant to this conventional practice?
Springs
T/F each type of line in the standards has one, and only one, option for its appearance.
False
t/f In recent years, the standards have only recommended two line weights: thick and
thin.
