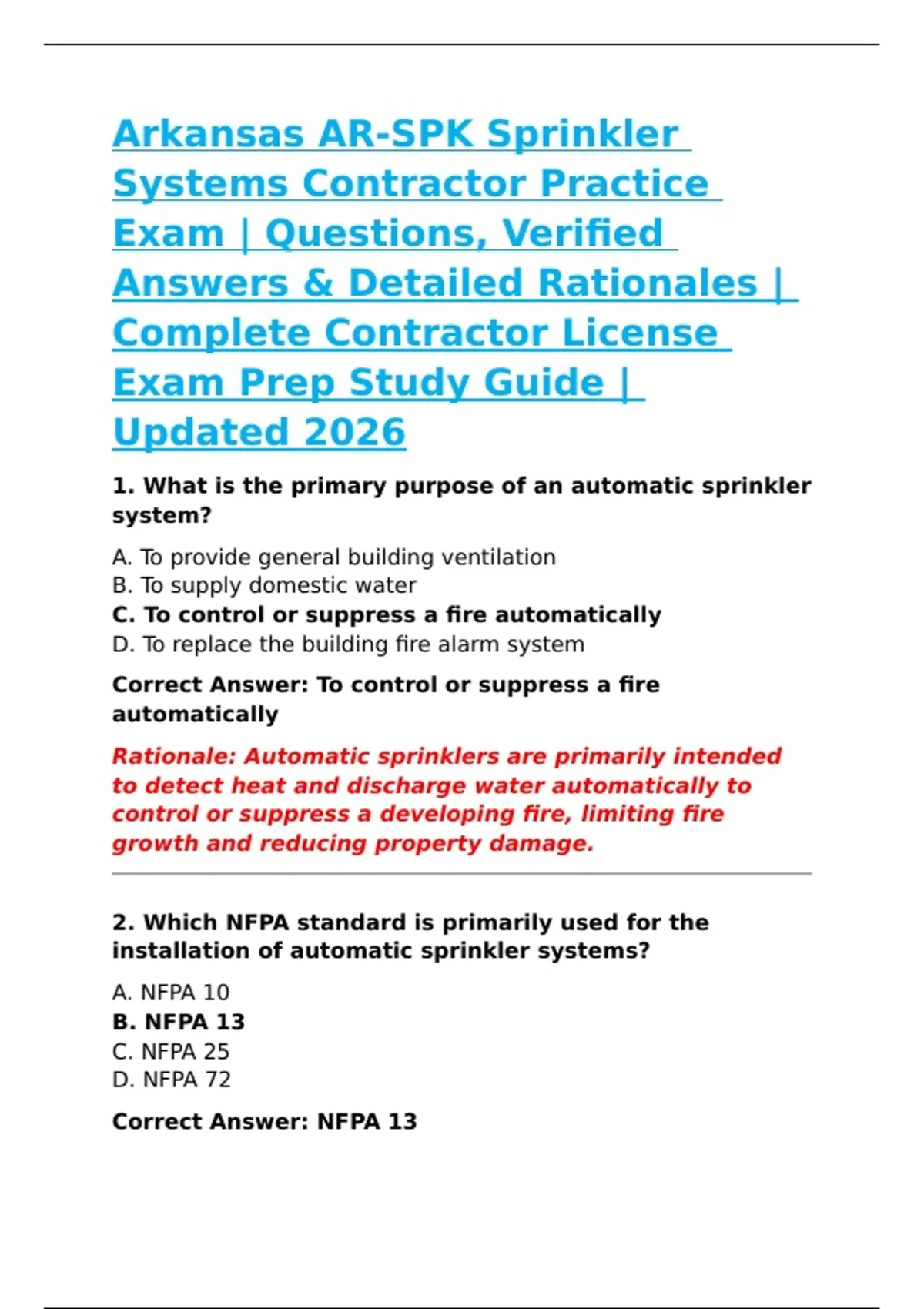

Arkansas AR-SPK Sprinkler
Systems Contractor Practice
Exam | Questions, Verified
Answers & Detailed Rationales |
Complete Contractor License
Exam Prep Study Guide |
Updated 2026
1. What is the primary purpose of an automatic sprinkler
system?
A. To provide general building ventilation
B. To supply domestic water
C. To control or suppress a fire automatically
D. To replace the building fire alarm system
Correct Answer: To control or suppress a fire
automatically
Rationale: Automatic sprinklers are primarily intended
to detect heat and discharge water automatically to
control or suppress a developing fire, limiting fire
growth and reducing property damage.
2. Which NFPA standard is primarily used for the
installation of automatic sprinkler systems?
A. NFPA 10
B. NFPA 13
C. NFPA 25
D. NFPA 72
Correct Answer: NFPA 13
,Rationale: NFPA 13 is the principal standard for the
design and installation of automatic sprinkler systems
in many commercial and industrial applications.
3. Which sprinkler system normally contains water in
the piping at all times?
A. Wet-pipe system
B. Dry-pipe system
C. Deluge system
D. Preaction system
Correct Answer: Wet-pipe system
Rationale: A wet-pipe system maintains water
throughout the sprinkler piping. When a sprinkler
operates, water is immediately discharged.
4. Which system is commonly used where portions of
the piping are exposed to freezing temperatures?
A. Wet-pipe system
B. Dry-pipe system
C. Deluge system
D. Foam system
Correct Answer: Dry-pipe system
Rationale: Dry-pipe systems normally contain
pressurized air or nitrogen instead of water in the
system piping, reducing the risk of freezing.
5. What holds water back from entering a dry-pipe
sprinkler system?
A. Alarm check valve
B. Dry-pipe valve
C. Butterfly valve
D. Test-and-drain valve
,Correct Answer: Dry-pipe valve
Rationale: The dry-pipe valve separates the water
supply from the pressurized air or nitrogen in the
system piping until the valve trips.
6. What is a major characteristic of a deluge system?
A. Every sprinkler contains a closed heat-sensitive element
B. The system piping is always filled with water
C. Water is released through open sprinklers or nozzles
when the deluge valve operates
D. Only one sprinkler can discharge
Correct Answer: Water is released through open
sprinklers or nozzles when the deluge valve operates
Rationale: Deluge systems use open sprinklers or
nozzles, and operation of the deluge valve permits
water to discharge throughout the protected area
simultaneously.
7. Which system uses a detection system to initiate
operation before water is admitted into the sprinkler
piping?
A. Wet-pipe system
B. Dry-pipe system
C. Preaction system
D. Standpipe system
Correct Answer: Preaction system
Rationale: Preaction systems use a separate detection
system to control a valve and admit water into the
sprinkler piping before sprinkler operation, depending
on the system arrangement.
, 8. What is the primary function of a sprinkler's heat-
sensitive element?
A. Measure water pressure
B. Detect smoke
C. Open the sprinkler when the specified temperature is
reached
D. Operate the fire pump
Correct Answer: Open the sprinkler when the specified
temperature is reached
Rationale: A fusible element or glass bulb responds to
heat and releases the sprinkler's sealing mechanism
when its rated operating temperature is reached.
9. Which sprinkler orientation generally discharges
water downward from below the ceiling?
A. Upright
B. Pendent
C. Horizontal sidewall
D. Concealed vertical
Correct Answer: Pendent
Rationale: Pendent sprinklers are installed with the
deflector below the sprinkler outlet and discharge water
downward.
10. Which sprinkler is generally installed above the
piping with the deflector positioned to discharge water
downward?
A. Upright sprinkler
B. Pendent sprinkler
C. Sidewall sprinkler
D. Concealed sprinkler
Correct Answer: Upright sprinkler
